DIY Pull Up Bar Wall Mounted: Sturdy Installation Guide: Fast-Track Guide to Building Your Own Wall-Mounted Pull Up Bar

I’ve installed more wall-mounted pull-up bars than I can count, and the difference between a shaky setup and a lifetime anchor often comes down to three things: finding real studs, using the right fasteners, and respecting the forces at play. A typical adult’s pull-up generates dynamic loads 1.5–2.0× body weight; that means a 180 lb user can deliver 270–360 lb peak loads to the wall with kipping or small swings. Steelcase research notes that small, repeated dynamic forces compound wear on fixings and substrates over time, amplifying the risk if installation is marginal. Add lighting and ceiling height constraints, and a clean, ergonomic setup becomes more than a drill-and-go job.

For context, WELL v2 emphasizes ergonomic safety and movement-friendly environments, which translate into providing adequate clearances (at least 20–24 inches in front of the bar), controlled glare, and safe reach ranges. I also like to cross-check space planning against real-world behavior patterns: shoulder-width grips require about 36–42 inches of bar length for most users, and ceiling height should allow at least 12–16 inches of head clearance above the bar for comfortable chin-over-bar reps. Reference frameworks from WELL v2 and Steelcase research inform these clearances and movement zones.

Plan the Location and Clearances

Start with a straight wall, no obstructions, and enough headroom. Target a bar centerline at roughly 7 ft (213 cm) for users 5'7"–6'0"; shorter athletes can go 6'6"–6'10"; taller users may need 7'2"+ if ceilings allow. Ensure 12–16 inches above the bar for head clearance and at least 24 inches of clear floor depth. Keep the bar a minimum of 12 inches away from corners or perpendicular walls to reduce knuckle collisions and allow neutral scapular movement. If you’re planning other equipment, map adjacencies and swing radius. If you want to pre-visualize spacing or test alternate wall options, a room layout tool can help you simulate sightlines and reach zones: room layout tool.

Understand Your Wall Type

Most residential walls are wood stud with 1/2" drywall. Less common are metal stud partitions or solid masonry. For a pull-up bar, wood studs or solid masonry are preferred. Avoid anchoring only to drywall or hollow metal studs. If you have metal studs, consider spanning to multiple studs with a structural backer board (e.g., 3/4" plywood + toggle into stud flanges) or switch to a ceiling-mount solution anchored into joists.

Tools and Hardware I Trust

- Stud finder (magnetic plus electronic for confirmation)

- 48" level and tape measure

- 3/16" and 5/16" drill bits (wood), masonry bit if needed

- Lag screws: 3/8" diameter x 3–4" length for wood studs (grade 5 or better)

- Washers sized to lag screws

- 3/4" exterior-grade plywood backer (optional but recommended for load distribution)

- Socket wrench, impact driver (careful with over-torque)

- Pencil, painter’s tape

- Safety glasses and dust mask

Locate and Verify Studs

Use both a magnetic stud finder (to catch screw heads in the drywall) and an electronic unit. Mark stud edges; your lag screws should land centerline. Typical studs are 16" on center; sometimes 24". Confirm by driving a small pilot at one expected stud center. If you miss solid wood, patch and recheck. For a wall-mounted frame with two vertical plates, you want at least two studs. Three studs offer better distribution if your bracket allows.

Backer Board Strategy for Load Distribution

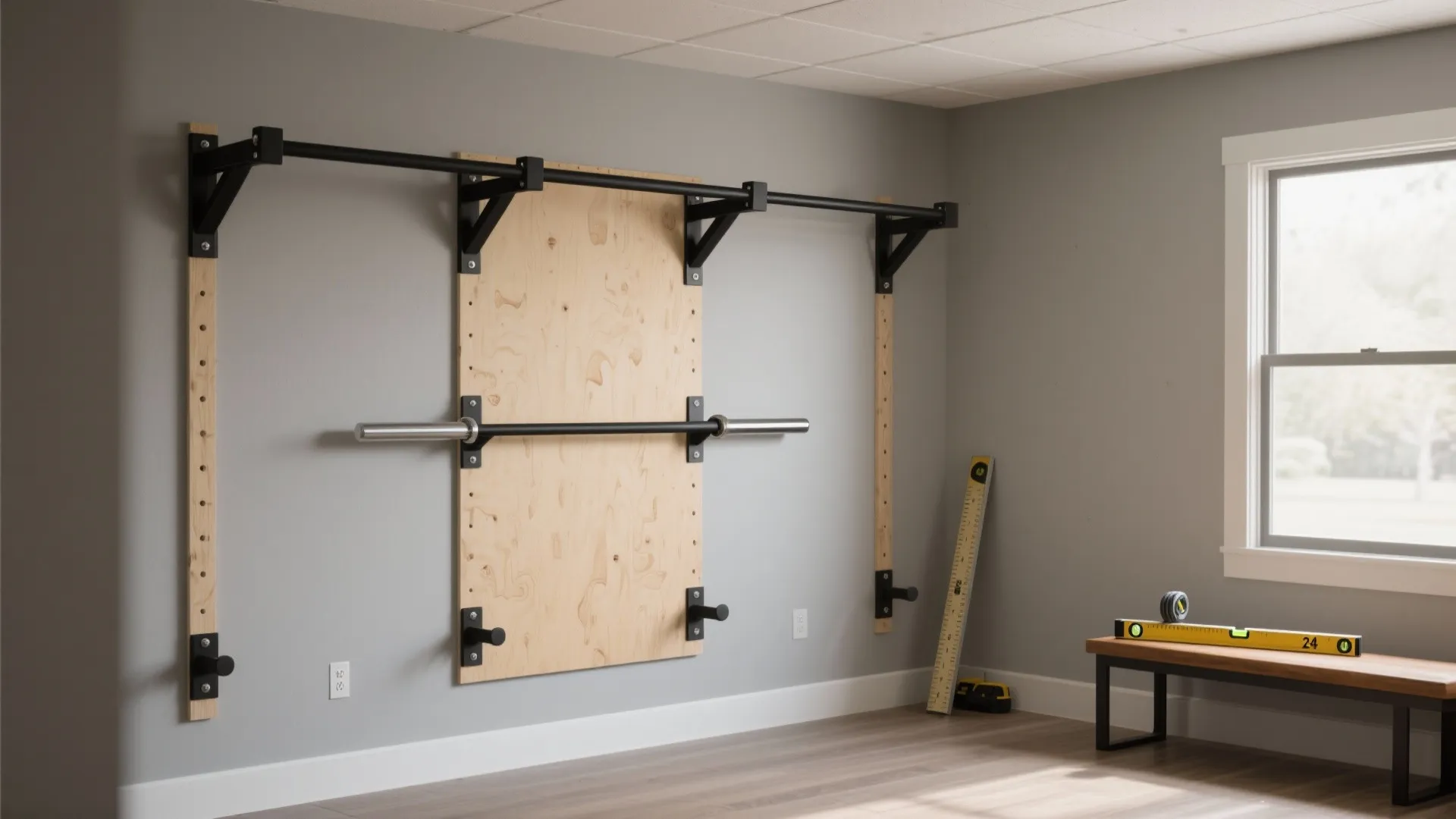

To minimize crushing the drywall and to reduce risk of tear-out under dynamic load, I frequently mount a 3/4" plywood backer board first, spanning two or three studs. Paint it to match the wall or leave natural with a clear coat. Anchor the backer with 3/8" x 3–4" lags into each stud, two per stud vertically. Then mount the pull-up bar’s brackets to the backer with through-bolts and washers (or additional lags into studs through the backer). This spreads load and keeps the hardware tight over time.

Set Your Heights and Hole Layout

Dry-fit the bar bracket on the wall, mark the top holes with a level, then measure down for the lower holes to match the bracket pattern. If you’re using a backer board, pre-drill the board on sawhorses, then hold it to the wall and transfer hole marks for stud centers. Keep at least 2" from the board’s edges to avoid splitting and use washers under every lag head.

Fastener Selection and Pilot Holes

- Wood studs: 3/8" lags, pre-drill a 1/4" pilot through drywall into the stud to prevent splitting and ease driving. Depth should be 2.5–3" into solid wood beyond the drywall/backer. Use flat washers under lag heads.

- Masonry: Sleeve anchors or wedge anchors sized to bracket holes. Drill with a hammer drill using the manufacturer’s bit size. Vacuum dust before setting anchors.

- Avoid generic plastic wall plugs; they are not suitable for pull-up loads.

Torque and Tightening

Drive lags until snug; do not over-torque. Wood compression can loosen over time if you crush fibers on day one. I often hand-finish with a socket after using an impact driver on low setting. Re-check tightness after the first week and again at 30 days; wood will relax slightly.

Spacing From Wall and Grip Width

A 12–20" standoff from wall is typical. If you train with kipping or knees-to-bar, aim for 18–20" to protect your shins and allow a neutral kip arc. For strict pull-ups only, 12–14" is comfortable. For width, 42–48" bars cover most scapular mechanics without forcing internal rotation. If your model has multiple grips, ensure they do not push your elbows into the wall at full flexion.

Lighting, Color, and Comfort

Install near even, low-glare lighting. I aim for 300–500 lux general illumination with 4000–5000K neutral white to keep contrast high without harshness. Avoid downlights directly above the bar that cause veiling reflections on metal and strain the eyes. Matte finishes on the bar reduce glare; a low-sheen wall paint behind the bar improves visual comfort.

Acoustics and Vibration

Dynamic sets can transmit vibration into the wall. The plywood backer helps distribute load and reduce drumhead resonance. Rubber washers or thin neoprene gaskets between metal brackets and the board can slightly dampen impact noise without compromising rigidity.

Testing the Install

Before the first full pull-up, hang from the bar with bent knees and gently bounce at 25–50% body weight. Listen for creaks, watch for bracket movement, and retighten hardware if needed. Progress to full body weight with strict dead hangs before dynamic motions. If anything shifts, stop and re-evaluate fastener engagement and stud alignment.

Maintenance

Every 3–6 months, check all lags and bolts, especially if you do kipping or muscle-ups. Look for crushed drywall, dented paint, or bracket creep—signals to add a backer or re-anchor. Wipe chalk and sweat off the bar to prevent surface corrosion; a light silicone-free protectant keeps the grip consistent.

Common Pitfalls I See

- Anchoring into drywall alone or missing the stud centerline

- Using undersized lags (1/4" instead of 3/8")

- Placing the bar too close to the ceiling, leaving no headroom

- Over-torquing lags and crushing the stud fibers

- Ignoring lighting; glare can subtly discourage longer workouts

FAQ

Q1: Can I mount a pull-up bar on metal studs?

A: Not directly for dynamic loads. If you must, span with a 3/4" plywood backer across three studs and use specialty anchors rated for metal studs, or switch to a ceiling mount anchored into wood joists.

Q2: How high should I mount the bar?

A: As a rule, set it so you can hang with feet off the floor by 2–4" without bending knees, and keep 12–16" headroom above the bar. Typical ranges are 6'6"–7'2" depending on user height and ceiling.

Q3: What diameter bar is most comfortable?

A: 28–32 mm (about 1.1–1.25") suits most hands, balancing grip security and forearm fatigue. Thicker bars challenge grip; thinner bars can bite.

Q4: Do I need a plywood backer?

A: It’s not mandatory if your brackets hit two solid wood studs with 3/8" lags, but a backer meaningfully spreads load, reduces drywall crushing, and keeps hardware tight under dynamic work.

Q5: Which fasteners are best for wood studs?

A: 3/8" diameter lag screws (grade 5 or better) at 3–4" length with washers. Pre-drill a 1/4" pilot and avoid over-torque.

Q6: How far from the wall should the bar be?

A: 12–14" for strict pull-ups; 18–20" if you kip or train toes-to-bar to protect shins and maintain a clean arc.

Q7: What about lighting near the bar?

A: Aim for 300–500 lux with neutral white (4000–5000K). Avoid downlights directly overhead to minimize glare and visual fatigue during sets.

Q8: Can I install on masonry?

A: Yes. Use sleeve or wedge anchors matched to the bracket holes. Drill with a hammer drill, clean the hole thoroughly, and follow the anchor’s torque specs.

Q9: How do I check that I hit the stud?

A: After pilot drilling, you should feel consistent resistance and see clean wood shavings. If the bit falls through or produces gypsum dust, you’re in drywall—realign before lagging.

Q10: Is kipping safe on a wall-mounted bar?

A: Only if the unit is anchored into multiple studs (or masonry) with proper fasteners and clearances. Re-check fasteners regularly due to the higher dynamic loads.

Q11: What finish should I choose for grip?

A: Matte or lightly textured powder coat balances grip and comfort. Glossy finishes can get slick with sweat and reflect glare.

Q12: How do I plan around other equipment?

A: Keep a 24–36" buffer in front and to the sides for movement. If you’re juggling racks, storage, and cardio gear, use an interior layout planner to test adjacencies and clearances before drilling.
