DIY Pull Up Bar Wall Mounted: Your Ultimate Guide: 1 Minute to Create a Wall-Mounted Pull Up Bar (No Sweat!)

I’ve built and specified more than a dozen wall-mounted pull-up bars for gyms, homes, and micro-studios, and the same rules always apply: structure, ergonomics, and finish. A clean-looking bar that flexes, rattles, or eats into your shoulders becomes a liability. Let’s engineer a setup that holds strong, fits your reach, and feels good in daily use.

For load and anchoring, I rely on baseline strength benchmarks: WELL v2 recommends clear spatial safety and user comfort practices for fitness amenities, and commercial research typically targets a static load of 300–500 lb for single-user bars. Steelcase’s workplace ergonomics research notes reduced injury risk when equipment aligns with neutral joint positions and predictable grip spans; I translate that into grip widths (16–24 in for neutral, up to 32–36 in for wide) and bar heights tailored to your anthropometrics. For broader fitness and environment guidelines, WELL (v2.wellcertified.com) is an excellent reference for safety, lighting, and user comfort in performance spaces.

Lighting and visibility are more than aesthetics. The Illuminating Engineering Society (IES) recommends task illuminance ranges around 300–500 lux for training areas to ensure clear hand placement and reduce misgrips, with glare control and consistent color temperature (around 4000K) helping users judge distance and form. A narrow beam spotlight looks cool, but I avoid it because it creates contrast glare near the bar—flat, diffuse lighting is safer.

Core Specifications

• Bar diameter: 28–32 mm for mixed-use; 32–34 mm for heavy grip training. Smaller diameters reduce forearm fatigue for beginners; larger diameters challenge grip strength.

• Bar material: Schedule 40 steel pipe or 1.25–1.5 in OD steel tubing, powder-coated or knurled steel. Smooth powder coat is kinder to hands; light texture enhances hold.

• Mounting height: Typically 90–96 in from finished floor for average users; adjust so you can dead hang with toes clear by 2–4 in.

• Grip span: Neutral grip 16–24 in; wide grip 32–36 in.

• Load target: Minimum 400 lb static capacity for single-user setups to cover dynamic loads and safety margin.

Wall Selection and Structure

I only mount to structural walls: solid concrete, CMU, or wood studs (2x4 or 2x6) with verified spacing. Stud spacing is usually 16 in on center; confirm with a stud finder and pilot test. Avoid drywall-only mounting—no toggle bolts alone. In wood-framed walls, I use 3/8 in or 1/2 in diameter lag bolts, 3.5–4.5 in length, with washers, into the center of studs. On concrete, use rated wedge anchors (3/8–1/2 in). The bracket footprint should distribute load across at least two (ideally three) studs or four anchor points on masonry.

Bracket and Geometry

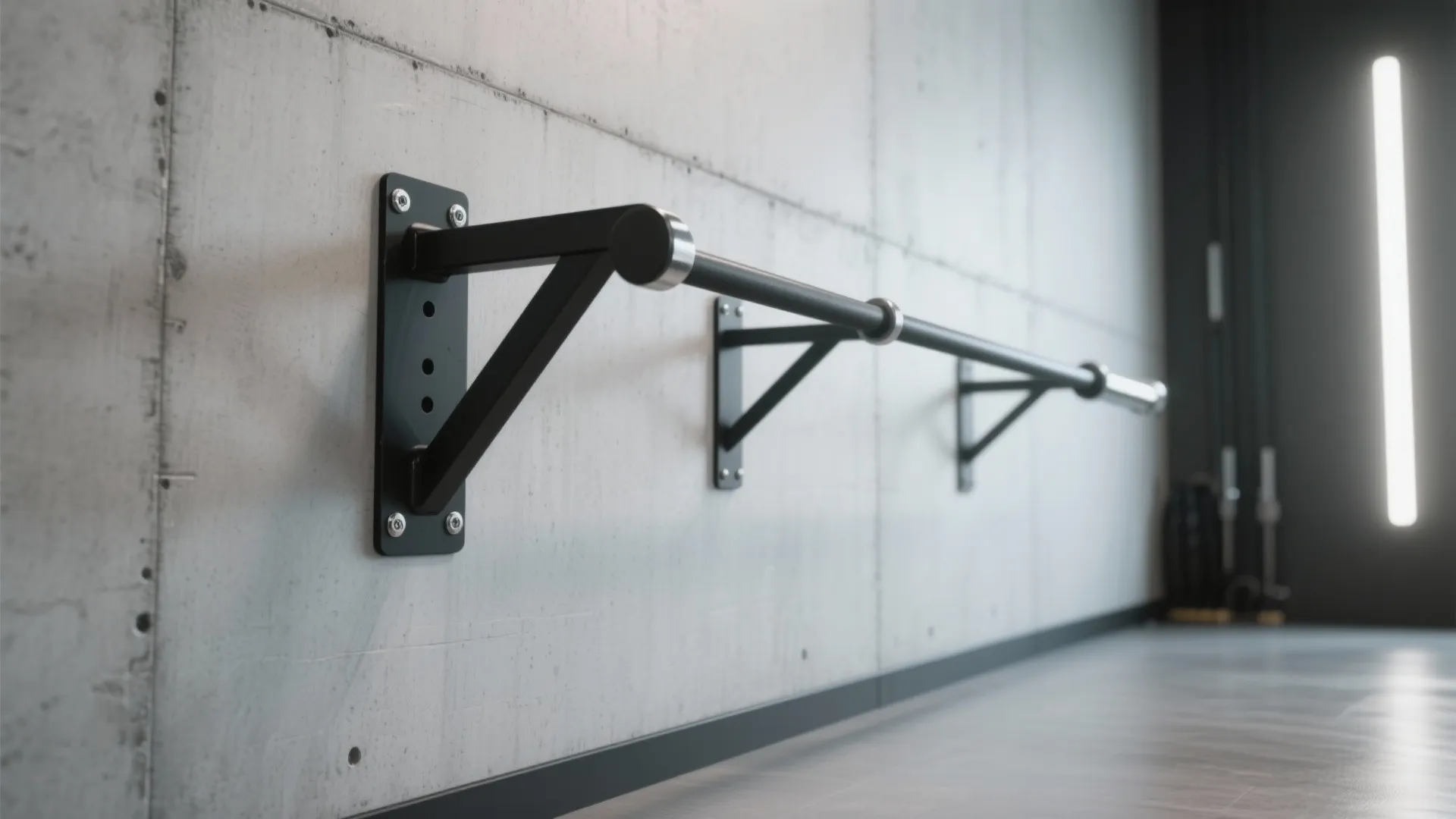

A stable pull-up bar comes from a triangulated bracket: vertical plate to wall, horizontal arm out to the bar, and a diagonal brace back to the plate. This reduces flex under kipping or dynamic movements. Keep projection to 12–18 in from the wall; more than 18 in increases torque and wall stress. If you want multiple grips, add side tabs or separate neutral-grip handles but avoid over-complicated plates that add weak points.

Layout Planning and Clearance

Anticipate swing arc for toes-to-bar or muscle-ups if the ceiling allows. Provide 24–30 in clear space in front and 18–24 in each side. If you’re mapping a compact gym or multi-zone room, a room layout tool helps simulate reach envelopes and wall interference before drilling. Use this interior layout planner to visualize clearances: room layout tool.

Ergonomics and Human Factors

Set the bar height to your shoulder-to-fingertip reach so that you can dead hang without knee tuck. For family setups, I install two bars at staggered heights or one bar with a removable step platform. Neutral shoulder alignment (scapula engaged, ribs down) reduces impingement risk; wrist-neutral grip reduces elbow strain. If you train high-volume sets, consider a slightly thinner bar (28–30 mm) to reduce grip fatigue.

Materials and Finish

Powder-coated steel resists corrosion and provides a consistent texture. If you train outdoors, specify hot-dip galvanized steel followed by a UV-stable powder coat, and choose stainless fasteners. End caps prevent finger pinches and moisture ingress. I avoid overly aggressive knurling that tears calluses; light texture and chalk control work better for daily use.

Fasteners and Anchors

Wood studs: 3/8–1/2 in lag bolts with washers, pre-drilled pilot holes about 70% of root diameter; drive slowly to avoid splitting. Concrete: Use wedge anchors (e.g., 3/8–1/2 in), drill to manufacturer depth, clean holes thoroughly before setting. Torque to spec. Always re-check tightness after the first week of use and quarterly thereafter.

Step-by-Step Build Outline

1) Verify wall structure: locate studs or confirm solid masonry.

2) Design bracket geometry: vertical plate height 14–18 in, horizontal arm 12–18 in, diagonal brace sized to triangulate.

3) Cut and prep steel: bevel weld edges, test-fit bar diameter and width.

4) Weld or bolt assembly: ensure square angles; test for racking.

5) Finish: grind edges, degrease, prime, powder coat.

6) Lay out anchor points: mark level line, check stud centers or drill for masonry anchors.

7) Mount: set washers, torque fasteners incrementally.

8) Test: static hang, then dynamic pulls; listen for creaks or movement and re-torque.

Safety, Testing, and Maintenance

Before real training, perform a progressive load test: hang 100 lb, then 200 lb, then your bodyweight plus plates if needed. Check for flex, wall deflection, and fastener creep. Inspect quarterly for coating chips (corrosion), loosened bolts, and any wall cracking around anchors. Keep the surface clean—chalk and sweat can corrode unprotected steel.

Lighting and Acoustic Comfort

Ensure 300–500 lux diffuse lighting across the bar zone; test with a simple lux app or meter. Aim for 4000K color temperature to keep visual contrast neutral, and minimize reflective hot spots to avoid distraction during dynamic sets. If the bar is near a shared wall, add a rubber isolation pad behind the bracket to dampen vibration and reduce structure-borne noise.

Design Variations

• Straight single bar: simplest, great for dead hangs and strict pull-ups.

• Multi-grip handles: add neutral or angled grips; useful for shoulder-friendly variations.

• Ceiling-mounted bar: better if walls lack studs; confirm joist capacity.

• Fold-away brackets: hinge designs save space; ensure locking pins are rated.

Common Mistakes to Avoid

• Mounting to drywall only.

• Overlong projection causing flex.

• Ignoring lighting and glare around the bar.

• Using undersized fasteners (below 3/8 in for structural anchoring).

• Sharp edges or aggressive knurling that damages hands.

FAQ

What bar diameter is best for beginners?

28–30 mm feels secure and reduces grip fatigue for longer sets. It’s easier on the forearms while still providing stability.

How high should I mount the bar?

Set it so you can dead hang with toes clearing the floor by 2–4 in. For most adults, that lands around 90–96 in, but measure your own reach.

Can I anchor into drywall with heavy-duty toggles?

No. Use wood studs with lag bolts or solid masonry with wedge anchors. Drywall alone is not rated for dynamic loads.

What load capacity should I aim for?

Target at least 400 lb static capacity for single-user setups to cover dynamic movements and a safety margin.

Is powder coat better than bare steel?

Yes. Powder-coated steel resists corrosion and provides a consistent grip texture. For outdoor use, pair galvanized steel with a UV-stable powder coat.

How do I reduce noise and vibration?

Add a rubber isolation pad behind the bracket, ensure tight fasteners, and avoid excessive projection that amplifies torque.

What lighting is ideal near the pull-up bar?

Diffuse lighting at 300–500 lux, around 4000K color temperature, helps visibility and reduces glare according to IES guidance for task areas.

Can I practice kipping pull-ups on a wall-mounted bar?

Yes, if the bracket is triangulated, anchors are properly rated, and you’ve provided adequate clearance (24–30 in front), with periodic re-torque checks.

What if stud spacing doesn’t match my bracket holes?

Use a bracket with slotted holes or add a backing plate spanning multiple studs to align fasteners with structural members.

Is a ceiling-mounted bar safer?

It can be, if your joists are robust and accessible; always verify joist size, span, and orientation, and use appropriate through-bolting or hangers.

How do I protect my hands from tearing?

Choose light texture or smooth powder coat, keep hands chalked but not caked, and rotate grips during high-volume training.
