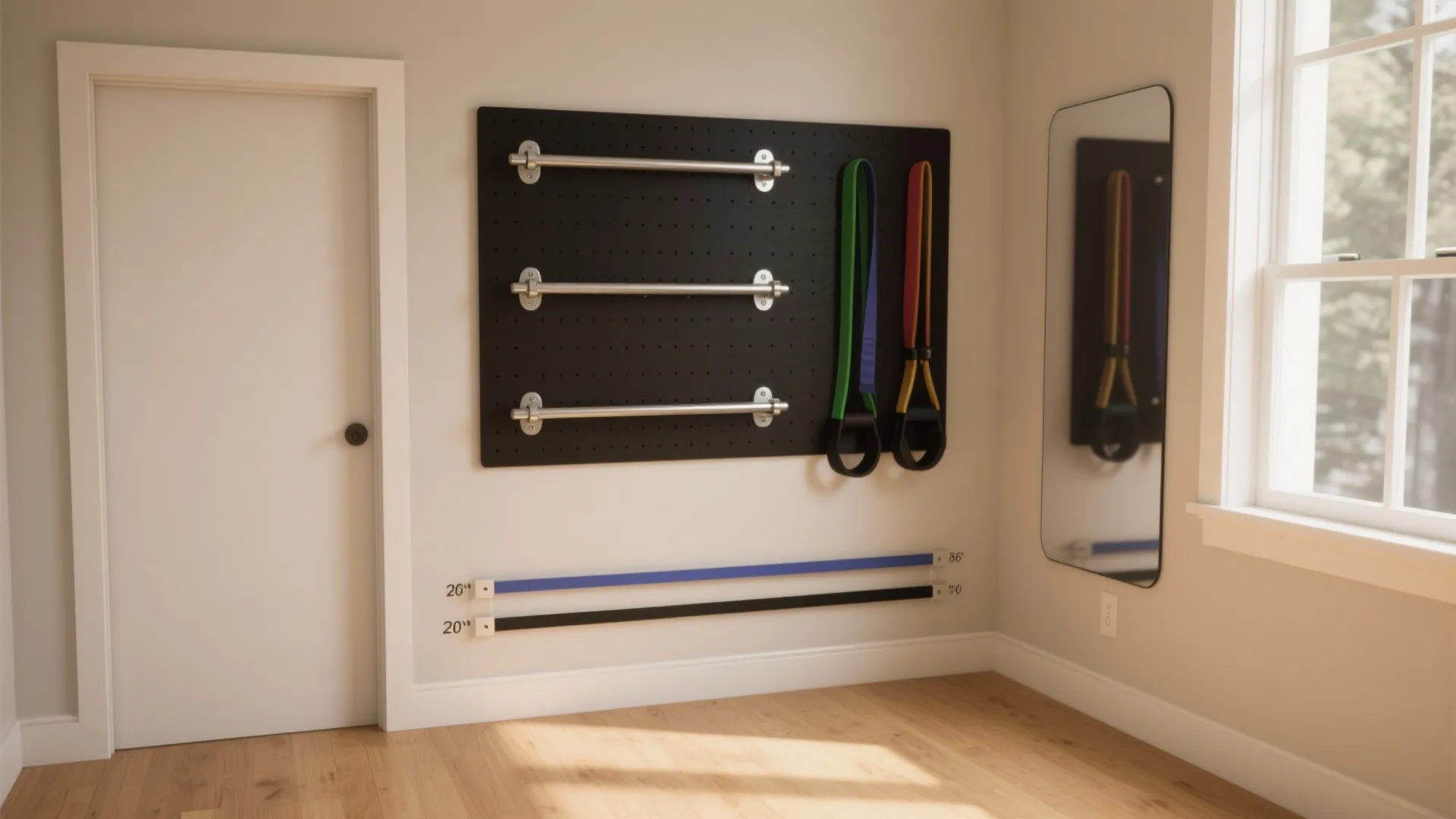

DIY Resistance Band Wall Anchor: Step-by-Step Guide: 1 Minute to Secure Your Home Gym with a DIY Resistance Band Wall Anchor

I’ve installed more than a dozen home workout walls for clients and for my own studio, and a well-built resistance band anchor remains the most compact, versatile strength solution. It saves floor space, keeps bands organized, and reduces wear on the bands by controlling angles and friction. To get this right, I balance structural safety, ergonomics, and user behavior—so the anchor feels natural to use and holds up to daily training.

Safety and comfort are the headline priorities. WELL v2 recommends anchoring movement equipment at heights that support neutral joint positions to reduce injury risk, and the standard’s Movement and Ergonomics concepts emphasize adjustability to accommodate different user statures. Steelcase research on posture variability shows people shift positions every few minutes; a multi-height anchor supports those micro-adjustments, enhancing comfort and adherence. Anchors at three heights—roughly 18–24 inches (low), 42–48 inches (mid), and 66–72 inches (high)—cover most exercises while keeping shoulders within safer ranges of motion. For broader evidence on ergonomic principles in movement environments, see wellcertified.com.

Beyond ergonomics, durability matters. Herman Miller’s research highlights that consistent, low-friction interfaces extend product lifecycles in high-use environments; the same logic applies to your anchor hardware—smooth radiused clips and properly spaced eye bolts reduce abrasion on latex bands, prolonging elasticity. In a small room, layout and sightlines matter too. If you’re planning a compact training corner or a multifunctional guest-room gym, a quick pass with a room layout tool can help you test clearances, mirror lines, and door swings before drilling.

Materials and Tools

Here’s the kit I rely on for a clean, safe install:

1. 3–5 heavy-duty stainless steel eye bolts or wall anchor plates (rated ≥ 300 lb each)
2. Corresponding lag screws (3/8" or 1/2") and washers
3. Stud finder, level, tape measure, pencil
4. Drill with wood bits (pilot 1/8"–3/16") and socket driver
5. Optional backer board: 3/4" plywood or hardwood strip, 36–48" long
6. Rubber grommets or silicone sleeves (to reduce band abrasion)
7. Carabiners with smooth gates (no sharp edges)
8. Blue painter’s tape and safety glasses

Plan the Layout

I start by mapping three anchor heights to match exercise categories:

1. Low (18–24"): rows from kneeling, hip-hinge pulls, ankle work
2. Mid (42–48"): presses, rows, anti-rotation (Pallof press), core drills
3. High (66–72"): lat pulls, face pulls, triceps, overhead mobility

Space at least 16–24 inches horizontally between points to avoid band overlap and to allow bilateral work. If your wall spans a narrow alcove, consider a vertical stack on a single stud. When room planning, test walkways and exercise arcs with an interior layout planner to ensure you won’t strike doors or lamps:

room layout tool

Find and Confirm Studs

Use a stud finder and mark centers. Standard studs are 16 inches on center in many homes, but verify—older buildings vary. I tap-test for resonance and drill a tiny pilot to confirm solid wood. Avoid plumbing and wiring: look for electrical boxes nearby and stay clear; if unsure, consult a pro.

Backer Board vs. Direct Mount

Direct mounting eye bolts into studs is strong, but I often add a 3/4" plywood backer board spanning two studs. This spreads load, reduces localized stress, and offers flexibility for future anchor repositioning. Paint or seal the board to match the room. Fasten it with 3–4 lag screws per stud, then attach your eye bolts to the board where needed.

Drill and Install Hardware

Pre-drill pilot holes 1–2 sizes smaller than your lag screws to prevent splitting. Keep a level handy. For eye bolts, I prefer through-bolt style with washers and lock nuts if the wall allows access; otherwise, heavy-duty lag eye screws rated for structural applications are fine. Tighten firmly but avoid crushing wood fibers. Add rubber grommets or silicone sleeves in the anchor eye to minimize band wear.

Angle, Friction, and Band Longevity

Bands last longer when you minimize sharp bends and abrasive contact. Keep the band path aligned with the exercise vector so you’re not scraping paint or hardware. Recessed plates with smooth edges outperform raw eye hooks. Always inspect bands for micro-tears; replace at first sign of cracking, especially near the anchor contact point.

Height Calibration and Ergonomics

Set mid-height to roughly the user’s sternum height for presses and anti-rotation drills, high-anchor just above forehead height for face pulls, and low-anchor near knee height for hip work. These placements promote neutral wrist and shoulder positions, reducing impingement risk. WELL’s Movement feature encourages designs that support varied intensities and anthropometrics, so if multiple people will use the wall, add more points or sliding rails for quick adjustments.

Surface Protection and Acoustics

Install a narrow kick strip or mat below the low anchor to protect walls from accidental band snaps. Soft finishes like cork panels or acoustic foam adjacent to the anchor can temper noise from carabiners and improve the room’s acoustic comfort—handy in apartments or shared homes.

Color and Motivation

Color psychology can help adherence. Energizing warm hues near the anchor can lift perceived exertion tolerance, while cooler tones around recovery zones calm heart rate. If you prefer a minimal palette, keep anchors in matte black to reduce visual clutter and glare.

Testing and Load Checks

Before full workouts, perform progressive load tests: gentle rows, then stronger pulls, checking for any movement or creaks. Retighten after 48 hours—wood fibers settle. Every month, inspect fasteners and the backer board. A quick torque check with a wrench keeps things honest.

Safety Notes

Never attach bands to drywall without studs or structural backing. Keep the exercise area clear of sharp furniture edges. Consider a mirror opposite the wall for form checks, but place it outside the main band path to avoid impact. If you’re unsure about wall composition (plaster, masonry, or steel studs), get a contractor’s opinion before drilling.

Step-by-Step Summary

1. Define three anchor heights: low (18–24"), mid (42–48"), high (66–72").
2. Use a stud finder; mark stud centers and safe zones.
3. Decide on a backer board to span two studs for load distribution.
4. Pre-drill pilots; mount the backer board with lag screws.
5. Install eye bolts or anchor plates with rated hardware; add grommets.
6. Level and torque-check all fasteners.
7. Test band paths for smooth angles; protect walls and adjust spacing.
8. Progressively load-test; recheck after 48 hours and monthly.

Common Exercises by Anchor Height

Low Anchor

Hip hinges with band assistance, kneeling rows, ankle mobility, glute kickbacks.

Mid Anchor

Pallof press, chest press, standing rows, rotations, split-stance anti-rotation holds.

High Anchor

Lat pulldown variations, face pulls, triceps press-downs, overhead mobility drills.

FAQ

Q1: What wall types are safe for a resistance band anchor?

A1: Wood-stud walls are ideal with lag screws into studs or a backer board. Masonry (brick/concrete) works with proper expansion anchors. Avoid drywall-only or steel studs without specialized hardware and professional guidance.

Q2: How high should I set the anchors for multi-user households?

A2: Use three fixed points: low 18–24", mid 42–48", high 66–72". For users under 5'4" or over 6'2", add one extra point between mid and high. These ranges align with neutral joint positions highlighted in WELL’s Movement guidance.

Q3: What load rating do I need for hardware?

A3: Choose anchors rated at or above 300 lb each. While bands rarely reach that force in typical home use, a high rating provides a safety margin against dynamic loads.

Q4: How do I reduce band wear at the anchor?

A4: Use smooth, radiused hardware, add rubber grommets or sleeves, align the pull direction with the band path, and avoid sharp angles. Inspect bands regularly and retire any with surface cracks.

Q5: Can I mount on a backer board over drywall?

A5: Yes—secure the board into studs with lag screws, then mount anchor hardware to the board. This spreads load and simplifies future repositioning.

Q6: What spacing prevents bands from tangling?

A6: Horizontal spacing of 16–24 inches between anchor points works well. If stacking vertically, keep 18–24 inches between heights to allow bilateral work without overlap.

Q7: How do I plan the workout corner in a small room?

A7: Keep 36 inches of clear floor depth in front of the anchor, confirm door swing clearance, and avoid locating directly behind seating. A layout simulation tool helps visualize exercise arcs and traffic flow.

Q8: Are there ergonomic cues I should follow during use?

A8: Maintain neutral wrists, keep shoulders down and away from ears, and set anchor height so elbows track comfortably without impingement. Adjust stance to keep the band line aligned with the exercise vector.

Q9: What about noise control?

A9: Use rubber-backed plates or silicone sleeves on carabiners, and add a small acoustic panel or rug in the area to dampen clicks and echoes—helpful in apartments.

Q10: Is color important near the workout wall?

A10: Subtle warm accents can boost drive, while cool hues ease recovery. Keep hardware finishes matte to reduce glare and visual fatigue.

Q11: How often should I recheck fasteners?

A11: After the first 48 hours, then monthly. Temperature and humidity changes can loosen hardware slightly, and routine torque checks keep the system secure.

Q12: Can children use the anchor?

A12: Supervise closely. Lower the anchor height, choose lighter bands, and ensure a clear zone to prevent recoil injuries. Consider quick-release carabiners for rapid band removal.
