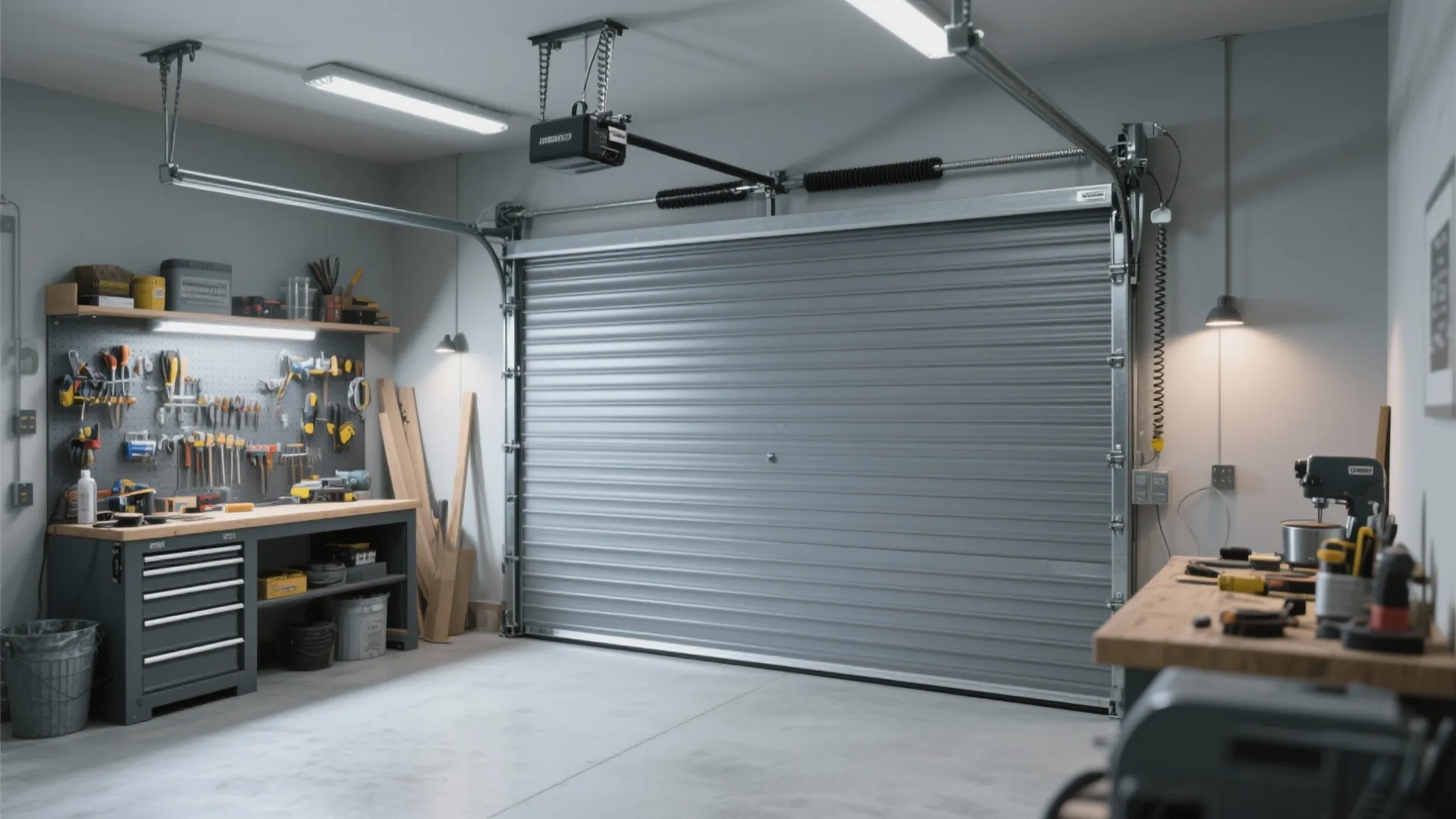

DIY Roll Up Door: A Step-by-Step Guide for Home Improvement: 1 Minute to Plan Your Custom Roll Up Door Project

I’ve installed and fine-tuned more roll-up doors than I can count in garages, sheds, home studios, and compact utility rooms. A good roll-up door saves floor space, improves security, and streamlines everyday use. Done right, it’s quieter, safer, and easier to maintain than many swing or sliding alternatives.

Before we dive in, a few data points shape my approach. WELL v2 underscores occupant safety and sound control within performance features, encouraging reduced noise transmission and safe operability through careful detailing (see WELL performance framework at v2.wellcertified.com). Additionally, Herman Miller’s workplace research notes that poor acoustic control increases perceived task difficulty and stress; mitigating impact noise and rattle from doors improves comfort and productivity—relevant even in home workshops and studios. Finally, the Illuminating Engineering Society (IES) stresses sufficient task lighting around mechanical components to prevent errors and accidents; ensure ≥300–500 lux at the work zone when cutting or fastening hardware (IES standards).

Planning the Roll-Up Door

I start with purpose and constraints. Define the opening size, interior clearance above the lintel (needed for the drum or track radius), side room for guides, and a safe operating zone free of obstructions. For most residential utility openings (e.g., 84–96 inches high), you’ll want at least 12–18 inches of headroom for compact drums; some insulated steel curtains need more. Map structural studs, electrical runs, and any ceiling joists that might interfere.

If you’re reworking a small garage or workshop layout, simulate movement paths—vehicle approach, tool carts, and storage flow—so the door never conflicts with critical routes. A quick digital pass with a room layout tool can help visualize clearances and traffic (room layout tool: room layout tool).

Selecting the Door Type and Materials

Residential roll-up doors fall into a few categories: lightweight aluminum slats, galvanized steel curtains, and composite or wood-faced panels designed for rustic aesthetics. For garages and exterior utility rooms, steel offers better security and impact resistance. If thermal performance matters, choose insulated slats; they stabilize indoor temperature and dampen sound. In coastal or high-humidity regions, powder-coated aluminum or marine-grade finishes reduce corrosion risk.

From an ergonomics standpoint, choose a spring-assisted or counterbalanced system sized for the door’s weight; WELL v2’s safety emphasis aligns with minimizing excessive force—keep manual operation below roughly 25–35 lbf so most adults can lift safely. For frequent daily use, consider a quiet direct-drive motor with soft-start and obstacle detection.

Hardware and Tools Checklist

Have everything ready before you start. Typical components: curtain or slats, bottom bar, side guides, headbox or fascia (optional), drum and axle, counterbalance springs (or motor), brackets, fasteners, weather seals, and a lock set. Tools: level, impact driver, masonry or wood bits (appropriate to substrate), torque wrench, tin snips or angle grinder (for minor trim), personal protective equipment (cut-resistant gloves, hearing protection), and a task light providing at least 300 lux at the opening.

Site Prep and Safety

Clear a 5–6 ft radius for safe work. Verify the substrate—solid framing for timber walls or proper anchors for masonry. I check plumb within ±3 mm across the jambs and uniform lintel depth to prevent binding. Mark centerlines for the drum and equal offsets for guide rails. If motorized, plan a dedicated outlet within code, aligned to local electrical standards.

Step-by-Step Installation

1. Set the Mounting Brackets

Position brackets at the lintel ends, square and level. Fasten using lag screws into studs or expansion anchors in concrete. Recheck level; even a 2–3 mm tilt can cause lateral drift and premature wear.

2. Install the Drum and Axle

Seat the axle in the brackets and secure the drum assembly. Confirm free rotation. If preloaded springs are included, set to manufacturer’s baseline. Keep hands clear of spring windings—controlled torque is crucial for safety.

3. Attach Side Guides

Align guides with the drum centerline; maintain consistent reveal. Fasten at 12–16 inch intervals, checking plumb every 2–3 fasteners. Add a neoprene or brush seal to reduce drafts and rattle—small acoustic improvements matter, echoing Herman Miller’s findings on noise discomfort.

4. Hang the Curtain

Feed the slats onto the drum, keeping tension even. Verify bottom bar alignment; it should sit flush without daylight gaps. If the curtain binds, adjust guide spacing or drum level rather than forcing the travel.

5. Balance and Test

Incrementally set spring tension to achieve smooth movement. Target a neutral balance—door stays in place when halfway open. Operate 10–15 cycles to confirm consistent travel, then add a mechanical lock or motor limits. Measure sound levels if you have a basic meter; small buffers and felt pads can lower impact clicks.

6. Weatherproof and Finish

Install top and side seals, a threshold or bottom gasket, and a drip edge if exterior-facing. Touch up exposed metal, caulk fastener penetrations, and consider a fascia for a clean look. For interior-facing studio doors, I often wrap the headbox in acoustic fabric to dampen light mechanical noise.

Lighting, Ergonomics, and Color Psychology

Good lighting makes the mechanism safer and maintenance easier. I keep 300–500 lux at the opener, with neutral 3500–4000K color temperature to avoid harsh glare and color distortion—consistent with task-lighting practices noted by IES. For manual pulls, mount handles at 36–42 inches from the floor, accommodating a broad user range. If you add a keypad, place it within natural reach paths near the jamb.

On the exterior, color selection affects perceived mass and heat gain. Verywell Mind’s color psychology insights link cool hues with calm and precision; a slate or graphite door reads lighter and contemporary, while warmer tones communicate familiarity. For energy performance, lighter finishes reduce solar heat absorption in direct sun.

Acoustics and Noise Control

Thin metal doors can ping and rattle. Small fixes go a long way: felt pads at contact points, brush seals, and rubberized bottom gaskets soften travel noise. If the door sits near a home office, consider an insulated curtain—mass and air gaps reduce transmission. Maintain side guide tolerances to avoid chatter.

Safety and Code Considerations

Use tamper-resistant fasteners on exterior installs. If motorized, ensure obstacle detection and auto-reverse functions are properly set. Keep emergency release cords visible and labeled. Periodically inspect spring tension and guide wear—quarterly checks are sufficient for typical home use.

Maintenance Routine

Every six months, clean the guides, check fasteners, and lightly lubricate moving parts with a manufacturer-approved product. Replace frayed pull cords, worn seals, and chipped finishes. If operation force creeps up, rebalance the springs rather than over-tightening guides.

Design Integration and Space Planning

I treat the door as part of a broader workflow: storage racks should not encroach on the guides; lighting should avoid casting hard shadows on the operating zone; and circulation paths should remain clear during peak use. If you’re reconfiguring a compact garage or garden shed, a quick pass with an interior layout planner helps forecast conflicts and resolve reach issues (interior layout planner: interior layout planner).

Common Mistakes to Avoid

Rushing alignment, skipping spring balance, and under-lighting the work area are classic errors. Over-tightening guide fasteners can warp the track; under-sizing anchors leads to drift. Ignoring seals invites drafts and pests. Finally, never bypass safety stops to gain speed—quiet, controlled travel is the goal.

FAQ

1) What headroom do I need for a residential roll-up door?

Plan for 12–18 inches above the clear opening for compact drums; insulated steel curtains may require more. Verify with the manufacturer’s spec to avoid binding.

2) How much force should manual operation require?

Keep manual lift under roughly 25–35 lbf. Proper counterbalance spring sizing and tuning minimizes strain and aligns with safe operability principles highlighted in WELL v2.

3) Can I motorize a DIY roll-up door later?

Yes. Choose a drum-compatible motor with soft-start, obstacle detection, and manual release. Ensure a dedicated electrical circuit and comply with local codes.

4) What lighting is best around the mechanism?

Provide 300–500 lux at the work area with 3500–4000K fixtures to reduce glare and color distortion, consistent with IES task-lighting guidance.

5) How do I reduce noise during operation?

Use brush seals, rubber bottom gaskets, felt pads at contact points, and balanced springs. Insulated curtains add mass that dampens transmission.

6) Which materials are most durable outdoors?

Galvanized or powder-coated steel for security and impact resistance; aluminum with marine-grade finishes in coastal, high-humidity environments.

7) How often should I service the door?

Every six months: clean guides, tighten fasteners, lubricate moving parts, and inspect spring tension and seals. Rebalance if lift force increases.

8) What’s the safest height for handles and keypads?

Mount manual pulls at 36–42 inches from the floor and place keypads within natural reach near the jamb for ergonomic access.

9) Do color choices impact performance?

Yes. Light finishes reduce solar heat gain; cool hues can feel calmer and more precise, reflecting color psychology insights from Verywell Mind.

10) Are roll-up doors suitable for interior studios?

They work well in compact studios and workshops where space is tight. Use insulated slats and soft seals to control acoustics and drafts.
