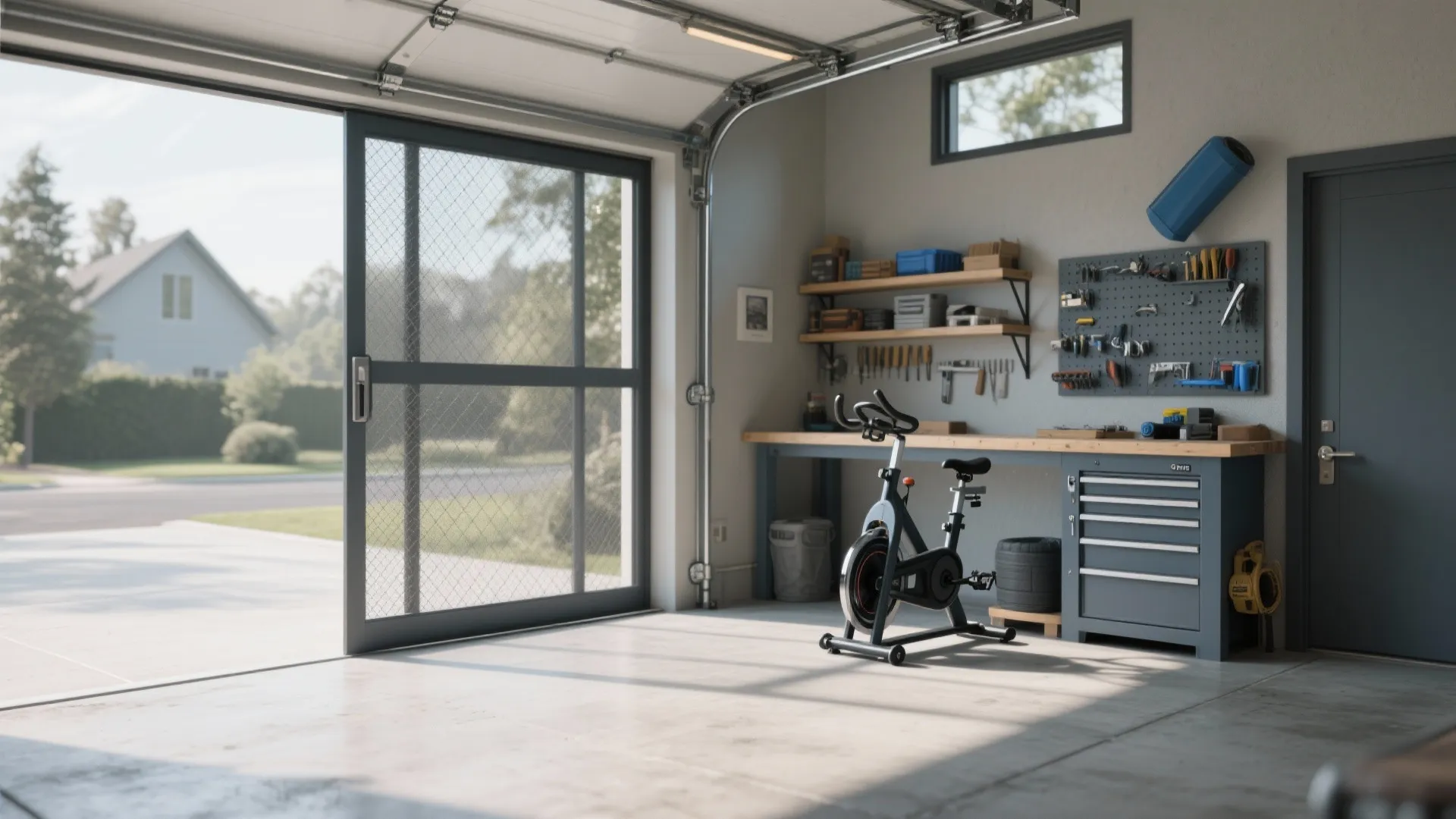

DIY Screen Door for Garage: A Practical Guide: Fast-Track Guide to Building Your Own Garage Screen Door in Minutes

Adding a screen door to a garage changes the way the space works—daylight and fresh air without insects, a cooler microclimate, and a more social, usable zone for projects or workouts. I look at it as a small architectural intervention with outsized impact: thoughtful framing, tensioned mesh, and well-selected hardware turn a utilitarian opening into a comfortable threshold. Data backs the comfort benefits—WELL v2 recommends maintaining indoor CO₂ near 800–1000 ppm and providing operable openings for natural ventilation; a screened garage lets you chase that target while keeping pests out. Steelcase research also shows access to daylight and views can raise subjective wellbeing and focus, which translates well to hobby spaces and home workshops.

Thermal and glare control matter even for a garage. IES guidance notes that task zones in residential workshops often perform best around 300–500 lux for detailed work, with controlled glare on glossy surfaces. A translucent, low-sag mesh paired with adjustable shades can keep light levels consistent through the day. For color psychology, cooler daylight through a neutral gray mesh helps maintain alertness; warmer tones near sunset soften the mood for winding down. If your garage doubles as a gym, Herman Miller research on workplace movement shows regular micro-breaks and better airflow reduce fatigue—another nudge to design for ventilation plus easy pass-through access.

Planning the Opening and Framing

Every good build starts with accurate dimensions and a clean threshold. I measure the rough opening width and height in three points each (top, middle, bottom), then work to the smallest dimension, allowing 3–5 mm clearance per side for a smooth swing or slide. If the slab is out of level, I’ll scribe the sill or shim the track to prevent racking. For attached garages, I also confirm the return depth (jamb thickness) and any protrusions—conduit, hose reels, or track supports—that could interfere. If you’re rearranging storage or machinery to optimize movement paths around the new door, a room layout tool can help simulate clearances and swing arcs: interior layout planner.

Choose Your Screen Door Type

I tend to classify garage screens into four workable categories, each with distinct ergonomic and acoustic implications:

1. Hinged screen door: Classic look, easy latch, best where you have a clear swing and a preference for simple maintenance.
2. Sliding screen panel: Great for wider openings or paired with an existing slider; minimal intrusion into the interior, calmer acoustics due to soft close hardware.
3. Retractable screen cassette: Mounts to the jamb and pulls across; clean appearance, fast stowage, but requires precise installation to avoid mesh wrinkling.
4. Track-and-curtain bug screen systems: Flexible and inexpensive for full-width garage bays; ideal for social or workout modes, though wind management and sealing at edges need special attention.

For high-traffic households, I lean toward sliding or retractable systems; both reduce door-leaf interference with tools and bikes, and limit the risk of slamming. Hinged doors offer better sealing at the perimeter and stand up well in dusty environments.

Material Selection: Frame, Mesh, and Hardware

Durability and tactile feel drive my choices. Aluminum frames resist corrosion and keep weight manageable; a powder-coated finish in a deep charcoal tends to visually recede, maintaining clean sightlines to the outdoors. Wooden frames are beautiful but need regular sealing and can warp with humidity swings typical of garages.

Mesh matters. Standard fiberglass is affordable, forgiving, and easy to install. For pets or heavy use, I specify polyester or stainless steel mesh rated for higher puncture resistance. Pay attention to openness factor: 45–55% openness balances airflow with insect control. If privacy is a concern, a slightly tighter weave reduces direct views while keeping illumination workable around 300–400 lux when paired with ambient lighting. Stainless fasteners and brass or stainless hinges prevent galvanic corrosion and squeaks. For sliding systems, look for nylon rollers with sealed bearings to cut noise and keep motion smooth.

Light, Color, and Comfort

Garages often suffer from hard shadows and glare off painted floors. I install a dimmable 4000K linear fixture just inside the door line to even out contrast when the screen is closed, then add task lights zoned to benches or cardio gear. Verywell Mind’s color psychology overview captures a practical truth: blues and greens encourage calm and focus, while warmer hues feel welcoming. I keep the mesh neutral and introduce color through storage fronts, wall paint, or floor mats—blue-grays around work benches, a soft warm neutral near the entry.

Human Factors: Clearance, Reach, and Flow

Clear movement is half the battle. I set a minimum 900 mm clear path from driveway to interior work zone, avoid door swings into tool storage, and keep latch heights at 1000–1100 mm for comfortable reach. If you’re splitting zones—fitness, craft, and garden—use the screen threshold as a behavioral divider: keep noisy activities deeper inside, quiet social seating near the screened edge where breezes are strongest. Add a foot-operated hold-open device for hands-full entries and a soft-close damper for family safety.

Step-by-Step Build Overview

Here’s the build sequence I follow for a hinged or sliding door. Retractable screens share similar prep but with cassette-specific mounting.

1. Prep the opening: Remove debris and high spots. Seal any gaps larger than 6 mm with backer rod and exterior-grade sealant to limit insect infiltration.
2. Set the frame: Dry-fit, shim plumb and square, confirm even reveals. Secure with corrosion-resistant screws, pre-drilling near ends to avoid splitting.
3. Install screen: Tension matters—roll the spline evenly, pull mesh taut without waves, and trim cleanly. For sliding panels, mount top and bottom tracks first, then hang panels and adjust roller height.
4. Add hardware: Hinges, latch, closers, and stops. Test cycle at least 20 times to check for rub points and latch alignment.
5. Weather and bug seals: Add brush seals or magnetic catches at jamb and sill; a low-profile threshold reduces trip risk yet blocks drafts.
6. Finish and lighting: Touch up powder coat or paint as needed; set perimeter lighting to reduce contrast between indoors and outdoors.

Ventilation and Acoustic Considerations

In shoulder seasons, the screen acts as a passive ventilator. To maximize airflow, I keep the adjacent interior door open and use a low-noise fan to encourage cross-ventilation when outdoor air is clean. For acoustics, soft-close hardware and felt bumpers prevent sharp impact noises. If the garage hosts music or power tools, consider acoustic panels on shared walls and rubber flooring to dampen transmission.

Safety, Codes, and Maintenance

Confirm local requirements for egress and fire separation if your garage connects to living spaces. In most cases, the screen door sits outside a rated interior door, but you still want flame-resistant finishes and clear exits. Maintenance is simple: vacuum the mesh monthly, wipe frames with mild soap, and lubricate rollers or hinges seasonally. Replace spline or mesh when tension loosens; a taut screen maintains aesthetics and reduces flutter noise.

Cost, Time, and Sustainability

Expect a DIY cost range from modest to mid-tier: basic hinged kits are typically inexpensive; sliding and retractable options run higher due to tracks and cassettes. I cut waste by ordering correct lengths, choosing recyclable aluminum frames, and opting for low-VOC sealants. Material Connexion is a solid reference if you’re exploring advanced mesh or eco coatings.

Research and Design References

Two resources worth bookmarking for a balanced approach to comfort and function: WELL v2 guidance on ventilation and comfort, and Steelcase research on the impacts of daylight and view on wellbeing. Both help frame design targets around airflow, light levels, and user behavior without overcomplicating a DIY build.

Tips 1: Pet-Proofing and Kids

Choose pet-resistant mesh and add a kick plate at the lower 150–200 mm. For kids, keep latch hardware smooth-edged and add a finger guard on hinged sides.

Tips 2: Seasonal Strategy

In pollen season, pair the screen with a washable pre-filter curtain; in winter, remove or stow retractables and rely on sealed doors plus task lighting.

Tips 3: Visual Balance

Match frame color to garage door tracks or exterior trim for a quieter facade. Align mullions or panel divisions with interior shelving rhythm for visual coherence.

FAQ

How do I size a screen door for a non-standard garage opening?

Measure width and height at three points each and design to the tightest dimension, leaving 3–5 mm clearance per side. For very wide bays, consider multi-panel sliding or track screen systems with center overlaps to maintain seal continuity.

Will a screen door affect daylight and glare?

Yes, in a good way. Neutral gray mesh reduces harsh contrast and spreads daylight. Aim for 300–500 lux at task areas; add dimmable fixtures if the mesh lowers levels too much.

What mesh is best for durability?

Fiberglass is economical and easy to install; polyester or stainless steel mesh offers better tear and puncture resistance, particularly for pets or high-use doors.

Can I integrate the screen with my existing garage door?

Absolutely—retractable cassettes mount inside the jamb, and sliding panels can sit on separate tracks. Keep clearances from garage door hardware and confirm roller travel doesn’t conflict with springs or openers.

How do I improve insect sealing?

Use brush seals at the sill and jambs, a magnetic catch at the meeting stile, and seal any perimeter gaps over 6 mm with backer rod and exterior-grade sealant.

Does a garage screen help with ventilation targets?

Yes. Operable openings support better airflow; WELL v2 recognizes the role of natural ventilation in maintaining CO₂ in the 800–1000 ppm range when outdoor air quality is acceptable.

What about privacy?

Select a tighter weave mesh or add an interior sheer curtain. Keep task lighting aimed inward to avoid silhouettes at night, and choose darker frame colors that visually recede.

Is a retractable screen worth the higher cost?

For multi-mode garages, retractables are excellent—quick to stow, clean appearance, and minimal footprint. Ensure precise installation to prevent cassette rattle and mesh sag.

How do I manage wind and flutter noise?

Tension the mesh correctly, add a bottom weight or magnetic sill catch, and use soft-close hardware. Rubber flooring and felt bumpers also help dampen incidental noise.

Any layout tips for clear movement?

Maintain at least 900 mm of clear circulation from the screened opening to primary work zones. If planning zones, try a room layout tool to visualize swings and traffic lines.
