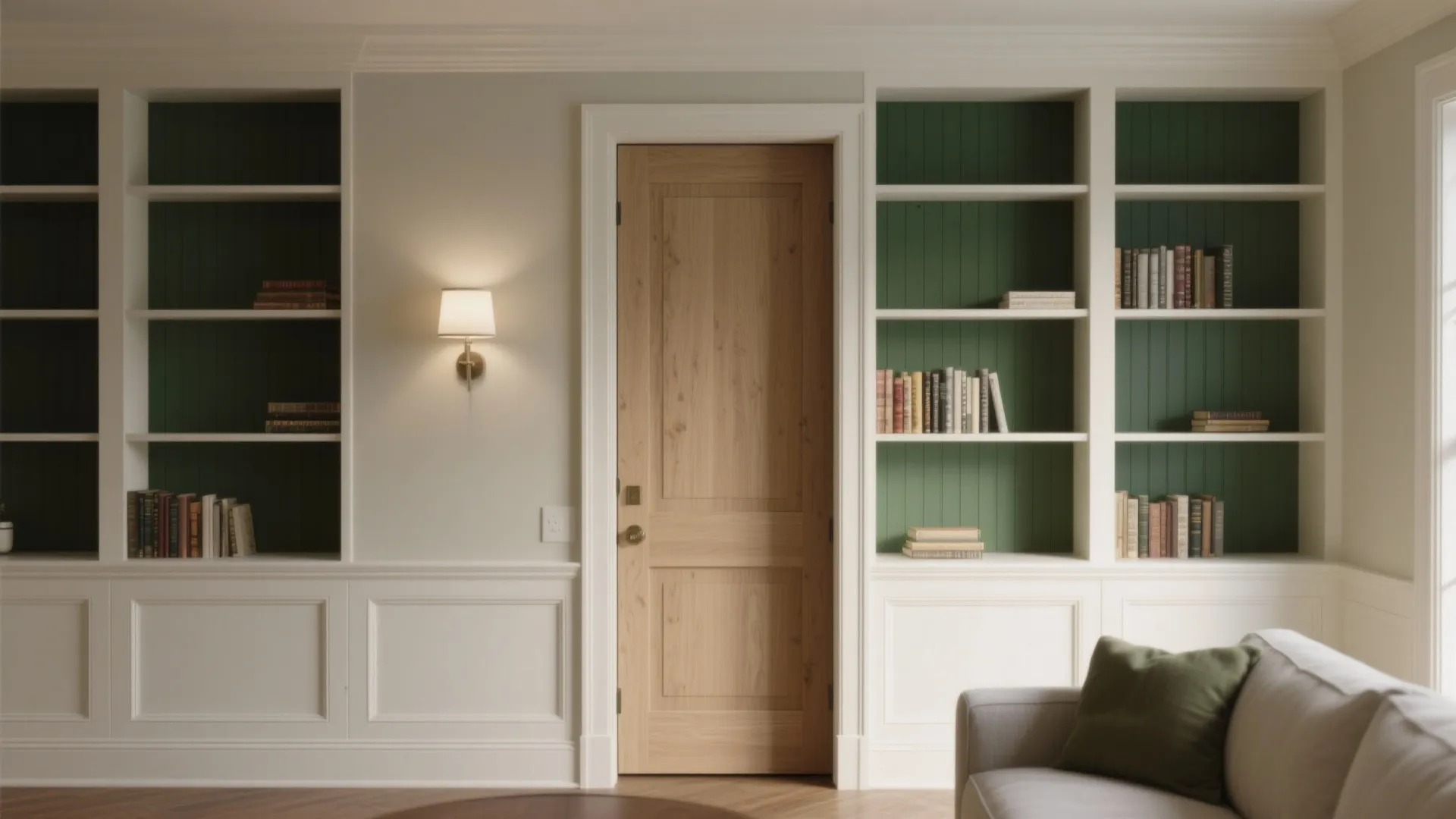

DIY Secret Bookshelf Door: Create a Hidden Passage at Home: 1 Minute to Concealed Storage: Fast-Track Guide to Your Own Secret Bookshelf Door

A secret bookshelf door doesn’t need to feel like a movie prop. Built with the right proportions, hinges, and finishes, it becomes a seamless architectural element that adds storage, quiet drama, and a touch of play to everyday life. In my projects, the most convincing builds follow a simple rule set: keep the visual rhythm of adjacent millwork, engineer the swing to feel feather-light, and disguise the seam with intentional shadow lines and trim continuity.

Good design also respects human factors and safety. WELL v2 highlights that accessible pathways and clearances reduce trip risk and improve daily comfort; keep at least 36 inches of clear passage in front of and beyond the door swing for safe egress. Lighting matters too: I aim for 200–300 lux ambient illumination around the threshold so the reveal reads as part of the room, not a dark void (IES residential guidelines commonly target this range for circulation and living areas). For workplace-style clarity on traffic behavior and spatial comfort, Steelcase research notes that intuitive circulation reduces friction and improves user experience—your hidden door should never compromise the way people move and feel in the room (steelcase.com/research).

Plan the Opening and Structure

Start by confirming that the wall section you’re converting isn’t load-bearing and that you won’t intercept plumbing, major electrical runs, or HVAC ducts. A typical finished opening for a secret bookshelf door ranges between 30–36 inches wide and 80–84 inches high—dimensions that match standard door ergonomics and keep proportions believable. If you’re adapting an existing door frame, preserve the jamb and add a deeper casing to visually integrate the bookcase thickness. When planning the internal shelf layout, keep shelf spans to 24–30 inches for 3/4-inch hardwood plywood to minimize sag; heavier spans usually need a center stile or thicker shelves.

Select the Right Hidden Hinge System

The best DIY-friendly mechanism is a heavy-duty pivot or soss-style concealed hinge rated above your fully loaded bookcase weight. Calculate weight realistically: 3/4-inch hardwood ply carcass (70–90 lb), solid face frame and backer (20–40 lb), hardware (5–15 lb), plus books/decor (40–100 lb). I design for a 180–250 lb rating to prevent seasonal sag. Place pivots roughly 6–8 inches from the edges (top and bottom) and consider a floor pin with a matching ceiling plate for stability. A soft-close, self-centering latch dramatically improves the user experience and helps maintain alignment over time.

Balance Proportions and Visual Rhythm

The illusion relies on consistent architectural language. Match shelf spacing, stile widths, and crown/base profiles to adjacent millwork. Maintain a 1:1.6 vertical rhythm (golden-ish proportion) between shelf opening height and stile width to avoid the telltale “door inside a bookcase” look. Introduce a 1/8–3/16 inch shadow gap at the perimeter; this deliberate reveal reads as millwork detail rather than a seam. For color, neutrals and desaturated woods help the unit recede. If you want a statement, deep greens and inky blues score high on perceived depth—Verywell Mind notes darker blues often convey stability and calm, which helps the door feel more integral than gimmicky (verywellmind.com/color-psychology).

Ergonomics, Lighting, and Acoustic Cues

Plan a comfortable pull height between 36–40 inches from the finished floor, even if you’re hiding it in a routed edge or behind a book-spine magnet. Keep operating force low; anything above 20–25 newtons feels “sticky” to most users. Light the approach with soft, low-glare fixtures; 2700–3000K warm white anchors the bookcase in living areas. Place a glare-controlled wall sconce to wash the unit, avoiding hotspots that might reveal seams. If your hidden passage leads to a quieter room, add a perimeter brush seal and a 1/2-inch MDF back panel laminated with acoustic felt; even this light treatment cuts airborne sound spill and creates a more convincing sense of separation.

Materials and Finishes That Work

For the carcass, 3/4-inch furniture-grade plywood (maple or birch) stays flatter than solid wood across seasons. Face frames in solid poplar or maple take paint well and mill cleanly. Use biscuits or dowels at shelf-to-gable joints for stiffness; pocket screws are fine if concealed and glued. A durable enamel or catalyzed lacquer finish resists finger oils on concealed pulls. If you prefer a natural look, veneered panels with a matching edge tape deliver consistency. Keep books and decor weight near the hinge side lighter to reduce torsion; place denser items mid-span and low.

Framing, Jambs, and Threshold Details

Square and plumb are non-negotiable. Shim the jamb so the hinge pivot line is perfectly vertical; even a 1/8-inch out-of-plumb across the height can cause binding. Add a continuous stop on the latch side to hide the seam, and run baseboard and crown continuously across the opening, splitting the profiles so half moves with the door—this is the magic that sells the illusion. On floors, a low-profile threshold or continuous flooring across the opening keeps the reveal clean. If you’re working with patterned floors, align the pattern through the opening to avoid a visual hiccup.

Hardware, Latching, and Safety

Use a magnetic touch latch or a mechanical ball catch with an adjustable strike; both allow micro-tuning as the building breathes seasonally. I often add a concealed top bolt for night security. Ventilation is essential if the passage leads to a small room—add a discreet transfer grille high on the jamb or integrate a toe-kick slot beneath the lowest shelf to prevent stale air. For households with kids, install a fail-safe: an interior release that overrides the latch, and never rely on powered locks without battery backup.

Clever Camouflage Techniques

Vary the shelf styling so it doesn’t read as a single slab. Break up symmetry with stacked horizontal books, a couple of small sculptures, and a plant to scatter highlights. Consider a continuous crown return that wraps the case, or a picture light centered on the entire run—mount it to the moving unit so the story stays consistent. If you must include a pull, hide it under the rail or as a routed underside grip; avoid anything that telegraphs “door hardware.”

Build Sequence I Recommend

- Measure and confirm wall conditions; finalize opening size and swing direction.

- Build carcass and face frame; dry-fit hinges to confirm clearances.

- Install jamb and pivot hardware; set reveals at 1/8–3/16 inch.

- Hang the unit bare (no shelves) to tune swing and latch.

- Add shelves, back panel, seals, and trim; align base and crown across the opening.

- Finish-sand, paint or lacquer, and reinstall hardware; balance decor weight.

- Aim fixtures and set ambient light to 200–300 lux at approach; test glare and shadows.

- Run safety check: interior release, smooth egress, and clean floor transitions.

Layout Planning and Visualization

If your secret door must align with existing cabinetry or a tight corner, model the entire wall and swing arc before cutting wood. I use a layout simulation tool to test clearances, shelf depths, and swing conflicts with nearby furniture; a room layout tool helps you visualize proportions and traffic lines: room layout tool.

Cost, Time, and Maintenance

A well-executed DIY build typically lands between $400–$1,200 in materials and hardware, assuming quality plywood, concealed hinges, latches, and paint. Expect 20–35 hours depending on finish complexity and trim integration. Maintenance is straightforward: re-tune latches seasonally, check hinge fasteners annually, and refresh touch points as needed. If humidity swings are large, add a discreet floor guide to stabilize the swing without visible tracks.

FAQ

How wide and tall should a secret bookshelf door be?

Most builds perform best between 30–36 inches wide and 80–84 inches high. These sizes feel natural, match standard ergonomics, and simplify hinge selection.

What hinge type is best for a heavy bookcase door?

A heavy-duty pivot or concealed soss-style hinge rated above your fully loaded weight. I target 180–250 lb ratings to keep motion smooth and prevent sag.

How do I keep the seam invisible?

Use a consistent face frame and molding profile across the opening, maintain a 1/8–3/16 inch shadow gap, and carry baseboard/crown across the door with split profiles.

What lighting prevents the door from looking like a dark hole?

Provide 200–300 lux ambient at the approach with 2700–3000K warm white lighting and low-glare optics. Wash the case softly rather than spotlighting seams, in line with IES residential guidance.

Is it safe to use magnets as latches?

Yes, when paired with an interior override. I prefer adjustable magnetic latches or ball catches so you can fine-tune tension as humidity changes.

How do I reduce noise between rooms?

Add a 1/2-inch MDF back panel laminated with acoustic felt, perimeter brush seals, and ensure the door closes against a continuous stop to block flanking paths.

What shelf spacing and thickness should I use?

3/4-inch plywood shelves with 10–12 inch depths work well; keep spans to 24–30 inches or add a center stile. Heavier objects live low and near the hinge side.

Can I integrate a lock without ruining the illusion?

Use a concealed top bolt or a cam lock hidden behind a false spine. Always include an interior release for safety.

Does color influence the illusion?

Yes. Desaturated woods and deep blues/greens help the unit recede. Research on color perception notes darker blues signal stability, making the door feel like part of the architecture.

How do I model the swing and clearances?

Use an interior layout planner to draft the wall, furniture, and swing arc before cutting. A digital room design visualization tool helps confirm traffic lines and door throws.

What’s the typical project duration?

Most DIYers complete the build over two to three weekends, including finishing and trim integration.

Will this work on carpet?

It can, but thick pile can interfere with a low pivot. Use a floor guide set just above the pile or switch to a ceiling-supported pivot system.
