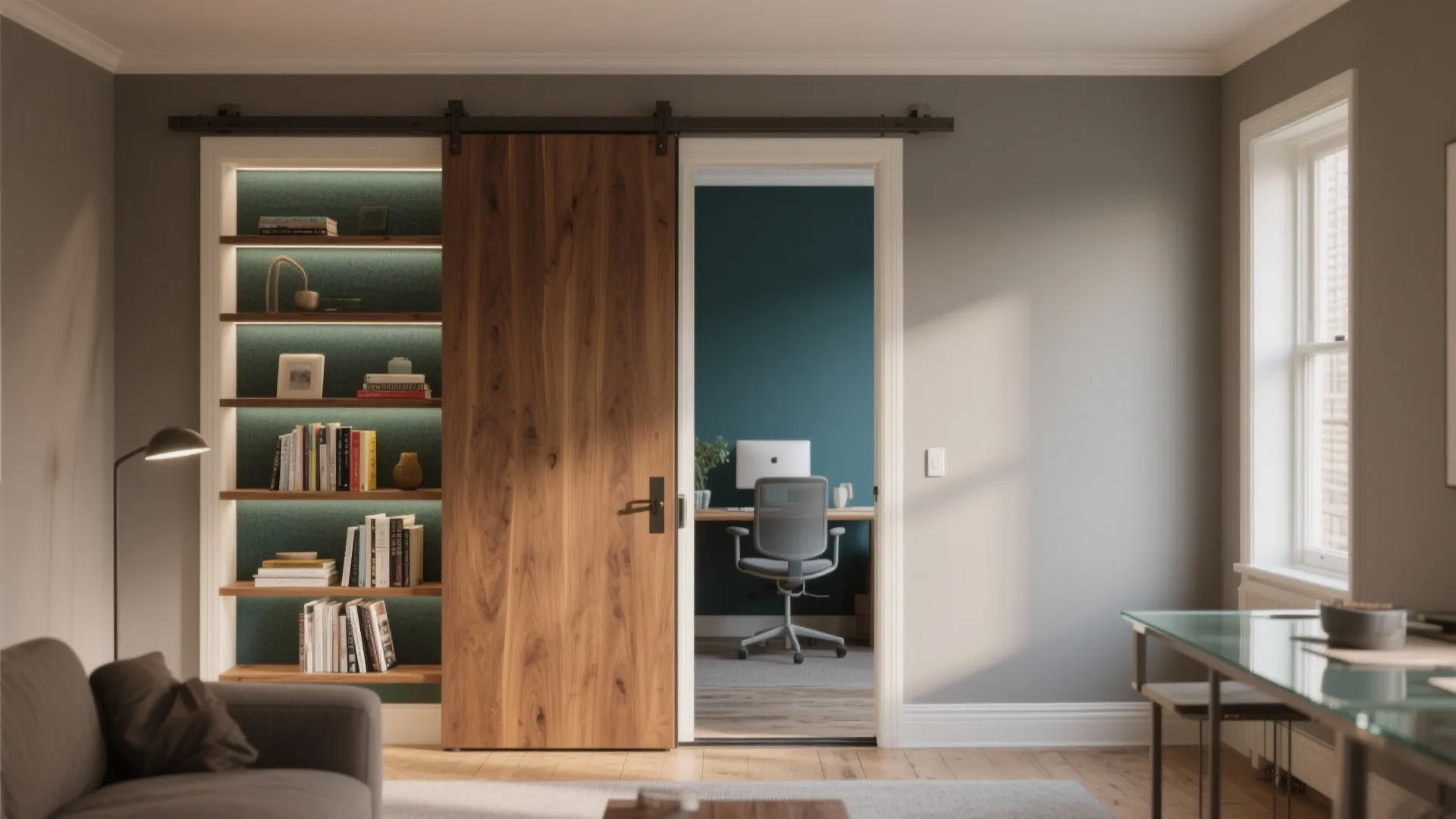

DIY Sliding Bookcase Door: Transform Your Space with Functional Style: Fast-Track Guide to Building a Sliding Bookcase Door for Small Spaces

A sliding bookcase door creates a moment of surprise while solving real space and storage challenges. I’ve designed and installed several in compact apartments and home offices where swing doors ate up precious floor area. Done right, you get smooth access, added shelving, better acoustics, and a clean architectural line.

Two data points guide my approach. First, clearances: a typical hinged door needs a 30–36 in arc to swing freely, whereas a wall-mounted sliding panel needs only wall run-off equal to door width—this can reclaim up to 10–15 sq ft in small rooms. Second, comfort and performance: WELL v2 recommends managing noise transfer and glare to support cognitive focus; integrating a dense book-filled door can add 3–5 dB of sound attenuation compared to a hollow swing door by mass-loading the partition, while choosing soft, 3000–3500K lighting reduces eye strain in reading zones (WELL v2; IES illuminance guidelines for residential reading task lighting of 300–500 lux apply). For deeper space planning references around user needs and circulation, I also look to workplace research on productivity, such as Gensler’s findings that well-planned environments with minimal distractions drive better task performance.

Plan the Opening and Clearances

Start by confirming your rough opening and structural conditions. A typical interior opening ranges from 28–36 in wide and 80–84 in high; a bookcase door should overlap the opening by at least 1 in on all sides for light and sound control. Check for switches, outlets, and baseboard that may obstruct the slide path. You’ll need clear wall run-off equal to the door width plus 1–2 in. If your layout is still fluid, test multiple options using a room layout tool like this interior layout planner to visualize travel paths and furniture clearances.

Choose the Right Sliding System

Hardware determines feel and longevity. For a loaded bookcase door (often 120–220 lb when filled), I specify a top-hung track with at least a 1.5x safety factor over expected weight. Look for:

1. Track: heavy-duty, extruded aluminum or steel with concealed fasteners and soft-close carriages rated 200–300 lb per panel.
2. Floor guidance: a low-profile floor channel or T-guide to prevent sway.
3. Stops and dampers: soft-close both ends to protect contents and fingers.
4. Anti-derail features: essential with asymmetrical loads like shelves.

If you prefer a flush, minimal look, consider a recessed header to hide the track and a shadow reveal at the jambs for a crisp detail.

Structural Framing and Load Management

Books are heavy—plan for it. A linear foot of books averages 20–30 lb. A 32 in wide, 6-shelf unit can easily exceed 150 lb loaded. Reinforce the top track with continuous blocking (2x lumber or steel angle) anchored into studs or a structural lintel. For the door frame, I use a torsion box core (1–1.5 in grid) skinned with plywood or MDF; it resists racking better than a solid slab and keeps weight reasonable. Hinge-side forces are gone here, but lateral racking during starts/stops is real; diagonal bracing inside the torsion box helps.

Depth, Proportions, and Ergonomics

Depth drives both aesthetics and clearance. I aim for 8–10 in total depth for paperbacks and decor; 10–12 in for mixed media. Maintain a 1–2 in toe clearance at base so the door passes over rugs. Shelf spacing at 10–12 in fits most books; add a single 14–15 in bay for folios. Ergonomically, keep the center of mass close to the track: a shallower top shelf and slightly deeper lower shelves help balance. For grip, a recessed edge pull or linear pull at 36–40 in AFF (above finished floor) keeps traction comfortable without snagging clothing.

Materials and Sustainability

MDF with hardwood edge-banding paints beautifully and dampens vibration; plywood offers better screw-holding for shelf pins. If sustainability is a priority, look for low-VOC finishes and FSC-certified cores. Back panels in 1/4–3/8 in ply add racking resistance. On the acoustic side, felt-backed panel inserts or a thin mass-loaded vinyl layer behind the back panel can add noticeable attenuation, complementing the natural sound absorption of books.

Lighting Integration and Visual Comfort

Reading and display deserve proper light. Target 300–500 lux on shelf faces with 90+ CRI for accurate spines and decor. I prefer 3000–3500K for a warm-neutral tone that matches most living spaces. Avoid glare by recessing LED strips under shelves with 30–60° asymmetric lenses and add a dimmer. If the bookcase door fronts a workspace, consider WELL concepts for light and glare control and defer to IES task lighting recommendations for comfort. Keep power routed through a flexible cable chain or concealed contact plates to avoid pinch points when sliding.

Finish Strategy and Color Psychology

Color influences the reading mood. Neutrals (warm grays, oat, soft black) push the books forward, while deep blues and greens add calm and perceived depth. For smaller rooms, a color-matched finish to the wall reduces visual bulk; in larger spaces, contrast can celebrate the feature. If you want the opening to visually disappear, carry baseboard and casing lines across the door face with applied trim, or design a frameless reveal for a contemporary look.

Security, Ventilation, and Fire Considerations

If the door conceals a closet or safe room, add a magnetic latch and optional keyless cabinet lock concealed behind a book spine pull. Maintain ventilation: a 1/2–3/4 in shadow gap at the head or a louvered return panel prevents stale air. Always verify local code; this assembly is not a rated fire door and should not substitute where fire separation is required.

Step-by-Step Build Outline

1. Survey and measure the opening, wall run-off, and stud locations. Mark outlets and switches to be relocated if needed.
2. Install continuous header blocking anchored into multiple studs; verify deflection under anticipated load.
3. Fabricate a torsion-box door panel sized to overlap the opening by at least 1 in on all sides; skin with plywood/MDF.
4. Build shelves with dados or concealed fasteners; prefinish parts for cleaner assembly.
5. Mount top track level; install floor guide aligned to the panel’s centerline.
6. Hang the door, adjust carriages for plumb/level, set soft-close dampers, and fine-tune reveals.
7. Add lighting, cable management, and low-voltage drivers in a ventilated cavity if integrating LEDs.
8. Finish with edge-banding, paint or clear coat, then load shelves from bottom up to stabilize.

Common Mistakes to Avoid

1. Underestimating weight: choose hardware rated above the fully-loaded door weight.
2. Skipping floor guidance: panels will yaw and bind without it.
3. Poor clearance planning: rugs, baseboards, or protruding pulls can snag the door’s path.
4. Inadequate blocking: drywall toggles are not acceptable for track loads.
5. Glare-heavy lighting: exposed diodes create harsh sparkle and eye fatigue.

Cost and Timeline

Expect $450–$1,200 for quality hardware and track, $300–$800 in sheet goods and trim, and $150–$400 for lighting and drivers, assuming DIY fabrication and finishing. A typical weekend covers framing and track; fabrication and finishing add 2–4 more days depending on complexity.

When to Use a Pro

If your opening is load-bearing, the door exceeds 40 in width, or you’re integrating complex lighting and hidden locks, call a finish carpenter or millworker. Precision in reveals and track alignment defines the final feel—professional calibration pays off every time.

FAQ

How much wall space do I need beside the opening?

At least the clear width of the door panel plus 1–2 in for stops and soft-close hardware. For a 34 in panel, plan 35–36 in of clear wall run-off.

What door weight should I design for?

A 32 x 84 in torsion box with 3/4 in shelves typically weighs 70–110 lb empty; loaded with books it can reach 150–220 lb. Choose hardware with a 1.5x safety margin over the maximum expected weight.

Can I install this on drywall without hitting studs?

No. Top tracks must anchor into solid blocking or multiple studs. Drywall anchors are insufficient for dynamic loads and will fail over time.

What lighting levels work best for book displays?

Target 300–500 lux with 90+ CRI and 3000–3500K color temperature to balance readability and warmth, aligning with IES guidance for residential reading tasks.

Will a sliding bookcase door reduce noise?

Yes, modestly. The added mass of books and a closed-back panel can add several decibels of attenuation compared to a hollow-core swing door. Seal gaps and use soft-close hardware to reduce impact noise.

How do I keep the door from wobbling?

Use a continuous floor guide channel or T-guide aligned to a concealed groove in the door. Ensure the panel’s center of mass stays close to the track by avoiding overly deep top shelves.

What finishes are most durable?

Hard-wearing options include conversion varnish or high-quality waterborne polyurethane over MDF or plywood with hardwood edging. For a painted look, prime MDF edges with a dedicated sealer to avoid fuzzing.

Is ventilation necessary if the door hides a small room?

Yes. Include a shadow gap or discreet grille to maintain air movement and prevent stale odors or moisture buildup, especially if the concealed room has no dedicated return.

Can I integrate smart locks or access control?

Yes. Low-profile cabinet locks, magnetic latches, or RFID solutions can be concealed behind a false book spine or within the stile, as long as wiring is planned through a flexible cable path.

What about child safety and tipping?

Use anti-tip floor guidance, soft-close dampers, and load heavier books on lower shelves. Keep climbing hazards off the door and consider childproof latches if needed.

How do I make the door visually disappear?

Color-match the panel to adjacent walls, continue baseboard and casing lines across the face, and use a flush reveal detail with a recessed pull to minimize visual cues.

Can I retrofit LEDs after installation?

You can, but prewiring is cleaner. If retrofitting, use low-profile surface channels with diffusers and route power through a cable chain to avoid pinching when the panel slides.
