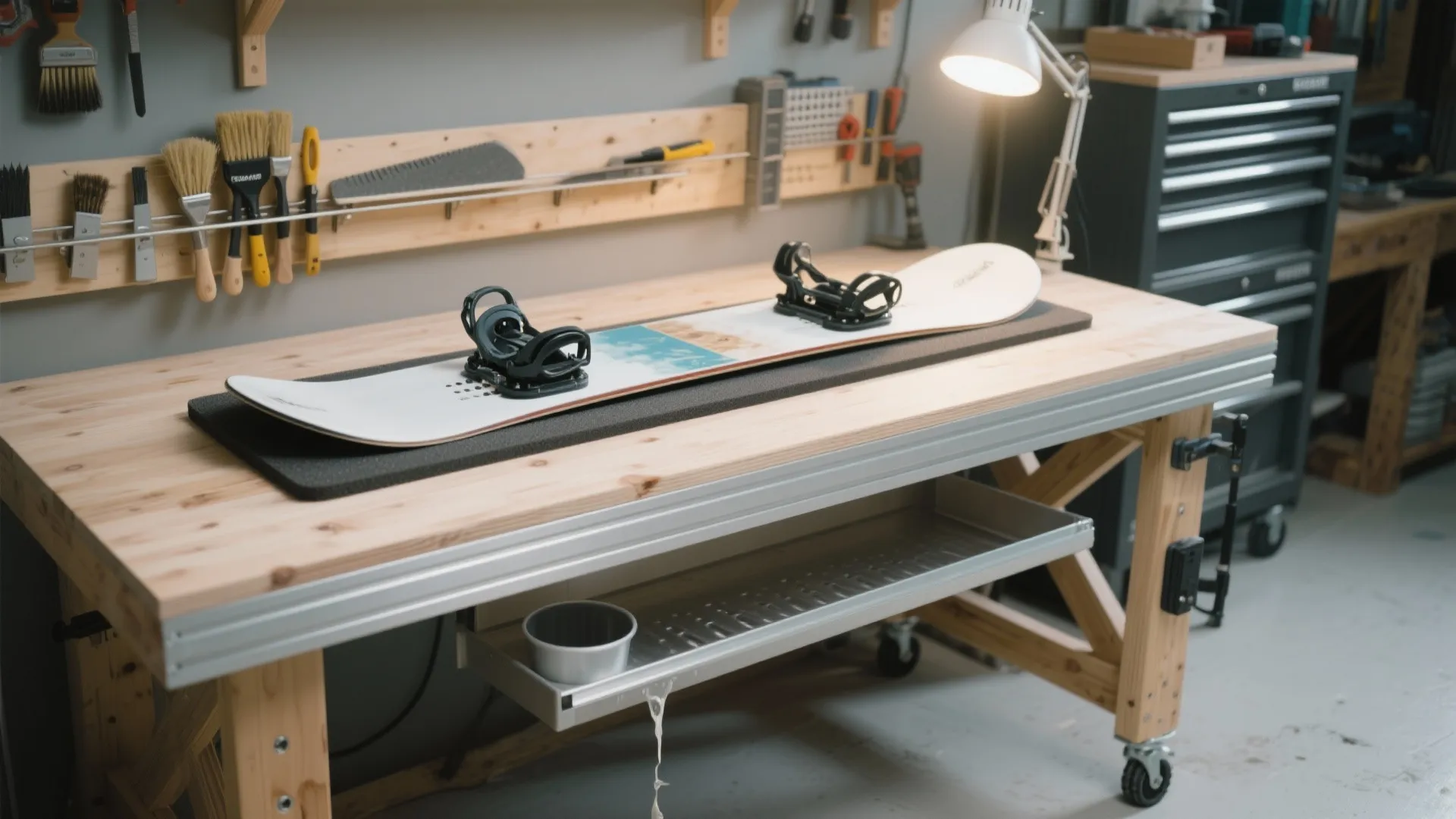

DIY Snowboard Waxing Table: Build Your Own Setup Easily: 1 Minute to Learn How to Build a DIY Snowboard Waxing Table at Home

I’ve tuned boards on kitchen counters, folding tables, and garage floors. Nothing beats a dedicated waxing table built to your height, with rock-solid stability and heat-safe materials. Here’s how I design and build a DIY snowboard waxing setup that keeps the board secure, my back happy, and the workspace clean.

Ergonomics drive the first decisions. WELL v2 guidance recommends task work heights roughly at elbow level to reduce strain; for most people that lands between 36–40 inches (91–102 cm) for standing tasks. Steelcase research also shows that sustained forward flexion increases musculoskeletal discomfort, so matching table height to your body (elbow height minus 1–2 inches for leverage) pays off during scraping and brushing. I set mine at 38 inches with adjustable feet to fine-tune for boots or flat shoes. For layout planning, a quick mock-up with a room layout tool helps test clearances, tool reach, and foot traffic around the table.

Material choice matters with heat and wax. I like a torsion-box top (lightweight yet rigid) skinned in 18 mm birch plywood with a replaceable 1/8" (3 mm) tempered hardboard sacrificial sheet. That sacrificial layer takes the heat and wax drips so the top stays flat. I add an aluminum strip along the front edge to resist iron contact and scraping wear. Keep the surface matte to reduce glare; IES task lighting guidance targets 300–500 lux for general task work, so a low-gloss finish helps prevent reflected hotspots.

Core Dimensions and Structure

- Overall length: 60–72 inches (152–183 cm). Longer boards need the extra clearance; 66 inches is my sweet spot.

- Width: 18–22 inches (46–56 cm). Enough for clamps and tools without forcing reach beyond shoulder width.

- Height: 36–40 inches (91–102 cm), adjustable feet preferred.

- Base: A-frame legs or a rectangular ladder frame in 2x4 lumber with diagonal bracing. Aim for less than 1 mm deflection under 50 lbs (board + pressure).

- Top: Torsion box (1x2 internal grid at 8–10 inch spacing) glued and pinned, skinned with birch ply.

Board Support: Vises and Blocks

Secure, non-marring contact is critical. I use two fixed supports and one tail block:

- Nose/tail cradles: U-shaped plywood forms lined with 6–8 mm EVA foam to protect sidewalls.

- Center support: A low-profile pad for bindings-off tuning, or a removable trough for bindings-on stability.

- Spacing: Set cradles ~40–45 inches apart center-to-center, adjustable via T-track slots for different board lengths.

- Fastening: Star knobs with T-bolts so the supports slide and lock quickly.

Clamping and Stability

Boards shouldn’t wiggle during scraping. Integrate a front lip (10–12 mm) for edge registration and add two cam clamps with soft jaws. Lateral stiffness comes from diagonal braces on the legs and a back stretcher at mid-height. If the floor is uneven, use rubber leveling feet with 12–15 mm travel.

Heat, Wax, and Clean-Up Management

Waxing is messy. I recess a detachable aluminum drip tray under the board area, sloped slightly to one side with a removable catch cup. The sacrificial hardboard layer lifts out after the season. A small steel brush rest keeps hot iron plates off the wood. Keep a metal can for scrapings and a dedicated shop vac with a fine dust bag for nylon brush cleanup.

Lighting and Comfort

Task lighting transforms tuning accuracy. Position a 4000–4500K task light at 300–500 lux on the board surface for reading wax sheen and edge burrs; avoid glare with angled fixtures and matte finishes. Acoustic comfort helps during long tunes—rubber feet and padded clamps cut vibration while scraping.

Tool Organization

Mount a peg strip or shallow tool rail along the rear of the table: wax iron, scrapers (acrylic and metal), nylon/horsehair/bronze brushes, gummi stone, file guide, deburring tool. Add a right-side magnetic strip for metal tools and a left-side heat-safe mat for the iron. A small drawer holds p-tex sticks, base cleaner, fiberlene, and temperature charts.

Step-by-Step Build

1) Cut legs and rails: Four legs at your chosen height, two long rails, two short rails. Add diagonal braces.

2) Assemble base: Glue and screw, check square.

3) Build torsion box: 1x2 grid at 8–10 inch spacing inside a perimeter frame; glue and pin.

4) Skin the top: Birch ply, then a replaceable hardboard layer. Front aluminum edge strip.

5) Add supports: Install T-tracks, cradles, and center pad. Line with EVA foam.

6) Clamp hardware: Cam clamps with soft jaws on both sides.

7) Finishing: Sand to 150–180 grit, seal with a low-sheen waterborne poly. Install adjustable feet.

8) Lighting: Mount an angled task light or ceiling fixture delivering 300–500 lux at the surface.

Layout and Space Planning

If your workshop is tight, map clearance zones: 30 inches minimum in front for stance, 24 inches behind for tool reach. Keep sharp tools on the dominant-hand side and heat on the opposite. For small apartments, a foldable base with locking hinges helps. To visualize in advance, a layout simulation tool can quickly test table placement, storage, and circulation.

Safety and Human Factors

- Ventilation: Use a fan and window or a low-level extractor. Warmer waxes can off-gas; keep airflow steady.

- Heat discipline: Rest the iron on a heat mat, set temperature per wax brand guidance, avoid smoking wax.

- Body mechanics: Stand feet shoulder-width, keep elbows close, scrape in controlled strokes at elbow height.

- Eye level: Position lighting so the edge glints without glare; adjust fixture angle to your posture.

Cost and Alternatives

Most builds land between $80–$180 depending on lumber and hardware. If you already own saw horses, add a torsion top and clamp-on supports for a fast budget setup. For travel, make two clamp-on cradle blocks that mount to a hotel desk and a portable drip mat.

Maintenance

Replace the sacrificial layer annually, tighten hardware, and check foam pads for compression. Recalibrate table height if your footwear changes (boots vs sneakers). Keep brushes clean and label waxes by temperature range.

FAQ

Q1: What height should my waxing table be?

A: Aim for your elbow height minus 1–2 inches. WELL v2 task guidance and ergonomic practice support 36–40 inches for most adults.

Q2: How much lighting do I need?

A: Target 300–500 lux at the board surface with 4000–4500K color temperature. Position lights to avoid glare and shadows across the base.

Q3: What surface material is best?

A: A rigid, heat-tolerant top like birch ply with a replaceable hardboard layer works well. Add an aluminum front edge to resist heat and scraping.

Q4: How do I secure the snowboard without damaging it?

A: Use EVA-foam-lined cradles and soft-jaw cam clamps. Avoid direct metal contact with the sidewalls and topsheet.

Q5: Can I build a foldable version?

A: Yes. Use locking hinge legs and a removable torsion-box top. Ensure diagonal bracing or a crossbar to prevent racking when scraping.

Q6: What about ventilation?

A: Keep steady airflow with a fan and open window or a small extractor. Position air movement so it pulls fumes away from your breathing zone.

Q7: How do I manage wax drips?

A: Install a detachable aluminum drip tray beneath the board and use a sacrificial hardboard sheet. Collect scrapings in a metal can and vacuum fine dust.

Q8: Is a torsion box necessary?

A: Not strictly, but it dramatically improves rigidity without adding weight. If you use plain ply, add thicker material and more under-bracing.

Q9: What spacing should I set for the board supports?

A: Start with 40–45 inches center-to-center and adjust via T-tracks for different lengths. Keep the center pad low to prevent rocking.

Q10: How do I avoid back strain while scraping?

A: Align table height to ergonomics, keep elbows close, and use smooth, controlled strokes. Adjust foot stance and take short breaks to reset posture.

Q11: Are there budget alternatives?

A: Two saw horses, a 3/4" ply top, clamp-on cradle blocks, and a heat mat can get you started for under $100 if you already have basic tools.

Q12: What’s the ideal table length?

A: 60–72 inches covers most snowboards. If you ride longer freeride boards, 72 inches provides better support and tool space.
