DIY Solar Heater for House: Efficient Home Heating Solutions: 1 Minute to Master Your Own Solar Heater: A Fast-Track Guide

I’ve designed and tuned solar-assisted heating for homes across varied climates, and the most reliable builds balance passive gains with simple active components. A DIY solar heater isn’t about replacing your entire HVAC system overnight; it’s about capturing free thermal energy, moving it intelligently, and integrating it with your home’s envelope and lifestyle. In well-insulated residences, solar air heaters can offset 20–40% of shoulder-season heating demand, especially when you leverage south-facing surfaces and low-loss duct paths.

To set realistic expectations, I look at occupant comfort and verifiable performance metrics. WELL v2 suggests maintaining indoor temperatures between 68–75°F (20–24°C) with stable thermal conditions to reduce stress and increase productivity, while IES guidance stresses glare control and daylight balance to avoid thermal hotspots that lead to discomfort. In workplaces studied by Steelcase, daylight and thermal comfort correlate with higher satisfaction and productivity, reinforcing that heat capture and distribution must align with human factors—not just raw BTUs. For further context on human comfort standards, see WELL v2’s Thermal Comfort feature and IES standards for daylighting and glare control.

Choosing the Right DIY Solar Heater Type

Three approachable paths cover most homes: (1) solar air heater (panel with absorber and glazing that warms air), (2) thermosyphon wall heater (black-painted exterior cavity with top/bottom vents using buoyancy), and (3) water-based collector feeding a hydronic loop or thermal mass. Air heaters are the simplest—sheet-metal box, matte-black absorber, polycarbonate or tempered glass glazing, and a ducted path with a small inline fan. Water collectors offer higher energy density but require freeze protection, a heat exchanger, and more vigilant safety.

Performance Targets and Sizing

For air heaters, I aim for 4–6 CFM per square foot of collector area with a ΔT of 30–50°F on sunny winter days. If your south wall can host a 4 ft × 8 ft panel (32 sq ft), target 130–190 CFM of airflow. Assuming a 35°F temperature rise and air heat capacity of ~1.08 BTU/hr·CFM·°F, you’ll deliver roughly 130×1.08×35 ≈ 4,900 BTU/hr, sufficient for a small room when the sun is shining. Water collectors of similar size can yield higher BTU outputs but demand careful control to avoid scalding and to handle stagnation.

Materials and Absorber Design

I choose matte-black, high-absorptance coatings (95%+ solar absorptance) on thin aluminum or steel fins, attached to a baffle or serpentine path that increases air dwell time. Low-iron tempered glass increases solar transmittance; twin-wall polycarbonate is lighter and resistant to hail, though slightly less transmissive. Seams need high-temperature silicone; interior surfaces require radiant barriers where you don’t want re-radiation losses. Use insulation (mineral wool or polyiso) on the back and sides to cut conduction losses.

Glazing, Airflow, and Safety

Glazing choice directly affects efficiency and longevity. Tempered glass manages thermal cycling and retains clarity; UV-stabilized polycarbonate with a minimum thickness of 8–10 mm resists impact and reduces weight. Keep airflow laminar enough to minimize pressure drop while avoiding stagnant pockets. A 24V DC fan with PWM control provides fine-tuned flow and safer low-voltage operation. Include a high-temperature limit switch (~160–180°F) and a backdraft damper to prevent reverse nighttime cooling. If you use water, install pressure relief, anti-scald mixing valves, and freeze protection (drain-back or glycol).

Mounting, Orientation, and Seasonal Controls

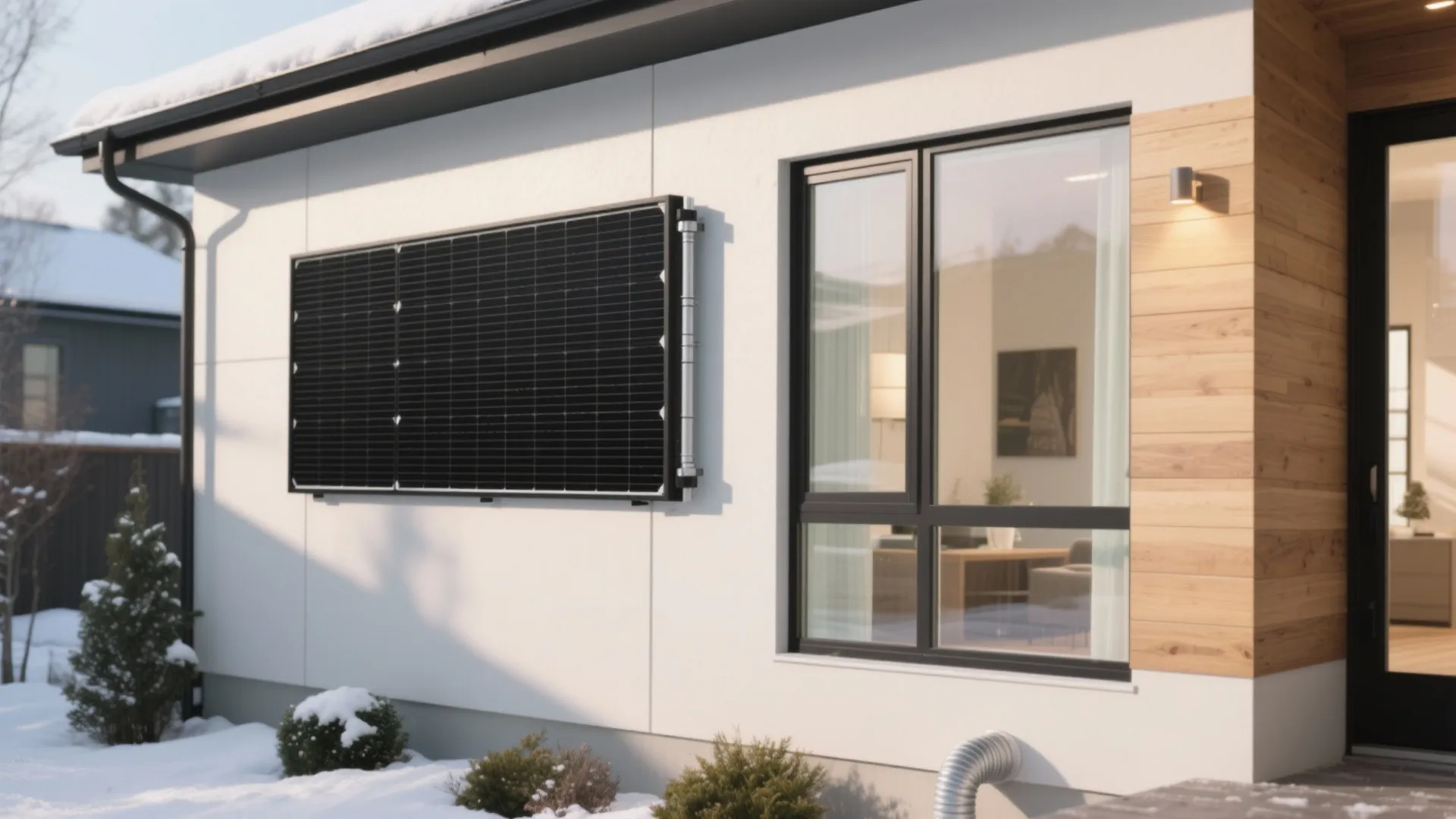

South-facing orientation with tilt near local latitude maximizes winter gain. On walls, I favor vertical mounts for simpler penetrations and easier maintenance. Roof mounts deliver excellent winter insolation but complicate flashing and service access. Add adjustable baffles or a removable cover for peak-summer cut-off; a simple manual shutter or insulated hatch prevents unwanted heat when cooling loads dominate.

Integrating with Your Home Envelope

The heater is only as good as the envelope it serves. Seal infiltration points, upgrade attic insulation, and check window weatherstripping to retain captured heat. Use thermal mass—a masonry wall or water barrels—inside the sun-exposed zone to smooth diurnal swings. If you’re optimizing room placement or duct paths, a room layout tool helps visualize supply/return positions for uniform temperature and minimal drafts: room layout tool.

Controls and Smart Operation

I use three inputs to automate: solar irradiance proxy (panel outlet temperature), indoor setpoint, and occupancy. A differential controller turns on the fan when panel outlet air is at least 10–15°F above indoor temperature. Tie output to a smart plug or low-voltage relay with time-of-day lockouts. For hydronic loops, include a pump relay governed by collector and tank sensors, plus anti-scald mixing at the distribution manifold.

Acoustics and Comfort

Even small fans can create tonal noise. Choose low-sone inline fans, isolate mounts with rubber grommets, and route ducts with gentle sweeps. Place supply registers away from seating to reduce draft sensation. Thermal comfort is not just temperature; glare and radiant asymmetry matter. Use matte interior finishes and window shades to cut bright specular reflections while the collector runs. This aligns with human factors best practice highlighted in WELL v2’s comfort strategies and IES glare recommendations.

Color, Materials, and Aesthetics

Collectors are typically dark and utilitarian. To keep the façade coherent, I integrate a thin frame color-matched to trim and reserve black only for the inner absorber. Indoors, warmer neutral palettes reduce perceived starkness during winter; VerywellMind’s color psychology notes that warmer hues can feel cozier, which complements the thermal effect of sun-warmed air. Pair with tactile materials—wood veneers, textured plaster—so the space feels inviting without absorbing too much radiant heat.

Cost, Payback, and Realistic Expectations

A DIY air heater sized 32–64 sq ft with quality glazing and insulation typically runs $250–$600 in materials. In cold, sunny regions, seasonal savings can be noticeable, especially if you displace electric resistance heat. Expect the best payback when you leverage shoulder seasons (fall/spring) and daytime occupancy. It’s still supplemental: plan for your main system to carry load during overcast, very cold spells.

Step-by-Step Build Outline

1) Plan location and size based on south exposure and available wall area. 2) Build a rigid, insulated box with exterior-grade materials. 3) Install absorber (finned or baffle system) painted matte black. 4) Fit glazing with weatherproof seals and drainage weeps. 5) Add inlet/outlet ducts with backdraft dampers, sensor ports, and a low-voltage fan. 6) Wire a differential controller or smart plug logic. 7) Commission on a clear day; verify ΔT and CFM, adjust fan curve and baffles. 8) Add seasonal shutter or cover for summer.

Maintenance and Durability

Every fall, check seals, clean glazing, and test limit switches. Inspect for moisture intrusion and repaint absorbers as needed to maintain absorptance. Fans are consumables; budget for replacements every 3–5 years depending on duty cycle. If you run a glycol hydronic system, test inhibitor levels annually.

Common Mistakes to Avoid

• Oversizing without airflow control, leading to stratification and noise. • Neglecting backdraft dampers, causing nighttime heat loss. • Poor insulation and leaky seams that erase gains. • No safety cutoffs or freeze protection in water systems. • Ignoring glare and drafts, undermining perceived comfort.

FAQ

How much heat can a DIY solar air heater realistically deliver?

A well-built 32 sq ft panel with 150–180 CFM can produce around 4,000–6,000 BTU/hr in strong winter sun, enough to warm a small room, with performance varying by latitude and weather.

Will it work on cloudy days?

Output drops significantly under heavy cloud cover. Plan for supplemental heating during low-irradiance periods and rely on solar primarily during clear, cold days.

How do I avoid nighttime heat loss?

Install backdraft dampers on ducts, insulate the collector walls, and set the controller to shut off fans when panel outlet temp falls within 5°F of indoor air.

Is glare an issue near windows when the collector runs?

It can be if bright surfaces face the sun. Use matte finishes, controlled daylight, and shades to align with IES glare control recommendations.

What about indoor comfort targets?

Maintain 68–75°F with stable conditions per WELL v2 thermal comfort guidance; avoid rapid swings by using thermal mass and smart fan modulation.

Can I connect a solar air heater to existing HVAC?

Yes, via a dedicated return or a small supply duct to a target zone. Keep runs short, seal joints, and verify static pressure so you don’t upset HVAC balance.

Is water-based solar heating worth the complexity?

It offers higher energy density but requires freeze protection, pressure relief, mixing valves, and careful controls. For DIY, air systems are less risky and easier to maintain.

How should I size the fan?

Target 4–6 CFM per sq ft of collector area. Use a quiet, efficient inline fan with PWM speed control to fine-tune ΔT and noise.

Can the collector overheat?

Yes. Add a high-temp limit switch and seasonal shutter or cover. Hydronic systems need stagnation strategies and relief valves.

What materials last longest outdoors?

Low-iron tempered glass, UV-stabilized polycarbonate, aluminum frames, and exterior-grade sealants. Insulate with polyiso or mineral wool to minimize losses.

Will this reduce my heating bills?

In sunny, cold climates, expect noticeable daytime reductions, particularly during shoulder seasons. Payback depends on fuel costs, collector size, and envelope efficiency.

How do I manage noise?

Choose low-sone fans, isolate mounts, and keep duct bends gentle. Place registers away from seating to limit draft-related discomfort.
