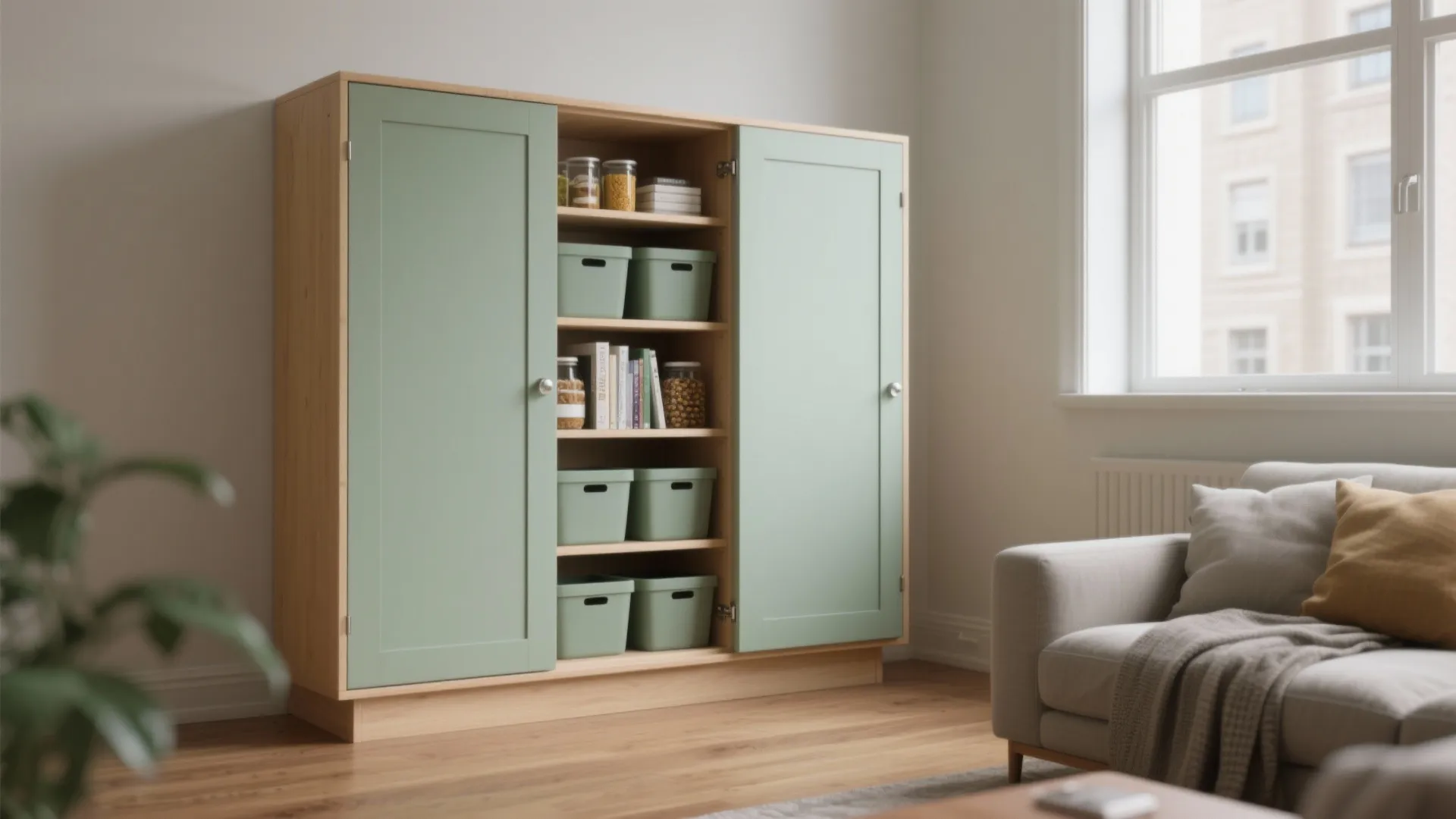

DIY Storage Cabinet with Doors: A Step-by-Step Guide for Small Spaces: 1 Minute to Smarter Storage—Build Your Own Cabinet Fast!

Small spaces demand storage that works as hard as you do. A well-proportioned DIY cabinet with doors hides visual clutter, protects items from dust, and adds a calm, organized rhythm to a room. In compact homes, visual continuity and scaled depth make the difference between a tight corner and a functional micro-zone. Steelcase research notes that visual order directly supports perceived control and reduces stress in work environments; translating that principle to home storage often yields a more focused daily routine. Herman Miller’s findings also show reduced cognitive load when items are clearly categorized and accessible—a smart guide rail for how we plan shelves, door swing clearances, and handle placement.

Ergonomically, keep everyday storage between 30–50 inches from the floor to minimize bending and reaching. I target 12–16 inches shelf spacing for pantry and utility items, 9–12 inches for books, and 16–20 inches for bulk bins. For illumination when building and later in use, IES recommends task lighting in the 300–500 lux range; if you plan a cabinet near a work surface, ensure you’re not creating shadowing or glare. For color harmony, Verywell Mind’s color psychology guides often associate muted greens and warm neutrals with calm—use that to balance cabinet finishes with wall paint for a cohesive micro-environment.

Scope and Dimensions

For a small-space footprint, a cabinet around 30–36 inches wide, 12–16 inches deep, and 60–72 inches tall offers generous capacity without crowding circulation. Maintain at least 30 inches of clear floor space in front for door swing and human factors. Doors should open 100–110 degrees for comfortable access; in tight corridors, consider 2 narrower doors rather than one wide leaf to reduce clearance conflicts.

Material Selection and Sustainability

For the carcass, use 3/4-inch cabinet-grade plywood (birch or maple veneer) for rigidity and clean edges. Doors can be 1/2–3/4-inch plywood with hardwood edge banding or solid wood rails and stiles with a plywood panel. Avoid MDF in humid kitchens or bathrooms; it swells and compromises fastener strength. Source FSC-certified panels when possible, and seal edges to reduce off-gassing. Hinges: soft-close, face-frame or frameless European concealed hinges with 110-degree opening are ideal. Select low-VOC finishes; a waterborne polyurethane or hardwax oil provides abrasion resistance and pleasant hand feel.

Hardware and Ergonomic Details

Use 1-1/4 inch pocket screws or confirmat screws for strong carcass joints; add glue at all seams. Door pulls should sit 40–44 inches from the floor for a comfortable grasp, and use handles at least 4–5 inches long for a secure grip. Adjustable shelf pins (5mm) create flexibility as storage needs change. Consider magnetic catches or integrated soft-close hardware to keep doors secure without slamming. If you plan task use nearby, choose matte hardware and satin finishes to reduce glare.

Layout Planning for Tight Rooms

Before cutting, plan your cabinet’s location relative to circulation paths, outlets, and adjacent furniture. In small apartments, I test clearances virtually to avoid mis-measured surprises; a room layout tool can help evaluate door swing, shelf arrangement, and reach envelopes: room layout tool.

Cut List (Sample) and Proportions

Adjust to your final dimensions, but here’s a baseline for a 32W x 14D x 68H cabinet: two side panels 68 x 14 inches, top and bottom shelves 32 x 14 inches, three adjustable shelves 31-1/2 x 13-1/2 inches, a 1-1/2 inch face frame (optional) or edge banding on exposed plywood edges, back panel 32 x 68 inches in 1/4-inch plywood, and two doors 33-1/4 x 16 inches if using a center reveal with a frameless carcass. Maintain 1/16–1/8 inch reveals around doors for clean lines and to accommodate seasonal movement.

Tools and Fasteners

You’ll need a circular saw or track saw, drill/driver, pocket hole jig, clamps, square, measuring tape, scribe block, and sanding tools. Fasteners: pocket screws for carcass assembly, wood glue, brad nails for the back panel, and 3–4 concealed hinges per door depending on height.

Step-by-Step Build

1) Prepare and Break Down Panels

Square your saw and cut sides, top, bottom, and fixed shelves. Edge band exposed plywood edges with iron-on banding and trim flush. Sand to 180–220 grit for a smooth finish and better adhesion.

2) Assemble the Carcass

Mark shelf locations, pre-drill pocket holes on fixed shelf ends, and glue/screw the top and bottom between the sides. Check for square by measuring diagonals. Install a mid shelf as a structural stiffener if the cabinet is tall.

3) Install the Back Panel

Square the carcass and tack the 1/4-inch back panel with brads, then add screws every 8–10 inches. A fully captured back dramatically improves racking resistance, which is critical in narrow footprints.

4) Fit Adjustable Shelves

Drill shelf pin holes with a jig in evenly spaced columns. Aim for 1-1/2 inch setbacks from the front to keep the line work tidy and reduce snagging when loading items.

5) Build and Hang the Doors

For slab doors, cut panels to size, edge band, and sand. For Shaker-style, build 2-1/2 inch rails and stiles with a 1/4-inch center panel. Mortise or drill cups for concealed hinges, 3–4 per door depending on height. Set hinge plates inside the carcass and adjust for consistent reveals. This is where precision pays off visually.

6) Hardware and Finishing Touches

Install pulls at ergonomic height, add magnetic catches or soft-close hardware, and test alignment. Finish with a waterborne poly or hardwax oil; two to three coats yield durable protection in high-touch areas. Consider felt pads on the cabinet base to protect floors.

7) Anchor for Safety

In small homes where traffic is close, anchor the cabinet to studs with L-brackets or a cleat rail. Maintain 2–4 inches toe-kick or base setback to reduce trip risk and provide toe clearance.

Color and Mood

If the room craves calm, desaturate: warm gray, soft sage, or muted sand. According to color psychology references, blues and greens tend to lower perceived stress; combine them with a satin clear coat for a balanced glow under mixed lighting. Pair the cabinet tone with adjacent textiles to build a visual rhythm that feels intentional rather than improvised.

Acoustic and Surface Considerations

Doors help dampen noise from shifting items. To minimize rattle, add soft shelf liners or cork pads beneath bins. Matte finishes absorb reflections and make edges visually softer—useful in tight living rooms where stray glare can be distracting.

Maintenance and Longevity

Plan for access: a removable back panel section makes wiring or cable management easier if the cabinet sits near media equipment. Re-oil hardwax finishes annually, and keep hinge screws snug. Adjust shelf heights seasonally as storage needs change; flexibility keeps the cabinet relevant without rebuilding.

Common Small-Space Configurations

Entryway: shallow depth (12–13 inches) with high shelves for hats and a lower section for baskets. Living room: mixed shelf spacing for books, board games, and device chargers with cable grommets at the back. Kitchen nook: wipeable finish, 14–16 inches depth, taller lower shelves for appliances, and narrower upper shelves for dry goods.

References for Design Rationale

For broader workplace and human factors research that informs home storage clarity and access, see studies from Steelcase and Herman Miller: reduced visual noise correlates with improved focus and reduced task switching costs. WELL v2 guidance also emphasizes appropriate task lighting and glare control, useful when placing cabinets near desks or craft stations.

FAQ

How deep should a small-space cabinet be?

Keep depth between 12–16 inches. It’s enough for books, pantry items, and bins without encroaching on circulation or door swing.

What’s the ideal shelf spacing?

Use 9–12 inches for books, 12–16 inches for general storage, and 16–20 inches for bulk bins or appliances. Adjust with shelf pins for flexibility.

Which hinges work best in tight rooms?

Concealed European hinges with 110-degree opening offer clean lines and full access without excessive door projection. Soft-close options reduce noise.

How do I choose finishes for small spaces?

Prefer matte or satin finishes to minimize glare. Neutral or desaturated tones help maintain visual calm; blues and greens often feel restorative.

Do I need to anchor the cabinet?

Yes, especially in narrow circulation areas or homes with children. Anchor to wall studs with brackets or a cleat rail for tip resistance.

What lighting should I plan near the cabinet?

Target 300–500 lux task lighting per IES guidance and avoid placing the cabinet where it blocks light or casts glare onto work surfaces.

Is plywood better than MDF here?

For durability and screw-holding strength, cabinet-grade plywood is the safer choice, especially in rooms with occasional humidity. MDF is best kept for dry, low-impact interior panels.

How do I keep doors aligned over time?

Use quality hinges, pre-drill, and glue joints. Re-tighten hinge screws annually, and adjust with the built-in cams to maintain even reveals.

Can I modify this for a corner?

Yes. Use a diagonal face or two cabinets meeting at 90 degrees with reduced door widths. Test door swing virtually with an interior layout planner to avoid conflicts.

What if I need cable management?

Add grommets on the back panel and leave a small wiring chase. A removable panel section simplifies routing without compromising structure.
