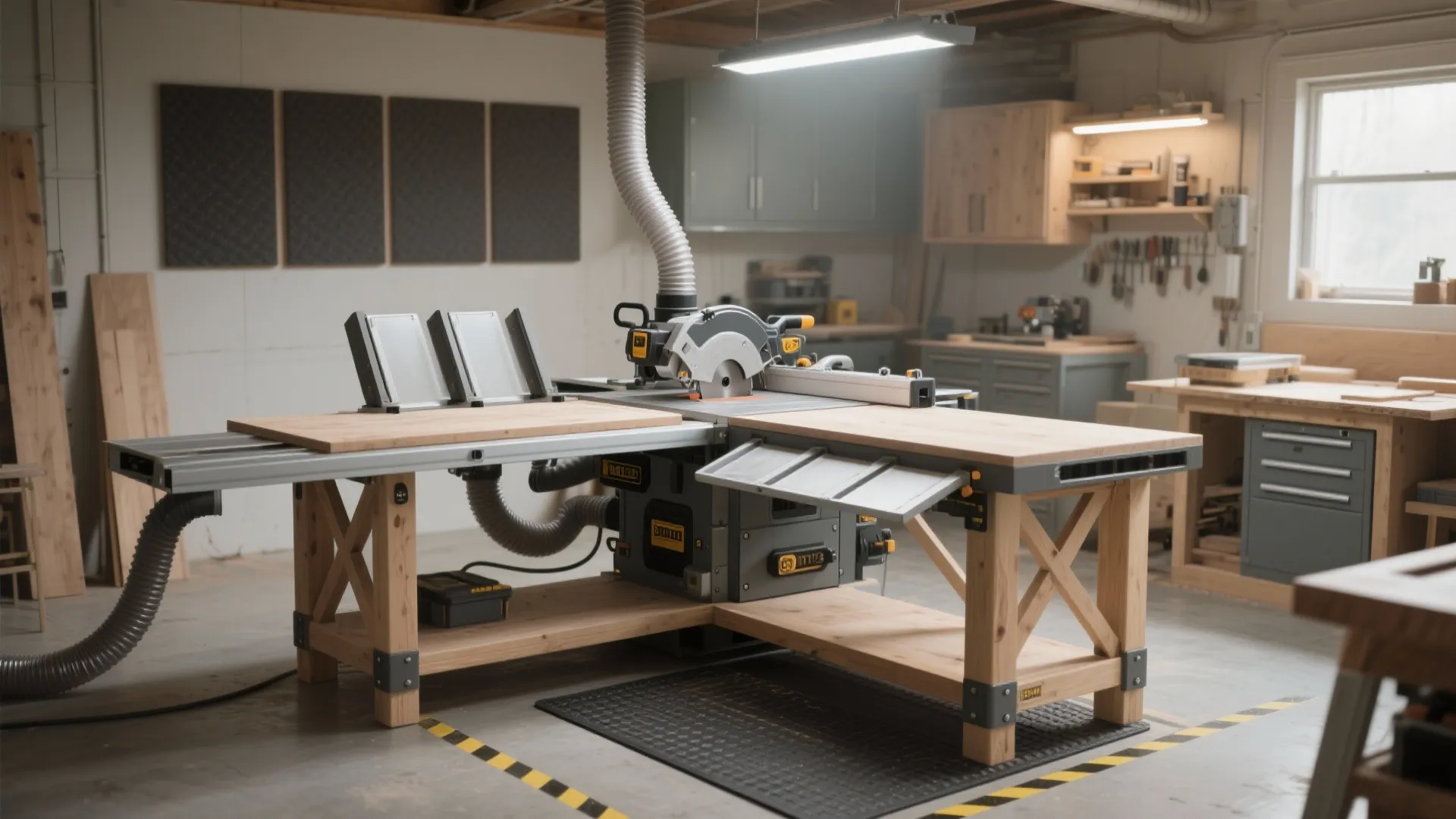

DIY Table Saw and Router Table: Build Your Custom Workstation: Fast-Track Guide to Creating a Dual Table in 1 Hour

I’ve built a few hybrid benches over the years, and the most useful shop upgrade remains a combined table saw–router table workstation. It tightens workflow, shares outfeed support, and keeps dust control and safety in check without expanding the footprint. The goal is simple: stable cuts, square joinery, and accurate routing with a bench that feels intuitive and safe.

Before sketching, anchor decisions in data and standards. The WELL Building Standard recommends task areas to maintain adequate illuminance and glare control; WELL v2 guidelines highlight 300–500 lux for typical task lighting with low UGR to reduce eye strain. For visibility of saw blade alignment and router bit profiles, I target 500–750 lux on the bench and add zoned lighting to minimize shadows. On ergonomics, Herman Miller’s research notes that well-placed tools and clear lines of sight reduce micro-pauses and rework that compound fatigue during repetitive tasks. These benchmarks shape height, reach, and lighting from the first cut list. For deeper lighting guidance, the Illuminating Engineering Society (IES) task lighting recommendations are a reliable planning reference found at ies.org/standards.

Acoustics matter more than most hobbyists expect. Steelcase research associates uncontrolled noise with reduced concentration and higher error rates in task spaces. In the shop, that translates into poor feed control when the mind is overloaded. I keep sound absorption in mind with soft surfaces in the immediate environment—rubber mats under the bench and acoustic panels away from dust zones—so the room doesn’t ring during long ripping sessions. Practical comfort fuels safe work.

Plan the Footprint and Workflow

Start with the path: lumber rack → jointer/planer → table saw → router table → assembly. Your bench should encourage straight-line movement without dead ends. I place the table saw centrally, optimized for infeed/outfeed. The router table docks on the right wing so the fence aligns with saw outfeed, meaning longer stock can pass through both stations without moving machines. If you need to visualize variants, a room layout tool helps simulate clearances and push-stick paths: room layout tool.

Bench Height, Reach, and Stance

Height is not universal. I set top height between 34–36 inches for versatile control—lower helps with pushing stock safely on the saw and delivers better leverage at the router. Your knuckle height at a relaxed stance is a quick field test: the top should sit close to that level for control without shoulder lift. Keep typical reaches under 20 inches for knobs, lifts, and switches. Place emergency stop within a natural knee or hip bump so you can cut power hands-free in a surprise bind.

Frame and Top: Stability First

Build the frame like a small bridge. I use 2x4 or 2x3 kiln-dried lumber or 45x45 steel extrusion for rigidity, tied with structural screws and glue. Add cross-bracing on the long axis to resist racking. The top: 1.5-inch laminated MDF or plywood with a replaceable sacrificial skin. Router insert plates need a flat, reinforced pocket; plane the pocket and test with feeler gauges. For the saw, reinforce the mounting zone and lock the fence rails so deflection under lateral pressure is minimal. Rolling bases are handy, but add toe locks and wide casters rated above your full bench weight to keep the saw true under push force.

Integrating the Router Table

Router lifts make bit height adjustments precise. If you’re going DIY, the plate must sit perfectly flush; a card scrape test should glide across without catching. Align the router fence parallel to the saw fence line to use the same outfeed plane. Dust collection: capture at the fence and the cabinet. A 2.5-inch port at the fence paired with a 4-inch cabinet port balances chip capture. Keep fence faces square and slick—laminate or UHMW reduces friction and sticking.

Fence Strategy and Micro-Adjustments

A properly tuned fence turns the workstation into a precision jig. On the saw, ensure parallelism to the miter slot and blade. Check with a dial indicator or a reliable feeler system. On the router side, incorporate micro-adjust screws or a wheel for sub-millimeter moves; these save hours when dialing in tenons and rabbets. A clear, repeatable scale and positive stops make the bench feel like a machine, not a prototype.

Outfeed, Infeed, and Support

Outfeed support is non-negotiable. Build a flat, co-planar outfeed section that doubles as an assembly surface. The outfeed should sit a whisper below blade height to avoid catching. For long stock, flip-up wings maintain compactness while providing support when needed. On the router side, featherboards and a pressure feather keep stock tight to the fence without risking hand position.

Power, Switches, and Dust Management

Route power through a dedicated circuit if possible. Keep a master kill switch reachable from the operator position. For dust, a cyclone with 4-inch mains and 2.5-inch branches covers the saw port, blade guard, and router fence/cabinet. The fine dust is the health issue; bag upgrades and HEPA-rated filtration are worth the budget. Keep blast gates at chest height so you actually use them.

Lighting and Glare Control

Task lighting is where precision lives. Aim LED fixtures at 4000–5000K for neutral color rendering—cool enough to show blade teeth and layout lines clearly without color skew. Keep UGR low by shielding fixtures and cross-lighting the bench to minimize harsh shadows. I position linear LEDs above the fence line and one angled spotlight towards the blade to see the kerf. With 500–750 lux focused on the cut zone, measurement marks remain legible even on darker hardwoods.

Safety Features That Become Habits

Add a push-stick storage rail at the front, a blade guard with dust capture, and anti-kickback pawls when ripping. A riving knife stays in by default. Mark danger zones with high-contrast tape on the top. Keep PPE hooks near the switch so goggles and ear protection become automatic. Train your stance: feet offset, elbows bent, hands guiding—not pressing down—on a jointed edge.

Materials and Surface Finishes

Durable, dimensionally stable sheet goods are your friends. MDF cores topped with HPL or melamine create slick, consistent feed surfaces. Wax the top lightly; avoid heavy silicone polishes that contaminate finishes. Use hardwood edge banding where clamps bite. Screws should be hardened and sized to avoid telegraphing through the top—pre-drill and verify depths.

Joinery and Jig Integration

Build the bench to host jigs: T-tracks in the router zone for hold-downs, a sled guide slot at the saw, and drill bushing points along the fence face for repeatable stops. If you cut dadoes often, a dedicated routing strip with replaceable zero-clearance inserts reduces tear-out and keeps profiles crisp.

Calibration Routine

Measure and adjust in this order: blade to miter slot, fence to miter slot, router plate flushness, fence square, bit runout, then test cuts on scrap. Keep a shop card with tolerances you accept—e.g., rip parallelism within 0.1 mm over 600 mm, router edge square within 0.2 mm. Small, consistent checks prevent compound error across projects.

Space-Savvy Storage

Under-bench drawers for router bits, wrenches, featherboards, and gauges reduce walking. Magnetic strips for hex keys and insert rings keep essentials visible. Store sleds on side hangers, not stacked. Label bits by profile and diameter so you pick the right cutter fast.

Sustainability and Longevity

Choose low-VOC finishes and formaldehyde-reduced sheet goods where possible. Rebuildable tops and replaceable inserts extend life. If you swap tools later, design the bench with adjustable mount holes and slotted rails so upgrades don’t force a complete rebuild.

Build Sequence Overview

1) Sketch the footprint with clear infeed/outfeed; 2) Cut and assemble the frame with cross-bracing; 3) Laminate and level the top; 4) Mount the saw and square the rails; 5) Rout the router plate pocket and fit flush; 6) Install fences and micro-adjusts; 7) Wire power and dust collection with a master kill; 8) Calibrate and test with known-good scrap; 9) Add lighting and final safety accessories.

FAQ

Q1: What bench height works best for both the table saw and router?

A: A 34–36 inch top suits most users, balancing control for pushing stock on the saw and fine adjustments at the router. Test with your natural knuckle height and adjust legs or casters accordingly.

Q2: How much light should I aim for at the workstation?

A: Target 500–750 lux focused on the cut zone. Neutral 4000–5000K LEDs improve visibility of blade teeth and markings while keeping color rendering honest. Keep glare low by shielding fixtures.

Q3: What’s the safest way to integrate the router table with the saw?

A: Place the router in the right wing so the fence aligns with the saw outfeed, capture dust at fence and cabinet, and keep emergency power shut-off reachable from the operator stance.

Q4: Should I use a router lift or a fixed base?

A: A lift provides consistent micro-height adjustments and easier bit changes. If budget is tight, a well-fitted insert plate with external height adjust and a solid fence gets you most of the precision.

Q5: How do I manage outfeed for long boards without a huge footprint?

A: Build flip-up outfeed wings or a removable roller support that sits just below blade height. Ensure it’s co-planar with the main top to avoid catching.

Q6: What dust collection setup is effective for a hybrid bench?

A: A cyclone with 4-inch mains and 2.5-inch branches to the router fence, router cabinet, and saw guard/port works well. Prioritize HEPA filtration to capture fine particulates.

Q7: How do I keep the saw and router fences perfectly aligned?

A: Reference the miter slot with a dial indicator, set the saw fence parallel first, then align the router fence to the same axis. Add micro-adjusters and positive stops for repeatable settings.

Q8: What materials are best for the top surface?

A: 1.5-inch laminated MDF or plywood with HPL or melamine creates a flat, low-friction surface. Wax lightly for glide; avoid silicone polishes that can contaminate finishing.

Q9: Any tips for reducing noise and fatigue?

A: Rubber anti-fatigue mats near the bench, soft surfaces away from dust paths, and consistent task lighting reduce cognitive load. Research from major workplace studies links noise control to improved focus and fewer errors.

Q10: How often should I recalibrate?

A: After any heavy move or seasonal humidity shift. A monthly check of blade-to-slot parallelism, fence squareness, and router plate flushness keeps accuracy on track.
