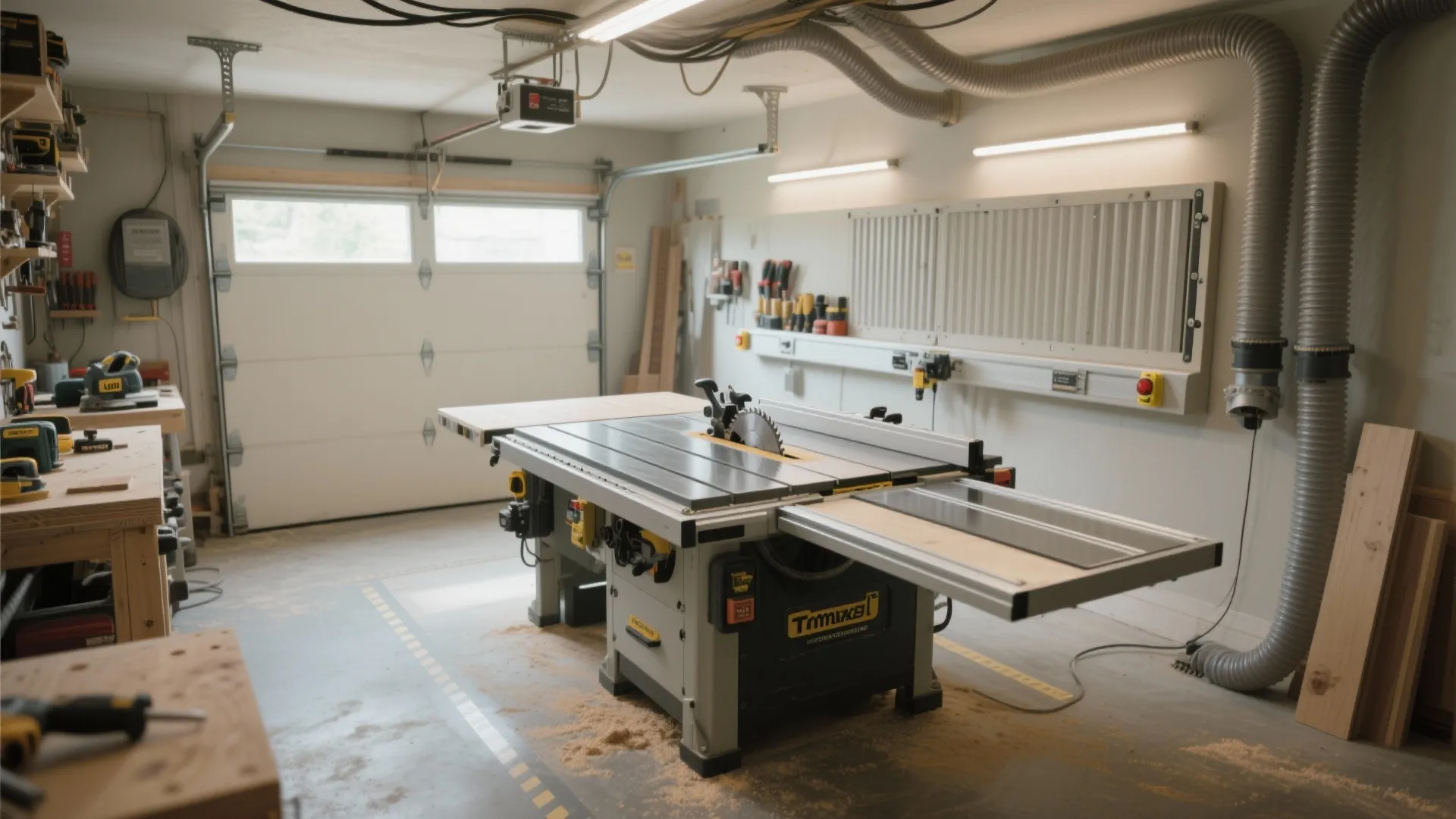

DIY Table Saw and Router Table: Space-Saving Workshop Solutions: 1 Minute to a Dual-Function DIY Table Saw and Router Table

Space is a luxury in many home workshops, yet precision woodworking demands stable, safe, and adaptable machinery. I’ve refined a compact solution by integrating a table saw and a router table into a single footprint, creating an efficient workflow while preserving cut quality and safety. In small shops (often under 200 sq ft), footprint consolidation can reclaim up to 30–40% usable floor area through smarter layout and mobility. Productivity is not just about tools; it’s about how their positions, clearances, lighting, and ergonomics support your body and your tasks. According to WELL v2 Lighting guidelines, maintaining task illuminance around 300–500 lux reduces visual strain for intricate operations, and keeping correlated color temperature near 4000–5000K helps with material color fidelity and edge visibility (WELL v2). I routinely calibrate lighting to these ranges for safer cuts and cleaner mortises.

Safety and posture are non-negotiable. Steelcase research has shown that prolonged forward flexion increases fatigue and reduces precision, reinforcing the value of correct work heights and frequent micro-movements (Steelcase Research). For most users, the ideal table height lands roughly at wrist crease level—typically 34–36 inches—reducing shoulder elevation and wrist extension during feed. Pair that with clear infeed and outfeed zones: at least 36 inches each for sheet goods, 24 inches for typical dimensional lumber. These distances are rooted in human factors—allowing consistent feed rates and predictable control without overreaching.

Design Goals: Compact Without Compromise

My goal is to deliver cabinet-saw stability with the nimbleness of a benchtop footprint. That means a unified deck with independent dust collection, accurate fences, and safe transitions between sawing and routing. I prioritize:

1. Rigid, flat top surface with ≤0.010 inch deviation across the working area
2. Fence repeatability within ±0.005 inch
3. Integrated dust collection achieving 50–100 CFM at the router enclosure and 350+ CFM at the saw shroud
4. Task lighting focused to 500 lux on the blade and bit zones

Integrated Layout: One Footprint, Two Precision Stations

I position the router insert plate along the right extension wing of the table saw, preserving rip capacity while enabling quick switchovers. The shared fence concept can work if your table saw fence is square, straight, and easily micro-adjustable; otherwise, use a dedicated router fence with split faces for zero-clearance around bits. To test reach and clearance before committing to a build, try a room layout tool for simulation and cut-path visualization: room layout tool. It helps confirm aisle widths, storage locations, and dust hose routes so you don’t end up with snags or blind spots.

Base and Top: Stability First

A torsion box top or 1-1/2 inch laminated MDF with high-pressure laminate (HPL) gives excellent flatness and glide. I use a steel angle subframe or hardwood apron to prevent racking during mobile moves. Add leveling feet to compensate for slab unevenness; a 4-point adjustment reduces twist. The router cavity should be sealed with a negative-pressure port to capture chips without starving airflow around the motor.

Fence Strategy: Accuracy You Can Trust

For the table saw, a T-square fence with robust rear rail and cam lock minimizes deflection under lateral pressure. On the router side, a split-face fence with micro-adjust helps set bit exposure with precision. Keep a dedicated high fence for tall workpieces to avoid tipping moments, and use featherboards for consistent feed pressure. Aim for fence-to-blade parallelism within 0.002–0.004 inch; misalignment is a leading cause of burning and kickback.

Dust Collection: Breathing Easy

A hybrid approach works best in compact shops: a 1.5–2 HP dust collector for high-volume chips at the saw, plus a shop vac with HEPA filter for the router enclosure and fence ports. Route 4-inch mains with short, smooth runs and minimal flex hose, then step down to 2-1/2 inch drops at tools. A blast gate bank near the operator side streamlines changes when switching between saw and router tasks. Keep airflow paths laminar by avoiding sharp 90-degree turns; two 45s are kinder to your static pressure.

Electrical and Control: Clean, Safe, and Accessible

Separate switched circuits for saw and router prevent nuisance trips and allow independent emergency stops. Install magnetic starters or paddle-style kill switches within knee reach—no fumbling when a cut goes sideways. Cable management is critical: overhead retractable reels or under-table cable trays keep cords off the floor, reducing trip hazards and accidental unplugging.

Lighting and Visual Clarity

Good lighting is not decorative; it’s protective. Per IES task lighting practices, avoid high-glare sources directly in the operator’s sightline and balance vertical and horizontal illuminance to read fences and scales accurately (IES Standards). I prefer high-CRI LED strips under fence rails and a focused, flicker-free task lamp angled to reveal saw teeth and router bit profiles without casting hard shadows onto the cut line.

Ergonomics: Human Factors Guide the Build

Height, reach, and staging matter. Keep push sticks and block jigs within a 12–18 inch reach envelope so you never break stance to grab safety aids. For repetitive routing, add a shallow anti-fatigue mat and consider a radius on table edges to prevent forearm pressure points. Arrange clamps and small parts storage just behind or beside the operator zone, never in the outfeed path.

Router Plate and Lift: Precision Under the Surface

A machined aluminum insert plate supports stability and heat dissipation. If you frequently change bits or rely on height accuracy, a router lift with fine-pitch screw provides reliable repeatability. Ensure flushness at the insert by using leveling screws or set plates; even a 0.005 inch lip can catch stock, especially with delicate profiles. Dust seals around the lift reduce chip recirculation.

Miter Slots, Jigs, and Repeatability

Aligned miter slots enable sleds for crosscuts, tenons, and box joints. I machine slots parallel to the blade within 0.003 inch, then tune sled runners to a smooth, play-free glide. For the router, use a micro-adjustable stop block system for repeat cuts on edge profiles and mortises; it reduces setup time and ensures consistency across batches.

Mobility and Footprint Management

In small garages, mobility is often essential. A double-locking caster system or retractable wheel base preserves rigidity while allowing repositioning. Map your typical cut flow—panel breakdown, ripping, jointing, routing—then rotate the unit so dust ports and storage stay accessible. Mark travel lanes and parking spots on the floor to avoid collisions with storage racks or drill press swings.

Noise and Acoustic Comfort

Router whine and saw noise fatigue the brain quickly. Line the router cavity with acoustic foam rated for workshop environments and maintain sealed doors; it won’t silence the machine, but it lowers high-frequency fatigue. If you’re in a shared space, set quiet hours and add rubber pads under the base to decouple vibration from the slab.

Material Selection and Durability

HPL surfaces resist glue and provide smooth feeding. Consider phenolic-faced plywood for fences—stable and slick. Use corrosion-resistant hardware; threadlock on vibration-prone screws like router lift mounts. For safety accessories, invest in quality hold-downs, push blocks with high-friction faces, and riving knives or splitters matched to your blade kerf.

Workflow Tips: Switching Without Losing Accuracy

When shifting from ripping to routing, lock out power, vacuum the deck, reset fence squareness, and verify bit height on a gauge block. Keep a laminated checklist on the side panel—bit tightened, fence locked, dust gates set—to prevent mental slips in the switch.

FAQ

What table height works best for a combined saw/router setup?

For most users, 34–36 inches aligns with neutral wrist posture, reducing shoulder elevation and maintaining control during feed. Adjust slightly for your height and shoe thickness.

How much infeed and outfeed space do I need?

Plan for at least 36 inches infeed and outfeed for sheet goods; 24 inches can suffice for smaller stock. These clearances allow stable feed rates and reduce binding.

Can I share one fence between the saw and the router?

Yes, if your table saw fence is square, straight, and micro-adjustable. Many prefer a dedicated split-face router fence for fine profiles and dust collection. Both approaches require careful calibration.

What lighting levels improve safety at the cut line?

Target 300–500 lux at the work surface with 4000–5000K color temperature. Avoid glare by angling task lamps and balancing ambient light per IES practices.

How do I manage dust effectively in a compact shop?

Use a 1.5–2 HP dust collector for high-volume chips and a HEPA shop vac for the router enclosure and fence ports. Short, smooth runs and blast gates near the operator streamline airflow.

Is a router lift necessary?

Not mandatory, but a lift provides precise, repeatable height adjustments and faster bit changes. If you do frequent profiling or mortising, it saves time and increases consistency.

How can I reduce noise from the router cavity?

Seal the cavity and line it with acoustic foam, maintain tight doors, and decouple the base with rubber pads. Ear protection is still essential for extended sessions.

What safety features should be within immediate reach?

Install paddle-style emergency stops for both tools at knee level, keep push sticks and featherboards within 12–18 inches, and verify riving knife alignment before rip cuts.

What tolerances should I aim for when aligning the blade and miter slots?

Keep fence and slot parallelism within 0.002–0.004 inch to avoid burning and kickback. Verify with a dial indicator or a high-quality alignment gauge.

How do I protect the work surface from glue and wear?

Use high-pressure laminate on the top and phenolic-faced plywood for fences. Wax the surface lightly for smoother feeds but avoid buildup near the blade or bit.
