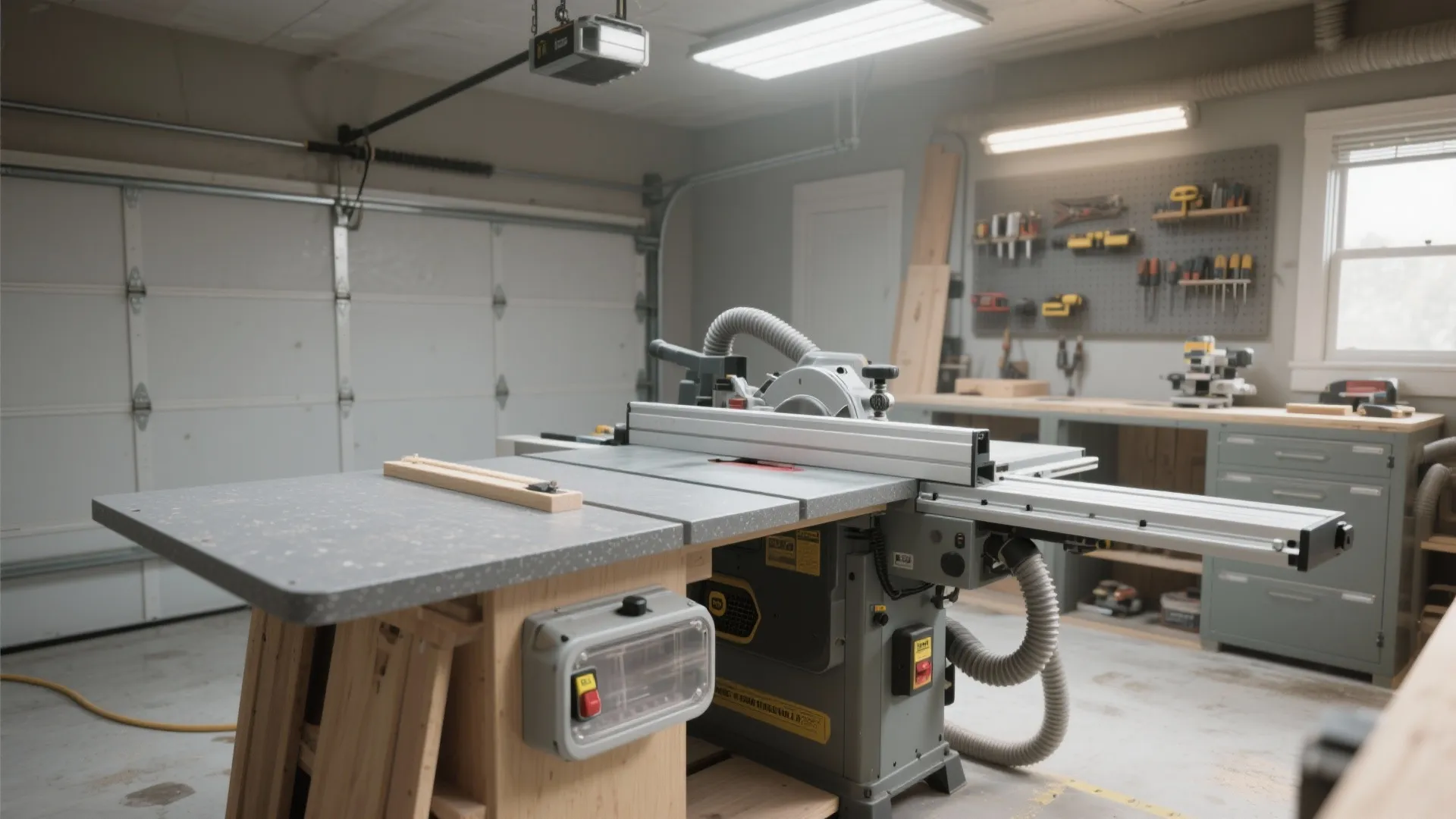

DIY Table Saw Router Table: Build Your Own Workshop Essential: 1 Minute to a Smart, Versatile Workbench Upgrade

I’ve combined table saws and routers in tight garage shops and full-size studios for years, and a well-built router table extension is one of the highest ROI upgrades you can make. Done right, it improves cut accuracy, saves floor space, and centralizes dust collection and power management without compromising safety.

Precision and ergonomics are non-negotiable. The WELL v2 Light concept guidelines note task lighting targets around 500 lux for detailed work, which matches what I use over the fence and bit area to reduce error and eye strain. Steelcase’s research on posture and reach shows that reducing awkward reaches mitigates fatigue over long sessions; I keep my fence controls within a 12–18 inch comfortable reach envelope and set table height around 34–36 inches for most users. You’ll feel the difference within the first afternoon of use. For layout planning before cutting material, a simple room layout tool can help you simulate clearances around infeed/outfeed and dust lines: room layout tool.

Noise and safety deserve equal attention. Router noise often sits around 95–100 dB at ear level, so I design for acoustic dampening with rubber isolation pads under the insert plate and lined enclosures to cut resonance. WELL v2 emphasizes particulate control; pairing a 2.5–4 inch dust port at the router box with a 4 inch table saw port dramatically improves capture. If you’re new to integrating ergonomics into shop layouts, the International WELL Building Institute offers accessible guidance on task comfort and lighting—useful even in hobby workshops.

Planning the Build: Dimensions, Footprint, and Clearances

Start by mapping your saw top and fence system. On a typical contractor or cabinet saw, the router section replaces 18–27 inches of the right-side extension wing. I favor a 24 inch wide router table panel by 27–30 inches deep to support common jigs and micro-adjust fences. Maintain at least 36 inches of clear walkway around the saw, 48 inches in front for infeed, and 60 inches behind for outfeed on long stock. If your shop is under 120 square feet, consider a fold-down leg under the router wing to prevent sag while keeping mobility.

Materials and Plate Selection

A flat, stable surface matters more than exotic materials. Laminated MDF (two 3/4 inch layers) with high-pressure laminate (HPL) top and bottom delivers stiffness, a slick glide, and moisture resistance. Baltic birch ply (18–24 mm) is my second choice when humidity swings are severe. Choose a machined aluminum insert plate with leveling screws and a magnet or snap ring for quick lift-off. If you plan to use heavy lifts and large bits, a phenolic top with an aluminum plate keeps deflection minimal.

Top Flatness and Sag Control

Router tables sag if you skip reinforcement. Embed two steel T-bars or 1 inch square tubing under the front-to-back axis of the table, terminating near the plate’s corners. Add four corner leveling points (10–32 set screws in threaded inserts) for micrometer-level tuning to the saw top; aim for ±0.002 inch across the plate perimeter. A straightedge and feeler gauges will tell you more than eyeballing ever will.

Router Lift, Bit Access, and Dust Enclosure

A good lift with above-table height adjustment makes bit changes safe and accurate. Keep the enclosure compact: 3/4 inch plywood box with gasketed door, 2.5–4 inch dust port aligned with the bit cavity, and a brush or silicone curtain around the plate opening to capture chips. I line the interior with thin closed-cell foam to reduce high-frequency noise. Vent with a small adjustable slot so airflow doesn’t starve the router motor.

Fence Strategy and Micro-Adjust

Use a split fence with independent faces (MDF or aluminum) on a rigid extrusion. Integrate a micro-adjust wheel (0.001–0.003 inch per click) and a locking lever. Keep the faces square and coplanar; a thin shim stock lets you offset for jointing passes. Dust pickup directly behind the bit via a 2.5 inch port reduces scatter. For workflow, mount featherboards on T-tracks, one at infeed and one at outfeed, so pressure stays consistent without fighting you.

Miter Slots, Outfeed, and Accessory Ecosystem

Carry your saw’s miter slots through the router wing or align new slots using a fence-parallel jig. That keeps sleds and coping jigs universal. Consider a removable outfeed support that pins into the saw’s back rail—flush at 36 inches high—so sheet goods stay controlled. On small shops, I add accessory parking: a magnetic strip for wrenches, a bit caddy near the fence, and a dedicated push block rack so nothing migrates into the danger zone.

Power, Switches, and Safety Layering

Route power from a single GFCI-protected circuit rated for your saw and router loads; many 15A circuits struggle with simultaneous startup, so stagger on/off or move the router to a separate 20A line. Install a large paddle switch at knee height for the router—easy to slap off without looking. I also add an interlock switch on the enclosure door when beginners use the shop, preventing the router from running with the door open. Keep bit guards and clear poly shields handy for edge profiling and template routing.

Lighting, Color, and Visual Comfort

Glare hides danger. I use 4000–5000K LED task lights with diffusers to hit ~500 lux on the table, avoiding specular hotspots that bloom along the fence. Neutral matte surfaces in gray or light taupe on the table avoid harsh contrast with wood tones—color psychology suggests mid-value neutrals reduce visual fatigue during precision tasks. Paint the enclosure interior matte black or charcoal to highlight chips and the spinning bit for quick visual checks.

Acoustic Comfort and Vibration Control

Routers produce tonal noise that fatigues quickly. Decoupling the plate with thin rubber gaskets and adding mass to the enclosure panel lowers resonance. I place the router on a neoprene pad and add a dead-blow strip to the door. Keep hearing protection within arm’s reach; target under 85 dB at the operator with dust collection running.

Build Steps: A Practical Sequence

1) Measure and template your saw’s right wing area. 2) Cut the table blank: two layers MDF with HPL faces, route the insert recess per the plate manufacturer’s drawing. 3) Embed steel stiffeners and drill for leveling screws. 4) Mount the wing to the saw rails; add a fold-down leg if span exceeds 22–24 inches. 5) Build the router enclosure and mount the lift. 6) Install split fence with T-tracks and dust port. 7) Align table flush to the saw within ±0.002 inch. 8) Calibrate fence parallelism; test passes on scrap for burn and snipe. 9) Wire the paddle switch and verify dust capture. 10) Add lighting and accessory storage.

Layout and Workflow Optimization

Think about movement, not just machinery. Keep clamps, push sticks, and measuring tools in a triangle around the operator. Maintain a safe egress path behind the saw. If your shop doubles as a garage, use quick-disconnect dust fittings and folding outfeed so you can stow in under five minutes. To pressure-test clearances before committing to bolt holes, run a layout simulation tool and virtually place your saw, fence travel limits, and outfeed support: layout simulation tool.

Maintenance and Calibration

Set a quarterly routine: check plate level, fence squareness, and dust seals. Wax the table for glide. Replace featherboard faces and inspect bit bearings. Keep the router collet clean; a tiny chip can throw a bit off and mar a perfect edge profile.

Common Mistakes to Avoid

• Overspanning the wing without reinforcement leads to sag. • Skipping above-table height adjustment turns bit changes into hazard moments. • Ignoring acoustics and lighting makes sessions tiring and imprecise. • Misaligned miter slots break jig compatibility. • Poor dust enclosure airflow will overheat the router.

FAQ

Q1: What size should the router table extension be for a typical contractor saw?

A: A 24 inch wide by 27–30 inch deep panel works for most contractor and cabinet saws. Ensure at least 36 inches of operator clearance and 48–60 inches for infeed/outfeed paths.

Q2: How flat should the router insert plate be relative to the saw top?

A: Aim for ±0.002 inch across the plate perimeter. Use leveling screws in threaded inserts and verify with a straightedge and feeler gauges.

Q3: What lighting level is best for router work?

A: Target about 500 lux on the work surface using diffused 4000–5000K LEDs, consistent with WELL v2 task lighting guidance for detailed tasks.

Q4: How do I manage router noise?

A: Decouple the plate with rubber gaskets, add mass to the enclosure, and line it with closed-cell foam. Keep hearing protection available and strive to keep operator exposure under roughly 85 dB.

Q5: Which materials resist sag best for the table?

A: Laminated MDF with HPL top and bottom is stable and slick. Baltic birch ply is a robust alternative. Add steel stiffeners or square tubing underneath to control deflection.

Q6: Can I use the table saw fence for the router?

A: Yes, with a split fence attachment or a dedicated router fence clamped to the saw fence. Include micro-adjust and dust extraction directly behind the bit for clean passes.

Q7: What about dust collection sizing?

A: Pair a 4 inch port for the saw with a 2.5–4 inch port for the router enclosure. Maintain a small makeup air slot so the router doesn’t overheat while improving chip capture.

Q8: How do I keep the router table modular in a small shop?

A: Use a fold-down leg, quick-release fence hardware, and quick-disconnect dust fittings. Plan the layout with a room design visualization tool to validate clearances before drilling.

Q9: How high should the table be?

A: Most users prefer 34–36 inches. Match your saw height and keep controls within a 12–18 inch comfortable reach envelope for ergonomics.

Q10: Is an insert plate necessary if I build a solid top?

A: For frequent bit changes and precise height control, a machined aluminum or phenolic insert plate with above-table adjustment is worth it. It maintains flatness and speeds setup.

Q11: Will integrating miter slots help?

A: Yes. Continuing the saw’s miter slots into the router wing keeps sleds, coping jigs, and fixtures universal, reducing setup time and error.

Q12: What safety switches do you recommend?

A: A knee-height paddle switch for the router is essential. Consider a door interlock for the enclosure if multiple users share the shop.
