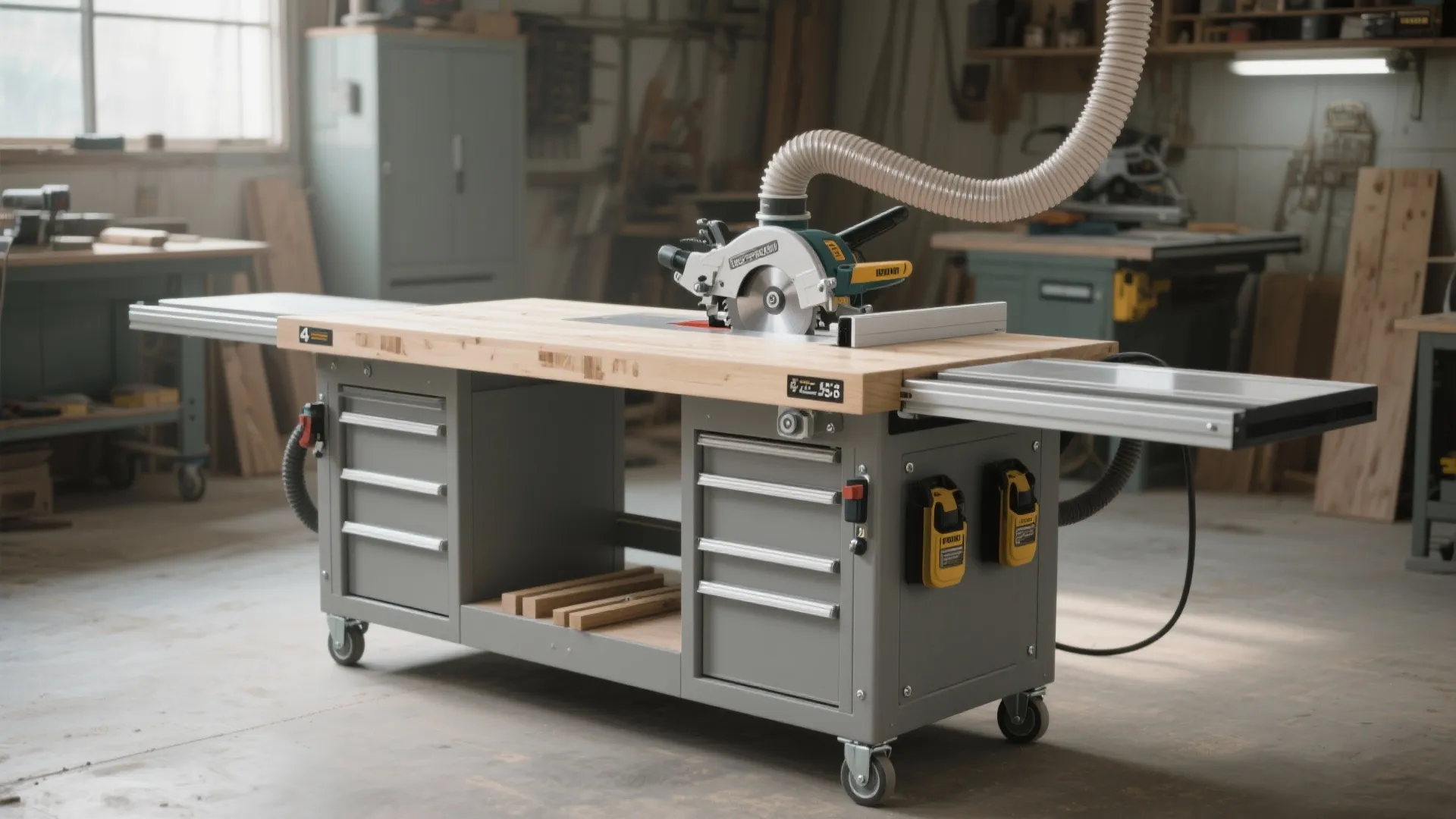

DIY Table Saw Stand: Create the Perfect Workspace: 1 Minute to a More Organized Workshop—Fast-Track Guide to a DIY Table Saw Stand

I’ve built and iterated on more table saw stands than I care to admit, and the best ones always strike a balance between rigidity, accurate alignment, human-centered ergonomics, and storage that supports your workflow. A great stand isn’t just a platform; it’s a predictable, safe workstation that helps you cut faster, reduce fatigue, and keep small errors from turning into big problems.

Before diving into lumber and fasteners, anchor decisions in data. Ergonomic guidance often targets standing work heights between 34–38 inches for general tasks; many woodworkers prefer ~36 inches because it supports neutral wrist posture for push cuts (Herman Miller research highlights how neutral joint positions decrease strain and improve task endurance). Lighting matters too: the Illuminating Engineering Society recommends task lighting for fine work in the 500–1000 lux range; for saw work and layout, I aim for ~600–800 lux with low glare to maintain edge visibility (IES standards). Color and attention play a role as well—cooler neutral light can aid focus, while VerywellMind’s color psychology notes how desaturated grays/neutral palettes limit distraction and visual fatigue.

Workflow is the heart of a good stand. Steelcase research links cluttered environments with cognitive load and reduced performance; translate that to woodworking and you get fewer miscuts when tools and offcuts have a home. Keep the stand compact but with smart storage: fence, miter gauge, push sticks, blades, featherboards, and a dedicated slot for your riving knife.

Core Design Principles

• Stability first: Use a torsion-box top or a double-rail frame (2x4 or laminated plywood) to minimize racking. Cross-bracing on the legs drastically improves lateral stiffness.

• True alignment: Ensure the saw table, outfeed, and extension wings are co-planar. I shim with rigid plastic shims and verify with a straightedge and feeler gauges.

• Ergonomic height: Set working height around 36 inches from floor to saw table; adjust ±1 inch if you’re significantly taller/shorter. Keep wrists straight when pushing the work through—if you feel you’re dipping or shrugging, adjust.

• Controlled lighting: Aim for ~600–800 lux task lighting, 4000–5000K neutral-white, with diffusers to reduce harsh shadows over the blade and fence line (IES standards).

• Safe reach zones: Place push sticks, stop blocks, and blade guard within a 15–20 inch reach arc to avoid dangerous stretching during cuts.

• Dust management: Integrated port routing to a shop vac or cyclone keeps the blade clear and lungs happier. A well-routed 2.5–4 inch hose with minimal bends maintains airflow.

Frame and Top Construction

I favor a plywood-and-lumber hybrid. Build a rectangular frame from straight 2x4s or laminated ply ribs, then glue and screw a 3/4 inch plywood deck. For ultimate flatness, create a torsion box: two skins of 1/2–3/4 inch plywood sandwiching a grid of internal ribs on 8–10 inch centers, glued under clamping pressure. It resists sag and keeps your fence readings honest.

Mount the saw so the table surface sits perfectly flush with the stand top. If your saw has uneven feet, isolate with rubber pads and shim to level. Reinforce mounting points with captive T-nuts and machine bolts for repeatable, firm attachment without chewing up the wood.

Mobility vs. Anchoring

Casters are convenient; stability is essential. Use heavy-duty locking casters and add retractable levelers so the stand sits on solid feet during cuts. If you work in a small shop, orient the stand so you have a clear infeed/outfeed path. When planning this, a room layout tool can help visualize space, clearances, and safe walkways: room layout tool.

Outfeed and Extension Wings

A flush outfeed saves projects. Build an outfeed to the same height as the saw. I use a melamine or HPL surface for low friction, supported by fold-down brackets if space is tight. Add extension wings at the fence side with a micro-adjustable support so you can tune to the main top. Keep the outfeed at least 24–36 inches deep; full-sheet handling wants more, but in compact shops, a roller stand extension can bridge the gap.

Fence, Miter, and Alignment

Accuracy starts with parallelism: set the blade to the miter slot and the fence to the same slot. Use a dial indicator or feeler gauge to achieve ±0.003–0.005 inch parallelism. Verify at full blade height. Check fence squareness to the table and add a thin UHMW face to reduce friction. Keep the miter gauge at a dedicated holster and consider a crosscut sled with a hardwood runner fitted to the miter slot for tight tolerance repetitive cuts.

Storage Strategy and Workflow Zones

Divide storage into three zones: safety essentials (push sticks, blade guard, riving knife), setup tools (wrenches, calipers, feeler gauges, shims), and consumables (blades, inserts, sandpaper). Safety lives top-left near your dominant hand; setup tools sit on a shallow drawer just below the table line; consumables go in a deeper drawer at the base. Label compartments and avoid stacked piles. This reduces decision time and keeps your eyes on the cut line—something Steelcase’s workspace findings consistently support in terms of cognitive simplicity.

Dust Collection and Acoustic Comfort

Route a 4 inch main to the cabinet or blade shroud with smooth-radius elbows. Seal gaps with foam weatherstripping. A secondary 2.5 inch line at the blade guard captures upper dust. Acoustically, mass helps: double up panel thickness on the cabinet walls and line interior panels with closed-cell foam to damp high-frequency chatter. Consider ear protection with NRR 25+ to maintain clarity without over-isolation.

Materials and Durability

Use exterior-grade plywood or high-quality birch ply for rigidity and screw-holding. Melamine or HPL on work surfaces offers slick feed and easy cleaning. Finish structural lumber with a wipe-on polyurethane to resist shop humidity shifts. Stainless or zinc-coated hardware minimizes corrosion around dust extraction moisture.

Lighting, Color, and Visual Balance

Add a dedicated task light above the fence line, diffused and angled to avoid blade glare. Keep color schemes neutral (warm grays, charcoal) so your eyes track pencil lines and blade kerf without color bias. VerywellMind notes that cool neutrals support focus; reserve saturated color for safety items—fluorescent orange push sticks and yellow guards are easier to spot when seconds matter.

Safety and Human Factors

Integrate a large, easy-to-hit paddle switch on the stand, placed just below table height. Blade changes happen at a dedicated height with a non-slip mat. Maintain clear foot placement zones around the front corners to avoid tripping over storage. Keep the fence knob within the comfortable horizontal reach envelope (roughly 16–20 inches from your stance center).

Quick Build Steps

1) Dimension and square the frame lumber. 2) Assemble the frame with glue and screws, add cross-bracing. 3) Build and attach the torsion-box top or a flat 3/4 inch ply deck. 4) Mount the saw and level the table surfaces. 5) Add extension wings and a flush outfeed. 6) Install locking casters plus retractable levelers. 7) Integrate storage drawers and safety holsters. 8) Route dust ports and seal gaps. 9) Align blade, miter slot, and fence. 10) Install task lighting and label zones.

Maintenance and Calibration

Quarterly checks keep accuracy alive. Verify blade parallelism, fence straightness, and re-level wings. Lubricate fence rails with dry PTFE. Clean melamine/HPL surfaces and renew anti-slip foot pads. Replace worn push sticks and inspect the riving knife for straightness.

FAQ

Q1: What height should I set my table saw stand?

A: Around 36 inches is a solid starting point for most users. Adjust ±1 inch based on your stature to keep wrists neutral during push cuts. Ergonomic findings emphasize neutral joint posture for reduced strain (Herman Miller research).

Q2: How much task lighting do I need over the saw?

A: Aim for 600–800 lux with 4000–5000K neutral-white LEDs and diffusers to limit glare. The IES task lighting guidance supports this range for precision work.

Q3: Do I need casters on my stand?

A: If you rearrange often, yes—use locking casters plus retractable levelers. If your shop is static, fixed feet provide maximum stability.

Q4: What surface works best for the outfeed?

A: Melamine or high-pressure laminate is ideal; it’s flat, slick, and easy to clean. Keep it perfectly flush with the saw table to avoid snags.

Q5: How do I keep my fence accurate?

A: Align the blade to the miter slot first, then the fence to the same slot. Use a dial indicator or feeler gauges to achieve ±0.003–0.005 inch parallelism and recheck quarterly.

Q6: What’s the safest way to organize push sticks and guards?

A: Mount a holster within a 15–20 inch reach arc on your dominant side so you never overreach mid-cut. Color-code safety items for quick visibility.

Q7: Is a torsion-box top worth the effort?

A: If you want long-term flatness and reduced racking, absolutely. It resists sag better than a single sheet and keeps fence readings consistent.

Q8: How can I reduce dust effectively?

A: Use a 4 inch main line to the cabinet plus a 2.5 inch line to the blade guard. Minimize sharp bends and seal all joints with foam or tape to maintain airflow.

Q9: What materials should I choose for durability?

A: Birch ply or high-quality exterior ply for structure, melamine/HPL for surfaces, and zinc-coated hardware. Finish with polyurethane to fight humidity.

Q10: How do I plan my shop layout around the stand?

A: Map infeed/outfeed paths and keep at least several feet clear. A room layout planner can help visualize safe movement and storage zones: interior layout planner.

Q11: What acoustic steps actually make a difference?

A: Add mass to panels, use closed-cell foam inside cavities, and wear NRR 25+ ear protection. Reducing high-frequency chatter improves focus and comfort.

Q12: Any maintenance habits that pay off?

A: Monthly cleaning, quarterly alignment checks, and replacing worn safety accessories. Lubricate rails with dry PTFE to keep fence motion smooth and accurate.
