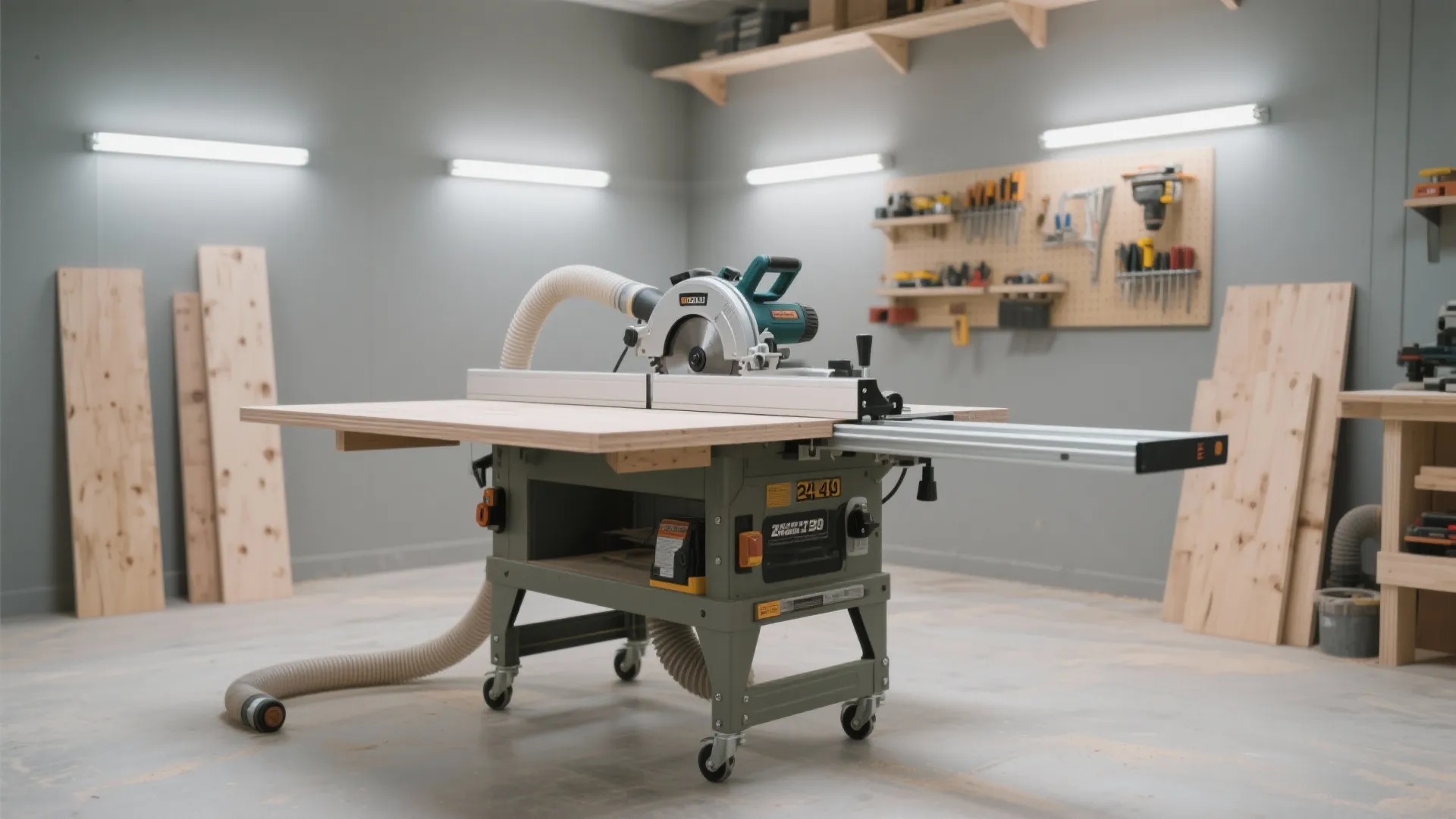

DIY Table Saw With Circular Saw: Step-by-Step Guide for Beginners: Fast-Track Guide to Building Your Own Table Saw in 1 Hour

I’ve built and tuned more shop jigs than I can count, and a circular-saw-based table saw remains one of the most useful for small workshops. It delivers straight, repeatable cuts without the footprint or cost of a full cabinet saw. The goal here is simple: create a stable, flat, and safe cutting station with consistent alignment between saw, fence, and work surface—plus dust control you’ll actually use.

Accuracy and safety start with the surface and alignment. In workplace ergonomics research, consistent tool heights reduce strain and improve precision; Herman Miller’s studies on task ergonomics note that optimal bench heights around 36–38 inches help keep shoulders neutral for most users, reducing fatigue during repetitive operations. For lighting, the Illuminating Engineering Society (IES) recommends task illuminance in the range of 750–1,000 lux for fine woodworking when measuring and aligning cuts, which makes a big difference in avoiding mistakes and kickback risks. You’ll see those numbers reflected in my build choices.

There’s also a behavior-layer to this setup: a predictable workflow lowers error rates. Steelcase research on cognitive load and environment shows that clarity in the physical arrangement of tools reduces mental friction and task switching inefficiency. A circular saw mounted under a rigid, flat table with a straight fence and good outfeed support creates that predictable path—measure, set fence, cut, clear—without unnecessary repositioning.

Core Components and Materials

• Table: 3/4" plywood or MDF for the top, 2x4 or laminated plywood for the frame. MDF offers flatness; plywood is tougher against screw pull-out.

• Saw: A corded circular saw with a flat, rigid base plate. Avoid warped bases and ensure the blade guard moves freely.

• Fence: Straight hardwood or aluminum extrusion. Aluminum T-track is optional for micro adjustments.

• Hardware: Countersunk machine screws, washers, locknuts, and threaded inserts for a removable mount. Add toggle clamps if you want quick detach.

• Surface: High-pressure laminate (optional) for slick feed and durability.

• Dust: 1-1/2" or 2-1/2" hose with a simple shroud; attach to a shop vac for source capture.

• Safety: Riving-knife-style splitter, push stick, featherboards, hearing protection (NRR 25+), eye protection, and a dedicated power switch with a large paddle.

Layout Planning

Before you cut anything, plan the footprint, blade position, and fence travel. If you want to simulate different table sizes and fence offsets, a room layout tool can help visualize clearances: room layout tool. In a small shop, I target a 24" x 36" top with at least 18" of infeed clearance and 36" of outfeed clearance. The blade should sit slightly forward of center to give more outfeed support.

Step 1: Build a Flat, Rigid Table

• Rip and crosscut your MDF/plywood to the final dimensions. Check flatness with winding sticks and a straightedge. If your shop floor isn’t level, add adjustable feet to your base.

• Frame the underside with 2x4 or laminated plywood rails, keeping screws away from the future saw cavity. Glue and screw for rigidity.

• If using laminate, apply contact cement and roll thoroughly to avoid bubbles. Trim with a flush-trim bit.

Step 2: Mark the Saw Cavity and Mounting Pattern

• Flip the table and place the circular saw upside down to trace the base plate. Mark blade location and guard swing.

• Offset the cavity so the blade line is exactly parallel to the future fence line. Measure twice; alignment here dictates cut accuracy.

• Drill shallow pilot holes for mounting inserts. I prefer threaded inserts from below, so the saw screws drop in from the top and the saw can be removed for handheld use.

Step 3: Cut the Opening and Install the Saw

• Cut the cavity with a jigsaw or router template. Keep the opening tight but allow the guard to move freely.

• Countersink screws so nothing protrudes above the top. The saw base must sit perfectly flush with the table surface; shim with thin plastic shims or brass shims if needed.

• Align the blade parallel to the fence line within 0.2 mm (around 0.008"). Use a dial indicator or a feeler gauge against a straightedge set where the fence will ride.

Step 4: Add a Splitter and Zero-Clearance Insert

• Fashion a simple splitter from hardened steel or thick polycarbonate and mount it behind the blade, aligned to center.

• Create a zero-clearance insert around the blade line to reduce tear-out and keep narrow offcuts from falling into the cavity.

• Verify the guard operates freely and returns reliably; never disable it.

Step 5: Fence Fabrication and Alignment

• Use a straight hardwood (e.g., maple) or aluminum extrusion. Add a front lock and rear anti-lift guide.

• Set the fence square to the blade with micro-adjustment screws. Test by ripping a 24" board and flipping one piece to check for parallel edges.

• Add featherboards to keep stock against the fence and reduce chatter. Maintain a smooth, waxed top for consistent feed.

Step 6: Dust Collection and Noise

• Build a simple under-table shroud that surrounds the saw’s lower half and connects to a vac. Seal with weatherstripping to improve capture.

• Aim for source capture at the blade line; even a small 2-1/2" hose greatly reduces airborne dust.

• Consider acoustic comfort: soft floor mats and cork panels dampen reflected noise. Keep continuous noise below levels that trigger fatigue; a good mitered enclosure reduces whine.

Step 7: Electrical Safety and Controls

• Install a dedicated switch with a large, easy-to-hit off paddle. Position it at the front-right apron for right-handed use.

• Route the cord safely with strain relief and avoid pinch points. If your saw has soft-start, it’ll reduce kick on startup.

• Test the emergency stop routine: hands off stock, hit the paddle, wait for full stop before reaching near the blade.

Step 8: Calibration and Test Cuts

• Verify blade-to-fence parallelism and blade-to-miter slot alignment (if you add a slot) with feeler gauges.

• Check cut quality with a zero-clearance insert installed. If you see burning, the fence may toe-in; adjust so it’s perfectly parallel or toe-out by 0.1 mm.

• Measure kerf consistency along the length of a cut; aim for variation under 0.2 mm for general DIY work.

Lighting, Color, and Sightlines

Good light is non-negotiable. Following IES task guidance, target 750–1,000 lux at the table, 400–500 lux ambient, and 3000–4000K color temperature to balance warm visibility with low glare. Position fixtures to avoid direct reflection on the laminate. For color psychology, neutral grays and light wood tones minimize visual distraction and help with edge contrast on boards.

Human Factors and Workflow

Set the table height between 36–38" for most users; taller builders may prefer 39–40". Keep frequently used tools—square, tape, push stick—at the front-right reach zone. Outfeed support at the same height prevents lift that can cause binding. This small choreography reduces cognitive load and keeps you in a safe rhythm: plan, set, cut, clear.

Common Mistakes to Avoid

• Mounting a saw with a warped base—your cuts will never track straight.

• Skipping the splitter—kickback risk rises dramatically.

• A fence that locks only at the front—rear drift leads to binding.

• Poor dust capture—fine dust accumulates under the table and becomes a fire hazard.

• Inadequate lighting—shadowy lines invite misreads and unsafe reach-ins.

Maintenance and Upgrades

Keep the surface waxed, check fence alignment monthly, and replace the zero-clearance insert when it wears. Consider adding a miter slot and sled for crosscuts, or a micro-adjust fence carriage. If you move often, bolt the table to a mobile base with locking casters.

Reference and Standards

For ergonomics and human factors guidance, I often reference Herman Miller’s research library and IES task lighting recommendations: hermanmiller.com/research, ies.org/standards.

FAQ

What size should the table be for a beginner setup?

A 24" x 36" top is a practical starting point. It offers enough support for common DIY projects without consuming your whole workspace. Ensure outfeed clearance of at least 36".

How high should I set the table?

Most people work comfortably at 36–38". If you’re above 6'2", consider 39–40" to keep your shoulders neutral, consistent with general ergonomic guidance found in workplace research.

Do I need a splitter if my circular saw has a blade guard?

Yes. The guard protects from contact; the splitter helps keep the kerf open to reduce kickback. Add both and ensure alignment to the blade’s centerline.

What fence material is best?

Aluminum extrusions are straight and stable; hardwood works if milled true. Prioritize rigidity and a reliable lock at both front and back.

How do I manage dust effectively?

Build an under-table shroud and connect a 1-1/2" or 2-1/2" hose to a shop vac. Seal gaps with weatherstripping to improve capture near the blade.

What lighting should I use over the table?

Aim for 750–1,000 lux on the work surface, with 3000–4000K color temperature to reduce glare and maintain edge contrast, as aligned with IES task lighting guidance.

Can I still use the circular saw handheld after mounting?

Yes, if you use threaded inserts or quick-release clamps. The saw should be removable without disturbing the table alignment.

How do I check if the blade is parallel to the fence?

Set a straightedge where the fence rides and measure distance to the blade at front and back using feeler gauges. Adjust the saw mount until readings match within about 0.2 mm.

Is a miter slot necessary?

No, but adding one enables sleds and better crosscut control. If you add it, align the slot parallel to the blade within the same 0.2 mm tolerance.

What about noise control?

Use hearing protection and add soft surfaces (rubber mats, cork panels) to cut reflections. Keep the shroud rigid; it reduces high-frequency whine.

Which blade should I choose?

For general work, a 40–60 tooth carbide-tipped blade balances clean edges and feed speed. Thin-kerf blades reduce load on smaller saws.

How do I avoid burning on rip cuts?

Ensure the fence is parallel or toe-out by about 0.1 mm, use a sharp blade, and maintain steady feed. Burning often signals fence misalignment or a dull blade.

What safety routine should I follow before each cut?

Check fence lock, verify the guard and splitter, clear the outfeed path, align lighting, and keep hands outside the danger zone with push sticks ready.

Can I cut sheet goods safely on this setup?

Yes. Add infeed/outfeed support at equal height and use featherboards to stabilize the panel edge. Consider a helper for large sheets.
