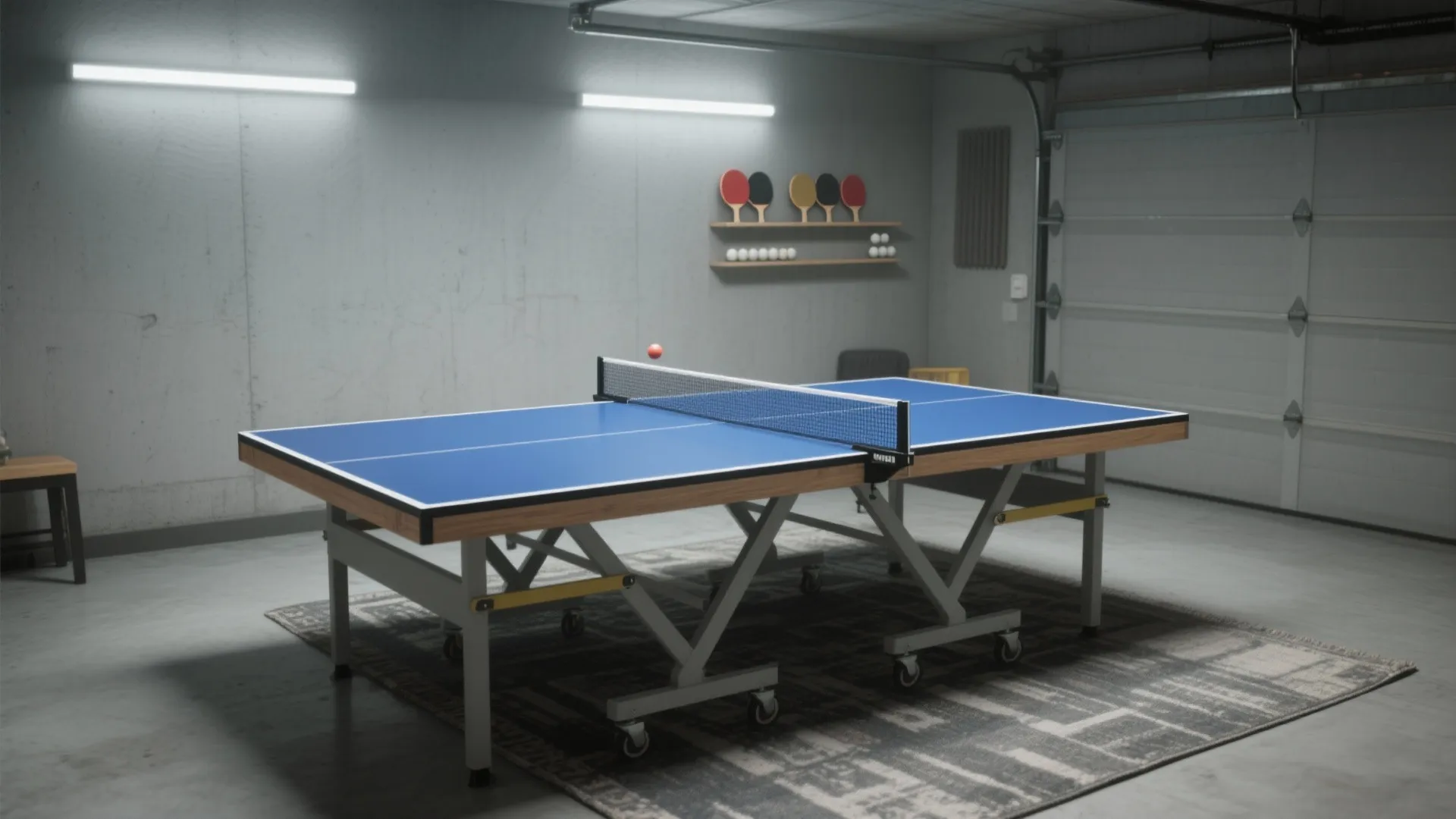

DIY Tennis Table: Build Your Own Table Tennis Experience: Quick Guide: Build Your Own Tennis Table in 1 Hour

I’ve built and specified more recreation rooms than I can count, and a well-made DIY table tennis setup consistently punches above its weight for family bonding, fitness, and stress relief. Beyond the joy factor, there’s real performance science to back thoughtful planning: the WELL Building Standard recommends 300–500 lux for multipurpose activity zones to support visual comfort and safety, which translates perfectly to a ping-pong basement or garage. Meanwhile, Steelcase research links activity-supportive environments to better engagement and well-being; in their global studies, employees reporting access to movement-friendly spaces were significantly more satisfied with their workplace experience. Those insights apply at home as much as in an office.

Before you cut a single sheet of plywood, get your dimensions right. A regulation table tennis top is 108 in x 60 in (9 ft x 5 ft) with a 30 in table height. Plan at least 5 ft clear at each end and 3 ft on each side for recreational play; for competitive players, target 8–10 ft behind the ends. For lighting, aim for 300–500 lux uniformity at the table surface with 80+ CRI and neutral-white 4000–4500K LEDs to keep the ball visible without color cast; IES sports lighting guidance also prioritizes glare control—use diffusers or indirect fixtures and avoid bare bulbs directly overhead. For wellness context and lighting guidance, see WELL v2 features on light (L03-L09) and visual comfort (luminance and glare).

Materials and finish selection set the tone. Standard ITTF tables use a matte, low-gloss painted MDF with consistent bounce. For DIY builds, 3/4 in (19 mm) MDF yields a predictable rebound and resists warping better than thinner stock. A low-sheen polyurethane or waterborne acrylic with added silica flattening agent keeps glare down. Edges take a beating—wrap with hardwood banding or PVC edge to protect the core. Legs should be rigid, triangulated, and braceable; I often spec 2x3 or 2x4 kiln-dried lumber or welded steel tube with cross-stretchers, leveling feet, and hidden corner brackets for torsional stiffness.

Plan the Space, Then the Table

Start with a scaled room plan including doors, columns, low beams, and outlets. In tight rooms, a folding split-top design on locking casters earns its keep. If you’re testing multiple placements in a den or garage, a layout simulation tool helps you experiment with clearances and circulation; a room layout tool can quickly validate the 5 ft end-zone requirement and traffic paths without moving heavy parts.

Regulation Dimensions and Build Specs

- Top size: 108 x 60 in (2740 x 1525 mm), thickness 3/4 in MDF (19 mm) for consistent bounce.

- Height: 30 in (760 mm).

- Net: 6 in (152.5 mm) high, 72 in long; clamp or post-and-screw systems are both viable for DIY.

- Linework: 3/4 in wide white sidelines and end lines; a 3 mm (approx. 1/8 in) centerline if building a doubles-focused table.

- Surface color: deep matte green, blue, or charcoal to improve ball contrast. Verywell Mind notes blue reduces stress and supports focus—my pick for mixed-use family rooms.

Cut List and Hardware

- Top: (2) half-panels at 60 x 54 in for a foldable design, or a single 108 x 60 in panel if you have access and handling capacity.

- Apron: 1x3 or 1x4 hardwood or plywood strips to frame and stiffen the underside, mitered at corners.

- Legs: (4) 2x3 or 2x4 lumber legs per half, with diagonal bracing; or (4) 2 in steel tube legs with welded crossbar.

- Hardware: 8–12 corner brackets, folding leg hinges if you want collapsibility, 8 locking casters (2 per leg frame), threaded inserts with adjustable leveling feet, wood screws, construction adhesive.

- Net set: store-bought clamp net for reliability.

Surface Prep and Finish

Seal MDF faces and edges with a dedicated MDF sealer or thinned waterborne polyurethane to prevent fiber rise. Sand to 220 grit. Apply two to three thin coats of a high-performance waterborne enamel in matte or eggshell; avoid semi-gloss—glare makes fast rallies harder to track. For durability, topcoat with a matte clear polyurethane compatible with your color coat. Tape and paint boundary lines last with a crisp low-tack tape and a contrasting matte white.

Frame, Stiffness, and Bounce Consistency

Uniform bounce matters more than raw thickness. Add an apron frame 1–2 in inboard from the table edge to avoid telegraphing. Cross-spars spaced 16–18 in OC keep the center from drumming. I like to dry-fit the top, mark spar locations, then glue and screw from below. If your floor is uneven, install leveling feet at each leg—no wobble, no rattle. A properly braced frame also dampens noise transfer to lower floors.

Lighting Design for Fast Play

For a single-table room, arrange two or three linear LED fixtures parallel to the table length, set about 36–42 in above the surface and offset to minimize direct view. Target 300–500 lux at the plane of play with 4000–4500K LEDs; add sidewall sconces with opal diffusers to soften contrast and help players track lobs. Keep Unified Glare Rating low by choosing fixtures with diffusers or baffles. Avoid downlights centered over the net—they create hotspots and shadows that can mask spin. Dimmer controls help tune light for casual vs. competitive play.

Acoustics and Neighbor-Friendly Play

Ping-pong has a distinctive percussive signature. If you’re near bedrooms, add an area rug under the table or install 6–8 mm underlayment under LVT to reduce footfall noise. On walls, combine bookshelves and fabric panels to diffuse and absorb. Heavy curtains over garage doors and a solid-core door to the corridor cut transmission significantly. A rubber edge trim around the table perimeter subtly softens ball impact without killing bounce.

Color Psychology and Visual Comfort

Choose a mid-dark table color for ball contrast and a lighter, desaturated wall color so the ball pops in your peripheral vision. Blues and cool neutrals promote calm; Verywell Mind’s color psychology notes blue hues are commonly associated with focus and stability, which is why I often pair a navy table with pale gray walls. Matte finishes on walls and ceilings reduce veiling reflections and glare.

Ergonomics and Player Flow

Clearances make or break the experience. Protect at least 36 in behind players from fixed obstacles. Keep paddle and ball storage at 36–48 in AFF for easy grab-and-go. If your space doubles as a gym or workshop, mark the table’s parking zone and route power cords overhead or along walls to remove trip hazards. Good circulation keeps energy high and accidents low.

Foldable and Modular Options

For multipurpose rooms, split the top into two 60 x 54 in halves on independent rolling frames. Hinged legs fold flush; quick-release braces lock open. Add magnetic catches to align halves. If you want a playback mode for solo practice, hinge one half to tilt upright with stay-arms. When parked, the pair tucks into a 24–28 in deep footprint.

Safety and Durability Checklist

- Break all sharp edges to a 1/16 in radius.

- Use child-safe finishes with low VOCs (look for third-party certifications).

- Locking casters on at least two legs per half.

- Verify net tension doesn’t bow the surface.

- Keep a dedicated paddle bin so nothing lives on the top between sessions.

Budget, Time, and Tools

Expect a weekend build with basic woodworking tools: circular saw with guide track, drill/driver, sander, clamps, square, and a good brush/roller kit. Material costs vary by region, but a solid MDF-and-lumber build with quality hardware typically lands far below a pro table while matching play quality for home use.

Layout Planning Shortcut

If you’re still juggling options—garage vs. basement, foldable vs. fixed—a quick digital mockup clarifies everything. An interior layout planner lets you test table positions, verify the 5 ft end clearance, and simulate lighting zones before you buy a single fixture; a room design visualization tool helps you preview wall colors and glare risk under different CCTs. Try a layout simulation tool when you want to compare two table footprints and ball-retrieval paths.

Maintenance and Upkeep

Dust is the enemy of consistent spin. Wipe the surface with a barely damp microfiber cloth, then dry buff. Avoid silicone polishes—they make the top slick and unpredictable. Retighten frame screws every few months, and check caster stems for play. Store paddles flat and balls in a lidded container to preserve roundness.

FAQ

What are the exact dimensions for a regulation table tennis table?

108 x 60 in (2740 x 1525 mm) for the top, 30 in (760 mm) finished height, and a 6 in (152.5 mm) high net spanning the width.

How much space do I need around the table?

Plan 5 ft clear at each end and 3 ft on each side for casual play. Competitive players benefit from 8–10 ft behind the ends.

What lighting specs help me see the ball clearly?

Aim for 300–500 lux at the table surface with 4000–4500K LED light, 80+ CRI, and diffused fixtures to control glare per IES best practices.

Which tabletop material gives the best DIY bounce?

3/4 in (19 mm) MDF with a matte, low-gloss finish provides consistent rebound and resists warping better than thinner sheets.

How can I minimize glare on the playing surface?

Use matte paints, avoid overhead point-source hotspots, and offset linear fixtures. Keep the finish low-sheen and lines painted in matte white.

What’s the simplest foldable design?

Two independent 60 x 54 in halves on locking casters with folding legs and alignment dowels. Add a tilt-up playback position on one half for solo drills.

How do I reduce noise for adjacent rooms?

Add soft floor layers (rug or underlayment), use fabric wall panels or bookcases for absorption, and ensure the door is solid-core with good seals.

Any color tips to improve focus and ball visibility?

Choose a deep blue or green matte table with light neutral walls. Blue is associated with focus and calm, which supports longer, more relaxed rallies.

What finish is safest for kids and indoor air quality?

Waterborne, low-VOC enamels and polyurethane topcoats. Let them cure fully before play to minimize odor and off-gassing.

How do I keep the top flat over time?

Seal all faces and edges, add a robust apron and cross-spars, and store halves vertically with even support. Use leveling feet to eliminate racking.

Can I use plywood instead of MDF?

Yes, high-quality birch ply can work, but it may produce a slightly livelier, less uniform bounce. Many DIYers prefer MDF for consistency.

What net system is most reliable?

A clamp-on net with tension adjustment is easy to install, holds position, and avoids drilling into the tabletop.
