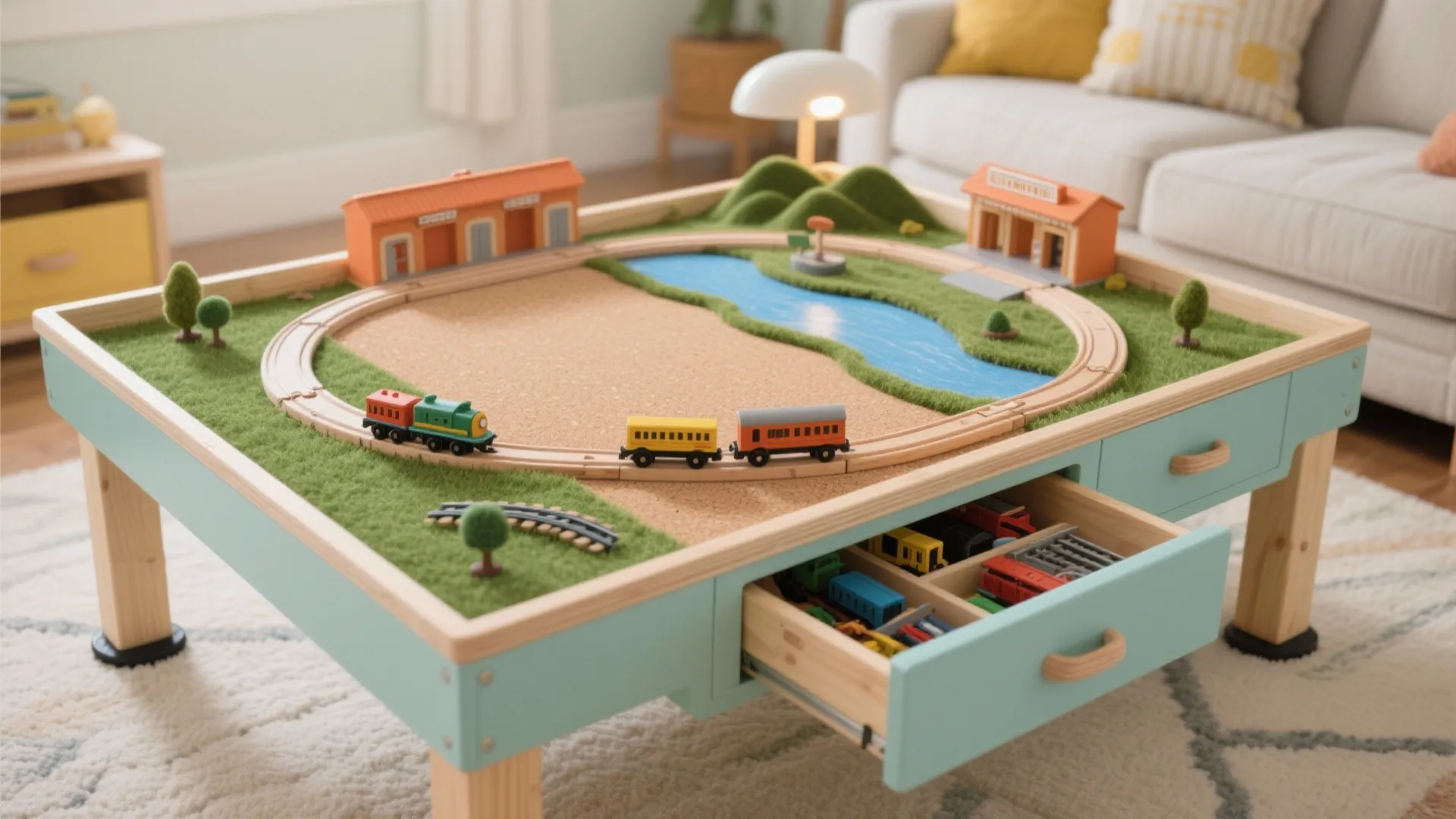

DIY Train Table: The Ultimate Guide to Creating Your Own: Fast-Track Guide to Building a DIY Train Table in Just One Weekend

Building a DIY train table is as much about thoughtful design as it is about craft. I focus on three pillars: ergonomic height for kids, high‑contrast visibility for play, and robust materials that withstand the daily wear of wheels, magnets, and blocks. For preschoolers (ages 3–5), a standing play height of 18–22 inches makes sense; for older kids (6–9), 22–26 inches keeps posture neutral and reduces trunk flexion. WELL v2 guidance highlights reducing musculoskeletal strain through anthropometric fit, and Steelcase research shows posture‑supportive environments improve comfort and engagement—both translate directly into longer, happier play sessions.

Lighting is a performance variable. According to IES recommendations for task play and craft zones, target 300–500 lux at the surface with low‑glare diffusion. Neutral white (3500–4100K) keeps colors accurate and reduces eye strain, while a secondary warm layer (2700–3000K) makes evenings inviting. Steelcase research connects ambient quality to cognitive performance and mood; in practice, I keep glare off glossy tracks with a matte clear coat and indirect lamp placement.

Plan Your Footprint, Height, and Clearances

I start with the room’s workflow. A 48x30 inch tabletop is a sweet spot for small rooms, offering enough run length for loops and sidings without monopolizing floor space. Maintain 24–30 inches of circulation on at least two sides so kids can move around and negotiate junctions. If you’re iterating layouts, a simple room layout tool helps visualize clearances and furniture relationships before you cut the first board.

Structure: Frame, Deck, and Edge Safety

For the frame, I prefer a torsion‑box concept: a 1x3 or 1x4 pine perimeter with cross‑bracing every 10–12 inches. It keeps the deck flat and light. The top gets 3/4 inch plywood (cabinet‑grade if you want a long life) over a thin cork layer (1–2 mm) to dampen noise and give a slightly forgiving surface for screws and pins. Round over edges with a 3/8 inch radius to reduce impact risk; even minor bevels improve hand feel and cut down snags on sleeves.

Surface Design: Modularity and Play Zones

I split the table into three zones: mainline loop, yard/siding, and scenic play. Using removable panels or a peg‑and‑slot grid, you can reconfigure track pieces without filling the whole deck with holes. Keep sidings at least 3 inches off the table edge to avoid drop‑offs. Scenic zones benefit from varied textures—grass mats, rubberized rivers, and felt hills make it tactile and reduce rolling speed at turn‑ins.

Ergonomics for Kids and Adults

Height matters, but so does reach. A maximum 24 inch reach to center keeps small arms within neutral shoulder angles. For shared play, a perimeter rail at 1.5 inches high defines the boundary and helps little hands stabilize. Adults appreciate knee clearance on one side; a 10 inch overhang or open trestle legs let you sit and repair track without contorting. Borrowing from workplace ergonomics, reducing sustained trunk flexion prevents fatigue during long builds.

Lighting: Lux, Color Temperature, and Glare Control

Layer ambient and task light. A ceiling fixture providing ~300 lux plus a low‑glare task lamp adding 150–200 lux at the tabletop hits the target range. Keep lamp beams at 30–45 degrees to the surface to avoid specular glare on varnish. Neutral white (around 4000K) enhances color fidelity—critical when distinguishing track pieces and scenery. If children are sensitive to bright light, use dimmable drivers and diffusers.

Acoustics and Vibration

Train play can be surprisingly loud. Cork underlayment plus felt or rubber strips under key junctions reduces wheel chatter. A semi‑open frame prevents drum‑like resonance. If the room is echo‑prone, a soft rug under the table lowers RT60 and makes conversations easier.

Materials: Durable, Low‑VOC, Easy to Clean

I select FSC‑certified plywood with a low‑VOC finish. Water‑based polyurethane in a matte or satin sheen keeps glare down and cleans easily with mild soap. For edges and small scenic elements, birch or poplar sands smoothly and takes paint evenly. Avoid loose gravel—use fixed textures so small parts don’t become projectiles.

Color Psychology and Wayfinding

Color sets behavior. Verywell Mind’s discussion on color psychology notes blue’s calming association and green’s restorative qualities; I use muted greens for fields and desaturated blues for rivers to anchor attention without overstimulation. Warm accents (mustard, terracotta) can highlight stations and bridges, guiding wayfinding and narrative play.

Storage Integration

A shallow, full‑width drawer (3–4 inches deep) holds tracks and rolling stock. Side bins with finger holes make cleanup fast. If space is tight, hinged tops with soft‑close stays convert the table into a tidy box. Label zones inside the drawer to encourage sorting—locomotives, cars, curves, straights, accessories—so rebuilds start smoothly.

Safety: Fasteners, Finishes, and Stability

Use countersunk screws and fill with wood putty; no protruding metal. Anchor legs with corner brackets and add diagonal braces if the table is tall. For floors with heavy traffic, adhesive rubber pads keep the table from migrating. Test stability by pressing at the corners and along the rail—no wobble should remain.

Flexible Layouts and Seasonal Scenery

Kids evolve quickly. Keep scenery modular: magnetized trees, clip‑in tunnels, and removable stations. Seasonal swaps—winter snow mats, autumn foliage—refresh interest without major rebuilds. A simple interior layout planner like a room design visualization tool lets you play with proportions and pathways before printing new terrain sheets.

Build Steps: From Cut List to Finish

1) Cut frame members and cross‑braces; dry‑fit. 2) Glue and screw the perimeter, then add bracing. 3) Lay cork, then screw down the plywood deck. 4) Route edges for a soft radius. 5) Sand progressively to 180–220 grit. 6) Apply two to three coats of water‑based polyurethane; light sand between coats. 7) Install storage components. 8) Add textures, paint zones, and test track geometry with kids before fixing anything permanently.

Maintenance and Longevity

Wipe down after play; dust acts like micro‑abrasive on finishes. Every few months, check bracing screws and leg anchors. If you notice rutting where heavy play concentrates, add a thin replaceable scenic panel instead of refinishing the whole deck.

Cost and Time Expectations

Expect a moderate build: materials for a 48x30 inch table typically run in the mid‑range depending on plywood grade and hardware selection, and a weekend is realistic for cutting, assembly, and finishing. The modular approach saves money long‑term because you refresh scenes, not the entire structure.

Authority References

For ergonomic and environmental comfort guidance, explore the WELL v2 guidelines at WELL v2. For lighting levels and glare control, see IES recommendations via IES Standards. These sources align with the practical targets I set for kid‑focused play surfaces.

FAQ

What is the best height for a DIY train table?

For ages 3–5, aim for 18–22 inches; for ages 6–9, 22–26 inches. This supports neutral posture and reduces trunk flexion during play.

How much light do I need on the tabletop?

Target 300–500 lux with neutral white (3500–4100K) task lighting and low‑glare diffusion. Angle lamps 30–45 degrees to minimize reflections.

What size works in a small room?

48x30 inches balances run length with circulation. Maintain 24–30 inches of clearance on at least two sides for movement.

How do I keep the table quiet?

Use cork underlayment, felt at junctions, and a semi‑open frame to reduce resonance. A rug beneath the table cuts ambient echo.

Which materials are safest and most durable?

Choose FSC‑certified plywood with water‑based, low‑VOC finishes. Round over edges and countersink screws for safety.

How can I design for future flexibility?

Use removable scenic panels, magnetized accessories, and a peg‑and‑slot grid for track zones. Modular elements make seasonal updates easy.

Do I need storage built into the table?

A shallow drawer (3–4 inches) and side bins streamline cleanup. Label compartments to speed rebuilds and protect small parts.

What about color and kid behavior?

Muted greens and blues calm and focus; warm accents highlight stations for wayfinding. This supports attention without overstimulation.

How do I prevent wobble?

Use corner brackets, diagonal bracing on taller legs, and rubber pads on feet. Test the frame by pressing at corners and rails.

Can I visualize the layout before building?

Yes—use a simple interior layout planner or a layout simulation tool to test clearances and track routing virtually.
