DIY Transformer Table: Space-Saving Design Made Easy: Fast-Track Guide to Building a Custom Transformer Table in Minutes

I’ve built multiple transformer tables for tight city apartments and flexible family homes, and the same goal always applies: deliver a compact footprint that expands smoothly, remains stable, and looks like it belongs in the room. A well-designed DIY transformer table should fold or slide with minimal force, keep knees clear, and distribute loads evenly when extended.

Space is a performance variable, not just a measurement. According to Gensler’s U.S. Workplace Survey, flexible environments correlate with higher effectiveness and experience scores, pointing to designs that support quick transitions between tasks. WELL v2 also emphasizes ergonomic reach ranges and glare control, reminding me that tables aren’t isolated—they interact with posture, lighting, and circulation.

Core Design Intent

My intent is a console-depth table (12–16 in) that expands to seat four or six without wobble. The transformation mechanism—accordion leaves, telescoping runners, or butterfly-fold panels—needs to be intuitive and serviceable. I prefer concealed steel runners for the main slide and doweled hardwood leaves for rigidity. If you plan the room’s circulation and chair clearances upfront, this table becomes the most agile piece in your home. For layout planning or to test seating arrangements, a room layout tool can help: room layout tool.

Right-Sized Dimensions

For a four-person setup, target 60–64 in length by 30–34 in width when extended; console mode stays between 12–16 in deep. Height at 29–30 in suits most chairs and aligns with ergonomic recommendations for neutral elbow angles (WELL v2 guidance on workstation heights supports a 90–110° elbow angle when seated). Steelcase research highlights that comfort and posture support productivity; the same logic applies here—avoid heights that force shoulder elevation.

Mechanism Options

• Telescoping apron with steel ball-bearing slides: smooth action, good load handling, hidden hardware.

• Center butterfly leaf: pairs well with robust hinges; quick deployment, continuous grain if planned.

• Accordion leaf stack: compact storage; slightly heavier, but satisfying for larger capacity.

• Gate-leg support: classic, space-savvy, but mind knee clearance. I recess legs by 2–3 in from the corners to reduce bumps.

Stability and Load Path

Stability hinges on a continuous load path: runners transfer force to side rails, rails to legs, legs to floor. I use 1.5–2 in thick hardwood rails and a steel subframe beneath leaves. When fully extended, cross-bracing or hidden stretcher bars minimize racking. If you feel any lateral wiggle, add a diagonal brace under the center leaf or upgrade slides to higher dynamic load ratings.

Materials and Sustainability

Solid ash or white oak for rails and legs provides stiffness and clean finishing. Plywood leaves with hardwood edging keep weight sensible. Low-VOC finishes preserve indoor air quality—WELL v2 recognizes material emissions and their impact on occupant health. If you want richer tone without high maintenance, use a hardwax oil that can be spot-repaired after scrapes. For scratch resistance, consider a compact laminate top for the primary leaf while keeping wood for the console face.

Human Factors and Color Psychology

In small homes, behavior clusters around light and surfaces. Neutral, mid-tone woods reduce visual clutter; a soft matte finish keeps glare low. Muted warm hues can make dining feel welcoming, while cooler tones on the console face help the piece visually recede when folded. Verywell Mind’s color psychology notes that warm colors tend to stimulate social interaction, which aligns with dining modes.

Lighting and Acoustic Comfort

Transformer tables often sit near windows or under pendants. Aim for 300–500 lux at the table surface for dining and light tasks per typical IES recommendations; dimmable pendants allow you to shift from task to ambient. Choose low-gloss finishes to mitigate veiling reflections. Soft chair pads or a nearby rug dampen clatter from dishware—small acoustic touches matter in compact rooms.

Joinery Details

Mortise-and-tenon or floating tenons on legs-to-rail joints provide the backbone. For leaves, use aligned dowels or concealed alignment pins to prevent edges from drifting. I like a micro-bevel (1 mm) around leaf edges; it hides tiny seasonal movement. Hinges should be stainless or brass for longevity. If you’re routing for slides, keep pocket depths consistent and maintain 1/8 in clearance to avoid binding.

Surface Protection and Finish

Dining surfaces see heat, moisture, and abrasion. A three-coat hardwax oil or a waterborne polyurethane with matte sheen works well. If the table doubles as a laptop station, consider a satin finish that balances glare with durability. Leave the underside raw or sealed lightly to reduce weight and permit wood to breathe evenly.

Ergonomics: Knees, Reach, and Flow

Keep aprons at or above 26 in clear height so knees don’t collide. Target 24–30 in per person along the edge to avoid elbow conflicts. Maintain 36 in minimum clearance between table edge and nearest obstacle for circulation; I bump that to 42 in if the space allows. WELL v2’s focus on reach ranges translates well here: ensure leaf release points are reachable without awkward postures.

Step-by-Step Build Overview

1) Model the console size and extended footprint. Verify chair clearances with a layout simulation tool: layout simulation tool.

2) Mill legs and rails; cut mortises and tenons.

3) Build the slide pockets and mount steel runners; test travel.

4) Fabricate leaves with hardwood edging; drill alignment dowel holes.

5) Dry-fit all parts; check racking; add cross-bracing if needed.

6) Sand to 180–220 grit; apply finish; assemble hardware; final tune.

Safety, Maintenance, and Longevity

Round over exposed corners to prevent bumps. Periodically check runner screws, hinge pins, and dowel alignment. A seasonal humidity swing can shift leaves slightly; that micro-bevel keeps edges clean. Wipe spills promptly; re-oil once a year if using hardwax finishes.

Use Cases and Layout Tips

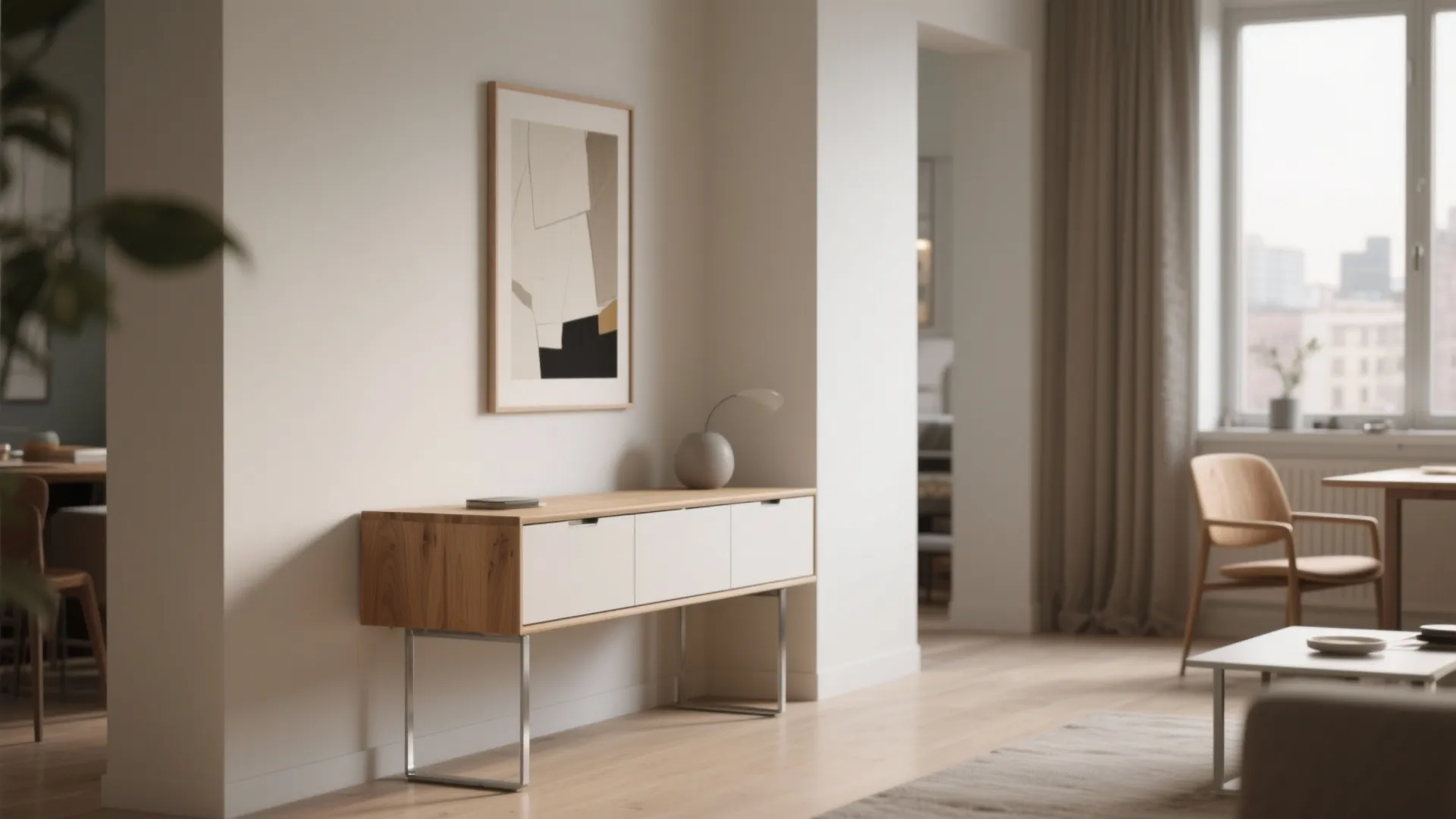

In studio apartments, the console mode can anchor a wall niche with art above; slide out for dinner or crafts. In family rooms, place near a south-facing window to capture daylight without glare; a dimmable pendant centers the extended table visually. If seating six, move the piece perpendicular to the longest wall to preserve circulation lanes. Again, test it in an interior layout planner to confirm sightlines and leg clearances: interior layout planner.

References for Performance

If you’re refining ergonomics or health factors, WELL v2 provides clear guidance on lighting quality, material emissions, and posture support. Gensler’s research consistently connects flexibility with better work experience, which maps neatly onto multi-purpose furniture.

FAQ

Q1: What size should the table be when fully extended?

A: For four diners, 60–64 in length and 30–34 in width works well; for six, consider 72–78 in by 36–38 in, assuming your room can maintain 36–42 in circulation clearance.

Q2: Which slide hardware is best for stability?

A: Heavy-duty steel ball-bearing slides with high dynamic load ratings provide smooth travel and less racking. Pair them with a rigid subframe and cross-bracing under the center leaf.

Q3: How do I prevent glare on the tabletop?

A: Use matte or satin finishes and dimmable, shielded pendants. Aim for 300–500 lux on the surface, following common IES guidance for dining and light tasks.

Q4: What wood species balance strength and weight?

A: Ash and white oak offer excellent stiffness and machinability. For leaves, plywood with hardwood edging keeps weight down while staying stable across seasons.

Q5: How can I keep knees comfortable?

A: Set apron clear height at or above 26 in, and recess gate legs if used. Maintain 24–30 in per person along the edge to avoid elbow collisions.

Q6: What finish is resilient for dining and laptops?

A: Waterborne polyurethane in matte or a robust hardwax oil. Poly resists stains better; hardwax oil allows easy spot repairs and a warm tactile feel.

Q7: How do I handle seasonal wood movement?

A: Use alignment dowels and a 1 mm micro-bevel around leaf edges. Seal both sides of leaves to balance moisture uptake and reduce cupping.

Q8: Can the console act as a desk?

A: Yes—keep height around 29–30 in and ensure task lighting delivers roughly 500 lux. A satin finish reduces monitor reflections while staying durable.

Q9: What layout mistakes should I avoid?

A: Don’t crowd circulation; protect 36–42 in paths. Verify chair pull-out space in a room design visualization tool before committing to final dimensions.

Q10: How do I choose colors that suit both modes?

A: Use mid-tone woods and warm accents for dining; cooler, less saturated console faces help the piece visually recede when folded, supporting calm everyday use.

Q11: Is there a way to validate health considerations?

A: WELL v2 offers guidance on lighting, materials, and ergonomics that apply to multi-purpose furniture. It’s a solid reference when you want healthier, more comfortable spaces.
