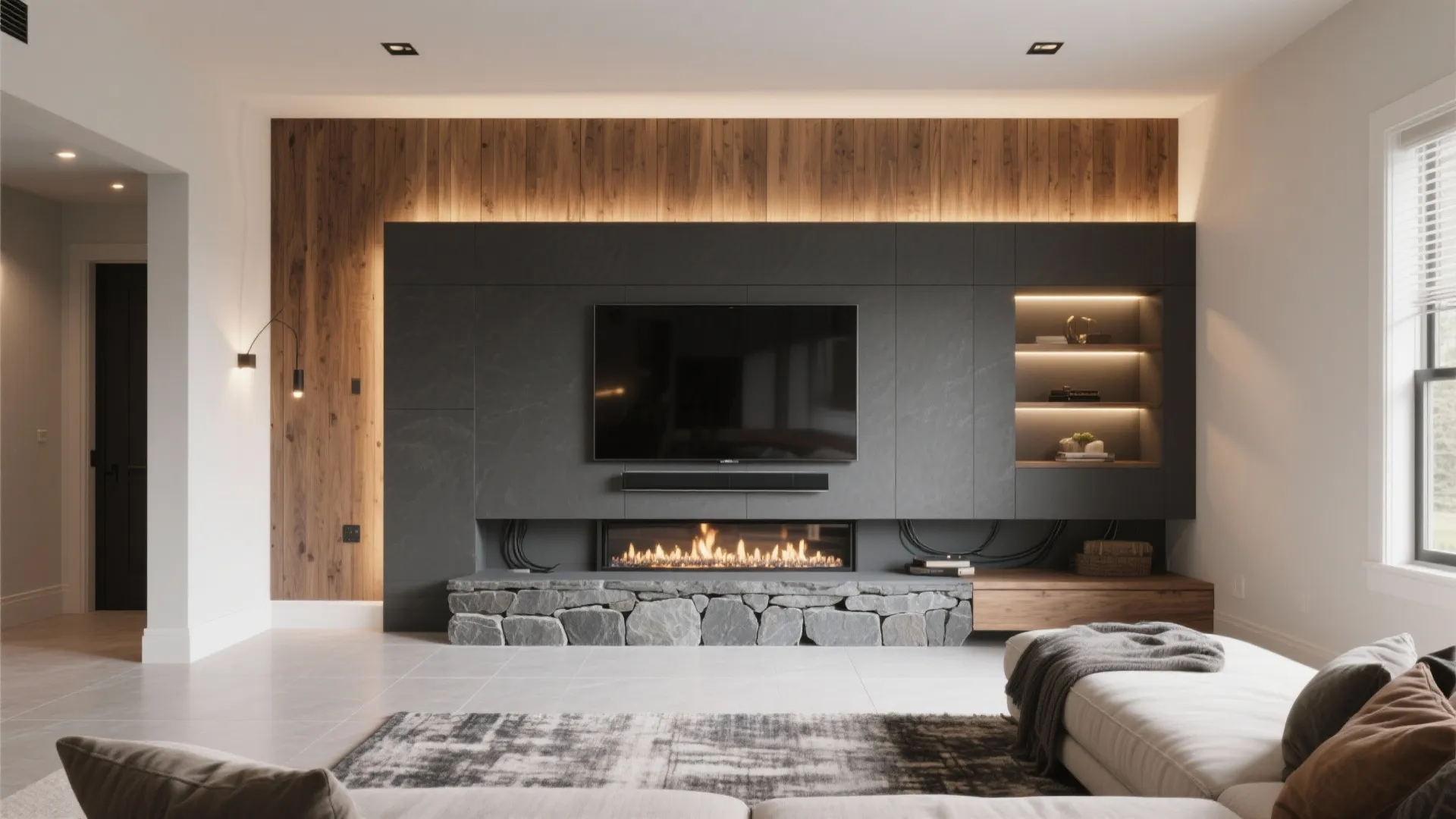

DIY TV and Fireplace Wall: A Step-by-Step Guide: Fast-Track Your Living Room Makeover—Dramatic Results in Minutes

I’ve designed and built more TV and fireplace feature walls than I can count, and the best ones always start with a clear plan for viewing ergonomics, thermal safety, wiring, and light. A TV is a task display—treat it like one. According to Herman Miller research, optimal viewing angles land within 0–30° below the eye line to reduce neck strain, and that translates to setting the TV’s center roughly at seated eye height for your primary seating zone. Steelcase reports that discomfort increases sharply when screens sit above natural sight lines; I aim for 42–48 inches to center depending on sofa height and seat depth.

Heat and ventilation are non-negotiable. WELL v2 guidelines note that thermal comfort strongly influences satisfaction and cognitive performance. For an electric fireplace, maintain manufacturer clearances, ensure the wall cavity is not a heat trap, and keep combustible materials out of the hot air path. I also design lighting around standards-informed glare control; IES guidance on luminance balance helps avoid veiling glare on screens—use indirect washes and dimmable, warm sources so you don’t fight reflections during movie nights.

Plan the Layout, Sightlines, and Safety Zones

I start by mapping the seating triangle and the primary viewing axis. Measure distance from seating to TV: for 4K screens, 1–1.5 times the diagonal works well; for 1080p, try 1.5–2.5 times. Keep the TV center near seated eye height (typically 40–44 inches in living rooms). If you’re stacking the TV above the fireplace, tilt-mounts help but come with neck-strain tradeoffs—test with temporary cardboard templates before committing.

Fireplace placement dictates clearances. Electric units are forgiving but still need airflow; gas units demand strict adherence to venting and surround temperatures. If the layout is complex, a quick mockup with a room layout tool can save rework: layout simulation tool.

Choose the Right Fireplace Unit

Electric fireplaces are DIY-friendly: zero combustion, easier wiring (often a dedicated 15A circuit), and reliable temperature limits. Gas units provide real flame and higher BTUs but require licensed installation, venting, and inspection. Consider heat output vs. TV protection; I prefer units with front venting and controllable heat so the TV lives in a cooler pocket above or beside the fire.

Structure: Framing the Feature Wall

Build a shallow stud wall or bump-out to house wiring, mount, and fireplace chassis. Use kiln-dried 2x4s, check plumb and level religiously, and add blocking for the TV mount at exact height. Allow removable panels or an access hatch for service. If you’re spanning long runs, engineer for rigidity to prevent drywall cracks and tile failure.

Electrical, AV, and Cable Management

Plan two dedicated circuits if possible—one for the fireplace, one for AV—and keep low-voltage separated from power to reduce interference. Pre-run HDMI 2.1-rated cables in conduit for future-proofing, and add a brush plate behind the TV for clean exits. I place a recessed power box at the mount center and a media niche or side cabinet for receivers, consoles, and streamers. Provide ventilation: equipment likes cool air just as much as people do.

Thermal Strategy and TV Protection

Heat rises; don’t trap it against the display. Use a pronounced mantel or a modestly protruding ledge to deflect warm air. Many electric fireplaces now offer flame-only modes; use that when hosting or airing shows. Confirm manufacturer’s clearance to televisions; if your gas fireplace runs hot, shift the TV horizontally into a flanking bay rather than stacking.

Lighting: Balance, Glare Control, and Mood

Aim for layered light: indirect cove or wall grazing to articulate texture, dimmable downlights out of the reflection path, and bias lighting behind the TV (2700–3000K) to reduce eye strain. Keep illuminance modest around the screen; harsh beams cause veiling glare. Use CRI 90+ lamps for natural color rendering. Place switches where you can quickly move from bright task lighting (installation) to low, comfortable viewing scenes.

Materials and Finishes: Durable, Fire-Smart, and Timeless

Pick materials with stable expansion and heat tolerance. Large-format porcelain or sintered stone handles heat and cleaning. For wood, select dimensionally stable species (oak, walnut) and keep combustible trim outside the fireplace’s hot zone. Acoustic comfort matters: add mineral wool in the cavity and choose textured finishes to break up reflections. I often combine a stone hearth with wood cladding above for warmth without overloading the visual weight.

Color Psychology and Visual Rhythm

For media walls, darker mid-tones reduce contrast with the screen, easing the eyes. Neutral palettes (charcoal, umber, navy) play well with warm flame light. Restrain accent colors to small areas; behavioral patterns show that busy visuals distract during group viewing. Create rhythm with horizontal lines—a mantel, a ledge, a low cabinet—so the composition feels grounded.

Acoustics and AV Experience

Mass and absorption improve clarity: mineral wool behind panels, a plush rug upfront, and soft furnishings opposite the wall. If you plan LCR speakers, reserve cutouts at ear height, decouple them from the framing, and avoid placing center channels inside sealed compartments. Keep subwoofers off corners if booming becomes an issue; modestly pull them forward.

Step-by-Step Build Sequence

1) Verify structure and clearances: locate studs, confirm fireplace specs, and mark TV centerline. 2) Frame the bump-out: add blocking for mount and mantel. 3) Run power and low-voltage: install boxes, conduit, and ventilation openings. 4) Dry-fit the fireplace: confirm level and air paths. 5) Sheath and drywall: tape, mud, and prime. 6) Tile or clad: start from a leveled reference and maintain expansion joints. 7) Install mantel or ledge: use hidden steel brackets or lag bolts into blocking. 8) Mount TV and connect AV: test bias lighting and cable routing. 9) Final lighting and paint: tune dimming curves and color temperature. 10) Commissioning: run the fireplace for 30–60 minutes, check thermal drift at the TV, adjust scene lighting.

Maintenance and Long-Term Tweaks

Keep dust away from vents; it insulates heat. Re-check fasteners annually. Upgrade cables in conduit as tech evolves. If you add smart lighting, aim for smooth transitions and avoid abrupt shifts near the screen. Periodically measure surface temps above the fireplace during winter to ensure your TV stays within manufacturer limits.

Reference Insights

Screen height and posture findings align with Herman Miller and Steelcase research on visual ergonomics, while WELL v2 drives thermal and glare-aware lighting choices. IES principles help maintain balanced luminance. Each standard sharpens decisions—from sightlines to comfort—so the wall looks good and functions well.

FAQ

What’s the ideal height for the TV center?

Target seated eye height—about 40–44 inches in most living rooms—keeping the screen within a 0–30° downward viewing angle to minimize neck strain, consistent with ergonomics research cited by Herman Miller and Steelcase.

Can I place the TV directly above a gas fireplace?

Only if manufacturer clearances are met and surface temperatures stay safe. A mantel that deflects heat and a temperature test during prolonged use are essential. When in doubt, shift the TV to a side bay.

Do I need a dedicated circuit for an electric fireplace?

Yes, it’s best practice. Many units require a dedicated 15A circuit. Separate AV and fireplace circuits to prevent nuisance trips and interference.

How do I prevent screen glare?

Use indirect lighting, dimmable warm sources (2700–3000K), and avoid aiming downlights at the screen. Follow IES guidance on luminance balance and add bias lighting behind the TV.

What materials handle heat well around the firebox?

Porcelain tile, sintered stone, and cement-based panels resist heat. Keep wood and fabric outside the hot zone, and honor expansion joints to avoid cracking.

Is an above-fireplace TV bad for ergonomics?

It can be. Elevated screens increase neck extension; tilt mounts help but don’t fully solve it. Validate with a cardboard mockup and consider a side placement if comfort suffers.

How deep should the bump-out be?

Typically 6–12 inches, depending on the fireplace chassis and cable routing. Include an access panel for service and add blocking for mount and mantel.

What’s the best viewing distance?

For 4K, use roughly 1–1.5x the screen diagonal; for 1080p, 1.5–2.5x. Adjust based on your seating depth and field of view preferences.

Do I need ventilation for AV components?

Yes. Provide openings or low-noise fans in cabinets; heat shortens component life and can degrade performance.

How should I plan cable management?

Install conduit from the media cabinet to the TV, run certified HDMI 2.1, and use recessed power and brush plates. Keep power separate from low-voltage.

What color scheme works best for a media wall?

Mid-tone neutrals (charcoal, navy, warm gray) reduce contrast with the screen, ease eye strain, and harmonize with firelight.

Can I DIY a gas fireplace installation?

No—hire a licensed professional. Venting, combustion safety, and code compliance are critical and vary by locale.

How do I reduce booming bass in the room?

Bring the subwoofer off corner boundaries, add soft finishes, and consider mineral wool in the wall cavity. Calibrate with room correction if available.

What’s the right color temperature for viewing?

2700–3000K for ambient and bias lighting around the TV delivers comfortable, warm scenes without harsh contrast.
