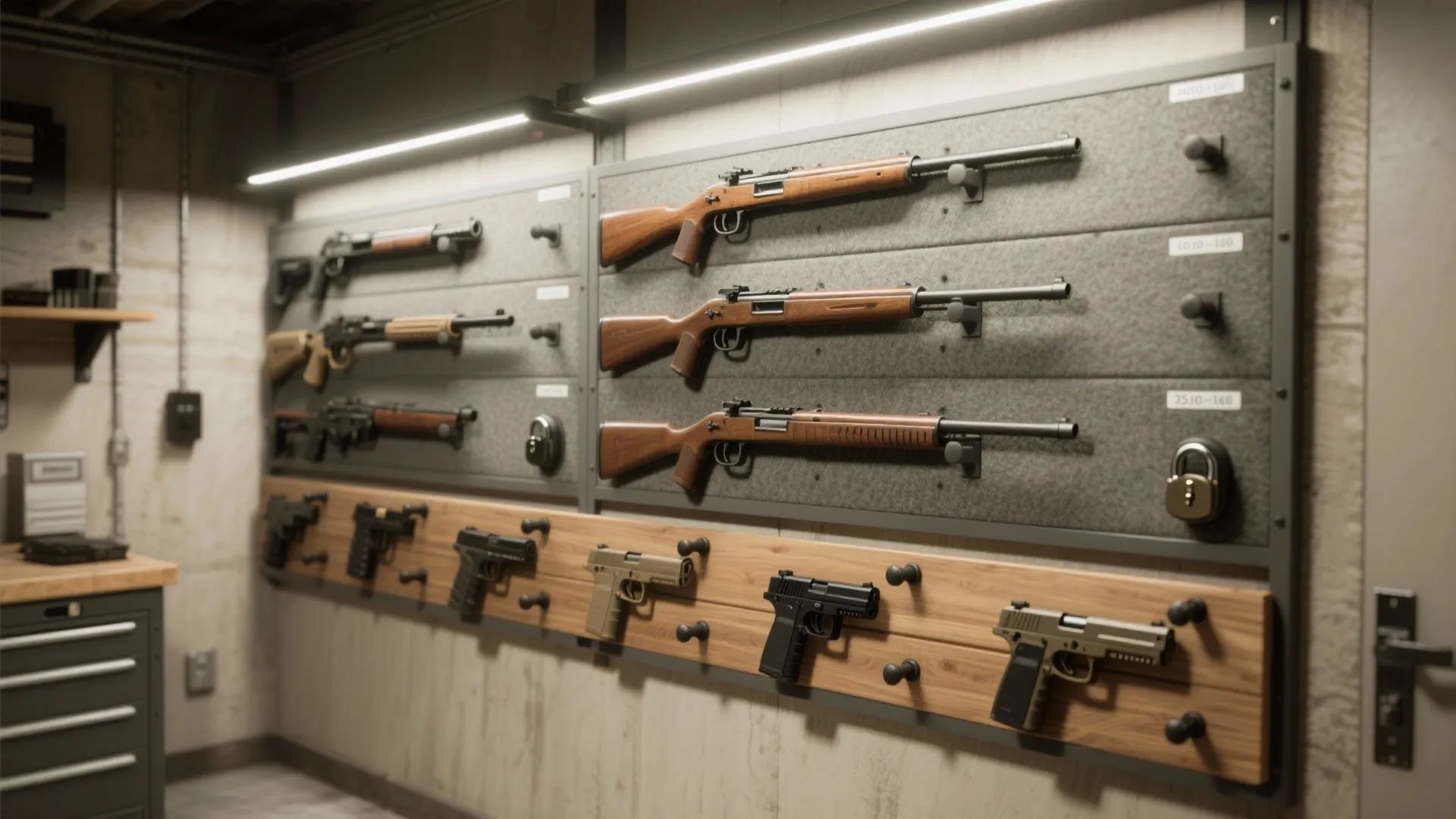

DIY Wall Gun Rack: Easy Steps to Build Your Own: 1 Minute to Organize Firearms Safely with This Fast-Track Guide

I’ve built more than a dozen wall-mounted gun racks for clients and my own studio, and the difference between a good rack and a great one comes down to planning: correct spacing, stable anchorage, and clean finishes that respect both safety and aesthetics. A well-planned wall rack helps maintain clear sightlines and fast retrieval while protecting finishes and firearms from unnecessary wear.

Data supports designing for comfort and clarity even in storage zones. Ergonomic reach for wall-mounted objects typically ranges from 48–60 inches to the centerline for most adults, minimizing strain and improving safety (Herman Miller research on human-scale reach zones). Lighting also matters: the Illuminating Engineering Society recommends task lighting between 300–500 lux for precision checks and maintenance, helping you verify chamber status and avoid glare on gloss finishes (IES standards). For a home shop or mudroom alcove, I aim near 300 lux with warm-neutral 3500–4000K color temperature to keep metal finishes true without harshness.

Behaviorally, clearly organized storage improves wayfinding and reduces error. Gensler’s workplace research consistently shows that well-ordered, purpose-driven environments support faster task completion and reduce cognitive load; translated to a home gun wall, that means dedicated zones (long guns vs. handguns, ammo separate), consistent labeling, and unambiguous access paths. In small rooms, simulate your layout to validate clearances before drilling; a lightweight interior layout planner like a room layout tool can help you test spacing and sightlines pre-install.

Planning the Wall and Layout

Start with wall integrity. Studs at 16 inches on center are typical in North America; always anchor into studs for vertical loads. For masonry, use sleeve anchors rated for your expected load. Map your rack around two essential heights: 54–58 inches to the centerline for shoulder-friendly access to long guns, and 46–50 inches for handguns on a secondary rail. Maintain at least 3–4 inches of lateral spacing between long guns to prevent buttstock and optic contact, and 7–9 inches vertically if you’re using staggered pegs. If you plan scabbard-style cradles, measure your deepest fore-end; many sporting rifles need 2.5–3 inches of cradle depth.

Before drilling, create a quick elevation sketch or test the configuration with an interior layout planner such as a layout simulation tool to verify reach, sightline, and door swing clearance.

Materials and Finishes That Protect Your Firearms

For the backboard: 3/4-inch cabinet-grade plywood or hardwood planks deliver rigidity and resist warping. If you want an industrial look, powder-coated steel rails work well, but add soft interfaces where guns touch. Use closed-cell foam or felt on contact points; choose low-shed, dye-fast felt to avoid color transfer to oiled wood stocks. Finish wood with a low-VOC polyurethane or hardwax oil; it resists oil spotting and is easy to refresh. For humid garages, consider marine-grade polyurethane and a French cleat so the panel can breathe off the wall.

Hardware: Cradles, Pegs, and Locking Options

- Cradles: U-shaped cradles with a 1/8–1/4 inch neoprene or felt liner protect finishes. Angle 5–10 degrees upward to prevent sliding.

- Pegs: 1/2-inch steel pegs with rubber caps for fore-ends or barrels. Use pairs for stability; keep barrel openings clear.

- Rails: 80/20 aluminum or slotted steel rails allow modular adjustability if your collection evolves.

- Discrete locks: Magnetic cabinet locks behind cradles or a keyed bar across triggers provide a low-visual but effective restraint. Always pair with secure storage for ammunition in a separate locked container, in line with local regulations.

Safety, Compliance, and Responsible Placement

Mount the rack in a controlled-access room—home office, secure closet, or workshop with lockable door—and out of direct sunlight to protect finishes. Keep ammo segregated in a locked drawer or wall box. Follow local and national regulations regarding firearm storage and visibility. Add a small LED task strip at 3500–4000K, diffused to avoid specular glare on blued or cerakote finishes, delivering roughly 300 lux at the rack face per IES guidance. Consider a motion sensor for hands-free illumination when you approach the rack.

Cut List and Tools

- Backboard: 3/4-inch plywood, 48 x 24 inches (adjust to wall width)

- French cleat: two strips, 3 x 48 inches, 45-degree rip cut

- Cradles: 6–10 units, 3/4-inch hardwood, 2.5 x 4 inches each

- Liner: Closed-cell foam or felt, 1/8 inch

- Fasteners: 2.5–3 inch wood screws for studs; washers; wall anchors for masonry

- Finish: Polyurethane or hardwax oil

- Tools: Stud finder, level (24 inches), miter saw or jigsaw, drill/driver, countersink bit, sandpaper (180–220 grit), measuring tape, square

Step-by-Step Build

1) Prepare and Finish the Backboard

Cut the backboard to size, ease the edges with 180 grit, then seal all faces before mounting—finishing first prevents drips around hardware. Apply two to three coats of polyurethane, sanding lightly between coats.

2) Install the French Cleat

Rip a 45-degree cleat from the same plywood or use hardwood for strength. Mount one cleat to studs with the angle facing up and away from the wall. Attach the mating cleat to the back of your board, perfectly level. This method distributes weight and allows easy removal for maintenance.

3) Lay Out Cradles and Pegs

Strike a horizontal datum line at your chosen center height (e.g., 56 inches for long guns). Mark positions with 3–4 inches of lateral spacing. For mixed firearms, stagger heights to avoid optic collisions. Dry-fit a couple of unloaded firearms to confirm spacing and clearance.

4) Fabricate and Pad Cradles

Cut U profiles or soft V cradles; round all edges to prevent pressure points. Adhere liners with a non-reactive contact adhesive. Predrill and countersink two screws per cradle; avoid screws near edges to prevent splitting.

5) Anchor Hardware Through the Board Into Studs

Where possible, align at least every other cradle with a stud. For off-stud locations, use toggle bolts rated for at least 60–80 lb shear each; still keep heavy loads tied to studs. Verify level and plumb as you proceed.

6) Add Lighting and Labeling

Install a dimmable LED strip beneath a small valance to cut glare. Aim for approximately 300 lux at the rack face and 3500–4000K color temp to maintain accurate color rendition. Add subtle labels below each station for fast identification during maintenance.

Ergonomics and Spacing Best Practices

Centerline heights in the 48–60 inch band suit most adults without shoulder elevation. Keep any locking bar reachable without awkward wrist angles; a 30–45 inch height works for padlocks. For dual rows, maintain a minimum 10–12 inches vertical clearance between rows to avoid optics and charging handles clashing.

Acoustics and Wall Protection

In workshops, a slatted wood backboard with felt liners softens sound reflections, keeping the room below 0.6–0.8 seconds of perceived reverberation by ear—more comfortable when you’re handling tools. Add a slim cork or rubber strip at the buttstock line to prevent scuffs on wood butts and reduce micro-vibrations when setting down a firearm.

Color and Visual Balance

Neutral, medium-value backdrops (light charcoal, warm gray, desaturated olive) keep visual noise low and help you see silhouettes clearly. According to color psychology insights, muted greens and grays can reduce visual fatigue and support calm focus. Use matte or eggshell finishes to cut glare; avoid high gloss on the background panel.

Maintenance and Care

Wipe liners and contact points monthly with a dry microfiber cloth. Avoid silicone sprays near liners—they can migrate. If humidity varies, add a small desiccant box near the rack (but not touching metal) and monitor with a hygrometer; aim for 40–50% relative humidity to curb rust while protecting wood stocks from cracking.

Common Variations

- Modular rail system with sliding cradles for evolving collections.

- Hidden rack behind a panel door for minimal visual presence.

- Hybrid peg plus cradle system for scoped rifles versus iron-sight shotguns.

Quick Checklist Before You Drill

- Confirm local regulations and safe storage requirements.

- Verify stud locations and load paths.

- Dry-fit unloaded firearms to confirm spacing.

- Pre-finish all wood components.

- Plan lighting and cable routing.

Sources and Standards

- IES lighting recommendations for task zones support 300–500 lux for detailed visual work.

- Herman Miller research on ergonomic reach zones and human-scale planning underpins centerline heights and access comfort.

FAQ

Q1: What’s the safest mounting height for a wall gun rack?

A1: For adults, place the centerline around 54–58 inches to reduce shoulder strain and keep firearms above the typical reach of small children. Pair with a lock and secure room access to meet local requirements.

Q2: How much spacing should I allow between long guns?

A2: Keep 3–4 inches laterally between stocks and at least 7–9 inches vertically if staggered. Scoped rifles often need a bit more clearance to protect optics.

Q3: What lighting level should I aim for at the rack?

A3: Target around 300 lux with 3500–4000K LEDs for accurate color and comfortable inspection, consistent with IES task lighting guidance.

Q4: Which materials protect finishes best?

A4: Use 3/4-inch plywood or hardwood backers, lined cradles with closed-cell foam or felt, and a low-VOC polyurethane finish. Avoid raw rubber that can mark blued steel; choose neoprene or felt rated for colorfastness.

Q5: Can I mount to drywall without hitting studs?

A5: It’s not recommended for primary loads. If unavoidable for a few positions, use heavy-duty toggles rated 60–80 lb, but still tie the main mass into studs or masonry.

Q6: How do I incorporate locks discreetly?

A6: Install hidden magnetic locks behind cradles or a slim keyed bar across triggers. Keep operation within a 30–45 inch reach height for easy access without awkward wrist angles.

Q7: What finish color helps visibility?

A7: Medium-value matte finishes—warm gray, desaturated olive, or charcoal—offer high contrast with most firearms and minimize glare, easing quick identification.

Q8: How do I manage humidity?

A8: Maintain 40–50% relative humidity. Use a small desiccant nearby and ventilate the room. For garages, seal wood thoroughly and consider a dehumidifier during wet seasons.

Q9: Can I make the rack modular for future changes?

A9: Yes. Use slotted steel or 80/20 aluminum rails with sliding cradles and peg sets. Pre-drill a grid of hidden inserts to reposition elements cleanly.

Q10: What about noise and vibration when placing firearms?

A10: Add felt or rubber contact strips at the buttstock line and under cradles to dampen impact and reduce audible clatter in hard-surfaced rooms.

Q11: How do I keep the wall from looking cluttered?

A11: Align gun centerlines, maintain equal spacing, group by type (rifle, shotgun, handgun), and keep labels minimal. A neutral background reduces visual noise.

Q12: Is a French cleat necessary?

A12: Not strictly, but it distributes load and allows removal for maintenance. It’s my preferred method for panels over 24 inches wide.
