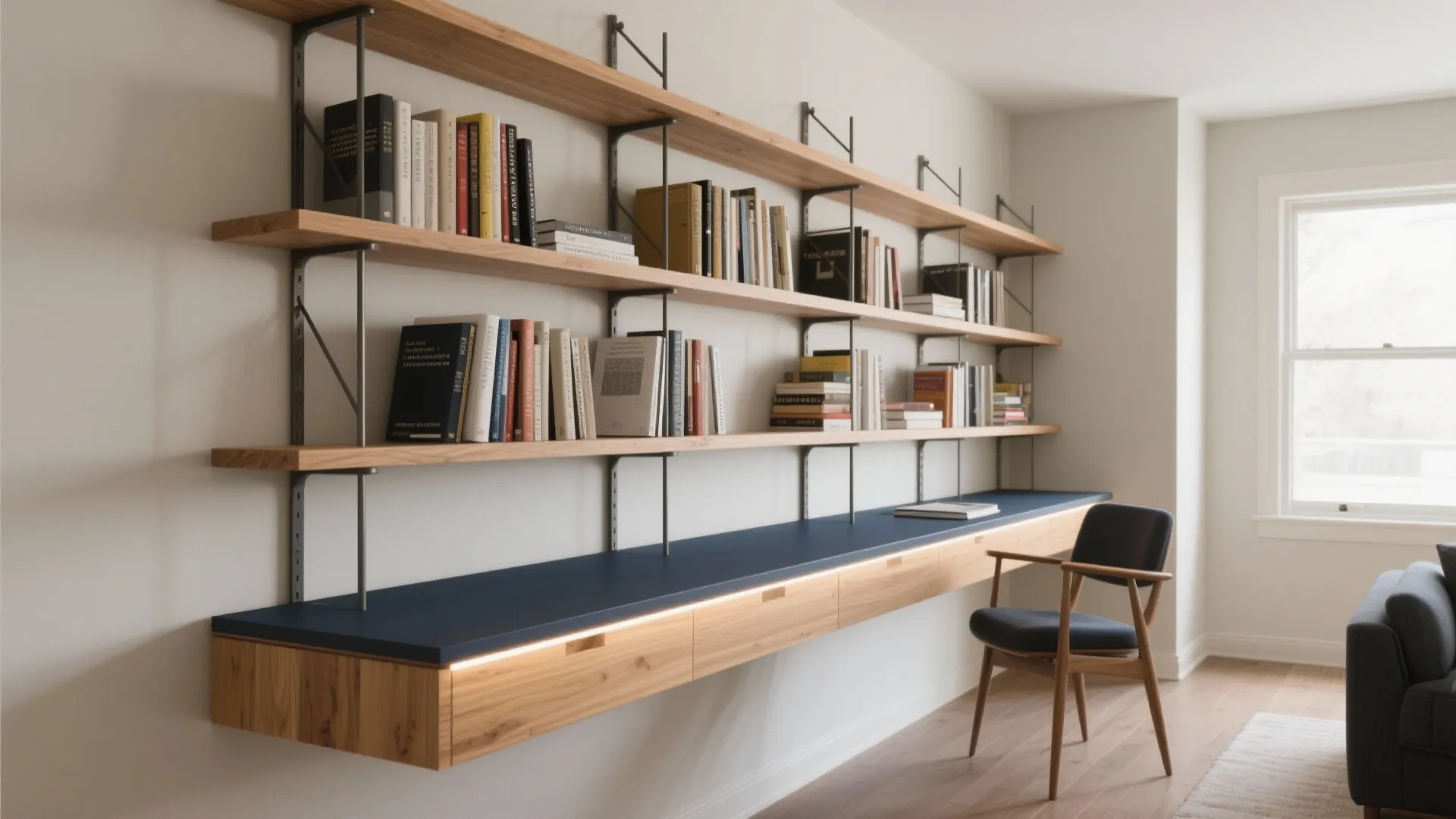

DIY Wall Mounted Bookshelf: Space-Saving Design Tips: Fast-Track Guide to Building a Stylish Shelf in 1 Hour

I’ve designed and installed more wall-mounted shelving than I can count—tiny studio alcoves, narrow home offices, rental-friendly living rooms, and kid-proof reading nooks. A successful DIY bookshelf starts with two priorities: load management and human-centered comfort. When sized to the wall, fixed to the right substrate, and tuned for reach, light, and acoustics, a slim system can hold more than you expect while keeping your space visually calm and safe.

Let’s ground this with data. WELL v2 recommends maintaining glare below unified glare rating (UGR) thresholds and offers guidance to support visual comfort; in practice, shelves placed away from direct beam paths reduce reflective glare and eye strain for reading (source: v2.wellcertified.com). Steelcase research has shown that posture variety and ergonomic reach zones improve task comfort; keeping frequently used books between 20–50 inches off the floor aligns with neutral shoulder reach and reduces strain during daily use (steelcase.com/research). I also size spans with IES illumination targets in mind: for reading zones, 300–500 lux ambient plus 500–700 lux task light helps keep titles legible without harsh highlights (ies.org/standards).

Plan the Span: Loads, Fasteners, and Substrates

Before you cut a single board, confirm what the wall can handle. For wood studs at 16-inch centers, a typical #10 wood screw into the stud can support 80–100 lb in shear per anchor under ideal conditions; but realistic design loads should be halved for safety and variability. I limit a 32-inch shelf to 40–60 lb total when mounted with two stud anchors. Masonry walls accept sleeve anchors or Tapcon-type screws; drywall alone is never acceptable for heavy shelves—use studs or install a continuous cleat into studs first.

Span control matters because shelf deflection telegraphs quality. Keep solid wood spans under 36 inches when using 3/4-inch hardwood; for longer runs, add center brackets or shift to plywood with a hardwood edge. For heavy hardcovers (6–8 lb/ft), size your shelf knowing that a 36-inch run can easily exceed 25 lb. If you plan a full library wall, integrate verticals every 24–32 inches; they act like mini trusses that cap deflection and distribute load.

Ergonomic Heights and Reach Zones

Comfortable access comes from respecting human factors. I keep the primary reading tier between 20–50 inches from the floor—aligned with neutral elbow and shoulder reach for most adults. Reserve 50–70 inches for occasional titles or display objects. Above 70 inches, use it for boxed collections or archival storage and add a lightweight step stool. For kids’ rooms, shift the main tier down to 15–36 inches, avoiding sharp corners at eye level.

If your space is multitasking—a desk below a shelf, for instance—keep a 20–24-inch clearance above the work surface to minimize head bump risk and allow a task light to sit free from shelf shadows. This meets the behavioral pattern I see in home offices: reaching up during work bursts should be effortless and interruption-free.

Materials: Strength, Stability, and Sustainability

Material choice influences both performance and mood. I favor 3/4-inch Baltic birch plywood with hardwood edging for long straight runs; it resists warping and holds screws well. Solid maple, ash, or oak offer attractive grain and good stiffness. Avoid thin particleboard for open spans; it sags early under book loads. For brackets, steel angle supports or concealed wall cleats create a clean profile. If you love the floating look, use heavy-duty concealed shelf supports rated for at least twice your planned load.

Consider sustainability: opt for FSC-certified hardwoods, low-VOC finishes, and powder-coated steel brackets. A matte finish reduces specular glare, making titles easier to read under mixed lighting. Color psychology also plays a role; warm mid-tone woods foster comfort, while deep navy or charcoal shelves can anchor a wall and visually compress bulk.

Light, Glare, and Visual Rhythm

Books add texture; lighting determines whether that texture reads as serene or cluttered. Target 300–500 lux ambient with 2700–3500K warm-to-neutral color temperature to keep paper tones pleasant. Avoid placing shelves opposite bare bulbs or glossy windows; angled spot reflections increase visual noise. If you add under-shelf lights, use diffused LED strips with 90+ CRI and position them at the front lip to wash spines evenly.

Set rhythm with consistent verticals and shelf thickness. Repeating 24–30-inch bays builds a measured cadence that feels intentional. Align shelf edges with architectural cues—window head heights, door casings—to integrate the unit into the room’s composition.

Layout Strategies for Tight Rooms

In compact apartments, wall-mounted shelves are a spatial lever. I map circulation first, keeping 30–36 inches clear for movement. Corner units can reclaim dead zones, while a thin rail of shelves above a sofa keeps floor space free. When testing alternate configurations, a layout simulation tool helps you visualize reach, clearances, and sightlines before drilling.

Try a stacked asymmetric composition: two shorter shelves over a desk, one longer run above a reading chair, and a narrow ledge by the entry for returns. This breaks up mass and reduces acoustic hard surfaces concentrated in one area.

room layout tool

Hardware: Brackets, Cleats, and Hidden Support

For visible brackets, choose steel with a minimum 1/8-inch thickness and depth equal to 2/3 of shelf depth for stability. Pre-drill shelves and wall points; hit studs with 2.5–3-inch wood screws and use washers where appropriate. For French cleats, anchor the wall cleat to multiple studs and attach the matching shelf cleat; it spreads load beautifully and allows easy repositioning.

On masonry, use 3/16–1/4-inch diameter concrete anchors sized to bracket holes. Always confirm rated capacity and derate for edge distances and any hollow block conditions.

Acoustic and Behavioral Considerations

Books can be acoustic allies. A filled shelf acts as a broadband absorber in the mid-high range, softening slap echo in hard-floored rooms. Distribute shelves across opposing walls rather than stacking all on one side; it balances reflections and keeps speech clarity comfortable.

Behaviorally, keep drop zones logical: a lower shelf by the entry for returns, a mid-height shelf near seating for current reads, and closed boxes above for archives. Label light-use categories discreetly to prevent mix-ups and climbing accidents in family spaces.

Finishing Details: Edges, Safety, and Cable Management

Ease all front edges with a 1/16–1/8-inch roundover; it’s kinder to hands and prevents chipping. If you integrate lights or charge stations, route a cable channel at the back and add grommets to avoid dangling wires. For child safety, cap sharp bracket ends and maintain 12-inch clearance from crib or bed edges.

Step-by-Step Build Outline

1) Locate studs with a reliable finder; verify with a pilot hole. 2) Mark level lines and bay widths (24–30 inches). 3) Cut shelves to length; add hardwood edge if using plywood. 4) Pre-finish boards; allow full cure to avoid odor and fingerprints. 5) Install brackets or cleats into studs, checking level and plumb. 6) Mount shelves; confirm minimal deflection under a test load. 7) Add task lighting and cable channels. 8) Style with a mix of vertical and horizontal stacks to relieve visual weight.

References for Comfort and Performance

For deeper standards and research, WELL v2 visual comfort and light guidelines and Steelcase ergonomics research offer practical guardrails for reach and illumination in reading-intensive zones.

FAQ

How high should the first shelf be above the floor?

Set the lowest shelf around 20–24 inches. It keeps frequently used books in a neutral reach zone and leaves floor space clear for baskets or a vacuum.

What span can a 3/4-inch solid wood shelf handle without sagging?

Limit to 24–36 inches for typical book loads. For heavy hardcovers, add a center bracket or move to plywood with a hardwood edge.

Are floating shelves strong enough for books?

Yes, if you use heavy-duty concealed supports into studs and derate loads by 50% for safety. Avoid drywall-only anchors for book loads.

Which lighting is best near bookshelves?

Use 300–500 lux ambient and 2700–3500K light. Add diffused under-shelf LEDs with 90+ CRI to keep colors accurate and reduce glare.

How do I find studs accurately?

Use an electronic stud finder, then verify with a small pilot hole. Studs are usually 16 inches on center; measure from corner and confirm.

What finish reduces glare on book covers?

Matte polyurethane or hardwax oil softens reflections and improves readability compared to glossy finishes.

Can bookshelves improve room acoustics?

Yes. Filled shelves scatter and absorb mid-high frequencies, reducing flutter echo, especially in rooms with hard floors and bare walls.

What’s the safest bracket size for deep shelves?

Choose steel brackets with depth at least two-thirds of shelf depth and thickness around 1/8 inch. Anchor directly into studs with 2.5–3-inch screws.

How do I plan a bookshelf in a small apartment?

Map circulation first, keep 30–36 inches clear for walkways, and test configurations with an interior layout planner before drilling.

Which materials resist sagging over time?

Baltic birch plywood with hardwood edging or solid maple/oak. Avoid thin particleboard for open spans with books.

What ergonomic heights suit a home office?

Place daily-use titles between 30–50 inches above the floor, keeping a 20–24-inch clearance above the desk for headroom and lighting.

How do I child-proof wall-mounted shelves?

Lower the main tier to 15–36 inches, round edges, cap bracket ends, and avoid placing shelves within 12 inches of cribs or beds.
