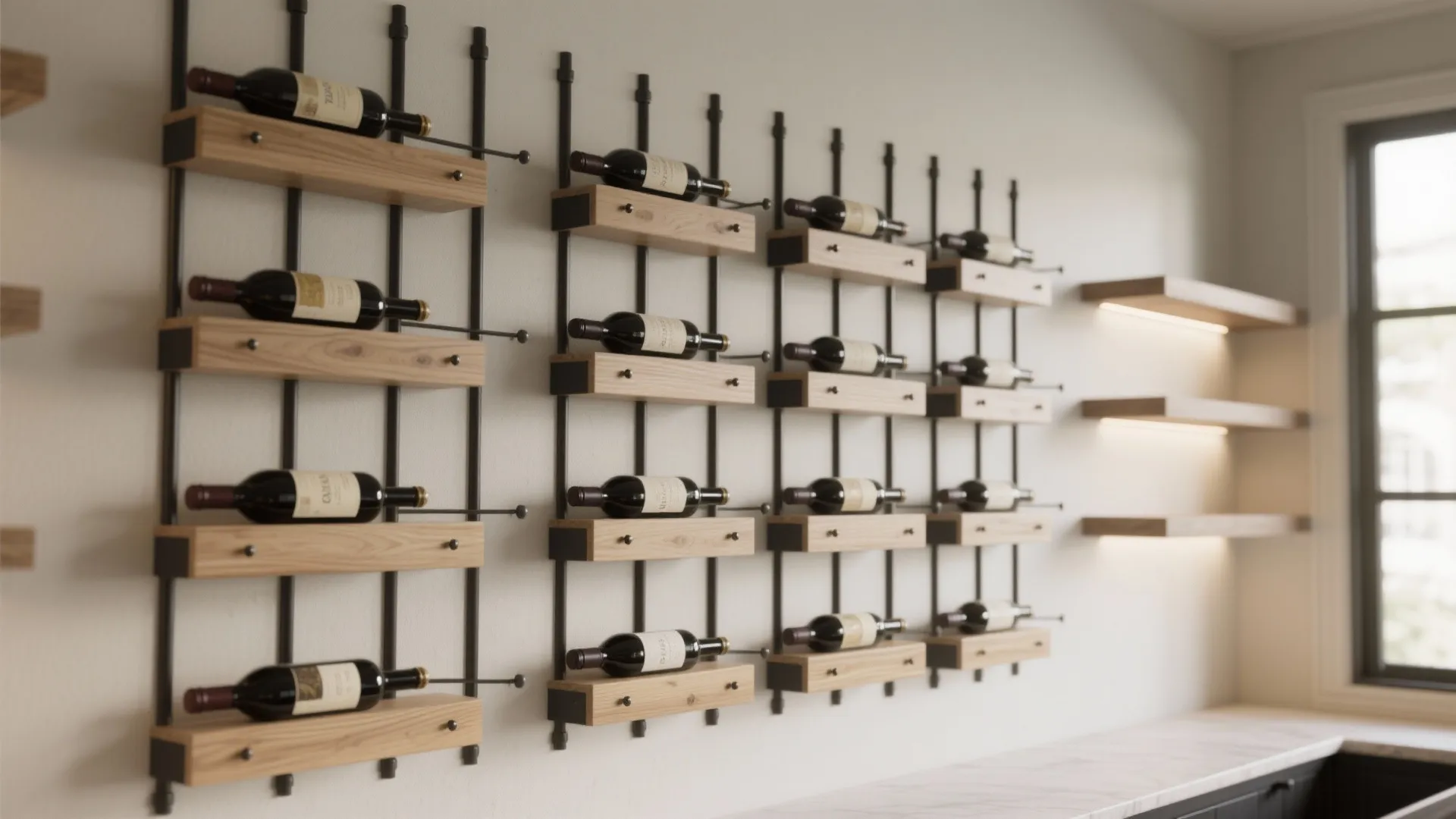

DIY Wall Mounted Wine Rack: Step-by-Step Guide to Stylish Storage: 1 Minute to Your Own Space-Saving Wine Display

I’ve designed and built more than a dozen wall-mounted wine racks for clients and my own home bars. A good rack should cradle bottles securely, protect corks, and look intentional in your space—not just “tacked on.” Beyond aesthetics, storage conditions matter: according to WELL v2 guidance for thermal comfort and material safety, maintaining stable indoor temperatures and choosing low-emitting finishes improves occupant well-being and longevity of stored goods. Steelcase research also shows visual order and well-designed storage can reduce cognitive load and support calm, focused environments, which applies surprisingly well to how a tidy bottle wall can enhance daily rituals.

Two practical numbers guide my layouts: most 750 ml bottles are 300–320 mm long and roughly 75–85 mm in diameter, so clearances matter. Gensler’s workplace studies on sightlines and rhythm note that repeated modules at consistent intervals improve visual coherence; I map bottle spacing at 100 mm centers horizontally and 350–380 mm vertically to avoid neck clashes and to create a balanced grid that reads clean from across the room. For lighting, I follow IES recommendations to limit direct glare; place accent lighting at 30–45° angles to avoid hotspots on glass.

Plan Your Rack: Capacity, Location, and Layout

Start with capacity. Count how many bottles you regularly keep—12, 18, or 24 are common—and add 25% headroom for growth. Choose a wall with solid backing (studs at 16" on center are typical) away from heat sources and direct sun. Wine prefers a stable 12–18°C (54–64°F) range; avoid ovens and west-facing windows. If you’re integrating with an existing bar, align the rack centerline with nearby shelving to maintain rhythm and balance. For layout testing, use a room layout tool to visualize grid spacing before drilling.

room layout tool

Materials and Tools

Pick a structure that suits your interior language. Options I’ve used successfully:

1. Vertical rails + pegs: Powder-coated steel rails with turned wood or metal pegs that cradle bottle shoulders.
2. Slotted shelves: Hardwood boards with semicircular cutouts for each bottle.
3. Minimal wall pins: Two-pin systems that hold bottles horizontally by neck and base.

Recommended materials: FSC-certified white oak, walnut, or ash for warmth and durability; 304 stainless steel for pins/pegs to resist corrosion. Avoid high-VOC finishes; WELL v2 promotes low-emitting products for indoor air quality. Tools: stud finder, level, tape measure, drill/driver, masonry anchors if mounting to block, countersink bit, sanding blocks, clamps, and a finish applicator.

Dimension Standards and Clearances

Use metrics that respect bottle geometry and human factors:

1. Horizontal spacing: 100–110 mm center-to-center accommodates most 750 ml bottles without crowding.
2. Vertical spacing: 350–380 mm center-to-center lets hands slip in comfortably and prevents label scuffing.
3. Offset: Stagger rows by 50 mm for visual rhythm and easier retrieval.
4. Edge margins: Keep 40–50 mm from rack edges to avoid knuckle hits.
5. Mounting height: Top row at 1,600–1,700 mm; bottom row at 900–1,000 mm—reachable for most users per ergonomics best practices.

Step-by-Step Build: Rail-and-Peg System

1. Locate Studs and Mark Grid

Use a stud finder and confirm by pilot drilling. Snap a level line for the bottom row. Mark verticals at 16" on center where rails will land. Lightly pencil the bottle centers across the grid using your chosen spacing.

2. Prepare Rails

Cut steel or hardwood rails to length (e.g., 1,400 mm for four rows of six). Pre-drill and countersink mounting holes at 400 mm intervals. If using hardwood, seal with low-VOC polyurethane or hardwax oil. Let finishes cure fully.

3. Fabricate Pegs

Turn hardwood pegs to 25–30 mm diameter, 80–100 mm length, with a shallow chamfer at the tip to nest bottle shoulders. If using metal, source 304 stainless pins with a textured end. Dry fit into rails to check alignment.

4. Mount Rails

Hold rails to the wall, level them, and drive structural screws into studs. If you must use anchors, select heavy-duty toggles rated for at least 50 lb each. Check for true with a long level—small misalignments compound across rows.

5. Install Pegs and Test Load

Set pegs on your marked centers. Before loading wine, test with a few water bottles to confirm load distribution. A typical six-bottle row weighs ~9–10 kg; confirm fasteners are tight and no rails flex.

6. Finishing Touches

Softly sand any edges your hands touch. Apply clear finish to wood and wipe metal with isopropyl alcohol to remove oils. Add felt pads under contact points if you prefer to avoid scuffs on labels.

Alternative Build: Slotted Shelf Rack

For a more traditional look, mill semicircular cutouts (40–42 mm radius) into hardwood shelves. Set shelves at 350–380 mm vertical spacing. Add a slight 3–5° tilt toward the neck to keep corks moist while preventing roll-out. Anchor vertical supports to studs, then screw shelves into dadoed slots for rigidity.

Mounting and Safety

Safety is non-negotiable. A 24-bottle rack can exceed 35–40 kg when loaded. Anchor into studs with structural screws; avoid drywall-only installations. Keep racks away from cribs or high-traffic corners. For seismic regions, add discreet retainer clips over bottle shoulders and consider a shallow ledge lip. Control glare and heat: IES guidance discourages direct beam light on reflective surfaces—opt for indirect, dimmable LED strips set to 2700–3000K for warm ambience without hotspots.

Lighting the Display

Color temperature between 2700K and 3000K flatters amber and green glass, while higher CCT can make labels look stark. Aim accent lights from above at a 30–45° angle, shielded to minimize glare. Keep illuminance modest—150–300 lux is sufficient for a gentle glow. If you showcase special vintages, use high CRI (90+) LEDs to render label colors accurately.

Material Sustainability and Maintenance

Choose responsibly sourced hardwoods and powder-coated metals for longevity. Maintain with gentle cleaners; avoid ammonia on finishes. Periodically re-tighten fasteners and inspect pegs. Keep bottles horizontally or at a slight downward neck angle to maintain cork moisture. For mixed collections, dedicate rows by varietal or region to reduce handling and label wear—this simple organization supports the calm order noted in Steelcase research.

Design Integration and Visual Balance

Racks read best when they echo existing lines. Align with door headers, shelving heights, or art compositions. Use odd-number groupings for accent pieces near the rack, and maintain consistent negative space around it—at least 100 mm to adjacent elements. If you have a narrow niche, a vertical pin system offers airiness; in wide dining walls, a grid reinforces harmony. If you’re unsure, mock up with painter’s tape and a layout simulation tool to assess sightlines and reach.

layout simulation tool

Troubleshooting

1. Bottles feel loose: Increase peg diameter or add a shallow rubber grommet for grip.
2. Labels scuff: Widen spacing or add felt contact points.
3. Rails sag: Upgrade to thicker stock or add mid-span screws into studs.
4. Glare on glass: Soften lighting, reduce beam angle, add diffusers.
5. Room looks busy: Simplify the grid, introduce a solid backing panel in a calm tone, or reduce capacity.

FAQ

How many bottles can a typical wall-mounted rack safely hold?

Anchored into studs, a well-built rack can handle 24–36 bottles, provided each rail is fixed with structural screws and the load is distributed. Verify anchor ratings; a fully loaded 24-bottle rack can exceed 35–40 kg.

Is horizontal storage necessary for all wines?

Wines sealed with cork benefit from horizontal or slight downward neck angles to keep corks moist. Screw-cap wines are more forgiving, but consistent orientation supports a tidy, ergonomic retrieval pattern.

What’s the best lighting for a wine wall?

Use warm, dimmable LEDs (2700–3000K) with high CRI (90+) and indirect aiming per IES glare control principles. Keep illuminance around 150–300 lux to avoid heat and label fade.

How do I mount if my wall lacks studs where I want them?

Span rails to catch available studs and use concealed steel plates behind finish panels. Avoid relying solely on drywall anchors for heavy loads; if necessary, add a continuous backer board anchored into studs and mount the rack to it.

Can I mix different bottle sizes in one rack?

Yes. Plan a flexible grid: 100–110 mm horizontal spacing suits most 750 ml bottles, while magnum rows need 120–130 mm spacing and deeper pegs. Label rows by size to reduce handling.

What finishes are safest indoors?

Choose low-emitting finishes that meet WELL v2 guidance for material safety, such as waterborne polyurethanes or hardwax oils. Allow full cure before loading to avoid off-gassing.

How do I avoid visual clutter?

Keep consistent spacing and align with existing architectural lines. Group accessories in odd numbers and maintain at least 100 mm of negative space around the rack to preserve visual balance.

Will accent lighting damage wine?

Proper LEDs emit minimal UV and heat. Position fixtures away from bottles, use indirect angles, and maintain low illuminance. Avoid halogens or direct sunlight.

What’s the ideal mounting height?

Set the top row around 1,600–1,700 mm and the bottom around 900–1,000 mm for comfortable reach based on common ergonomic guidance.

How often should I inspect the rack?

Quarterly checks are smart: verify fasteners, look for finish wear, and test a few bottles for secure seating. Re-tighten screws and clean surfaces with non-abrasive products.
