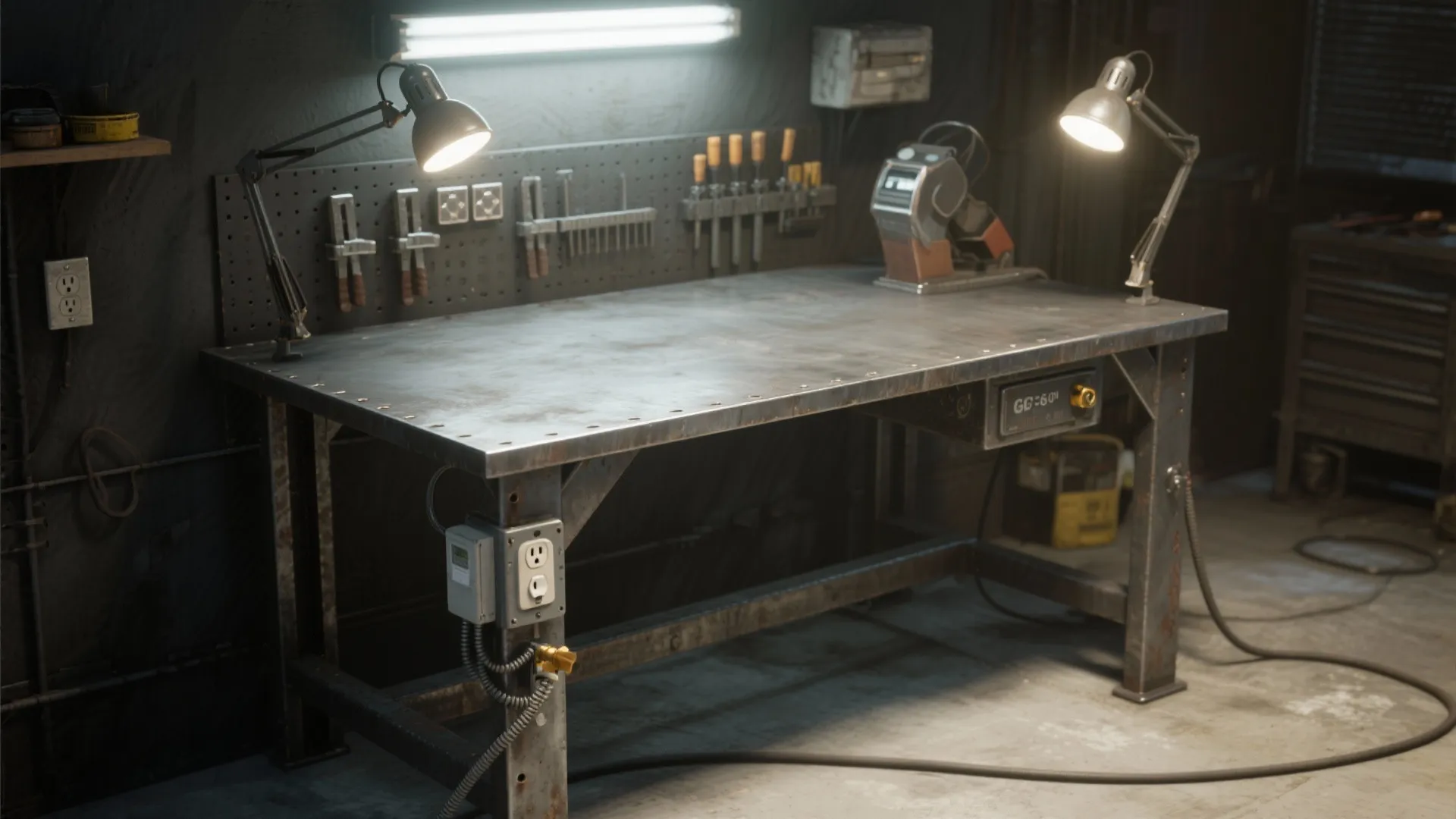

DIY Weld Table: Build Your Perfect Welding Surface at Home: Fast-Track Guide to Crafting a Pro-Quality Weld Table in No Time

I’ve built enough shop furniture over the years to know a welder’s workbench is the anchor of a home metalwork setup. A good weld table stays flat under heat, grounds reliably, sheds spatter, and supports clamps anywhere you need them. Done right, it enhances safety, accuracy, and comfort—three things that directly affect your weld quality and fatigue.

Two facts shape my approach. First, posture and reach matter: Herman Miller’s research shows that better ergonomic alignment reduces musculoskeletal strain and improves task performance in repetitive work environments; keeping your torch hand close and elbows supported helps you weld longer with less error. Second, lighting quality changes everything: the Illuminating Engineering Society (IES) recommends task light levels around 500–1000 lux for detailed shop work, coupled with glare control—critical when reading puddle edges and joint fit-up under a hood. I set my table where I can achieve those levels and avoid direct glare lines.

Material behavior is also a factor. Steelcase’s workplace studies underline how well-organized, purpose-built stations increase productivity; in a welding context, that means your table must integrate clamping, grounding, heat resistance, and cable management without clutter. I design the surface and frame around those needs rather than forcing accessories to fit after the fact.

Design Goals: Flatness, Rigidity, and Safety

For small shops, a 36" x 24" or 48" x 30" footprint is a sweet spot—big enough for most hobby projects yet maneuverable. I aim for 34–36" working height; it suits most standing postures and keeps wrists neutral. The top should remain within ±0.5 mm flatness across the surface for accurate tack-ups; a thicker plate (3/8" to 1/2" mild steel) resists distortion and provides a good thermal mass. Edge chamfers reduce snagging and protect wrists.

Structurally, a boxed frame with cross-bracing and gussets at leg junctions prevents racking when you leverage clamps hard. Weld sequencing matters: stitch and skip weld the frame to minimize pull, check with straightedges as you go, and normalize heat inputs so the top plate doesn’t dish or crown.

Surface Options: Slotted Plate vs. Modular Grid

There are two practical paths for a DIY top: a solid plate with cut slots or a grid made from flat bar. A solid plate is simpler, offers excellent thermal mass, and cleans easily. If you rely on frequent clamping, I like adding a peripheral angle frame and a few strategic 16–18 mm slots for F-clamps and specialty fixtures. For more adaptability, a grid (say, 2" x 1/4" flat bars on 2" centers) gives you clamp-through access everywhere, improves spatter shedding, and reduces reflected heat at the puddle—handy for thinner materials.

Whichever you choose, avoid galvanization on the top; welding on zinc releases hazardous fumes. Keep the top bare steel, then treat with a light oil, paste wax, or a dedicated anti-spatter compound on active zones. Color psychology is minimal here, but a darker, matte surface reduces visual glare, helping you read molten metal edges more consistently under high-lux task lights. For guidelines on healthy work environments, WELL v2 highlights glare control and high-CRI task lighting (CRI 90+), both of which translate directly to safer welding visibility.

Frame and Legs: Stability without Bulk

I prefer 2" x 2" x 1/8" square tubing for legs and aprons; it’s strong, welds cleanly, and stays true. Add 3/16" gussets at the leg-to-apron joints, and include a bottom shelf frame that doubles as a torsion brace. If you want mobility, use 4" industrial casters with foot-activated locks and a retractable center foot that lifts the casters off the floor when parked—solid footing is non-negotiable during welding.

Leveling feet are worth it, especially if your garage slab isn’t perfect. Four threaded feet with rubber bases reduce vibration and let you fine-tune height. From an ergonomics standpoint, keep knee clearance on at least one side; it lets you sit for TIG work, minimizing shoulder and neck fatigue during long beads.

Grounding, Power, and Cable Management

Reliable grounding reduces arc instability and spatter. I weld a 1/2" stud or a copper lug to the underside of the top and run a short, heavy ground strap to the machine. Keep the cable path free from pinch points and away from hot zones. Power management matters too: mount a metal outlet box with GFCI protection on the leg, and route extension cords under the table using metal loops or conduit clips. A clean cable map reduces trip hazards and keeps your torch hand unencumbered.

Clamping and Fixturing Strategy

Plan clamping before you drill. A perforated grid is tempting, but excessive holes can trap slag and distort if the spacing isn’t precise. I prefer strategic slots, a removable fence, and a set of magnetic squares, corner clamps, and toggle clamps mounted to a rail. For layout testing and spatial planning, a room layout tool is helpful when positioning your table within a mixed-use garage, ensuring clear egress and safe distance from combustible storage: room layout tool.

Heat, Spatter, and Surface Care

Spatter management is part material, part habit. Keep a dedicated scraper and wire brush on a magnetic strip under the table edge. Apply a light film of anti-spatter to active areas and clean after each session. If you build a grid top, stagger the bars so heat channels dissipate evenly and avoid local warping. For solid tops, stitch weld the plate to the frame from the center out, alternating sides to balance heat.

Lighting the Station: Lux, Color Temperature, and Glare Control

I target 500–1000 lux at the work surface using two adjustable task lamps with 4000–5000K LEDs; this range offers neutral color rendering and crisp edge definition. Shield light sources from direct eye line to avoid glare bouncing off the steel. The IES task lighting recommendations align with this approach, and adding a high-CRI lamp helps distinguish color changes in the heat-affected zone. Place a matte dark backdrop behind the table to reduce visual noise and make arc light less distracting.

Acoustic and Safety Considerations

Welding is noisy mostly due to grinders and fans. I add a rubber mat under the table shelf to damp resonance and store heavy tools low to reduce vibration. Safety-wise: include a Class ABC fire extinguisher within arm’s reach, keep a metal bin for hot drops, and maintain 36" clear zone around the table for egress. Behavioral patterns matter—create a pre-weld checklist: ground connection, ventilation on, PPE set (helmet, jacket, gloves), flammables removed, and cable paths clear.

Materials: Sustainable Choices and Practical Finishes

Steel dominates for a reason, but you can make sustainable calls: use reclaimed plate where flatness permits and source tubing with mill certifications. Avoid coatings that outgas at welding temperatures. For the frame, a low-VOC enamel after assembly protects against rust without contaminating the top. Material libraries like Material ConneXion chronicle innovations in coatings and recycled metals; I borrow their mindset—durable, repairable, minimal off-gassing.

Step-by-Step Build Outline

1) Define size and height based on your projects and posture.

2) Cut and square the frame (aprons, cross-braces, legs). Tack and verify with a carpenter’s square and diagonal measurements.

3) Add gussets and bottom shelf frame. Stitch weld in a skip pattern to avoid pull.

4) Prep the top (degrease, deburr, chamfer edges). Tack the plate at the center, then alternate welds outward.

5) Install grounding stud, outlet box, and cable guides.

6) Add leveling feet or casters with a retractable center foot.

7) Integrate clamping features (slots, rails, removable fence).

8) Finish: paint frame, condition top with paste wax or light oil, add anti-spatter to active zones.

Ergonomics: Working Height, Reach, and Fatigue

Human factors are easy to overlook in a shop build. Keep frequently used tools within 16–20" reach from your dominant hand. Place the welder controls at eye level when standing to avoid stooping. If you TIG often, consider a 30–32" seated work height option on one side with knee clearance. Research from Herman Miller emphasizes posture-neutral setups to reduce fatigue; that reality shows up in cleaner beads and steadier hands after hours at the table.

Budget, Time, and Accuracy Checks

A straightforward 48" x 30" build with a 3/8" top typically takes a weekend with basic tools (saw, grinder, welder, drill) and lands in a moderate budget if you source steel locally. The cost swings with plate thickness and casters. Check flatness with a precision straightedge and feeler gauges; if you’re out by more than 0.5 mm, chase high spots with a file, or re-weld cold sections carefully to relieve pull.

Common Mistakes to Avoid

- Over-welding the frame, causing pull and twist.

- Using galvanized or painted plate for the top (fumes, poor arc stability).

- Skipping a dedicated ground stud.

- Neglecting task lighting and glare control.

- Mounting casters without a way to plant the table for welding.

FAQ

Q1: What thickness should the table top be?

A: For home use, 3/8" to 1/2" mild steel balances flatness, weight, and heat resistance. Thinner plates warp more easily under tack sequences.

Q2: How can I keep the table surface flat during welding?

A: Tack from the center outward, skip-weld the frame, and alternate sides. Verify with a straightedge after each sequence; aim for ±0.5 mm flatness.

Q3: What lighting spec works best for welding prep and inspection?

A: Target 500–1000 lux at the surface with 4000–5000K LEDs and high CRI (90+). Shield the lamps to prevent glare. The IES task lighting guidelines support this range.

Q4: Do I need holes or slots in the top?

A: Not mandatory. Solid tops are great for general use. Add strategic 16–18 mm slots or a clamp rail if you do frequent fixturing; grids offer maximum clamping flexibility.

Q5: How should I manage grounding?

A: Weld a stud or copper lug under the top and connect a short, heavy strap to your machine. A clean ground reduces arc instability and spatter.

Q6: What finish should I use on the table?

A: Keep the top bare steel and condition with paste wax or light oil; use anti-spatter on active zones. Paint the frame with low-VOC enamel for corrosion protection.

Q7: Is a mobile weld table safe?

A: Yes, if you include locking casters and a way to plant the table (retractable center foot or screw-down pads). Welding on rolling casters without a locking mechanism is unsafe.

Q8: What’s the ideal working height?

A: 34–36" for standing work suits most people. Provide knee clearance and consider a 30–32" seated side if you TIG frequently.

Q9: How can I reduce noise and vibration?

A: Use rubber feet or pads, store heavy tools on a lower shelf, and add damping mats. Keep grinders on a secondary stand to isolate vibration.

Q10: Any sustainability tips for a weld table?

A: Source reclaimed steel when flatness allows, choose durable fasteners, and use low-VOC coatings on the frame. Design for repair: removable fences and replaceable feet extend life.

Q11: How do I plan table placement in a small garage?

A: Ensure a 36" egress zone, keep flammables away, and simulate layout with an interior layout planner to map clearances and cable routes: interior layout planner.

Q12: What safety gear is essential?

A: Auto-darkening helmet, fire-resistant jacket, gloves, leather shoes, and a Class ABC extinguisher within reach. Verify ventilation before striking an arc.
