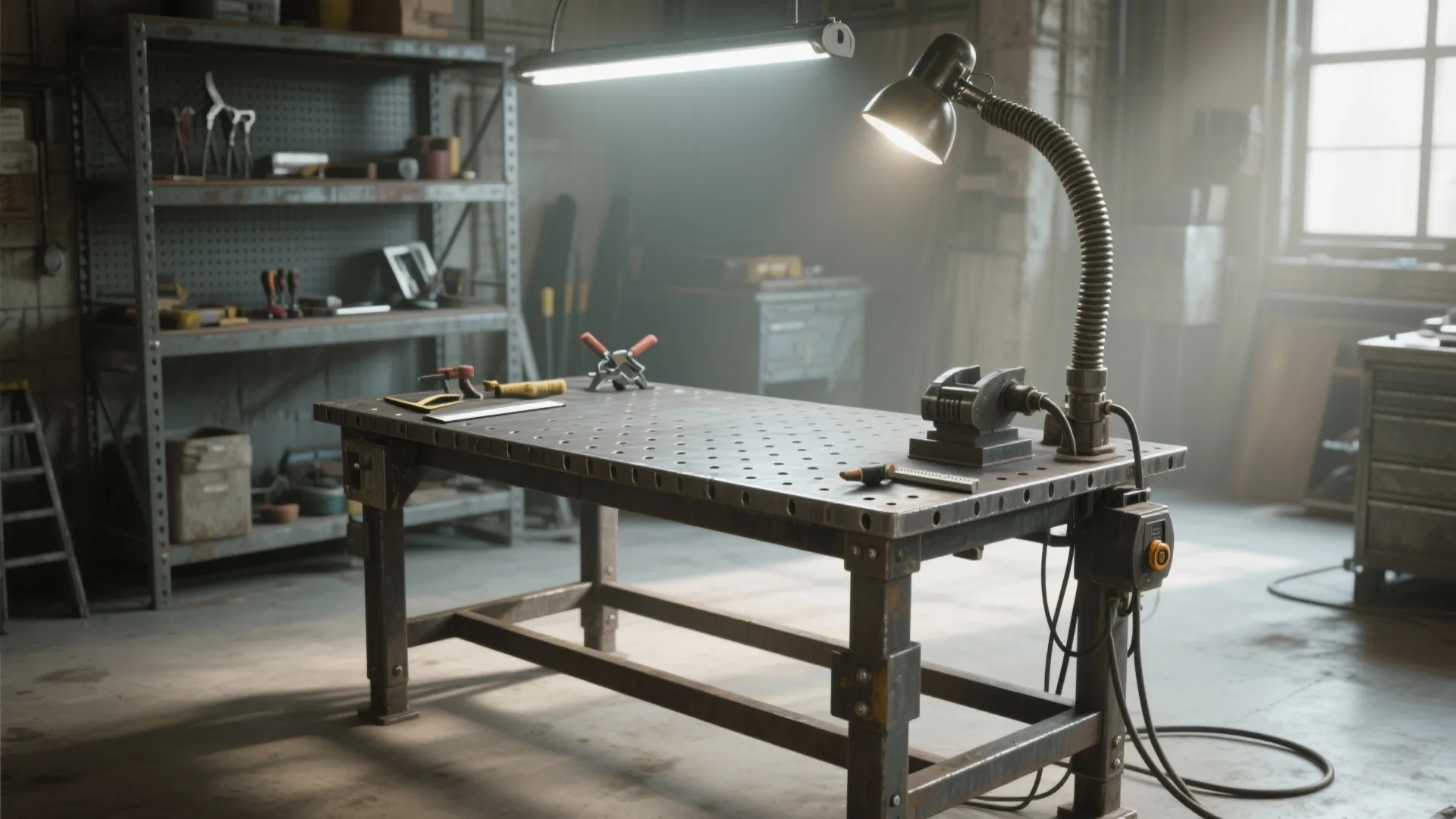

DIY Weld Table: Your Essential Guide to Building a Sturdy Work Surface: 1 Minute to Plan the Perfect Welding Table—Save Time on Your Next Project

I’ve built and tuned more shop tables than I can count, and the best welding tables all start with the same fundamentals: mass for stability, a dead-flat surface, reliable clamping, and safe power/grounding paths. Before we dive into steel thickness and leg bracing, a quick reminder on human factors: posture and reach zones matter as much as the metal. Ergonomic guidance consistently points to work surfaces roughly 36–38 in (915–965 mm) for standing tasks to reduce back strain, with elbows slightly open. A 2023 Herman Miller research note ties neutral posture to lower musculoskeletal risk and improved task endurance, underscoring that the correct table height is not a luxury; it’s a safety device.

Lighting at the bench is just as critical. Arc brightness will dominate during the weld, but layout, prep, and inspection happen under task lighting. The Illuminating Engineering Society’s recommendations for industrial detail work commonly start around 750–1,000 lux task illumination with controlled glare; a diffused task light aimed obliquely across the surface makes mill scale, scratches, and discontinuities easier to read. WELL v2 also emphasizes glare control and uniformity for visual comfort in task zones—principles that translate well to fabrication environments. For general workflow insights on posture and task zones, I keep Herman Miller’s research on hand for ergonomics and reach behavior, and WELL Building Standard guidance for lighting quality (both are widely cited and field-tested).

Core Dimensions and Structure

Most single-user weld tables land between 30–36 in wide and 48–72 in long. Go smaller if you’re tight on floor space or primarily TIG small assemblies; go longer if you’re regularly straightening frames. Aim for a working height of 36–38 in for standing MIG/TIG and 34–36 in if you frequently do heavy fixturing that lifts parts above surface level. If you share the table or switch between seated TIG and standing fabrication, consider an adjustable caster system with screw-down feet or a two-height extension bay rather than full hydraulic adjustability to keep weight and cost sane.

Top Plate: Thickness, Flatness, and Pattern

For a general-purpose shop, a 3/8 in (10 mm) mild steel top is the sweet spot of mass and affordability. If you often hammer, straighten, or weld heavy assemblies, step up to 1/2 in (12 mm). Keep the top as a single plate whenever possible: fewer seams, better heat distribution, and easier to keep flat. Flatness matters: I shoot for ±0.5 mm across the working field. If you can’t source a single plate this flat, grind and blue-test with a straightedge in multiple directions, then shim from below before final weld-out.

Through-holes or slots expand your clamping universe. The common 16 mm or 5/8 in hole system on a 2 in or 50 mm grid works with modular stops and squares. If you’re drilling a pattern yourself, pilot from a CNC template or laser-cut plate to maintain perpendicularity. Deburr both sides to keep spatter minimum and give clamps full seating. If you prefer T-slots, leave enough land between slots to avoid top “oil canning”—I keep 40–50% of the surface as solid ribs.

Frame and Bracing

A top plate only performs as well as the frame below it. I typically use 2x3 in or 3x3 in (11 ga or 1/4 in wall depending on table size) rectangular tube for the perimeter with crossmembers at 12–16 in centers beneath a thinner top; stretch to 18–24 in centers if your top is 1/2 in and your loads are moderate. Add a second perimeter ring under the outer 3–4 in of the top to resist edge deflection. Diagonal braces at the legs stop racking, but I prefer a low shelf frame tying all legs together; it adds mass and offers storage for steel offcuts, which further damps vibration.

Welding Sequence: Keeping It Flat

Good prep prevents a potato-chip top. Tack the frame square on a temporary reference surface, then stitch weld opposite sides in a leapfrog pattern to balance heat. When attaching the top, clamp every 8–12 in along the edges and across crossmembers. Stitch 1–1.5 in beads at alternating locations, cooling with air between passes. I leave the final perimeter weld continuous only on the underside to avoid pulling the plate. If the top crowns slightly, a controlled counter-weld on the underside rib can bring it back—move slowly and measure often with a straightedge and feeler gauges.

Grounding, Power, and Safety

Forge a clean electrical path. Weld a lug or bolt-on pad directly to the frame for the ground clamp so the current returns evenly through the structure rather than across a fixture joint. Route power via a metal conduit or braided sleeve mounted under the rear edge; keep receptacles at the back corners to avoid cord crossings. For fume, a rear slot or side draft hood paired with a movable snorkel works well; MIG and flux-core produce particulates you don’t want lingering at head height. Acoustic comfort matters too—adding a perforated back panel with mineral wool behind the table reduces clang and grinder fatigue without interfering with heat or sparks.

Clamping, Fixturing, and Modularity

Invest in a base kit of 16 mm clamps, right-angle stops, and low-profile toe clamps. A pair of ground flat squares and a long straightedge live on my table. If your work shifts often, leave two edges open and keep heavy vises or benders on quick-release plates that drop into slots along the long edge. Modular dog holes let you trap parts without fighting C-clamps under spatter. For repeat jobs, a pegboard-style jig drawer below the table speeds setup and keeps the top clear.

Heat, Spatter, and Surface Care

Skip paint on the top. A light machine oil wipedown after use prevents rust and keeps spatter from biting. If you prefer a dry surface, use a silicone-free anti-spatter spray before welding; avoid silicone anywhere near paint work. Keep a dedicated scraping chisel and flap wheel for cleanup—don’t grind carelessly across your reference surface. Over time, expect a working patina; reflatten only when cumulative dings start to affect squareness checks.

Mobility vs Mass

Mass stabilizes welding. If you need mobility, use heavy-duty total-lock casters rated to exceed the table plus load by 50%, then add screw-down leveling feet at all four corners. Once parked, drop the feet to lift the casters clear so vibration doesn’t creep the table around the shop. If you often rearrange for different projects, consider a narrow auxiliary cart for grinders and clamps rather than shrinking the main table.

Sizing for Your Work and Space Planning

Map your common assemblies. If you rarely exceed 36 in components, a 30x48 in top is a nimble size. Frame builders might choose 36x72 in or longer. Keep 36–42 in clear circulation on the working sides for safer handling and better posture. When I plan a small garage bay, I test configurations digitally first—an interior layout planner helps visualize reach, clearance, and light throw. A quick pass with a room layout tool can prevent costly rework as tools, gas bottles, and ventilation compete for space.

room layout tool

Material Choices and Sustainability

Mild steel remains the pragmatic choice for tops and frames: weldable, repairable, and recyclable. If you want corrosion resistance without sacrificing conductivity, hot-rolled pickled and oiled (HRPO) plate is a good starting surface. Avoid aluminum for tops—it’s soft, gummy with spatter, and poor for magnetic workholding. For shelves, expanded steel keeps dust and sparks from nesting, and it sheds grinding debris. Source from local mills or remnant yards when possible; shorter transport and reuse of offcuts cuts embodied energy.

Lighting the Work Zone

Supplement overhead ambient with a high-CRI task light on a swing arm positioned off-axis to your welding direction. Aim for 750–1,000 lux at the prep zone while keeping glare away from the puddle view. A neutral-white 4000–4500 K color temperature makes heat tint and bead definition easy to read. Diffusers or prismatic lenses help avoid specular glare on oiled steel.

Finishing Touches That Pay Off

Add a recessed tape measure, a magnetic strip for TIG cups and nozzles, and a small drawer for abrasives. A fold-down side wing can carry a chop-saw temporarily but store flat when not in use. If you’re TIG-heavy, integrate a foot pedal holster on the leg and keep pedal cable routing off the floor to prevent trip hazards. Label ground points, storage zones, and jig bins. These small touches shorten setup and keep the focus on welding, not hunting tools.

FAQ

What is the ideal height for a welding table?

For most standing work, 36–38 in keeps elbows slightly open and reduces back strain. If you frequently do heavy fixturing, 34–36 in can offset the extra part height. Ergonomic research from Herman Miller ties neutral posture to reduced musculoskeletal risk.

How thick should the top plate be?

3/8 in suits most general work. Move to 1/2 in if you hammer, straighten frames, or need more thermal mass. Thicker tops resist local heat distortion and feel more stable under clamping.

Do I need a hole pattern or slots?

Not mandatory, but a 16 mm or 5/8 in grid dramatically improves clamping speed and accuracy. If you do one-off customs, holes help. If you do straight runs with fixed jigs, solid tops with dedicated edge fixtures can be just as fast.

How do I keep the table flat during fabrication?

Clamp aggressively, stitch weld in alternating patterns, and let the assembly cool between passes. Attach the top with short, staggered beads and avoid long continuous welds on the top side.

What lighting levels should I target?

Provide about 750–1,000 lux at the prep and inspection zone with glare control. This aligns with IES task-lighting guidance for detailed industrial work and improves visual comfort around high-contrast weld tasks.

Which finish is best for the top?

Leave it bare steel. Wipe with light oil after use to reduce rust and spatter adhesion. Avoid paints and silicones on the working surface—they contaminate welds and finishes.

Should my table be mobile?

If space is tight or you reconfigure often, yes—but pair casters with screw-down feet so the table sits solid during welding. Mass and contact with the floor help damp vibration.

How do I handle grounding safely?

Provide a dedicated ground lug welded to the frame so current returns cleanly without arcing through fixtures. Keep cables managed along the rear edge and inspect clamps regularly.

What about fume extraction?

A side-draft hood or movable snorkel positioned just beyond the arc helps remove particulates from MIG and flux-core. Keep airflow moderate to avoid disturbing shielding gas during TIG.

Can I use aluminum or stainless for the top?

Aluminum dents easily and is poor for magnetic clamps; stainless can work but is costly and may affect cross-contamination if you weld carbon steel. Mild steel is the most versatile choice.

How much space should I leave around the table?

Plan 36–42 in of clear circulation on working sides for safe handling and better posture. Use a layout simulation tool to validate reach and tool access before you commit the table location.

What color temperature is best for task lights?

Neutral white around 4000–4500 K balances contrast and color fidelity so you can judge heat tint, bead profile, and surface defects more accurately.
