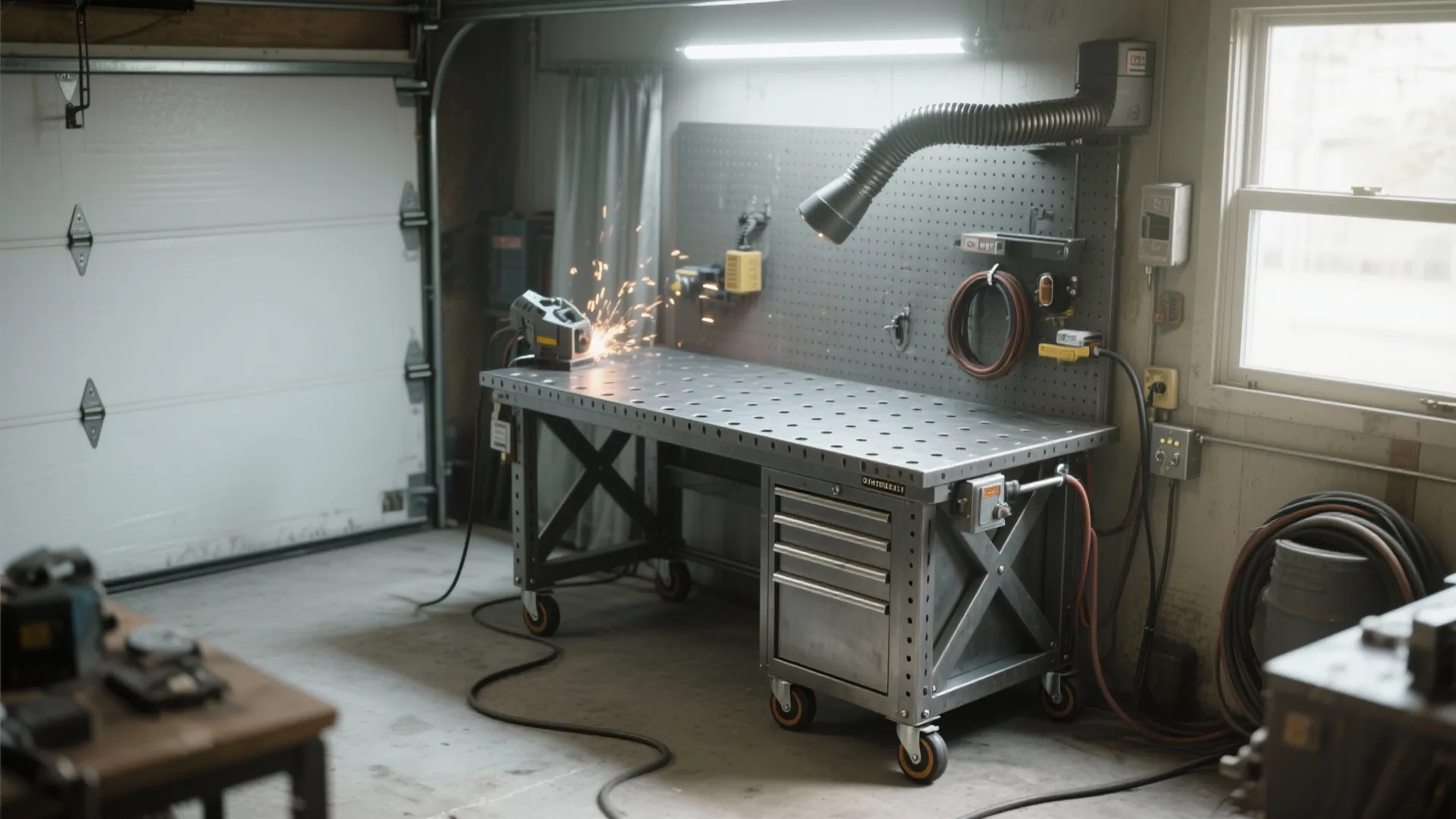

DIY Welding Table Ideas for Small Spaces: 1 Minute to Discover Practical Welding Table Designs for Any Workshop

I’ve set up welding stations in tight garages, corner studios, and pop-up shops where every inch matters. A compact welding table can be both safe and highly functional if you design for heat, ground, ventilation, and workflow. The sweet spot is a small footprint with generous clamping reach, good cable management, and heat-resistant surfaces that don’t fight you while you work.

Safety drives the layout. The WELL Building Standard v2 highlights the importance of clean air and process ventilation for occupant health; even small hobby setups need local exhaust or cross-ventilation to move fumes away from breathing zones. On ergonomics, Herman Miller’s research often cites neutral postures to cut strain—keep your working surface near elbow height (roughly 36–38 inches for most people) to reduce hunching and shoulder elevation. These two anchors—air and posture—shape everything that follows.

Noise and vibration also matter in multi-use spaces. Steelcase research on workplace comfort notes that acoustic distraction reduces task accuracy; for small welding stations sharing a room with other activities, afford sound-dampened storage and rubber isolation pads under casters to cut resonance. That way, your setup stays compact without broadcasting every grind and tap through the floor.

Core Principles for Small-Space Welding Tables

Compact tables work when they respect heat, ground, and workflow. Prioritize a steel worktop (3–6 mm plate is plenty for hobby use) with a grid of 16–25 mm holes for clamps and jigs. Keep the footprint between 24×36 inches and 30×48 inches, depending on your space. Mount the surface on a rigid frame (50×50 mm angle or 38×38 mm tube) with cross-bracing to resist racking when you clamp or hammer.

Legs should be adjustable or set on locking casters so you can shift the table under a window or hood for fume control. Build in a dedicated ground lug near a corner to keep leads tidy and reduce trip hazards. Cable hooks on the side rails, a fire-resistant tray for filler rods, and a metal drawer for consumables tighten the workflow so you don’t scatter tools around the room.

Ventilation, Lighting, and Ergonomics

Fume behavior is your biggest constraint. Place the table so prevailing air routes carry fumes away from your breathing zone—crossflow from a side window to a rear fan is better than air blasting directly across the arc. WELL v2’s ventilation guidance supports local extraction; a simple adjustable hood or a portable fume extractor can be mounted on the table’s back rail.

Lighting needs careful control. IES standards emphasize balancing illuminance with glare control; target 500–750 lux task lighting on the table plane via a diffused LED arm with high CRI (90+) to read metal color and heat tint. Keep fixtures out of your helmet’s reflection path to reduce glare and eye fatigue. A warm-neutral 3500–4000K color temperature provides good contrast without washing out the weld pool.

Ergonomics is about sustained comfort. Set table height near your elbow with boots on—usually 36–38 inches. If you often weld seated, provide a knee clearance of at least 20 inches depth and a footrest bar, and choose a stool with adjustable height and supportive seat pan. These details cut shoulder strain and stabilize torch control.

Five DIY Table Concepts for Tight Rooms

1) Fold-Down Wall Table with Steel Skin

A wall-hinged frame clad with 4 mm steel plate folds to a 3–4 inch profile when stowed. Use piano hinges rated for 200+ lbs and a chain or gas strut support. Integrate a shallow back rail to mount a fume hood arm. When deployed, the frame triangulates with side braces to stop bounce. Perfect for studios where the car needs the space at night.

2) Rolling Cart Table with Drawer Stack

Build a 24×36 inch steel top on a compact cart base, two locking swivel casters and two fixed casters. Slide-in drawers store grinders and clamps; a side saddle holds welding leads. Add a removable slag tray under a grate section for cleanup. The cart rolls under a window during work and parks against a wall afterward.

3) Modular Plate with Clamp Grid

Use a 30×30 inch top with a drilled grid and insertable dog holes. Bolt-on side wings (8 inches wide) expand the clamping field when you need them; remove to save space. A rear T-track lets you mount stops, vices, or a small vacuum nozzle. The modular approach keeps weight down and lets the table adapt to projects.

4) Convertible Workbench-Welder Hybrid

If you already have a wood bench, add a floating steel panel with thermal standoffs (ceramic spacers or steel bosses) that sits above the wood to prevent heat transmission. Clamp-on ground and a removable spark shield let you weld small parts without dedicating a full-time welding station. Great for renters who must keep surfaces flexible.

5) Narrow Bench with Vented Backstop

A 20×40 inch top with a slotted backstop pulls fumes upward into a ducted fan. The narrow depth suits corridors or shared maker rooms. Slots double as clamp points for vertical joints. Keep storage strictly below and to the sides to preserve exhaust efficiency.

Layout Planning in Small Rooms

Plan circulation first: a 30–36 inch clear zone around the table prevents collisions with hot work. Anchor the table near power but away from soft furnishings. For test-fitting multiple arrangements, a layout simulation tool can save time—try a room layout tool if you’re comparing corner vs. wall placement with doors and windows in play.

Materials and Heat Management

Worktops: mild steel plate is the default—easy to grind, inexpensive, and predictable with magnets. Stainless resists rust but costs more and can warp heat faster on thin sections. Avoid galvanized surfaces to prevent zinc fumes. For legs and frames, square tube beats angle for torsional rigidity in tight frames.

Heat migration can scorch adjacent surfaces. Use 10–20 mm ceramic fiber board under local hotspots if you must weld over wood. Spark curtains or a fold-out metal shield protect walls and floors. Keep a Class ABC extinguisher within reach and a metal bucket for hot offcuts. Sweep frequently; grinding dust spreads quickly in small rooms.

Clamping, Jigs, and Smart Storage

Small tables need flexible clamping. Dog-hole grids, toggle clamps, and magnetic squares make quick work of odd angles. A removable vice frees the edge for longer pieces. Store abrasives and electrodes in metal drawers, and hang helmets and jackets on side pegs to keep the floor clear. Cable hooks tame lead spaghetti and reduce trip risks.

Electrical, Grounding, and Safety Habits

Run a dedicated circuit with proper breakers; don’t share loads with space heaters or compressors in tiny rooms. Keep ground leads short and attach a permanent lug to the frame for consistency. Coil and stow torch cables when folding down or rolling away. Dry fit projects before striking an arc; small spaces punish improvisation.

Finishes and Maintenance

Leave tops raw or oil-waxed; paint only the frame. Bright colors on legs improve visibility in tight circulation. Round over edges slightly to save knuckles. Maintain a habit of resetting the table after each session—brush slag, clear filings, and inventory consumables so the next setup takes minutes, not hours.

When to Scale Up—or Stay Small

If your projects consistently exceed the clamping field or need frequent outboard support, add bolt-on wings or a rolling outfeed stand before replacing the table. Small stations excel at batch work, fixtures, and precision parts. Heavy frames and long rail welds may warrant a community shop day or a larger dedicated table.

Tips 1: Quick Build Checklist

- Steel top 24×36 to 30×48 inches, 3–6 mm thick

- Rigid frame with cross-bracing, locking casters

- Clamp grid or T-tracks, removable vice

- Ground lug, cable hooks, metal drawers

- Vent hood arm or portable extractor, spark curtain

- 500–750 lux diffused task lighting, 3500–4000K, CRI 90+

- Elbow-height surface, stool adjustability if seated

- Class ABC extinguisher, metal bin for hot offcuts

FAQ

Q1: What’s the ideal size for a small-space welding table?

A: For most hobby setups, 24×36 inches handles fixtures and small frames while preserving circulation. If you regularly weld door frames or longer rails, 30×48 inches with bolt-on wings gives flexibility without permanently consuming space.

Q2: How high should the table be?

A: Aim for elbow height when standing—usually 36–38 inches. Research on neutral posture from Herman Miller’s ergonomics work aligns with keeping shoulders relaxed and wrists neutral, reducing fatigue during precision welding.

Q3: What lighting spec reduces eye strain at the weld area?

A: Provide 500–750 lux of diffused task light with CRI 90+ at 3500–4000K. IES guidance favors glare control; position the arm light to avoid reflections in your helmet while leaving the arc visible.

Q4: How do I handle fumes in a small room?

A: Use cross-ventilation plus local extraction. A small hood or portable fume extractor fixed to the rear rail pulls contaminants away from the breathing zone. WELL v2 emphasizes source control—bring the intake close to the weld.

Q5: What tabletop material works best?

A: Mild steel plate is practical and affordable, easy to grind and magnet-friendly. Avoid galvanized coatings to prevent zinc fumes. Stainless is cleaner but pricier and more reactive to heat on thin plates.

Q6: Can I convert a wood bench to a welding station safely?

A: Yes—float a steel panel above the wood using thermal standoffs, add spark shields, and keep a fire extinguisher nearby. Never weld directly on wood, and ensure good ventilation and cable management.

Q7: How do I prevent clutter in a tiny welding area?

A: Integrate metal drawers for consumables, side hooks for cables, and peg mounts for PPE. Reset the table after each session—brush slag, stow tools, and inventory rods and tips to keep workflow smooth.

Q8: Should the table be mobile or fixed?

A: Mobile tables with locking casters suit multipurpose rooms, letting you chase ventilation and stow the station. Fixed tables feel more rigid; you can add wall braces or floor anchors to a mobile base if flex becomes an issue.

Q9: What’s the safest way to manage grounding in tight spaces?

A: Install a dedicated ground lug on the frame, keep leads short, and avoid routing cables across walkways. Coil and hang torch leads after use to prevent trips and accidental arc strikes.

Q10: How can I reduce noise transmitted through floors and walls?

A: Use rubber isolation pads under casters, store grinders in damped drawers, and avoid hammering on unsupported areas. Steelcase’s insights on acoustic comfort translate well—reduce hard-to-hard contact and resonant cavities.

Q11: What storage features are worth adding?

A: A slag drawer, magnetic strip for small tools, removable vice, and a side saddle for leads. Keep abrasives and electrodes in metal containers to minimize fire risk and make inventory fast.

Q12: Any rules for placing the table in micro garages?

A: Maintain 30–36 inches of clear space around the table, keep it near power but away from flammables, and align it with a window or fan for exhaust routes. Use a fold-down design if parking space is tight.
