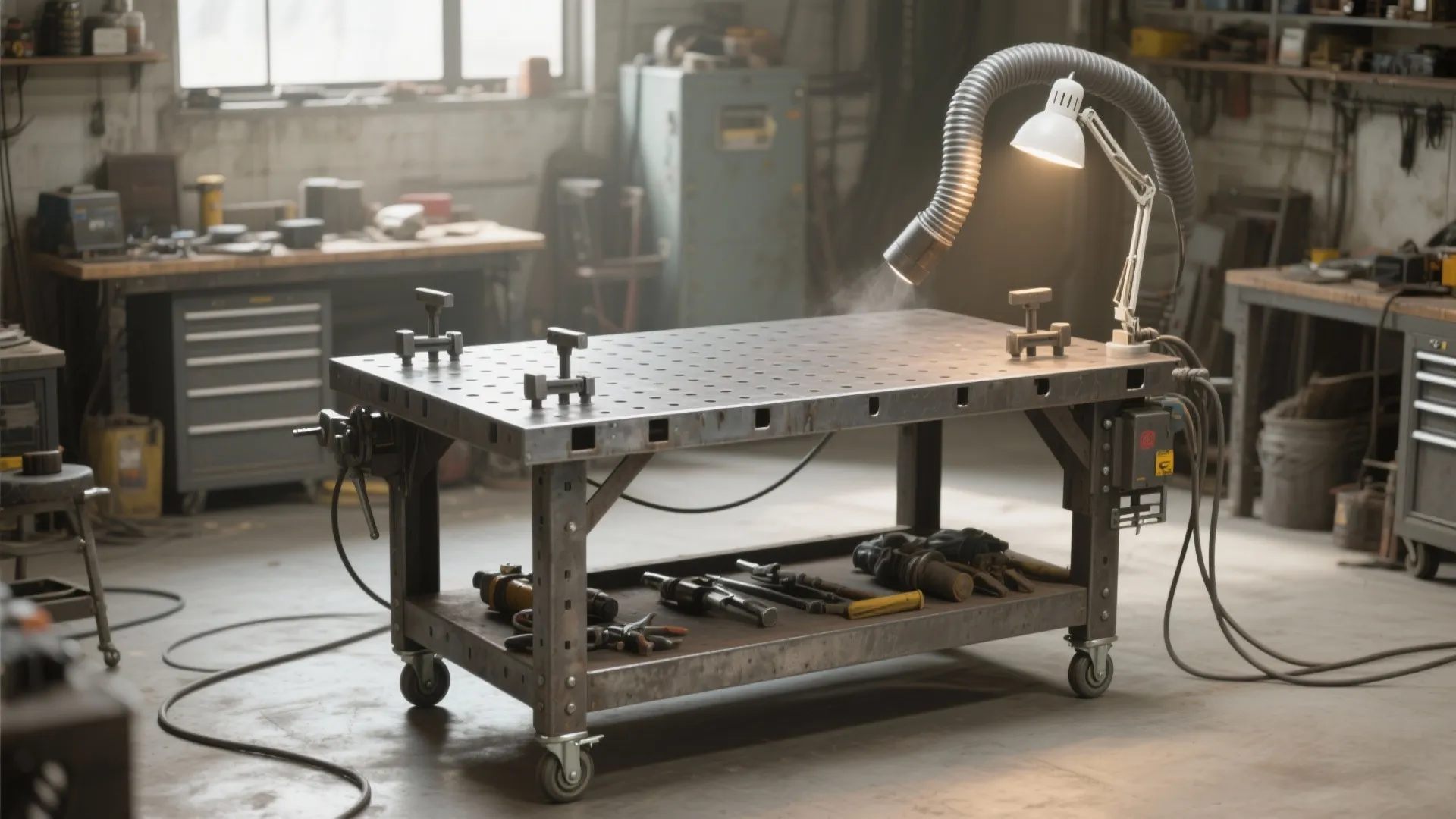

DIY Welding Tables: Build Your Custom Workspace Today: Fast-Track Guide to Creating Your Sturdy Welding Table

I’ve built, repaired, and optimized more welding tables than I can count, and the best ones share a simple truth: they’re tailored to how you work. A great DIY welding table balances mass (to resist distortion), flatness (to maintain accuracy), and safety (to manage heat, sparks, and fumes). Get those right, and your workspace will feel effortless.

Before diving in, it helps to anchor decisions in data. The WELL v2 standard highlights that proper ventilation and filtration can reduce particulate exposure by up to 30% when correctly integrated into task environments, which directly translates to cleaner, safer welding areas. Steelcase research also indicates that comfortably designed work surfaces improve task efficiency and reduce fatigue across extended work sessions, reinforcing why table height, reach distance, and visual clarity matter in every weld.

For anyone setting up their first custom table, consider the kinds of joints you use most, your average material sizes, and the tooling (vises, clamps, squares) you reach for on repeat. Creating zones on the tabletop—clamping, layout, tack, and finish—keeps your workflow clean and reduces rework. If you plan to mock up frames or repetitive jigs, a modular top with evenly spaced holes and removable fixtures pays off immediately.

Core Dimensions and Structural Logic

For general fabrication, a 36–40 inch table height suits most standing welders, with a depth of 28–36 inches and a length between 48–72 inches. Taller users or those doing frequent bench grinding might push height toward 40 inches; TIG-heavy work with precision hand positioning often benefits from 36–37 inches. Keep reach distances within 20–24 inches to reduce shoulder strain, a principle aligned with ergonomic guidance from Herman Miller research on optimal reach envelopes.

The top should resist warping under thermal loads. A typical build uses a 3/8 inch (10 mm) mild steel plate. If you expect aggressive thermal cycling, add 2x2 inch (50x50 mm) square tube stringers at 8–12 inch centers beneath the plate to stiffen it. For heavier fabrication, 1/2 inch plate is superb but adds significant mass; when moving solo, caster selection becomes critical.

Flatness, Squareness, and Jigging

Flatness is your north star. Tack weld stringers symmetrically and stitch in short intervals to avoid heat-induced camber. Allow cooling between passes; forced cooling with water or compressed air can lock in warp. If you don’t have access to machining, rely on shimming and precision straightedges. A layout grid scribed into the surface makes repetitive setups faster. For modular systems, a 16–50 mm hole pattern (compatible with standard fixturing) keeps clamping options flexible.

When planning layouts, being able to visualize clearances, clamp coverage, and fixture spacing ahead of time saves material and time—use a room layout tool to simulate your bench placement relative to power, ventilation, and storage.

Material Selection and Heat Behavior

Mild steel is the pragmatic choice for the main plate: affordable, weldable, and consistent under heat. Stainless top skins resist corrosion but reflect light and can feel slippery with coolant or flux; they’re excellent for TIG but not always necessary. A removable sacrificial top (e.g., 1/8 inch steel sheet) is helpful for keeping the main plate pristine during messy flux-core or oxy-fuel work.

For legs, 2x2 inch square tubing is sufficient for most builds. If you intend to mount heavy vises or do large-frame fabrication, step up to 3x3 inch and add gussets at corner joints. Powder coating the base prevents rust, but leave the top raw—just brush and oil it periodically.

Mobility, Stability, and Load

If you need to move the table, use high-quality casters rated above your full load. A 60x30 inch table with 3/8 inch plate and a stiffened base can weigh 250–400 lbs before tools, so install casters with a combined rating above 600–800 lbs and add drop-down leveling feet. If your floor is uneven, adjustable feet with 1/2–13 threads and large pads stabilize quickly. Always triangulate legs with a lower shelf or diagonal bracing to resist racking.

Surface Treatments and Spark Management

Keep the top free from paint; paint burns and contaminates welds. Regularly de-scale spatter with a scraper, then wipe with light oil to deter rust. Around the table, treat adjacent surfaces with noncombustible materials. Acoustic panels aren’t crucial in a welding bay, but controlling clatter matters—dense rubber mats under grinders and clamps reduce reverberation and ear fatigue.

Clamping, Fixtures, and Electrical Grounding

A welding table is only as good as its clamping system. Integrate edge slots for F-clamps and consider dog holes for vertical stops and squares. Keep your ground clamp connection clean; poor grounding increases spatter and arc instability. A dedicated grounding lug welded to the underside of the plate, near your main work zone, minimizes cable drag.

Ventilation, Lighting, and Visual Comfort

Fume extraction is non-negotiable. Use a local extractor arm positioned within 12 inches of the arc for MIG/TIG and closer for stick welding. WELL v2 guidance supports localized capture to limit particulate exposure in task zones, improving respiratory safety. Lighting matters as much as airflow: target 500–750 lux in general task areas, with a slightly lower contrast around specular surfaces to reduce glare. Follow IES task lighting recommendations, and use 4000–5000K neutral-white fixtures that show bead definition without harsh blue cast. Glare control—via diffusers or indirect sources—protects eyes over long sessions.

Ergonomics and Human Factors

Arrange frequently used tools within 18–24 inches of reach and between mid-thigh and elbow height. Keep grinders, TIG foot pedals, wire brushes, and squares logically zoned to minimize micro-interruptions. Foot clearance of 4–6 inches under the front apron improves posture when leaning into precision TIG work. Manage cable paths so they never cross common walking lines; tripping risk rises when cables exceed the ankle zone.

Electrical, Fire Safety, and Workflow

Integrate a dedicated outlet bank on the table’s side (protected by a metal channel). Keep fire safety simple: a Class ABC extinguisher within arm’s reach, plus a small bucket for hot cutoffs or slag. Position your table so that combustible storage is at least several feet away, and use nonflammable curtains if you share a space. A clean workflow—material in from the left, process center, finished out to the right—reduces confusion and scrubbing.

Design Variations by Process

MIG: Focus on robust clamping and spatter management; dog-hole patterns and steel stops shine here.

TIG: Prioritize flatness, fine lighting control, and clean cable routing; consider a removable stainless top skin if corrosion control is important.

Stick: Expect more spatter and slag; a thicker plate and sacrificial sheets are useful. Ventilation must be aggressive.

Storage, Shelving, and Under-Table Strategy

Use a lower shelf to store clamps, magnets, and squares, but keep heavy items toward the center to avoid tipping. Side-mounted pegboards or magnetic strips hold frequently used tools. If you routinely fabricate long frames, integrate fold-down side wings to extend support without enlarging your footprint permanently.

Finish Quality and Maintenance

After assembly, stone the top lightly to remove high spots, then check squareness with a machinist’s square. Keep a maintenance kit nearby: wire brush, scraper, oil rag, anti-spatter spray, and a straightedge. A five-minute reset at the end of each session prevents cumulative chaos.

Referencing Standards and Research

For lighting practices, align with IES standards to dial in lux levels and glare control. For indoor environmental quality and task ventilation strategy, WELL v2 lays out clear frameworks that translate well to fabrication areas. Steelcase and Herman Miller research on ergonomics and reach zones can be applied directly to table height and tool placement, improving comfort and productivity across long builds.

Planning Your Layout

When space is tight, pre-plan clearances for extractor arms, grinder stations, and material racks. Mock up your table footprint to reduce conflicts with doors, power drops, and storage. A room layout tool helps visualize circulation paths and ensures safe reach envelopes for tools and cables.

Bill of Materials (Typical)

- Top: 3/8 in mild steel plate, 60x30 in

- Frame: 2x2 in square tube, 11-gauge, cut for perimeter and cross-bracing

- Legs: 2x2 in, with gussets

- Casters: 4 swivel-lock, total rating 800–1200 lbs, plus leveling feet

- Grounding lug and cable management clips

- Shelf: 14–16 gauge sheet for under-storage

- Fasteners for fixtures and outlet channel

FAQ

Q1: What size should my DIY welding table be?

A: For general fabrication, 60x30 inches offers a balanced footprint. If you’re welding large frames, push length toward 72 inches. Keep height in the 36–40 inch range based on your reach and posture.

Q2: How thick should the tabletop be?

A: 3/8 inch mild steel is a solid baseline for flatness and thermal stability. Go to 1/2 inch if you’re doing heavy structural work, understanding the added weight and cost.

Q3: Do I need ventilation at the table?

A: Yes. A local extraction arm positioned close to the arc significantly reduces particulate and fumes; WELL v2 guidance supports localized capture for task areas to improve air quality.

Q4: What lighting levels are best for welding and layout?

A: Target 500–750 lux over the work surface using neutral-white (4000–5000K) lights. Refer to IES task lighting guidance for balancing glare and contrast.

Q5: Should I use a hole-pattern modular top?

A: If you do repetitive setups or complex frames, a 16–50 mm hole grid is excellent for clamps and stops. For occasional projects, edge clamping and removable fixtures may be enough.

Q6: How do I prevent tabletop warping during construction?

A: Stitch weld stringers in short, alternating passes, allow natural cooling, and check flatness frequently with a straightedge. Avoid quenching hot welds with water or compressed air.

Q7: What casters and feet should I choose?

A: Use heavy-duty casters with a combined rating above your full table weight and add drop-down leveling feet so you can lock the table solid during work.

Q8: Can I paint the table surface?

A: Skip paint on the top; it burns and contaminates welds. Keep the plate oiled lightly to prevent rust and use sacrificial sheets for messy work.

Q9: How do I manage grounding?

A: Weld a grounding lug to the underside of the plate near your main work zone and keep the contact clean. Good grounding stabilizes the arc and reduces spatter.

Q10: What ergonomic considerations matter most?

A: Keep frequently used tools within 18–24 inches of reach, set table height to fit your posture, and provide foot clearance. Research from furniture ergonomics consistently shows reduced fatigue with optimized reach zones.

Q11: How do I plan the table within a small shop?

A: Model circulation paths around the table, extractor, and storage. An interior layout planner helps identify pinch points before you cut steel.

Q12: What about noise and acoustics?

A: Welding isn’t loud, but grinding is. Add dense mats and localized acoustic treatment around grinder stations to reduce reverberation and ear fatigue.
