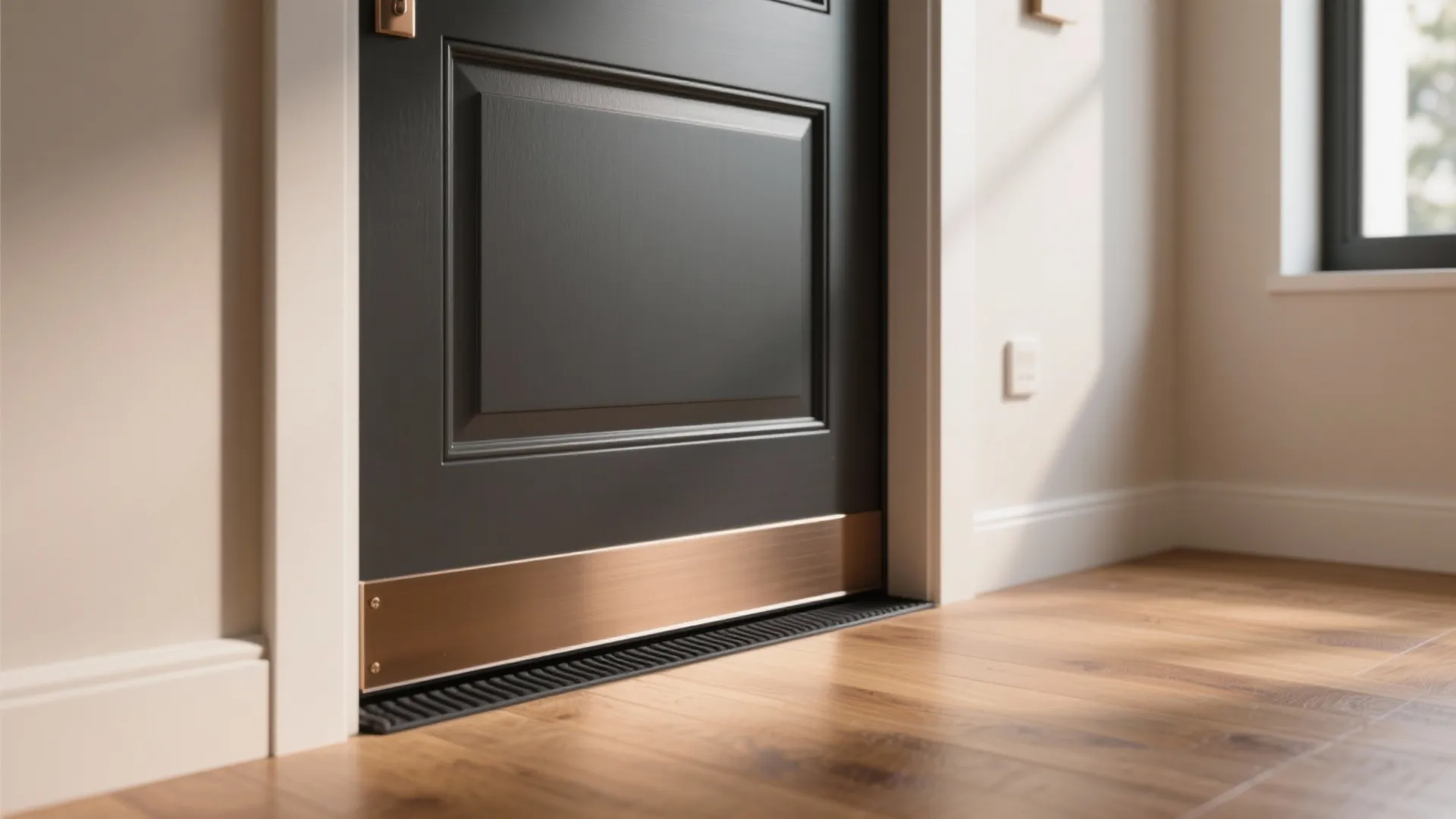

Door Bottom Seal DIY: Easy Guide for Draft-Free Homes: 1 Minute to a Warmer, Quieter Space with Simple DIY Steps

I’ve upgraded more doors than I can count, but door bottom seals remain one of the most cost-effective fixes for comfort and energy savings. A well-fitted seal blocks drafts, dampens noise, and keeps dust and light from creeping under the door—all without complicated tools.

Energy, Comfort, and Data-Backed Benefits

Air leaks around doors and windows can account for 25–40% of heat loss in a typical home, according to multiple residential energy audits across the industry. Reducing infiltration at door bottoms can significantly stabilize interior temperatures, improving thermal comfort. Workplace research from Steelcase indicates temperature fluctuations and drafts are among top environmental complaints linked to reduced focus; minimizing drafts can help keep rooms within the comfort band where cognitive performance is steadier. WELL v2 also frames thermal comfort as a core concept influencing wellbeing, with guidance to control air leakage at envelope gaps.

From an ergonomics perspective, a stable thermal environment reduces behavioral micro-adjustments (moving seats, adding space heaters) that disrupt routines. In practice, sealing a 1/4-inch gap can cut noticeable drafts and reduce heat loss, especially in older doors where thresholds have shifted. The payoff shows up in energy bills and day-to-day comfort.

Types of Door Bottom Seals

Choosing the right seal depends on door type, gap size, flooring, and exposure to moisture. Here’s how I categorize them:

1. Adhesive Door Sweeps: Flexible rubber or silicone strips that stick to the interior face. Good for smooth floors and renters. Quick to install; limited durability in high-traffic areas.
2. Screw-On Door Sweeps: Aluminum carrier with replaceable rubber or nylon brush. Highly durable, ideal for exterior doors. Brush sweeps tolerate uneven floors; rubber blades give stronger air seal on flat surfaces.
3. Automatic Drop Seals: Concealed units mortised into the door bottom. A plunger activates a gasket that drops when the door closes. Excellent acoustic and draft control; best for premium upgrades.
4. Threshold + Seal Combos: Raised threshold paired with a door bottom gasket. Great for weather exposure and large gaps; requires careful leveling.
5. Under-Door Draft Stoppers: Temporary, fabric-based tubes. Good for quick fixes in rentals; not ideal for heavy use or exterior doors.

How to Measure the Gap

Measure the gap at three points: hinge side, center, and latch side. Doors rarely sit perfectly level. Use a feeler gauge or a folded card to estimate in millimeters or fractions of an inch. For consistent sealing without friction:

1. Target 3–5 mm clearance between the seal and floor for rubber sweeps.
2. Brush sweeps can tolerate slight unevenness; they seal well across textured surfaces.
3. If gaps exceed 10–12 mm, consider a threshold or an automatic drop seal to avoid dragging.

Materials That Make a Difference

Rubber (EPDM) offers strong air sealing and resists compression set, silicone handles temperature extremes and UV, and nylon brush bristles provide forgiving contact over irregular floors. For exterior doors, anodized aluminum carriers resist corrosion. If moisture is present (mudroom, exterior stoops), pick closed-cell gaskets over open-cell foam to prevent water absorption.

Acoustics, Light, and Privacy Gains

Sealing the door bottom is a small intervention with outsized results. Door undercuts leak sound; closing that path reduces speech intelligibility from adjacent rooms. Brush sweeps are decent for noise, but rubber gaskets excel when paired with perimeter seals. If light spill is an issue—say, a bedroom adjacent to a bright corridor—a solid rubber blade cuts light transmission far better than brush. These improvements align with comfort strategies noted by the International WELL Building Institute, where acoustic control and visual comfort influence satisfaction.

Selecting Hardware: A Quick Checklist

1. Gap size: 3–12 mm determines sweep type and whether you need a threshold.
2. Floor type: Tile and hardwood favor rubber blades; uneven concrete favors brush.
3. Moisture exposure: Use corrosion-resistant carriers and closed-cell gaskets.
4. Durability: Screw-on sweeps last longer than adhesive strips.
5. Aesthetics: Low-profile carriers and color-matched finishes blend better in living spaces.

DIY Installation: Step-by-Step

For a screw-on rubber or brush sweep:

1. Prep the door: Clean the lower 10–15 cm of the door with isopropyl alcohol. If repainting, finish first.
2. Mark the line: With the door closed, hold the sweep to the door bottom and mark a line that gives 3–5 mm clearance from the floor.
3. Cut to length: Trim the carrier and gasket to door width with a hacksaw and utility knife.
4. Pre-drill: Use a 2–3 mm bit to avoid splitting. Space holes 100–150 mm apart.
5. Mount loosely: Start screws at each end, then adjust alignment for even clearance.
6. Tighten and test: Open/close the door several times. Listen and feel for drag. Adjust with shims or re-mark if the floor is uneven.

For adhesive sweeps, follow the same alignment steps, then peel-and-stick with firm pressure. Reinforce corners with small brads if needed.

Troubleshooting Common Issues

1. Drag on floor: Raise the sweep slightly or swap to brush bristles for uneven floors.
2. Uneven gap: Shim the carrier or plane the door bottom if it’s significantly out of level.
3. Weak seal at latch side: Doors twist under hardware tension; loosen, realign, and retighten screws starting from the hinge side.
4. Condensation or water ingress: Add a threshold with drip edge and pair with a weatherstrip at the jamb.

Maintenance and Longevity

Inspect seals seasonally. Rubber can compress over time; replace when cracks appear or the blade curls. Vacuum brush sweeps to remove grit. In high-use entries, plan on replacing gaskets every 2–4 years. A small maintenance habit prevents deeper drafts and noise issues from returning.

Design Considerations: Comfort, Color, and Behavior

Color psychology can play a role when seals are visible: darker carriers (charcoal, bronze) visually recede, reducing attention on the door base. From a human factors standpoint, consistent thermal comfort reduces behavioral workarounds—like blocking gaps with towels or running space heaters—that clutter the space and raise energy consumption. In multi-purpose rooms, a good seal supports acoustic zoning, letting a home office coexist with a hallway without constant sound spill.

Planning Your Layout Impact

If you’re reorganizing a hallway or entry, sealing door bottoms complements layout changes by preventing corridor drafts from sweeping into living areas. When adjusting room plans, mock up traffic flow and door swings before you install a threshold to avoid toe-stubs and clearance conflicts. For quick tests of door swing and clearances, a room layout tool can help visualize the entry sequence and transitions.

room layout tool

Standards and Research You Can Trust

For foundational guidance on thermal comfort and environmental quality in interiors, WELL v2 provides criteria that underscore the value of minimizing uncontrolled air movement through door gaps. Steelcase research on workplace environmental conditions highlights how temperature stability and reduced drafts support focus and satisfaction. These touchpoints translate well to home settings where comfort drives everyday behavior and energy use.

FAQ

What seal works best for uneven floors?

A brush sweep is the most forgiving on irregular surfaces. If you need stronger air blocking, pair the brush with a modest threshold to even out the contact line.

How tight should the seal be?

Aim for 3–5 mm clearance to prevent drag while maintaining an effective seal. For drop seals, the internal spring sets contact automatically.

Do adhesive sweeps last?

They’re fine for light-duty interior doors or rentals. Expect 1–2 years of performance, less in high-traffic entries. Screw-on carriers with replaceable gaskets are more durable.

Can a door seal reduce noise?

Yes. Closing the undercut reduces direct sound leakage. Rubber gaskets provide better acoustic isolation than brush sweeps, especially when combined with perimeter seals.

What if the gap is larger than 12 mm?

Use a threshold and a taller sweep, or install an automatic drop seal. Large gaps often indicate a warped door or settled threshold—check alignment first.

Will a seal affect HVAC efficiency?

By cutting infiltration at the door base, the system maintains setpoints with less cycling. Fewer drafts mean more stable room temperatures and potential energy savings.

Is there a seal for exterior weather exposure?

Choose an anodized aluminum carrier with a closed-cell rubber or silicone blade. Pair it with a sloped threshold and drip edge to manage rain.

How do I avoid scratching hardwood floors?

Keep the clearance at 3–5 mm and test the door swing. If floors are slightly crowned near the threshold, angle the sweep or switch to a brush type.

Can I install a drop seal without mortising the door?

Some surface-mounted automatic seals exist, but the best acoustic and draft performance comes from mortised units. If you’re not comfortable routing, a pro can handle it quickly.

How often should I replace the gasket?

Inspect annually. In busy entries, plan for replacement every 2–4 years or sooner if you see cracks, curl, or permanent compression.

Will a darker seal show less?

Yes. Dark, matte finishes visually recede at the floor line, a small color psychology trick that keeps the focus on the door itself, not the hardware.

Does sealing door bottoms help with odors or smoke transfer?

It reduces pathways for air movement, which can limit odor transfer, especially when combined with perimeter sealing and proper ventilation controls.
