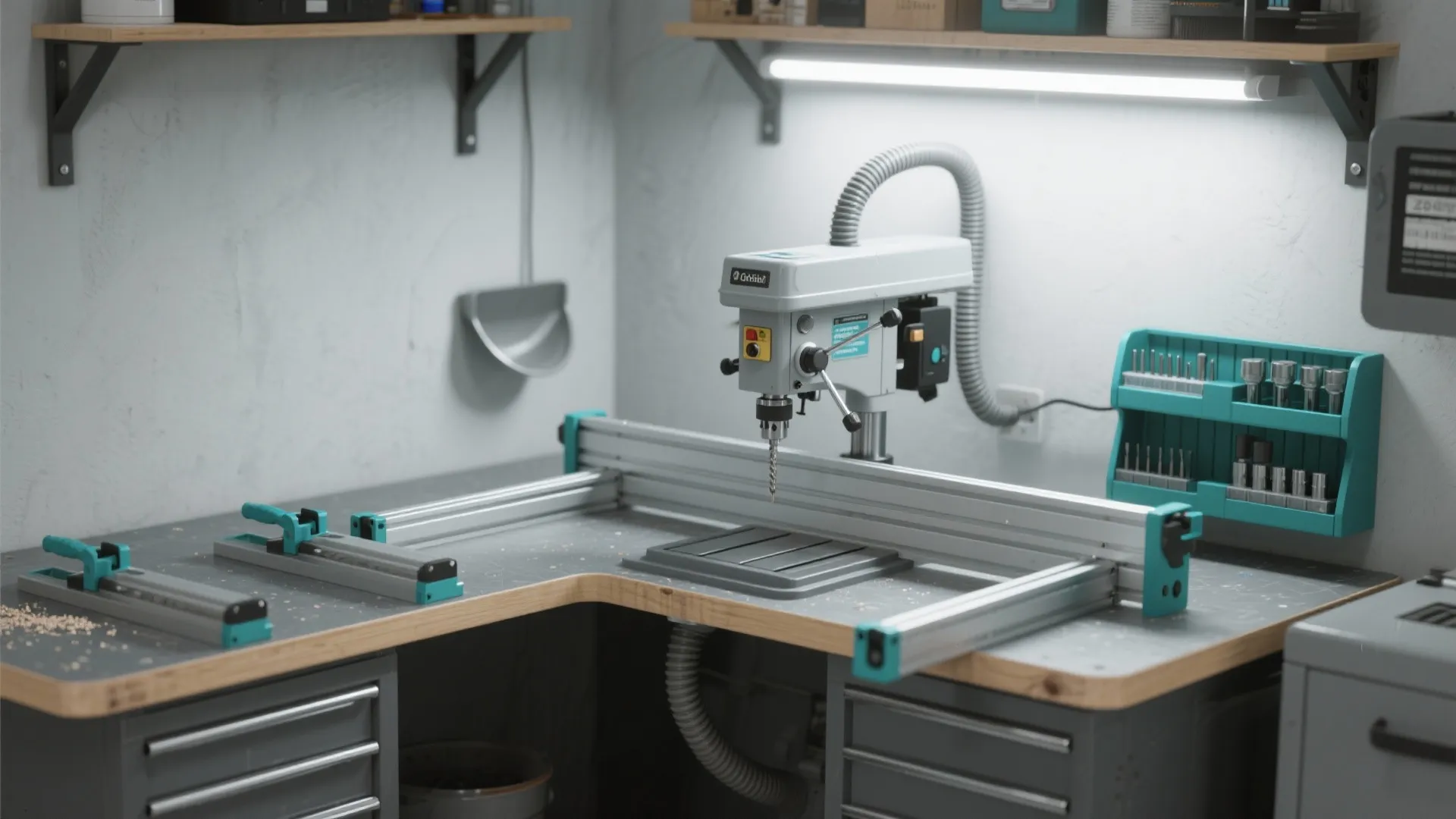

Drill Press Table DIY: Build Your Perfect Workbench: 1 Minute to a Smarter, Safer Workshop Setup

I’ve built more drill press tables than I can count for small shops and commercial prototyping labs, and the best ones share a simple idea: precision with comfort. A good table brings fence accuracy, repeatable stops, clean chip evacuation, and safe hand positioning—all without fighting your machine. Productivity data backs the effort. Steelcase research shows that better-organized work environments can boost task efficiency measurably by reducing micro-interruptions and motion waste. Meanwhile, WELL v2 highlights the importance of reduced noise and glare to improve focus during detailed tasks—exactly the conditions a smart drill press surface and lighting plan should address (Steelcase Research, WELL v2).

Ergonomics is more than comfort; it’s accuracy insurance. Standing work reaches are ideal between 20–24 inches from the body with elbow angles around 90–110°, reducing strain during repetitive drilling, per accepted human factors guidance noted across ergonomic bodies. I aim for a table height that keeps the quill handle just below shoulder height and the work surface at or slightly below the user’s belt line. Under task lighting, target 750–1,000 lux on the workpiece (consistent with IES task lighting ranges for detail work), with 3000–4000K neutral-white LEDs to avoid color distortion of layout marks and burning glare on metal faces.

Core Design Goals

My build approach uses a rigid, replaceable zero-clearance insert; a dead-straight fence with micro-adjust; T-tracks for hold-downs and stops; and a vac-ready dust/chip strategy. The table should mount firmly to the drill press base without compromising vertical travel or tilt functions, and it must stay square to the quill within 0.1° for accurate hole locations.

Materials and Dimensions That Work

- Table: 3/4" MDF core laminated both sides with HPL (high-pressure laminate) or melamine. Size: 18–24" wide x 16–20" deep for bench-top presses; 24–28" wide x 18–22" deep for floor models. Thickness 1-1/2" via a double-laminate sandwich gives you flatness and screw bite.

- Fence: 3/4" Baltic birch ply or aluminum extrusion, 2-1/2–3" tall, length 20–26" depending on table width.

- Inserts: 1/2" MDF or phenolic, 3.5–4" square or round, flush with the surface.

- T-tracks: Standard 3/4" wide tracks for clamps/stops, plus a center slot for auxiliary jigs.

- Hardware: Star knobs, 1/4-20 T-bolts, threaded inserts for the fence carriage, and cross dowels for repeatable clamping.

Layout and Mounting Strategy

Before cutting, map the press column, crank clearance, and throat depth. Keep at least 2" of clearance to the column for swivel and tilt. If you intend to reposition frequently or test alternative tool spacing around the press, a quick digital pass with a room layout tool helps you visualize table footprint relative to walls, dust lines, and infeed/outfeed paths.

Step-by-Step Build

1) Laminate the Core

Cut two MDF sheets to final size minus 1/16" all around. Apply contact cement and laminate HPL to both faces. Flush-trim, then ease edges with a 1/16" roundover. Laminated faces resist glue squeeze-out and slide stock smoothly.

2) Add T-Tracks

Rout two parallel T-track dadoes 3–4" from the centerline, 3/8" deep. A third track forward of the fence (about 2–3") supports front hold-downs for thin work. Keep tracks square to the intended fence line; I mark from the quill center using a long straightedge clamped to the column.

3) Zero-Clearance Insert

Center a 4" recess, 1/2" deep, then cut through for the insert pocket. Add four countersunk screws at the corners and set 8–32 machine screws as levelers from below. Multiple inserts let you rotate fresh edges or dedicate inserts to specific bit diameters to reduce tear-out.

4) Fence Carriage and Fence

Slot the table left-to-right with two 1/4" x 3/8" deep grooves for carriage bolts. The fence base rides these bolts with star knobs for lock-down. I prefer a Baltic birch fence faced with low-friction laminate and slotted at the center for a dust port. Add a micro-adjust: a 10-32 screw bearing against a fixed post provides repeatable 1/64" tweaks.

5) Dust and Chip Control

For metal or hardwood, chips obscure lines fast. A 1-1/4" hose stub behind the fence and a 3D-printed scoop under the insert pocket capture fines. Keep the port adjustable so it skims 1/8–1/4" off the surface. Reduced scatter improves sightlines and cuts cleanup time.

6) Mounting to the Drill Press Table

Use the machine’s T-slots or clamp ears. If your cast table lacks slots, add a plywood sub-plate with U-bolts around the table ribs. Ensure no fastener protrudes into quill travel or interferes with tilt. Re-check square with a machinist’s square: tap the fence until the bit kisses a scribed line over 6–8".

7) Stops and Jigs

Install a flip stop on the fence for repeat hole spacing. A left/right index jig with pin holes at 1" increments speeds cabinet hardware drilling. For small parts, a sacrificial sled with a toggle clamp keeps fingers well clear of the bit.

Ergonomics, Safety, and Human Factors

- Hand Zones: Keep the typical hand positions outside a 4" radius around the bit. Add a bright, matte reference ring around the insert to cue the no-go zone.

- Wrist Neutrality: Raise thin stock with a sled so forearms stay level, reducing ulnar deviation during repetitive peck drilling.

- Lighting: Provide a focused task light with CRI 90+ at 3000–4000K. Aim for 750–1,000 lux on the work, limiting veiling reflections from polished steel by angling the lamp 30° off-axis.

- Noise: Couple the dust hose to a muffled shop vac or separator. WELL v2 guidance links lower background noise with improved concentration during precision tasks.

Color and Surface Psychology

Neutral mid-gray laminate (N5–N6) reduces contrast fatigue and glare halos around pencil lines. A subtle color pop on the fence face (muted blue-green range) can aid visual targeting; studies in color perception note calming and focus benefits in this spectrum, which I’ve found practical when aligning small brad-point bits.

Accuracy Tuning and Maintenance

- Table Flatness: Check with a straightedge across diagonals quarterly. Shim the sub-plate if needed.

- Fence Squareness: Drill a test board; flip and check hole concentricity. If off, micro-adjust and re-lock.

- Insert Rotation: Rotate or replace after 30–50 holes in hardwood or immediately after Forstner heat blemish.

- Track Cleanliness: Vacuum chips from T-tracks to maintain clamp bite.

Sustainability and Materials

Use no-added-urea-formaldehyde MDF or phenolic where possible. High-pressure laminate extends surface life, and a replaceable insert minimizes waste. Choose mechanical fasteners over heavy adhesives so you can repair or upgrade hardware without scrapping the top.

Advanced Add-ons

- Digital Depth Gauge: Magnets to the quill housing with a remote display.

- Laser Crosshair: Align to the quill center and lock; helpful for repetitive drilling in assemblies.

- Sliding Aux Table: A narrow carriage that rides the T-tracks for long stock support.

- Vacuum Actuation: A footswitch that synchronizes the vac with the press.

Workflow and Shop Integration

Plan the press in a U-shaped micro-zone with bit storage to the right, clamps and stops left, and scrap/sleds below. Keep 36–42" clear aisle at the front for long parts. If the shop is tight, mock your station breadth with an interior layout planner or a quick layout simulation tool to confirm swing and feed space before committing to final dimensions.

FAQ

1) What size should my drill press table be?

For bench-top presses, 18–24" wide x 16–20" deep works well; for floor models, 24–28" x 18–22". Balance support with access to the crank, tilt, and column.

2) How thick should the table be?

Target 1-1/2" overall from two 3/4" sheets for rigidity and flatness; laminate both faces to resist seasonal movement.

3) Do I need T-tracks?

They’re not mandatory, but they dramatically improve holding flexibility for odd shapes, jigs, and repeat stops without cluttering the surface with screw holes.

4) What’s the best fence height?

About 2-1/2–3" tall keeps stock registered without blocking sightlines. Add a micro-adjust for precise hole-to-edge distances.

5) How do I control tear-out?

Use a zero-clearance insert matched to the bit diameter, back your work with a sacrificial board, and keep bits sharp. Slow the feed for exit holes.

6) How much light do I need at the drill press?

Provide 750–1,000 lux at the work surface with 3000–4000K neutral LEDs and CRI 90+. Angle lights to avoid glare on metal stock.

7) What’s a good dust/chip strategy?

A rear fence port paired with an under-insert scoop captures both airborne fines and heavy chips. Keep the nozzle close and adjustable.

8) How do I ensure the table is square to the quill?

Use a machinist square against a straight shank in the chuck. Tap the fence and table until the bit tracks a scribed line consistently over 6–8".

9) Should I include a replaceable insert?

Yes—this preserves the main surface, improves support near the bit, and lets you tailor clearance to specific tasks.

10) What surface finish is best?

High-pressure laminate or melamine for low friction and easy cleanup. A mid-gray tone reduces glare and eye strain.

11) Any tips for small parts?

Use a sled with a toggle clamp, or a low-profile vise secured to the T-tracks. Keep hands well outside the 4" no-go radius.

12) Can I retrofit a store-bought drill press table?

Absolutely. Add T-tracks, a micro-adjust fence screw, or a better insert system. Many improvements bolt right on with minimal rework.
