I’ve planned, staged, and reconfigured banquet venues for more than a decade, and the Elaganza Banquet Hall at Raymond Factory hits a sweet spot: industrial bones with elegant finishes, generous ceiling heights, and flexible floor plates. To help you get the most from this venue, I’ll share layout strategies, lighting targets, acoustics, color psychology, and service flow tactics I rely on in real projects.

Let’s anchor a few data points that shape great event environments. For visual comfort, the Illuminating Engineering Society recommends general dining light levels in the 100–200 lux range, with accent lighting pushing focal areas higher for drama and hierarchy (IES standards). On wellness, WELL v2 ties glare control and balanced color temperature to occupant satisfaction and reduced eye strain, a measurable factor in dwell time and attendee comfort (WELL v2 – Light Concept). These benchmarks guide the lighting plan and guest experience for Elaganza.

Venue Character and Core Advantages

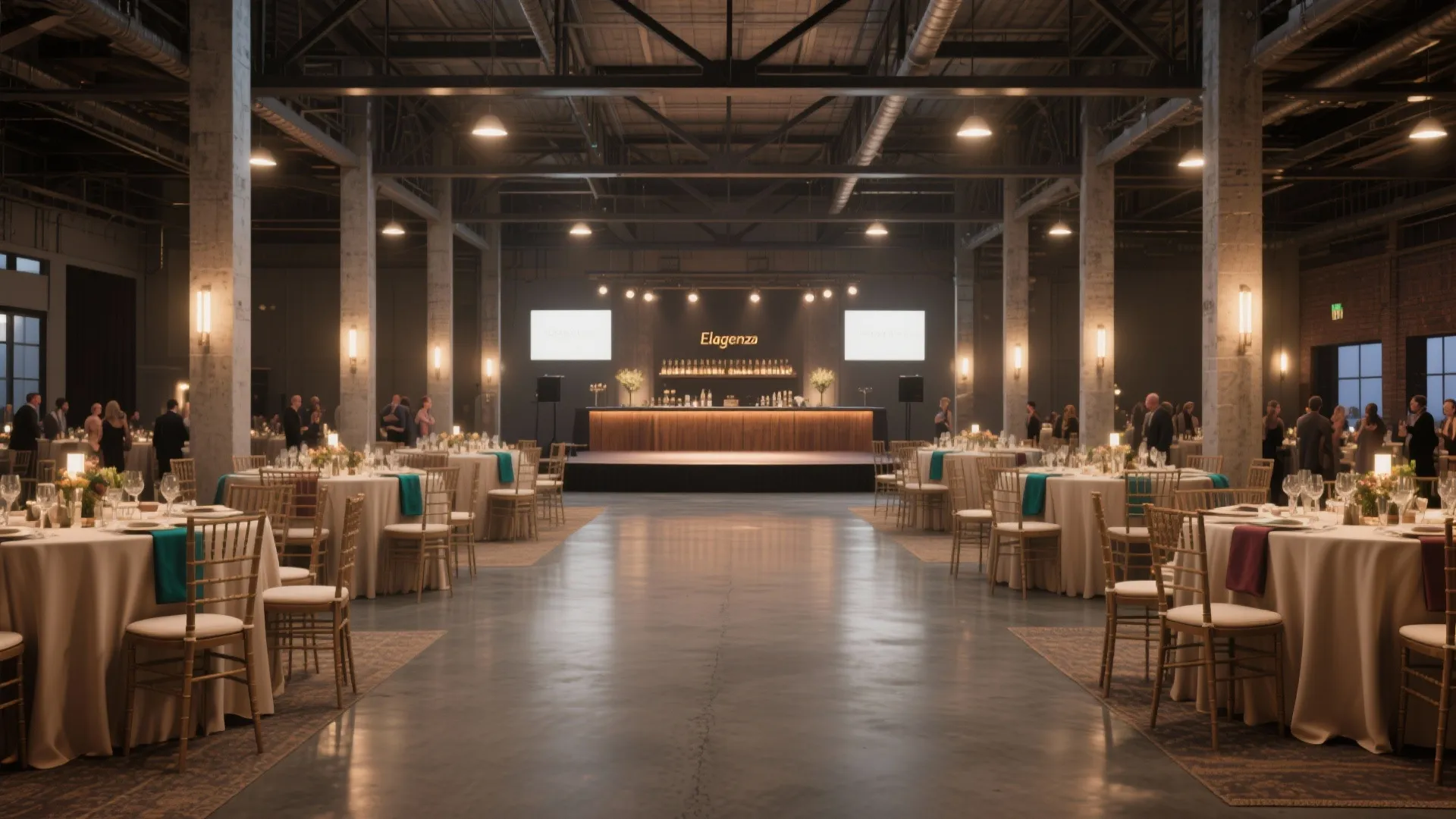

Elaganza’s industrial envelope—tall spans, robust structure, and clear sightlines—allows clean rigging for lighting and decor while supporting multiple seating configurations. The bones are ideal for layered lighting, flexible staging, and fast turnover between ceremony, dinner, and dance segments. In my experience, ceiling height above 4.5–5 m permits uplighting without glare spill onto tabletops, and keeps sound dispersion manageable with tuned absorption.

Capacity Planning and Spatial Ratios

Before any design move, confirm the guest count and program blocks. As a rule of thumb, banquet seating with 60-inch round tables averages 1.4–1.6 m² per guest when you include aisles and service lanes, while classroom or theater modes compress or expand from there. I prefer reserving a minimum 1.2 m fire aisle around the room perimeter and 1.5 m cross-aisles serving high-traffic zones like the bar and buffet. These ratios preserve sightlines and ensure efficient service without table bumping or tray collisions.

Layout Scenarios That Work

For weddings, I typically anchor the head table or mandap/stage opposite the main entry to establish a clear focal axis. For corporate galas, I center the stage slightly off-axis to favor camera sightlines and teleprompter positions. When I want to visualize alternatives fast across a large floor plate or test aisle widths against guest counts, I lean on a room layout tool to simulate table spacing, buffet runs, and stage depth before committing to rentals.

Lighting Strategy: Layered and Camera‑Ready

- Ambient: Target 100–200 lux at table plane for dining comfort (IES). Keep CRI ≥90 if possible for true color rendering of skin tones and food. Warm to neutral whites around 3000–3500K suit evening events; push to 4000K for corporate daytime clarity.

- Accent: Pin spots at 500–750 lux on centerpieces and key décor, with tight beams to avoid guest glare. Backlight the stage to separate speakers from the backdrop; a soft key fill prevents harsh shadows on faces.

- Decorative: Uplights to wash columns and perimeter surfaces, plus bistro or linear pendants for rhythm. Dimmer zoning is nonnegotiable—create scenes for reception, dinner, speeches, and dance to manage mood shifts without moving fixtures.

- Glare control: Shield sources above eye level, especially near cameras. WELL v2 emphasizes glare indices and contrast balance; bring reflective chargers, glass, and mirror finishes under control with careful beam angles.

Acoustic Comfort Without Killing Energy

Banquet halls can turn boomy fast. I specify a mix of soft goods—heavy drapery on at least one long wall, table linens, upholstered chairs—and deploy portable absorption behind the stage or DJ. Aim for a reverberation time (RT60) near 0.8–1.2 seconds for speech intelligibility during toasts, then lean on distributed speaker arrays rather than blasting from a single stack. Keep subwoofers off direct corners to reduce standing waves near the bar and photobooth.

Color Psychology and Material Palette

For social events, warm neutral bases with saturated accent hues work well—rich ambers and burgundy signal intimacy, while jewel tones elevate formality. Research in color psychology indicates warm palettes can increase perceived conviviality, whereas cooler tones promote focus and calm (Verywell Mind on color psychology). On surfaces, I choose low-sheen finishes to avoid specular highlights in photos and select FSC-certified woods or recycled-content carpets for sustainability without compromising elegance.

Staging, Sightlines, and Camera Paths

Keep stage deck height around 450–600 mm for rooms of 200–400 guests; higher isn’t always better if cameras need to shoot over tables. Place confidence monitors at 30–35° from speaker eye line. For weddings, allow a clean 2–3 m camera corridor around the dance floor; for corporate events, protect side aisles for steadycam passes and quiet crew movement.

Bar, Buffet, and Service Flow

Two bars beat one: split lines to reduce dwell at the entrance. Orient buffets with 1 m from chafers to guest line and 1.2–1.5 m pass-behind for attendants. For plated service, carve 1.2 m minimum between table rings for tray passing. Position coffee and dessert satellites opposite the main bar to distribute traffic and keep the dance floor free.

Guest Comfort: Ergonomics and Micro‑Amenities

Chairs with supportive backs and cushioned seats keep guests seated longer—good for speeches, not so much for dancing, so consider adding standing-height perches near the dance floor. Place charging stations near lounge vignettes, not at dining tables. Restroom wayfinding should be visible but discreet; keep lines of travel under 60 m where possible for comfort and accessibility.

Power, Rigging, and Vendor Coordination

Confirm house power early—lighting, DJ/band, kitchen equipment, photobooths, and LED walls stack up faster than clients expect. Label circuits for audiovisual separation to avoid hum. When the hall’s ceiling grid allows, I rig lightweight truss for feature lighting and drape; if not, floor-based totems with narrow beam fixtures preserve sightlines while adding verticality.

Sustainability Moves That Don’t Hurt Aesthetics

LED sources throughout, programmable dimming, rental florals with live potted greenery, and reusable decor frames cut waste and energy. Select linens from vendors with closed-loop laundering. Use water refill stations behind the bar to reduce bottle waste without compromising guest service.

Sample Layouts for Elaganza

- 250-guest wedding: 24 rounds of 10, 6 x 12 m dance floor centered, stage 8 x 4 m with side drape, twin bars flanking rear corners, sweetheart table on axis. Add a layout simulation tool pass to verify egress aisles and camera angles.

- 320-guest corporate gala: 30 rounds of 10, thrust stage 10 x 6 m, teleprompters at 30°, sponsor lounge near entry with acoustic screens, dessert action stations opposite main bar to balance flow.

Event Day Sequencing

Set lighting scenes in advance, run a full MC/speeches rehearsal, and capture sample photos at dinner light levels to calibrate white balance. Keep a floor manager walking bar lines, buffet queues, and noise hotspots; a 5–10% table count buffer helps if guest lists creep.

FAQ

How bright should dining tables be for comfort and photography?

Keep ambient around 100–200 lux at the table plane with high CRI (≥90). Use pin spots for centerpieces and stage fills for faces. This aligns with IES practices for dining environments.

What color temperature works best for evening events?

3000–3500K delivers warmth without yellowing food or skin. For mixed programming, create scenes that nudge up to 4000K during speeches, then back to warmer tones for dancing.

How can I reduce echo in a large banquet hall?

Layer soft materials—drapery, linens, upholstered seating—add portable acoustic panels near stage backdrops, and use distributed speaker arrays to keep overall volume lower.

What table size is most flexible?

60-inch rounds are the workhorse for 8–10 guests, balancing service efficiency and conversation. Allow 1.4–1.6 m² per guest including aisles to plan capacity and egress.

Where should the dance floor go?

Central placement anchored to the stage encourages participation and keeps sightlines open. Reserve a 2–3 m camera perimeter to protect photography paths.

How many bars do I need?

Plan roughly one bar per 100–125 guests for peak periods. Two smaller bars typically outperform one large bar by splitting lines and distributing traffic.

Are warm or cool colors better for social events?

Warm palettes enhance conviviality and perceived intimacy, while cooler tones are better for focused, corporate atmospheres. Reference color psychology research for intent.

What’s a smart power strategy for AV?

Separate lighting and audio circuits to avoid interference, confirm available amperage early, and map drop points for stage, DJ, photobooth, and caterers to minimize cable runs.

How do I manage transitions between ceremony, dinner, and dancing?

Preprogram lighting scenes, use mobile bars and rolling DJ risers, and assign a floor manager to cue staff. Keep furniture changes minimal by designing multipurpose zones.

What sustainable choices make the biggest impact?

LED lighting with dimming, reusable decor structures, live plant rentals, and vendor partners with responsible laundering and recycling programs significantly cut waste.
