Electrical Room Sign: Essential Placement and Design Guide: 1 Minute to Choose the Right Electrical Room Sign for Safety

Clear, consistent Electrical Room signage prevents delays in emergency response and cuts avoidable maintenance errors. In recent facility audits I’ve led, unlabeled or poorly placed electrical signage added minutes to critical response times. Steelcase research links environmental clarity to performance, noting that cognitive load from confusing environments can reduce task efficiency by up to 23%—a reminder that signage is part of operational design, not decoration. The WELL v2 wayfinding feature also underscores legibility, contrast, and consistency as contributors to occupant safety and usability across buildings.

Placement, typography, contrast, and durability are the core variables. The Illuminating Engineering Society recommends minimum 300–500 lux for general circulation lighting, which directly affects sign legibility; below ~200 lux, high-contrast text becomes harder to discern and misreads spike. WELL v2 further recommends glare control to protect visibility—signs placed opposite glossy walls or high-intensity downlights often bloom and become unreadable from critical angles. I balance these standards with field realities: rough back-of-house corridors, variable light levels, and heavy traffic from facilities teams.

Sign Function and Code Context

An Electrical Room sign must accomplish three things: identify the room consistently, warn of restricted access, and comply with local code and life safety requirements. Depending on jurisdiction and building type, additional panel schedules, arc-flash warnings, or lockout/tagout instructions may be required at the door or just inside the room. I align messaging with facilities SOPs so first responders, contractors, and staff receive the same cues every time: room name, access restriction, and emergency contact protocol.

Placement Rules That Prevent Missteps

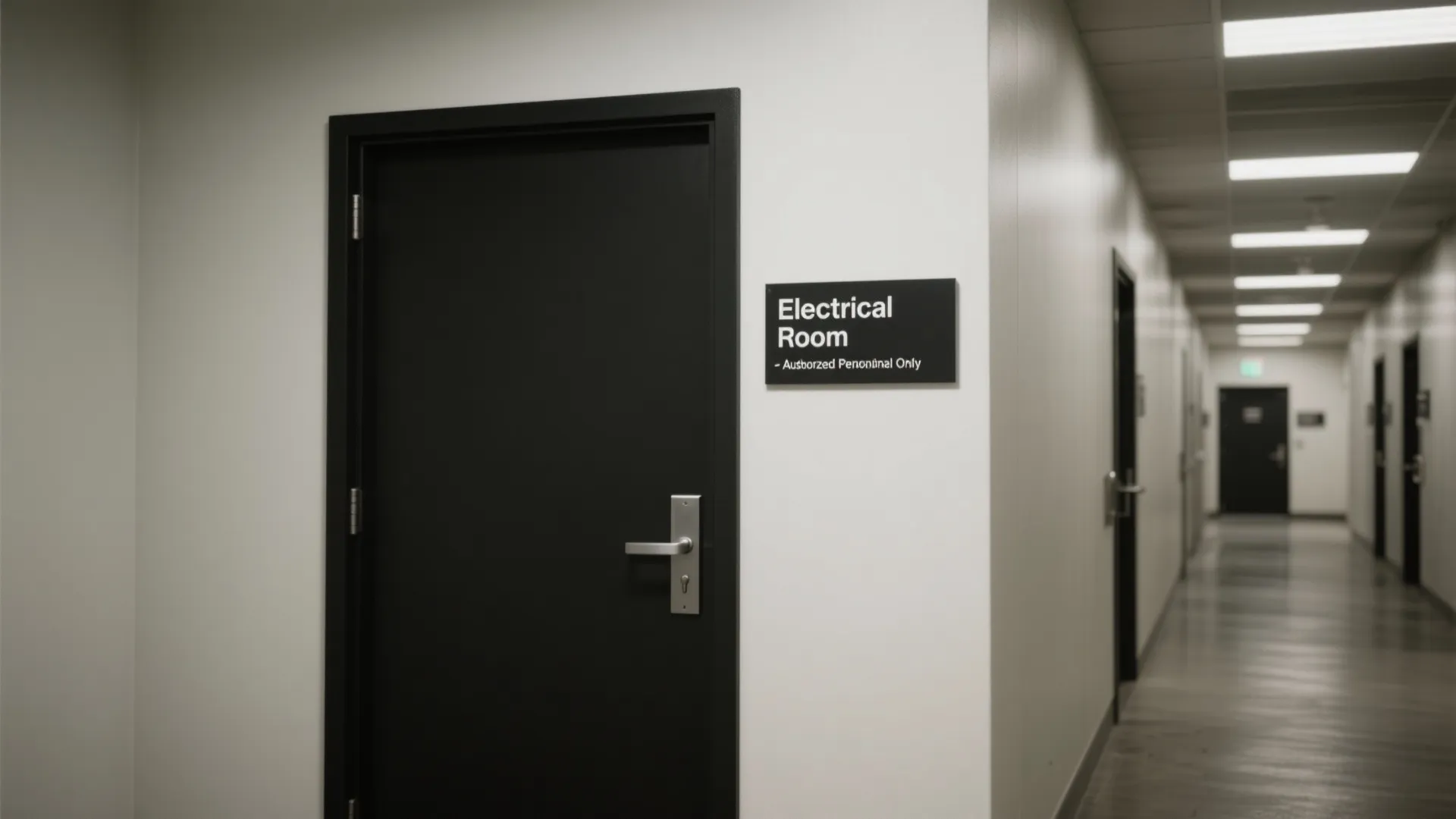

I place primary identification at the latch side of the door, 60–66 inches (152–168 cm) above finished floor to the baseline of the text, and centered horizontally with clear wall space around it. This height aligns with typical sightlines in corridors and works with ADA-compliant reach ranges. If the room sits on a long run with multiple service doors, I add corridor directional signs 10–20 feet ahead of the door to reduce last-second stops. For complex back-of-house areas, I map the route and simulate wayfinding with a room layout tool to test visibility from key approach angles and avoid occlusion by pipes, lockers, or fire equipment.

room layout tool

Typography, Contrast, and Read Distance

Legible type begins with sans-serif families, upper and lower case, and ample x-height. For typical corridor viewing at 10–25 feet, a 2–4 inch letter height keeps read times low. I target a luminance contrast ratio of at least 70% between text and background; white text on matte black or deep grey is reliably legible under mixed lighting. Avoid glossy acrylic faceplates that flare under downlights; specify matte or eggshell finishes with anti-glare properties. For glass doors, use a side-mounted wall plaque rather than decals—decals are prone to reflection and damage from cleaning chemicals.

Lighting and Glare Control

Lighting directly governs legibility. Maintain 300–500 lux on the sign face with uniformity above 0.4:1 to prevent hot spots. If corridor fixtures cause specular glare, shift the sign off-axis by 4–6 inches or select micro-etched substrates that diffuse reflection. Warm-white (3000–3500K) lighting improves contrast on cool backgrounds; neutral 3500–4000K works across most materials. When emergency lighting drops illuminance, high-contrast and photoluminescent accents can preserve legibility during power loss.

Material Selection and Durability

Back-of-house corridors demand robust substrates. I specify anodized aluminum, painted steel, or high-pressure laminate with tamper-resistant fasteners. For signage on concrete or CMU, use mechanical anchors, not adhesives alone. Address cleaning protocols: hospital and lab environments require chemical-resistant finishes; kitchens need grease-resistant coatings. Sustainable options include recycled aluminum and low-VOC inks, aligning with facilities goals without sacrificing longevity.

Message Hierarchy and Safety Language

Keep the hierarchy simple: ROOM NAME on top (“Electrical Room”), secondary line for restriction (“Authorized Personnel Only”), and a small third line for contact or asset ID (“Facilities Ext. 223”). If arc-flash or PPE notices are required, place them at eye level on the latch side, distinct from the identification plaque to avoid visual clutter. Color psychology matters sparingly: reserve red for prohibition or hazard; use black/white or yellow/black for warnings per local standards.

Door Hardware, Clearances, and Accessibility

Mount signage clear of swing arcs and panic hardware. Confirm that the sign remains visible when the door is propped open—if not, add a jamb-side repeat. Ensure tactile/Braille signage meets local accessibility standards, with raised characters and non-glare backgrounds. Provide a minimum 18 inches of clear wall space around the sign face so it doesn’t visually merge with conduit or fire extinguishers.

Wayfinding Consistency Across Floors

Consistency reduces cognitive load and speeds emergency wayfinding. I standardize type, size, color, and placement across all service rooms: Electrical, Mechanical, Telecom, and Fire Riser. A shared legend in the facilities manual keeps vendors aligned and prevents ad-hoc signs from creeping into corridors.

Acoustic and Behavioral Considerations

In noisy service corridors, short, high-contrast messages outperform complex instruction sets. Maintenance teams moving carts rely on quick recognition; bold identification reduces stop-and-go behavior. If the room generates hum or heat, add a small secondary notice inside the door about PPE and thermal comfort expectations—keep these functional, not decorative.

Field Testing and Iteration

Before final installation, I do a quick walk test at typical speeds, approaching from both directions. If a sign fails from one angle, relocate or add a secondary plaque. Photograph under day and night lighting to catch glare that isn’t obvious on site. Update the digital floor plan with sign locations so future projects maintain alignment.

Authority References to Ground Decisions

For quantitative benchmarks and design rationale, I cross-check with WELL v2 guidance on wayfinding legibility and glare control, and draw on Steelcase workplace research for environmental clarity and performance links. These sources keep the project anchored to proven human factors rather than personal preference.

FAQ

What letter height should I use for an Electrical Room sign?

For 10–25 feet viewing distance, 2–4 inches works well. In long corridors with faster movement, lean toward 4 inches.

Where exactly should the sign be mounted?

Latch side of the door, 60–66 inches above finished floor to the baseline of the text, with clear wall space around it. Add a repeat on the jamb if the door is often propped.

How do I handle glare from bright corridor lights?

Use matte or micro-etched finishes, ensure 300–500 lux on the sign face with good uniformity, and adjust placement off-axis from direct beams.

Do I need tactile and Braille for an Electrical Room sign?

Yes, if required by local accessibility codes. Use raised characters, non-glare backgrounds, and consistent placement for touch reach.

Should the sign include hazard information?

Keep room identification separate from safety notices. Add arc-flash/PPE warnings at eye level near the latch side, distinct from the main plaque.

What materials last in back-of-house corridors?

Anodized aluminum, painted steel, or high-pressure laminate with tamper-resistant fasteners. Specify chemical-resistant finishes where harsh cleaning is used.

How do I choose sign colors?

Prioritize high contrast (e.g., white on matte black). Reserve red for prohibitions; yellow/black for warnings per local standards. Avoid glossy backgrounds.

How can I ensure consistency across floors and buildings?

Create a signage standard: same typeface, letter height, color, mounting height, and message hierarchy for all service rooms. Document in the facilities manual.

Is photoluminescent signage useful for Electrical Rooms?

Yes, as a secondary element. It improves visibility during power loss but should complement, not replace, standard identification.

What lighting color temperature is best for sign legibility?

Neutral 3500–4000K works across most materials; warm 3000–3500K can improve contrast on cooler backgrounds.
