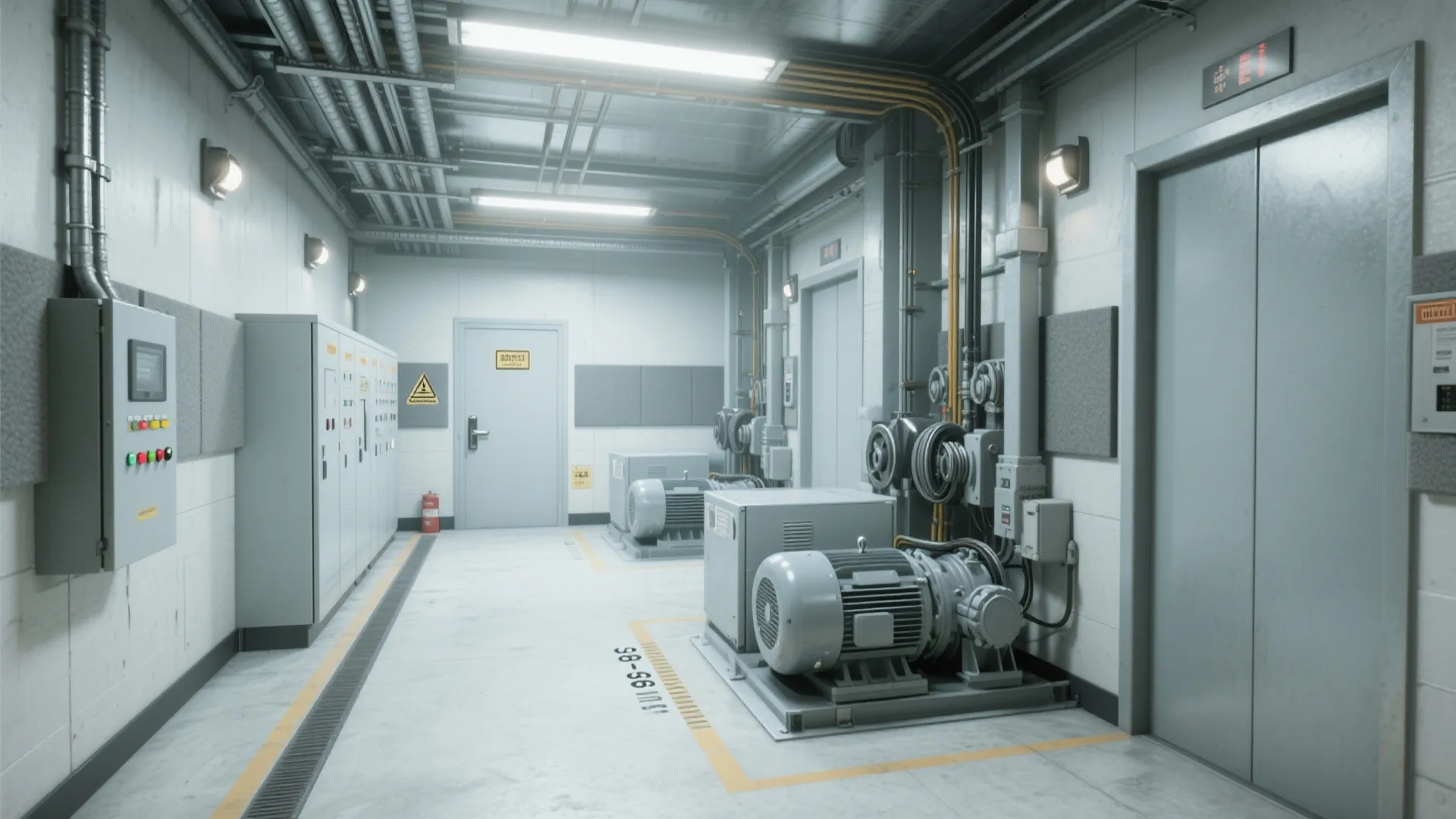

Elevator machine rooms are compact, high-stakes spaces where precision in dimensions directly affects safety, uptime, and long-term operating costs. Whether you’re planning a conventional traction/hydraulic machine room or a machine-room-less (MRL) configuration, the footprint, adjacencies, and service clearances must be resolved early to avoid structural conflicts and maintenance headaches.

Effective sizing isn’t just about fitting equipment. Workplace and building data consistently show measurable outcomes tied to ergonomic access and service environments. Steelcase research associates better human-factor design with reduced task time and error rates in technical environments; while WELL v2 promotes safe access, lighting, and acoustic control that support technicians’ health and performance. These principles apply directly to elevator support spaces where 24/7 reliability matters. Reference: Steelcase Research and WELL v2.

Lighting quality is also critical. IES recommendations for mechanical rooms typically target maintained illuminance in the range of 300–500 lux for detailed work with controlled glare (UGR ≤ 19 for task areas). These values provide a defensible baseline for machine rooms, helping technicians read labels, inspect rope grooves, and service controllers without visual strain.

Core Size Parameters

Elevator machine room size depends on the system type, capacity, speed, code requirements, and maintenance access. While exact dimensions are defined by the elevator manufacturer and local code, designers can use the following benchmarks and decision factors:

1. Conventional traction: dedicated machine room typically ranges from 120–250 sq ft per car, increasing with speed and group size. Multicar groups may share a larger room but demand separate clear zones.
2. Hydraulic: smaller controllers and pumps may fit into 80–160 sq ft, but oil tank volume and sound isolation often push toward the high end.
3. MRL (machine-room-less): equipment is on the hoistway or within compact cabinets adjacent to the shaft. You still need service alcoves, access landings, and a controller space (often 15–40 sq ft), plus clear working platforms at the machine location.
4. Ceiling height: plan 8–10 ft clear in conventional rooms to accommodate rope rise, sheaves, and overhead service operations; higher ceilings may be required for high-speed traction.
5. Service clearances: maintain typical 36–48 in clear working depth in front of controllers and disconnects; 30 in minimum clear width for egress paths; and unobstructed access to sheaves and governors.

Regulatory and Safety Considerations

Local adoption of ASME A17.1/CSA B44, electrical codes, and fire/life safety standards dictate minimum clearances, headroom, ventilation, and fire rating. Plan for:

1. Dedicated access: lockable doors, non-public pathways, and safe stairs/landings for overhead MRL machine access.
2. Fire rating and separation: machine rooms typically require fire-resistance separation from occupied spaces; confirm local amendments.
3. Electrical compliance: disconnects and panels need clear working spaces consistent with electrical code; provide illumination on separate, reliable circuits.
4. Ventilation and temperature: equipment manufacturers specify ambient temperature and humidity ranges; avoid heat build-up via conditioned supply or mechanical exhaust sized to load.

Layout and Clearance Strategy

When the design involves equipment arrangement, I model clear working zones and cable paths early to eliminate clashes with structural beams or MEP risers. A compact room often fails from overlooked maintenance rotation arcs—technicians need space to remove brake assemblies, rope guards, and drive components.

For schematic planning and visualization, a room layout tool helps simulate service aisles, door swings, and controller access before locking in wall locations.

Lighting and Acoustic Comfort

Technicians spend hours in these rooms; poor lighting and noise fatigue increase risk. Based on IES guidance, target 300–500 lux at work surfaces with neutral-white 3500–4000K for accurate color rendering of wiring. Add localized task lighting for controller panels. Glare control matters—use diffusers, proper shielding, and matte finishes near luminous openings.

Acoustically, traction drives and pumps generate tonal and low-frequency noise. I prioritize resilient floor mounts, isolation pads, and sealed penetrations. Mass-loaded walls or mineral wool infill can reduce transmission into adjacent occupancies; maintain accessible acoustic treatments so inspection panels remain removable.

Human Factors and Ergonomics

Good ergonomics lower maintenance time and reduce strain. Provide working heights that avoid overhead reach for routine tasks, anti-fatigue flooring near service stations, and clear labeling readable at 500–700 mm viewing distance. Cable trays should sit within safe reach envelopes; pathways must avoid trip hazards from conduits or oil lines.

Ventilation, Heat Load, and Power

Estimate internal gains from motors, VFDs, controllers, work lights, and standby equipment. Even in MRL scenarios, enclosed controller cabinets can see temperature spikes. Provide thermostatically controlled ventilation or dedicated cooling where manufacturer limits demand it, keeping intake/outlet away from dust-prone zones. Electrical service should include clean power for drives, emergency lighting on separate circuits, and lockable disconnects sized to fault levels.

Material Selection and Durability

Finishes should be resilient, non-slip, and easy to clean: sealed concrete floors, abrasion-resistant coatings, and light-reflective ceilings for better illuminance. Choose low-VOC products to align with health goals recognized by WELL v2. Corrosion resistance around hydraulic oils and condensation points extends lifecycle and reduces maintenance frequency.

Access, Safety, and Egress

Design safe approaches: adequately sized landings, guardrails for overhead platforms, and lighting at thresholds. Maintain minimum egress width and emergency signage. Provide anchor points for fall protection where overhead machine service is required. In high-rise traction, ensure safe rope access and hoisting points for component replacement.

Typical Size Scenarios

These planning ranges reflect common practice; always verify with the elevator supplier’s shop drawings and local code:

1. Single hydraulic car, low-rise: 100–140 sq ft machine room; 8–9 ft ceiling; 36 in clear work front of controller.
2. Single traction car, mid-rise: 150–220 sq ft; 9–10 ft ceiling; provision for rope and governor access.
3. Two-car traction group: 220–400 sq ft shared, zoned for each controller and drive with separate clearances.
4. MRL traction: no traditional room; controller cabinet 20–30 sq ft adjacent, plus overhead machine service platform sized to manufacturer guidelines.

Coordination Checklist

1. Confirm equipment submittals early: machine dimensions, cabinet sizes, rope paths, and governor locations.
2. Resolve beams and slab thickenings before finalizing shaft and room boundary.
3. Coordinate penetrations with firestopping and acoustic seals.
4. Provide adequate lighting circuits, emergency lights, and GFCI service outlets.
5. Verify temperature and ventilation performance during commissioning.

Cost, Risk, and Lifecycle

Undersized rooms often increase downtime and labor during service calls. Adequate clearances and simple, durable finishes balance initial cost against lifecycle reliability. For multi-car groups, shared rooms improve efficiency but require careful zoning to keep workflows from interfering.

Design Workflow Recommendations

I typically lock the shaft and machine room early in DD, run clash detection, and iterate lighting and acoustics with mechanical engineers. Mockups—physical or digital—help confirm reach ranges and task visibility. For refurbishment, a interior layout planner can quickly test controller relocations, door sizing, and cable tray routing before construction.
