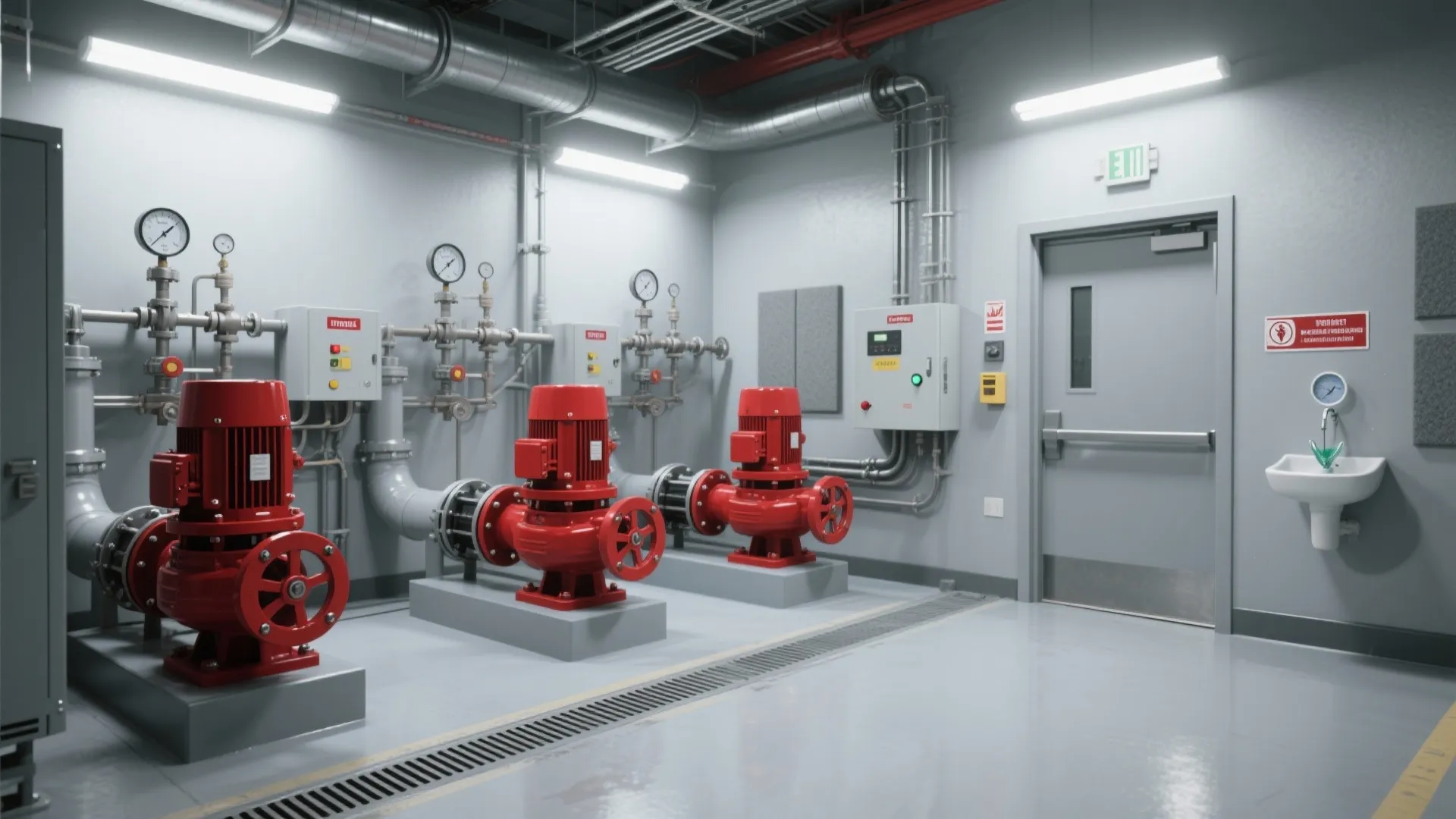

Fire Fighting Pump Room Essentials: Optimizing Safety & Space: Fast-Track Guide to Designing a Safe, Efficient Fire Pump Room

I plan and audit pump rooms the same way I approach mission-critical control spaces: clear sightlines, predictable workflows, clean segregation of hazards, and code-aligned clearances that leave zero ambiguity when seconds matter. In commercial interiors, properly designed fire fighting pump rooms directly influence building resilience, downtime, and insurance risk. Steelcase research has shown that environmental clarity and reduced friction in work-critical zones can improve task efficiency by double digits; translate that to emergency response, and the value becomes obvious. WELL v2 also emphasizes safety interventions and lighting quality as core drivers of occupant well-being, reinforcing that behind-the-scenes spaces are part of the health and safety ecosystem, not exceptions.

Water supply reliability and human factors carry equal weight. Gensler’s workplace research consistently links spatial legibility to faster decision-making and fewer errors under pressure. Add lighting standards from IES for task zones—typically 300–500 lux for inspection and maintenance—and you have a baseline for visibility that makes gauges readable, leaks detectable, and maintenance safer. From intake strainers to relief valves and controllers, every component must be visible, accessible, and logically sequenced to match service and emergency workflows.

Core Functions and Code-Driven Priorities

The pump room exists to guarantee pressure, flow, and redundancy. Whether you’re installing an electric pump with a diesel backup or multiple duty pumps with jockey pumps for pressure maintenance, the envelope must protect equipment from heat, flooding, and vibration. My rule of thumb: establish a service loop around all major equipment, preserve code-required clearances at controllers, and avoid any layout that forces technicians to reach over active machinery. Door swing, egress width, and a clean separation between wet and energized components reduce risk when alarms are blaring and visibility may be compromised.

Space Planning That Works Under Stress

Start with the sequence from entry to shutoff: access door, safety station, main isolation valves, strainers, suction manifold, pumps, discharge manifold, backflow, test header connections, and controllers. Keep circulation paths at least the width of the largest equipment plus maneuver allowance. I mirror the service flow: incoming water and suction-side components on the coolest, driest wall; discharge side away from electrical control panels to avoid spray risk. For early coordination, simulate alternatives with an interior layout planner to test clearances, valve reach, and maintenance envelopes. If you’re iterating the geometry in plan, a layout simulation tool like a room layout tool can help visualize pump spacing and controller access during design sign-off.

Hydraulics and Redundancy

Pump sizing is set by the building’s most demanding sprinkler/standpipe scenario. Keep suction piping as straight and short as practical to minimize losses and avoid vortices. Provide air release valves at high points, eccentric reducers (flat on top) on suction, and flexible connectors to manage vibration. Redundancy strategy is about failure modes: diesel backup where utility reliability is questionable, dual power feeds where feasible, and test headers routed for safe discharge. A compact footprint is tempting, but I protect at least one clear pathway for removing the largest component without demolition—future-proofing saves days of downtime later.

Lighting, Color, and Visual Legibility

Lighting needs to support both routine checks and emergency response. Aim near 300–500 lux at gauges and controller panels per typical task-lighting guidance, with neutral 4000 K CCT to balance color rendition and alertness. Glare kills legibility—use matte finishes around control panels and specify shielded luminaires. I paint valve wheels and safety equipment in high-contrast, consistent colors so teams can find and confirm the right control quickly. Neutral wall tones prevent color casting on indicators; vivid accents should be limited to safety coding to avoid signal confusion.

Ergonomics and Serviceability

Everything you touch should land within safe reach ranges and predictable heights: centerlines of gauges roughly at eye level, handwheels reachable without overextension, test drains accessible without climbing. Provide anti-fatigue mats at inspection stations, clear labeling visible from normal standing positions, and lifting points aligned with door clearance. Prevent awkward torques by ensuring valves needing frequent exercise are on the service side of piping runs, not behind obstructions. Tool shadow boards and spare gasket kits near the entry reduce search time during planned maintenance.

Noise, Vibration, and Acoustic Comfort

Pump rooms run loud under test. I spec vibration isolation bases, flexible connectors, inertia pads, and resilient mounts for controllers where appropriate. Close attention to pipe hangers, guides, and anchors prevents structure-borne noise transmission. Acoustically absorptive wall or ceiling panels improve intelligibility of voice commands during tests and emergencies; keeping NC levels lower supports safer communication.

Material Selection and Durability

Water, heat, and corrosion are the enemies. Use non-slip, chemical-resistant flooring with integral cove base for cleanability. Prefer stainless fasteners and hardware, epoxy-coated supports, and logically sloped floors toward trench drains with backflow protection. Set cable trays high and protected, with drip loops and clear segregation from wet zones. Where diesel systems are present, dedicate spill containment and fire-rated separation according to local code.

Controls, Monitoring, and Testing Workflow

Controllers should be front-facing with uninterrupted access. Provide zoned lighting tied to entry and a separate task light at panels. Clearly label test headers, flow meters, and bypasses; mark all valve positions with durable tags. Define a weekly, monthly, and annual test route that flows left-to-right through the room, minimizing cross-traffic. Remote alerts to the BAS are standard; add a local alarm stack light where noise might mask audible indicators. Keep a laminated one-page emergency sequence near the entry, aligned with training protocols.

Water Management and Flood Risk

Pump rooms ironically flood more than most mechanical spaces. Elevate critical equipment above slab, add leak detection at low points, and ensure floor drains are sized for relief valve discharge. Backflow preventers need service clearance and safe drainage paths. Where local groundwater is a risk, incorporate sump redundancy and alarms tied to facilities dashboards.

Fire Separation, Egress, and Safety Equipment

Maintain rated separations to adjacent occupancies and protect penetrations with listed assemblies. Doors should open out with panic hardware and remain free of stored materials. Mount eyewash, fire extinguishers, and spill kits near the entry, with photoluminescent wayfinding. Where diesel fuel is present, confirm ventilation and exhaust routing keep ambient temperatures within equipment limits and preserve safe CO levels.

Commissioning and Lifecycle Thinking

I commission pump rooms with a punch-list mindset: verify flows, pressures, sequencing, alarms, leak points, signage, and safe egress under simulated fault conditions. Record as-builts with photos; align the maintenance schedule to manufacturer intervals and local jurisdiction requirements. Designate wall space for schematics and a QR-based document board so techs can access manuals instantly. Future swap-outs should be possible without moving structural elements—if not, revisit the layout now, not in year seven.

When Space Is Tight

In constrained footprints, I prioritize service clearances, straight suction runs, and safe controller access. Use vertical manifolds and compact backflow configurations where listed, but resist stacking valves behind pumps. If you must offset equipment, preserve ergonomic reach and keep egress continuous. Before locking the layout, test multiple options with an interior layout planner such as a room layout tool to stress-check access, turning radii, and equipment removal paths.

FAQ

What lighting levels work best in a fire pump room?

Provide approximately 300–500 lux at gauges and control panels for clear legibility, using neutral 4000 K lamps and glare control. Reference task lighting ranges informed by IES practices for inspection and maintenance tasks.

How do I separate wet and electrical zones effectively?

Locate discharge-side components away from controllers, keep cable trays high with drip loops, use splash shields where needed, and maintain code clearances around panels for safe operation and maintenance.

What’s the ideal layout sequence for serviceability?

Entry and safety station first, then isolation valves and strainers, suction manifold and pumps, discharge manifold, backflow/test header, and controllers with direct frontal access. Maintain continuous egress throughout.

How can color help in emergencies?

Use high-contrast, consistent color coding for valve wheels, emergency stops, and safety stations. Keep walls neutral to prevent color distortion on indicators and gauges.

How do I control noise and vibration?

Specify inertia bases, resilient mounts, flexible connectors, proper pipe guides and anchors, and some acoustic absorption to improve verbal communication during tests.

What redundancy should I plan for?

Consider diesel backup for unreliable grids, dual utility feeds where possible, and clearly routed test headers. Keep at least one path to remove major components without demolition.

How do I manage flood risk inside the pump room?

Elevate critical equipment, size floor drains for relief discharge, include leak detection and sump redundancy with alarms, and protect penetrations with rated assemblies.

What documentation should live in the room?

As-builts, one-page emergency protocol, valve schedules, testing intervals, and QR access to manuals. Mount a durable schematic and keep labeling consistent and field-readable.

Which standards inform ergonomics and safety in these spaces?

Use IES guidance for lighting, WELL v2 for health and safety principles, and local fire codes for separation and access. Ergonomic principles prioritize safe reach ranges and clear sightlines.

How often should pumps be tested?

Follow manufacturer requirements and local jurisdiction mandates; many facilities use weekly visual checks, monthly churn tests, and annual flow tests under supervision.

Can I reduce the footprint without compromising safety?

Yes—optimize manifold routing, use compact listed assemblies, and rigorously protect service clearances and straight suction runs. Validate multiple schemes with a room layout tool before finalizing.

What temperature and ventilation considerations matter?

Keep ambient temperatures within equipment limits, provide dedicated ventilation for diesel systems, and ensure heat from nearby equipment doesn’t affect controllers or seal life.
