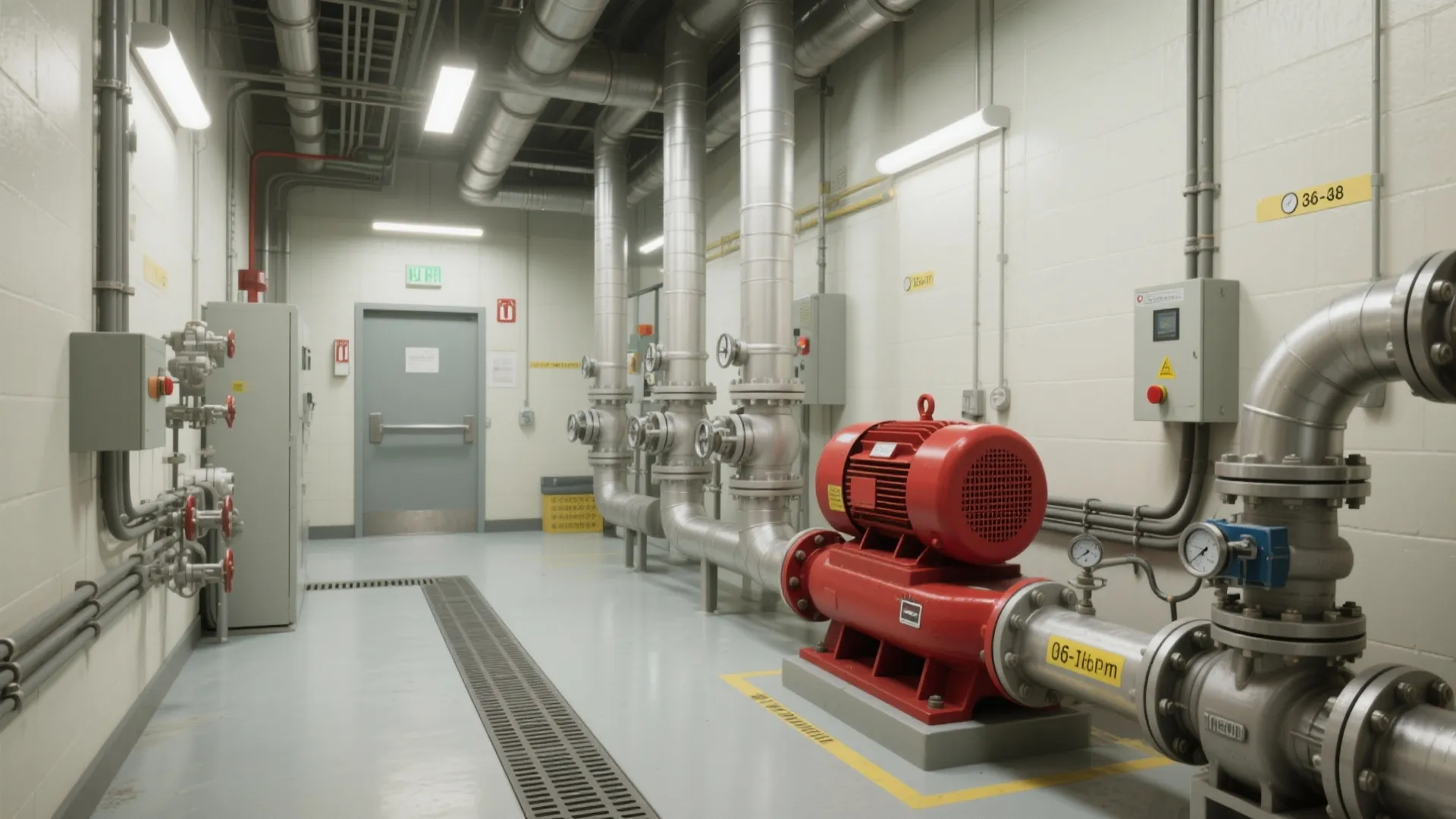

I’ve designed and audited more than a dozen fire pump rooms in hospitals, high‑rise mixed‑use, and logistics facilities. A drawing set that balances compliance, accessibility, and serviceability is the backbone of a reliable fire protection system. Efficiency here isn’t only about space—it's about hydraulic performance, rapid maintenance, and unmistakable coordination.

Code compliance and human factors start with measurable targets. The WELL v2 Building Standard cites emergency preparedness and clear egress as key facility priorities, emphasizing unobstructed access routes; while Steelcase research highlights that clear wayfinding reduces response time and cognitive load in stressful scenarios. In practice, I design pump rooms with a minimum 36 in unobstructed working clearance around valves and controller doors and maintain full sightlines from the entry to the main isolation valves. For broader facility planning benchmarks and emergency readiness considerations, consult wellcertified.com and steelcase.com/research.

Hydraulic performance relies on accurate data inputs and tested head losses. I use friction loss coefficients and manufacturer curves, but I also set a target NPSH margin of ≥3 ft above the pump’s required NPSH at design flow to safeguard against cavitation. According to IES recommendations, task lighting of 500 lux at work surfaces supports inspection and labeling accuracy—critical when reading gauges and controller indicators under time pressure. Color and contrast matter too: VerywellMind’s color psychology summary notes high‑chroma reds increase urgency perception, so I reserve red strictly for emergency markers and keep walls neutral to avoid visual fatigue.

Scope of a Complete Fire Pump Room Drawing Set

A thorough package typically includes: floor plan with clearances and circulation; reflected ceiling plan for lighting and cable tray routing; sections showing suction and discharge elevations; pump and controller schedules; riser diagram; details for baseplates, vibration isolation, thrust blocks, and flexible connectors; pipework isometrics for complex manifolds; and coordinated MEP clash report. I add an operation flow diagram tying sensors, controller logic, and alarms to the building fire alarm panel.

Room Sizing, Clearances, and Access

Start with the envelope. For one electric fire pump with jockey pump and controller, a practical footprint is 12–16 m², but I prioritize maintainability over minimal footprint. Provide 36–48 in working aisles around suction strainers, OS&Y isolation valves, test headers, and controller cabinets. Doors should swing out and be at least 42 in clear with panic hardware. If your building layout is in flux, use a room layout tool to simulate clearances and egress turns: room layout tool.

Hydraulic Layout: Suction, Discharge, and Testing

Keep suction piping short, straight, and below pump centerline to minimize air pockets. Include eccentric reducers flat on top to prevent vapor lock and a Y‑strainer ahead of the pump with a blow‑down. Use double‑check valves where backflow prevention is mandated and position test headers with hose valves on the discharge side to allow full‑flow testing to drain or to a calibrated flow meter loop. Straight runs before and after flow meters improve accuracy (10D upstream, 5D downstream as a practical rule).

Controllers, Power, and Alarm Integration

Mount fire pump controllers on vibration‑isolated bases, with conduit entries top or side to avoid water ingress paths. Provide dedicated emergency power feeds where code requires; route feeders away from flood risk. Separate low‑voltage signal cabling and high‑voltage power by at least 12 in, crossing at 90° where unavoidable. Controller clear working space: 36 in front, full height clear to the ceiling for heat dissipation.

Vibration, Anchoring, and Baseplate Details

Specify inertia bases sized to 1.5–2.0 times equipment mass with spring isolators tuned to 2–3 Hz to limit transmitted vibration. Use epoxy‑grouted anchor bolts after alignment. Provide flexible connectors on suction and discharge to decouple piping strain, but avoid placing flex connectors immediately at elbows which can amplify turbulence.

Drainage, Spill Control, and Housekeeping Pad

Design floor drains with trapped sumps sized for full test flow plus safety margin; splash guards around test headers prevent slip hazards. I slope housekeeping pads 1% toward a grated trench, keeping walkways dry. Mark spill kits and absorbents clearly; reserve wall space for maintenance tools.

Lighting, Color, and Visual Hierarchy

Deliver 500–750 lux maintained at gauge faces and controller panels (IES task lighting baseline), 300–400 lux general ambient. Use 4000–4500K neutral white for color fidelity. Control glare with matte finishes; avoid glossy epoxy near inspection zones. Keep walls light neutral, reserve safety red for valve handles and emergency signage so critical elements pop without visual noise. Labeling should follow a left‑to‑right hierarchy: source, isolation, device, destination.

Acoustic Comfort and Human Factors

Pumps under test are loud. Add mineral wool lining to doors, resilient mounts under bases, and perforated acoustic panels on parallel walls to reduce reverberation. Maintain NC 40–45 where feasible so voice communication remains intelligible during inspections. Provide anti‑fatigue mats at inspection stations, clear kneeling space at strainers, and reach ranges consistent with ergonomics guidance (generally 28–48 in above finished floor for most frequent tasks).

Fire Protection and Passive Measures

Paradoxically, the fire pump room needs its own protection strategy. Use non‑combustible finishes, 2‑hour rated separations where required, and keep combustible storage out. Provide heat detectors, monitored valves, and signage visible from the corridor. Install emergency lighting with a distinct circuit and test monthly.

Flow Testing, Commissioning, and Documentation

Plan your testing route on the drawing: from pump discharge to test header or meter loop, then to safe discharge. Indicate sampling ports for pressure transducers, and provide calibrated gauge locations (suction, discharge, house system). Include a commissioning checklist sheet: rotation check, alignment tolerance, insulation resistance, controller auto/start/overload tests, valve sequencing, and alarm signaling to the fire panel.

Maintenance-Friendly Layout Strategies

Think in life‑cycle terms. Place strainers, gauges, and test cocks on the aisle side. Align the pump and motor to allow pull space equal to shaft length plus coupling. Keep the jockey pump accessible without stepping over pipework. Consolidate labeling on a single reference wall with laminated schematics for quick orientation.

Common Coordination Pitfalls

Top three clashes I see: low overhead mains conflicting with controller clearance; drain routing that back‑vents odors into the room; and cable trays crossing lift points above motors. Resolve in the BIM coordination set and mark “no build” zones over extraction paths.

Submittals, Schedules, and Notes on Drawings

Require manufacturer curves, NPSH required charts, vibration isolator cut sheets, flexible connector ratings, controller wiring diagrams, paint schedules with chemical resistance, and anchor bolt patterns. On the plan, provide a legend for valve tags, flow directions, and testing points; in schedules, include material, rating, and finish for every component.

FAQ

What minimum clearance should I show around the fire pump and controller?

Provide at least 36 in clear working space around the pump, strainers, and controller fronts; 42–48 in is better in high‑service environments.

How much illumination is adequate for gauges and panels?

Target 500–750 lux at task positions, 300–400 lux ambient, with 4000–4500K color temperature for accurate reading per IES task lighting practice.

Where should the test header be located?

On the discharge side with clear hose routing to a safe drain or flow meter loop. Show straight pipe runs to improve measurement accuracy.

How do I reduce vibration transmission to the building?

Use inertia bases 1.5–2.0× equipment mass with spring isolators at 2–3 Hz, flexible connectors on piping, and epoxy‑grouted anchors.

What is a safe NPSH margin?

Maintain at least 3 ft above the pump’s NPSH required at design flow to avoid cavitation, and keep suction piping short and straight.

Should I separate power and signal conduits?

Yes. Maintain 12 in separation and cross at 90° to minimize interference; route power feeders away from potential flooding.

What door size and swing are recommended?

Use outward‑swinging doors with minimum 42 in clear width and panic hardware for quick egress and equipment removal paths.

How do I plan for motor pull space?

Reserve clear space equal to shaft length plus coupling width directly in line with the shaft. Mark it as a no‑obstruction zone on the plan.

What acoustic treatments help during testing?

Resilient mounts, mineral wool door liners, and perforated acoustic panels reduce reverberation, keeping communication intelligible (NC 40–45).

Which finishes are best for a pump room?

Non‑combustible, matte surfaces: epoxy floors with anti‑slip aggregates, light‑neutral wall paints for legibility, and corrosion‑resistant metals.

What labeling convention improves quick diagnosis?

Left‑to‑right sequence: source → isolation → device → destination. Reserve red for emergency devices to strengthen visual hierarchy.

Do I need emergency lighting?

Yes. Provide dedicated emergency lighting circuits and test monthly; mark egress paths clearly and keep aisles unobstructed.
