Fire Safety and Building Code Rules for Exit Placement in Floor Plans: Understand the safety logic and code requirements that determine where exits must be placed in architectural floor plans.

Direct Answer

Building codes regulate exit placement in floor plans to ensure people can evacuate safely during emergencies such as fires. Most regulations define the minimum number of exits, maximum travel distance to an exit, required exit width, and protected egress routes. Following these rules reduces evacuation time and prevents dangerous bottlenecks.

Quick Takeaways

1. Most buildings require at least two exits once occupant load exceeds a defined threshold.
2. Travel distance limits ensure occupants can reach an exit before smoke or fire spreads.
3. Exit width is calculated based on occupant load and accessibility standards.
4. Protected corridors and fire-rated walls keep escape paths usable during emergencies.
5. Early floor plan checks prevent expensive redesigns later in construction.

Introduction

In more than a decade of interior and architectural planning work, one mistake I still see surprisingly often is treating exits as a late-stage design decision. In reality, building code exit requirements floor plan decisions should happen at the earliest layout stage. If exits are positioned incorrectly, the entire circulation strategy of the building can fail compliance.

Clients usually focus on aesthetics or space efficiency first. But the moment occupancy increases, fire safety exit placement rules begin driving the design. Corridor length, door width, stair placement, and even furniture layout can influence whether a plan passes inspection.

One practical way to evaluate circulation early is to experiment with different layouts using tools that help visualize escape routes, such as a step by step workflow for creating a clear evacuation friendly layout. Seeing how people move through the space often reveals compliance issues long before the permit review stage.

In this guide, I'll walk through the key regulations designers and property owners should understand: exit counts, travel distance limits, width requirements, and protected routes. These are the factors that determine whether a floor plan is simply functional—or legally safe.

save pin

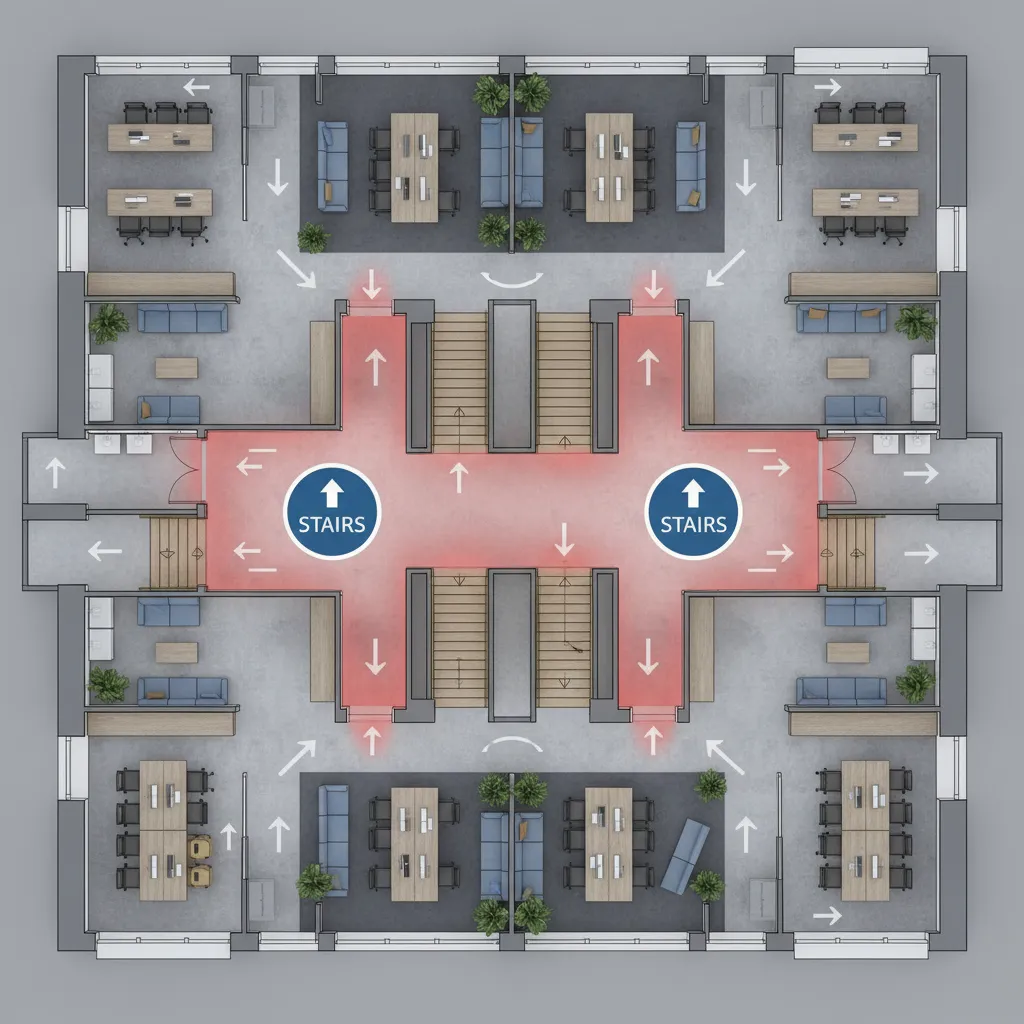

Why Building Codes Regulate Exit Placement

Key Insight: Exit placement rules exist because evacuation time, not just exit quantity, determines survival during a fire.

Modern building codes such as the International Building Code (IBC) and NFPA Life Safety Code were shaped by historical disasters where inadequate exits caused high casualties. Regulations now focus on ensuring occupants can quickly reach a safe route away from fire and smoke.

Three safety principles guide most codes:

1. Redundancy: Multiple exits prevent a single blocked path from trapping occupants.
2. Distribution: Exits must be spaced apart so people can access them from different directions.
3. Protected paths: Escape routes must remain usable even during fire conditions.

For example, the International Code Council requires exit separation so that two exits cannot be placed too close together. If they were, a single fire event could block both simultaneously.

This is why experienced designers rarely "add exits later." Instead, exits shape circulation from the beginning.

Minimum Number of Exits Based on Occupant Load

Key Insight: The number of required exits increases as occupant load grows, ensuring evacuation can occur without dangerous crowding.

Occupant load is calculated by dividing floor area by the occupancy factor defined in building codes. Once that number rises above certain thresholds, additional exits become mandatory.

Typical guidelines from the International Building Code include:

1. 1 exit allowed for very small occupant loads
2. 2 exits required for most commercial or assembly spaces
3. 3 or more exits required for large occupant loads

Example simplified thresholds:

1. Up to ~49 occupants: one exit may be allowed
2. 50–500 occupants: minimum two exits
3. Over 500 occupants: three or more exits

However, real projects often require more exits due to travel distance limits or building layout complexity.

A common hidden mistake I see: designers calculate occupant load correctly but forget that furniture density can change the classification. For instance, a training room with tables has a higher occupant factor than a storage area.

save pin

Maximum Travel Distance to an Exit

Key Insight: Building codes limit how far someone can travel before reaching an exit, because smoke spreads faster than most people expect.

Travel distance regulations prevent overly long corridors or deep interior spaces that trap occupants far from exits.

Typical limits vary by building type:

1. Offices: roughly 200–300 feet
2. Sprinklered buildings: sometimes extended to around 300 feet
3. High-risk occupancies: significantly shorter limits

These distances are measured along the natural walking path—not straight-line distance.

In practice, this often forces designers to add a second exit corridor or stairwell earlier than expected. I've seen retail layouts fail inspection simply because a stockroom was positioned too deep behind the sales floor.

Planning circulation with a clear path grid helps avoid this issue. Many teams simulate these paths while developing layouts through workflows similar to a process designers use to quickly draft compliant floor layouts.

Answer Box

The safest floor plans place exits early in the design process, distribute them across the building, and ensure travel distances stay within code limits. Exit count, width, and protection must always match occupant load and building type.

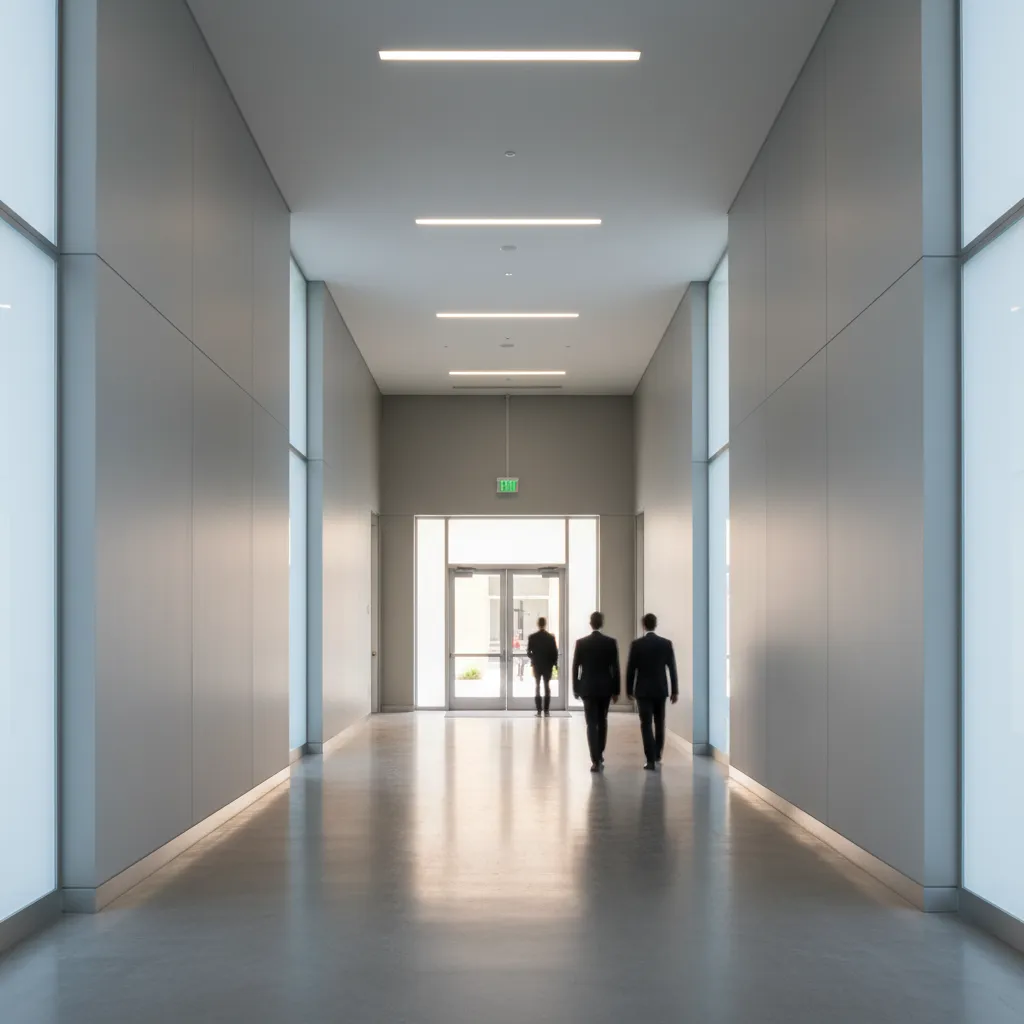

Exit Width and Accessibility Requirements

Key Insight: Exit doors and corridors must be wide enough to evacuate the full occupant load quickly and safely.

Exit width calculations typically follow formulas defined in life safety codes. These formulas allocate a minimum width per occupant for both doors and stairs.

Typical considerations include:

1. Minimum door width requirements
2. Corridor width for emergency movement
3. Wheelchair accessibility under ADA standards
4. Panic hardware requirements for assembly spaces

For example:

1. Most exit doors must provide at least 32 inches of clear width.
2. Corridors often require a minimum of 44 inches in many commercial occupancies.

Designers also must ensure doors swing in the direction of travel when occupant load exceeds certain thresholds.

save pin

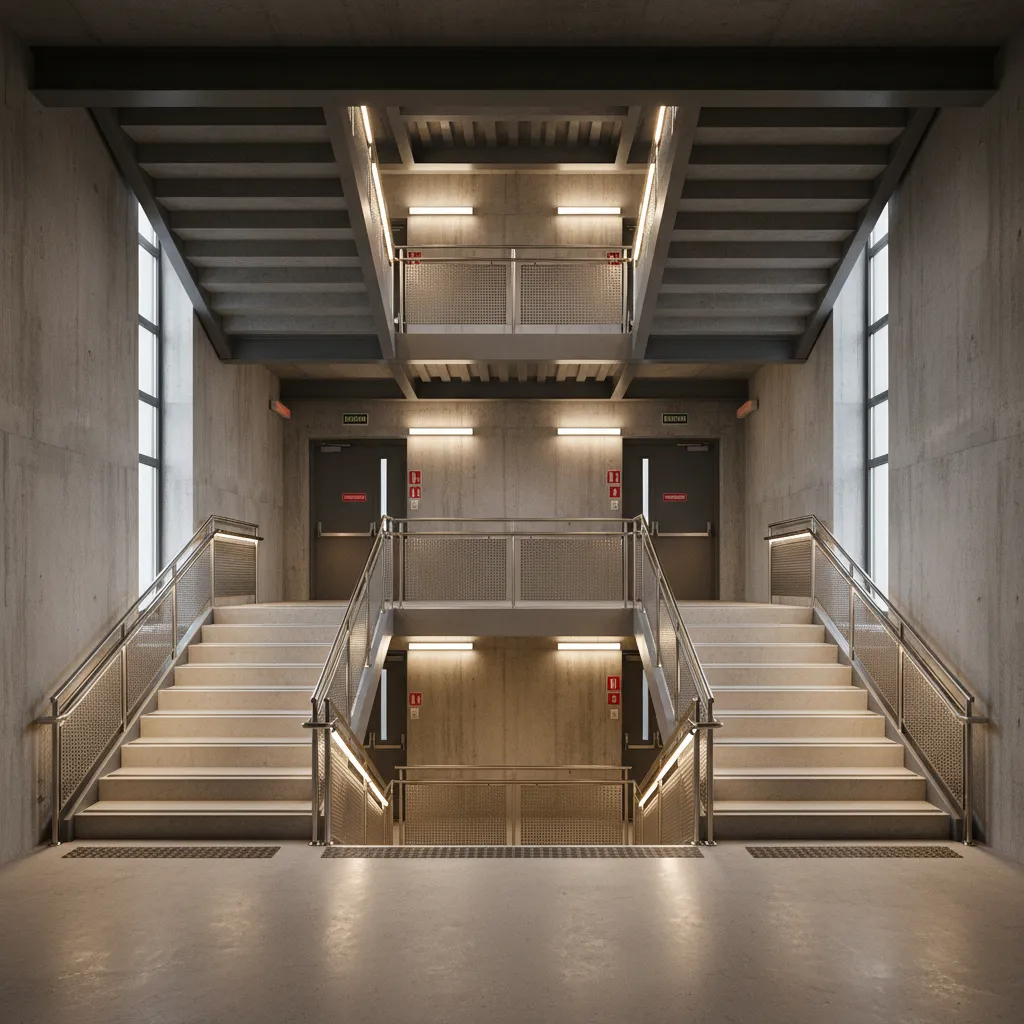

Fire Separation and Protected Exit Routes

Key Insight: Exit paths must remain usable during fire conditions, which is why many require fire-rated construction.

Codes typically require exits to connect to protected routes such as enclosed stairwells or fire-rated corridors. These features slow the spread of flames and smoke.

Common protective elements include:

1. Fire-rated corridor walls
2. Smoke barriers
3. Pressurized stairwells in taller buildings
4. Self-closing fire doors

According to NFPA guidance, protected exit routes dramatically increase evacuation success because they delay smoke infiltration.

This is especially critical in multi-floor environments like offices. When planning circulation, many designers begin with exit stair placement and then develop workspace zones around it using strategies similar to those found in an approach professionals use when organizing office circulation and safety paths.

save pin

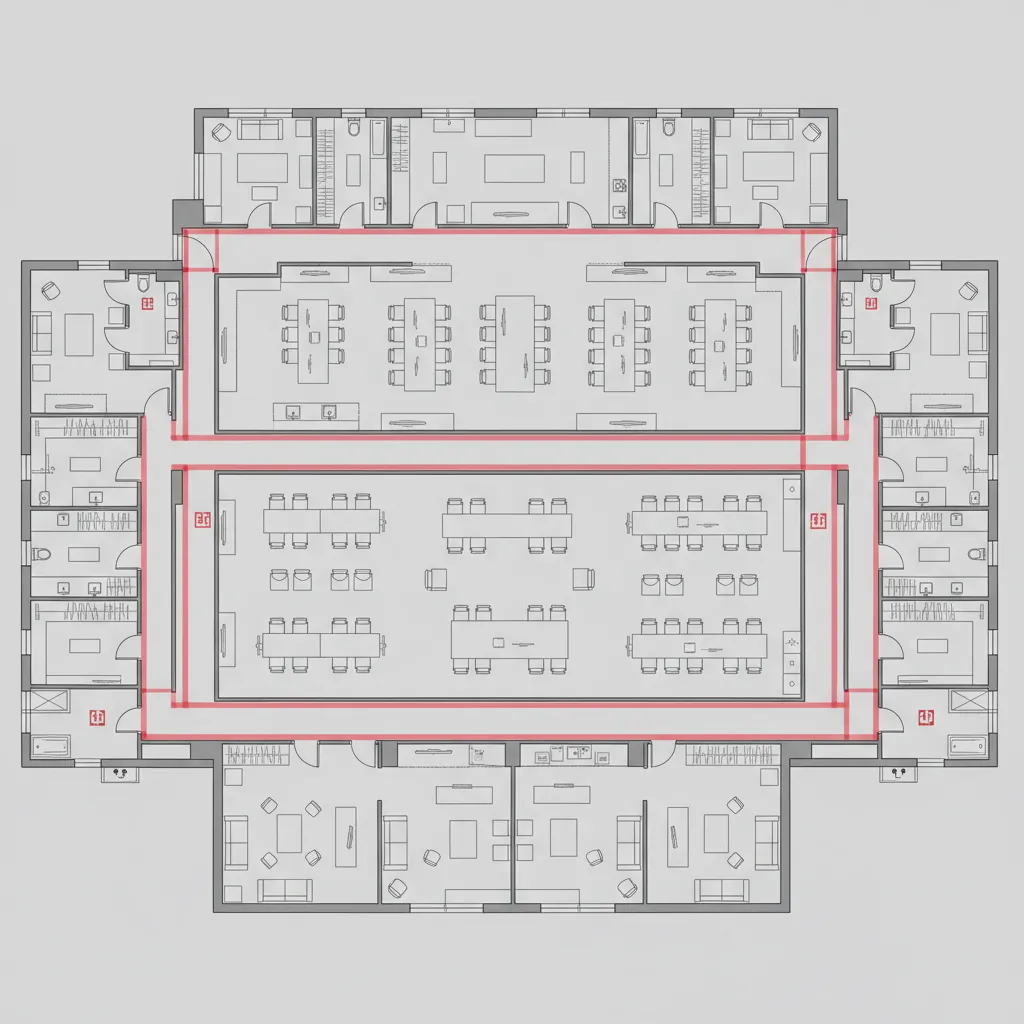

How to Check Your 2D Floor Plan for Code Compliance

Key Insight: Early compliance checks during schematic design prevent costly redesign during permit review.

Before submitting a plan for approval, designers usually verify several safety factors.

Practical compliance checklist:

1. Calculate occupant load for each space
2. Confirm minimum number of exits
3. Measure travel distance to exits
4. Verify exit width calculations
5. Ensure exit routes are protected
6. Confirm accessibility standards

One overlooked cost factor: moving a stairwell late in construction can affect structural systems, elevators, and mechanical shafts. That’s why experienced planners validate egress paths during the earliest layout sketches.

Final Summary

1. Exit placement is driven by occupant load and evacuation time.
2. Travel distance limits prevent occupants from being trapped deep inside buildings.
3. Exit width must accommodate the full occupant load safely.
4. Protected corridors and stairs keep evacuation routes usable during fire events.
5. Early compliance checks prevent expensive redesigns.

FAQ

How many exits are required in a building floor plan?

Most buildings require at least two exits once occupant load exceeds about 49 people, though exact requirements depend on building type and local codes.

What is the maximum travel distance to an exit?

Travel distance limits typically range from 200 to 300 feet depending on occupancy type and whether the building has sprinklers.

Do small buildings need two exits?

Very small buildings with low occupant loads may be allowed a single exit, but many commercial spaces still require two for safety.

What are building code exit requirements for a floor plan?

Codes define exit count, spacing, travel distance limits, exit width, accessibility requirements, and fire-rated escape routes.

Why must exits be far apart?

Separation ensures a single fire or hazard cannot block all exits simultaneously.

How is occupant load calculated?

Occupant load equals floor area divided by occupancy factor specified by building codes.

What makes an exit route compliant?

An exit must connect to a protected path leading directly outside or to a safe discharge area.

Do fire code requirements for floor plans differ by building type?

Yes. Offices, schools, hospitals, and retail spaces each follow different occupancy rules and safety thresholds.
