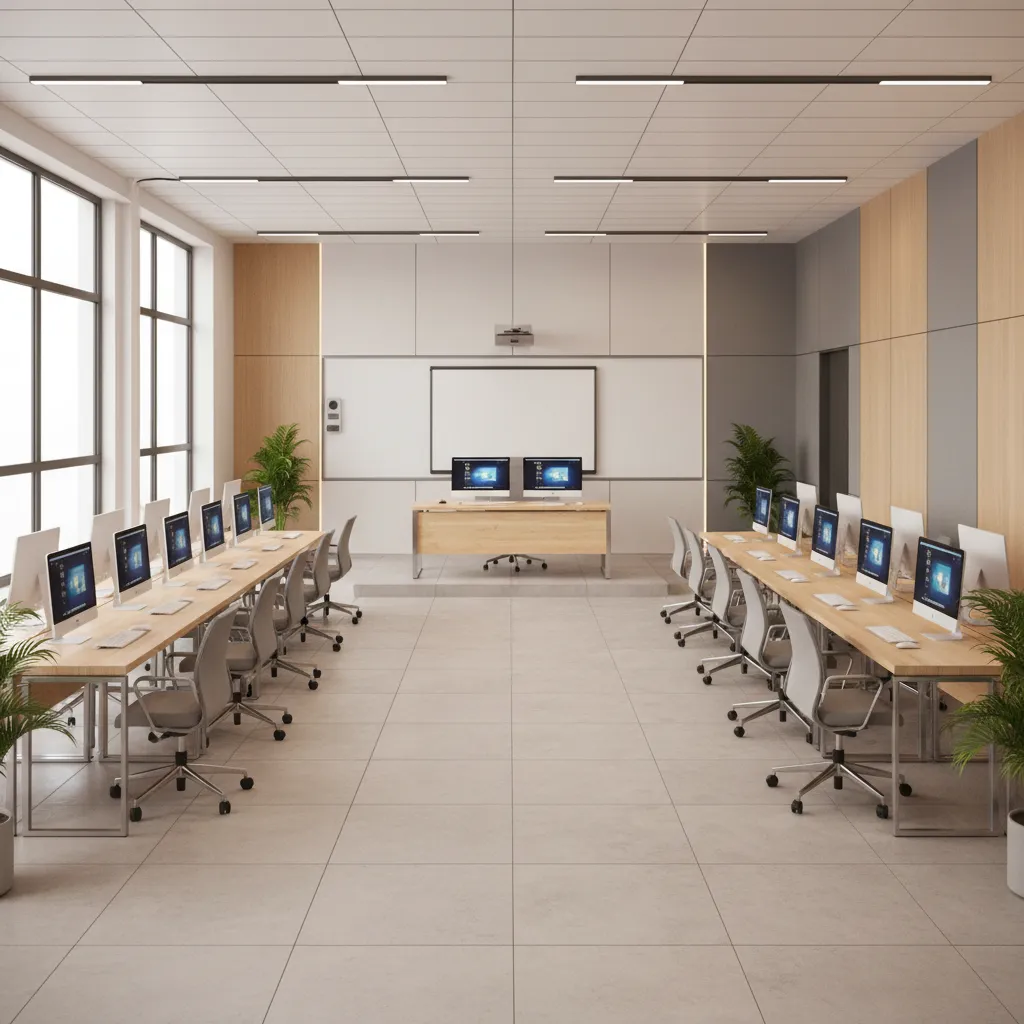

Floor plan computer lab design layout: Creating the Perfect Computer Lab: Layout and Design Tips

Direct Answer

A well‑planned computer lab design layout floor plan organizes computers, circulation paths, instructor visibility, and power access into a balanced system. The best layouts prioritize clear supervision lines, safe cable management, and flexible workstation clusters that support both individual and collaborative work.

In most schools and training centers, the most effective computer lab layouts use perimeter workstation rows, a central instructor zone, and wide walkways that allow easy monitoring and movement.

Quick Takeaways

1. Perimeter workstation layouts improve supervision and reduce cable clutter.
2. Each workstation should allow at least 36 inches of circulation space.
3. Instructor visibility matters more than maximizing the number of computers.
4. Power access planning is often the hidden cost in computer lab projects.
5. Flexible layouts support both teaching demonstrations and independent work.

Introduction

Designing a computer lab design layout floor plan sounds straightforward until you actually try fitting twenty or thirty computers into a room that also needs visibility, airflow, cable routing, and safe movement paths. After working on multiple education and training center projects over the past decade, I’ve learned that the biggest mistakes usually happen before furniture is even ordered—during the floor planning stage.

Most labs fail not because of technology, but because of poor spatial logic. Students can’t see the instructor, cables run across walkways, or the room becomes impossible to supervise.

In this guide, I’ll break down the layout strategies that consistently work in real computer labs—from schools and universities to corporate training rooms—and explain the design decisions most online guides overlook.

save pin

Why the Floor Plan Determines Whether a Computer Lab Works

Key Insight: A computer lab succeeds or fails primarily because of its spatial layout, not the equipment inside it.

Many institutions focus heavily on hardware specifications, but the physical arrangement of the room determines usability. In poorly planned labs, instructors cannot see screens, students block walkways, and maintenance becomes difficult.

From real projects, the most common layout failures include:

1. Too many workstations squeezed into limited space
2. Instructor desk positioned with poor visibility
3. Insufficient cable routing paths
4. Blocked emergency exits or tight circulation

Education facility planning guidelines from organizations such as EDUCAUSE emphasize that visibility, accessibility, and circulation should be prioritized before equipment density.

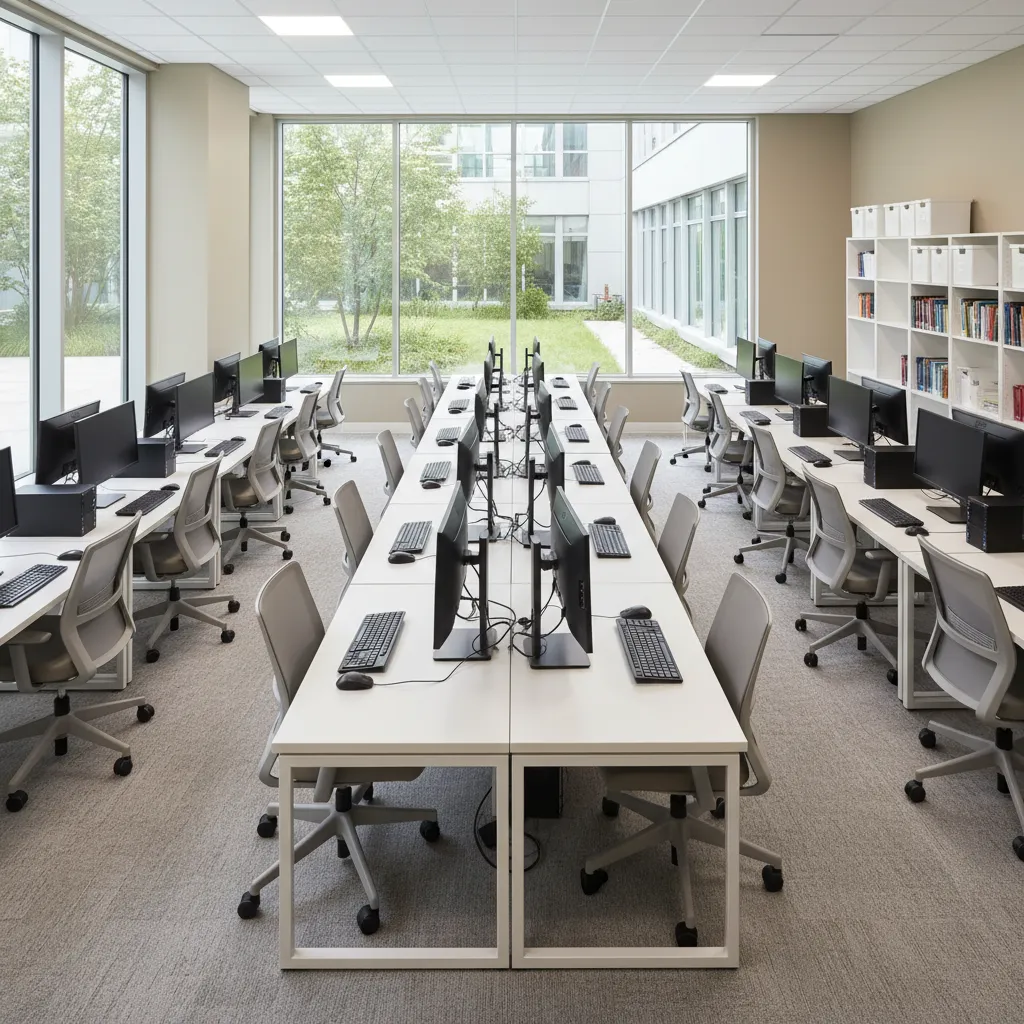

What Are the Most Effective Computer Lab Layout Types

Key Insight: Three layout types consistently outperform others in usability and supervision.

In my experience designing training spaces, most successful computer labs fall into three spatial patterns.

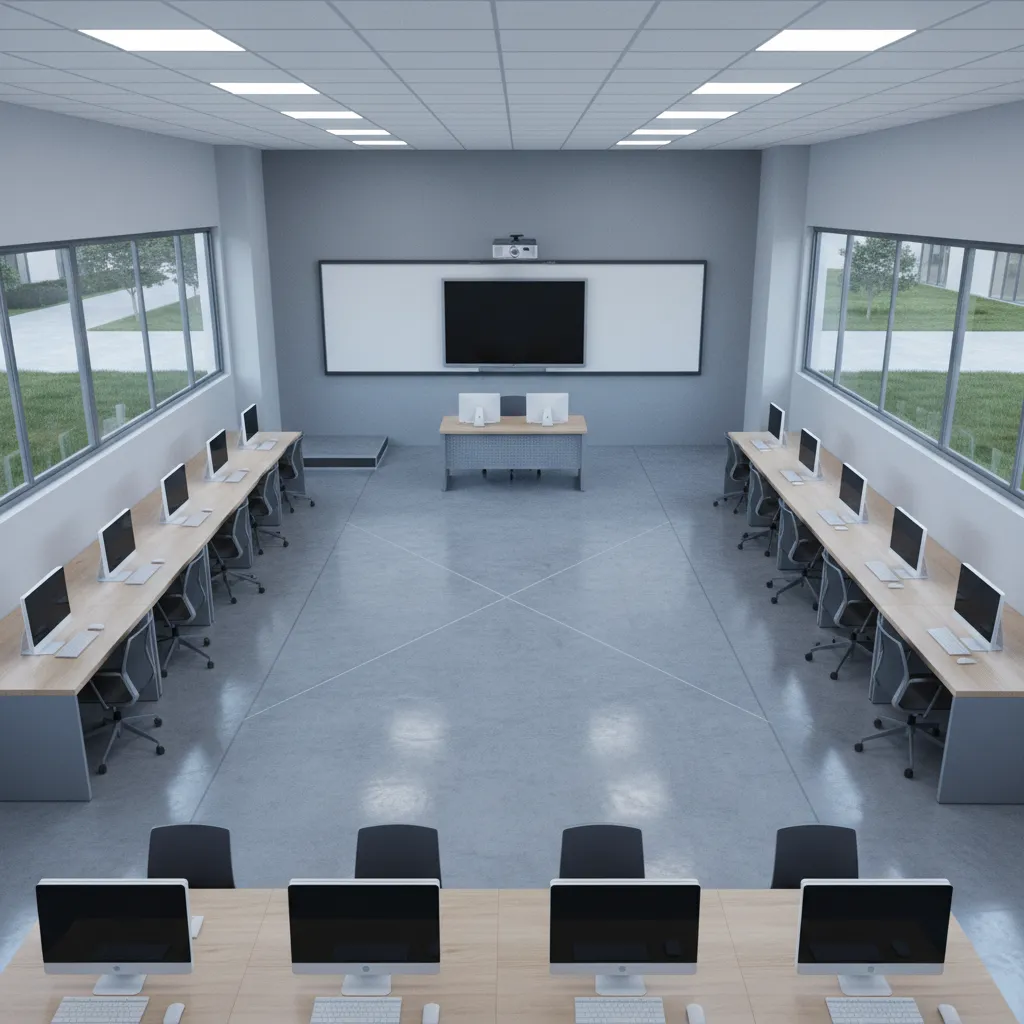

1. Perimeter Layout
2. Computers line the walls while the center remains open for movement and teaching.
3. Pod Layout
4. Small workstation clusters encourage collaboration.
5. Row Classroom Layout
6. Traditional forward‑facing rows support lecture‑style teaching.

Perimeter layouts are especially popular in K‑12 labs because teachers can monitor every screen from the center of the room.

save pin

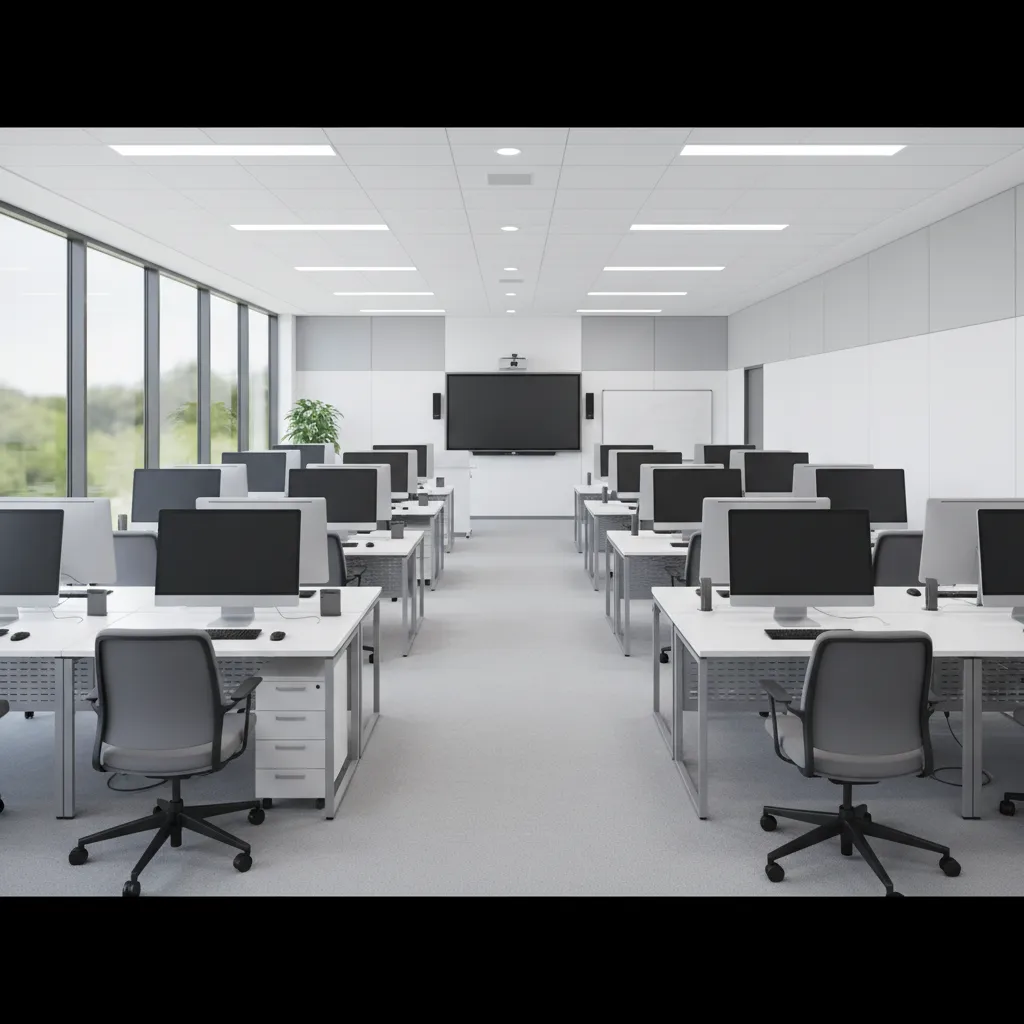

How Much Space Does Each Computer Workstation Need

Key Insight: A comfortable computer lab workstation typically requires 30–36 inches of width and at least 42 inches of circulation space behind the chair.

One mistake I see often is designing based on desk size instead of user movement. A workstation might technically fit, but students won’t be able to move comfortably.

Typical planning guidelines:

1. Desk width per user: 30–36 inches
2. Desk depth: 24–30 inches
3. Chair clearance behind desk: 42 inches
4. Main circulation aisle: 48–60 inches

These dimensions come from common classroom planning standards used in universities and public schools.

save pin

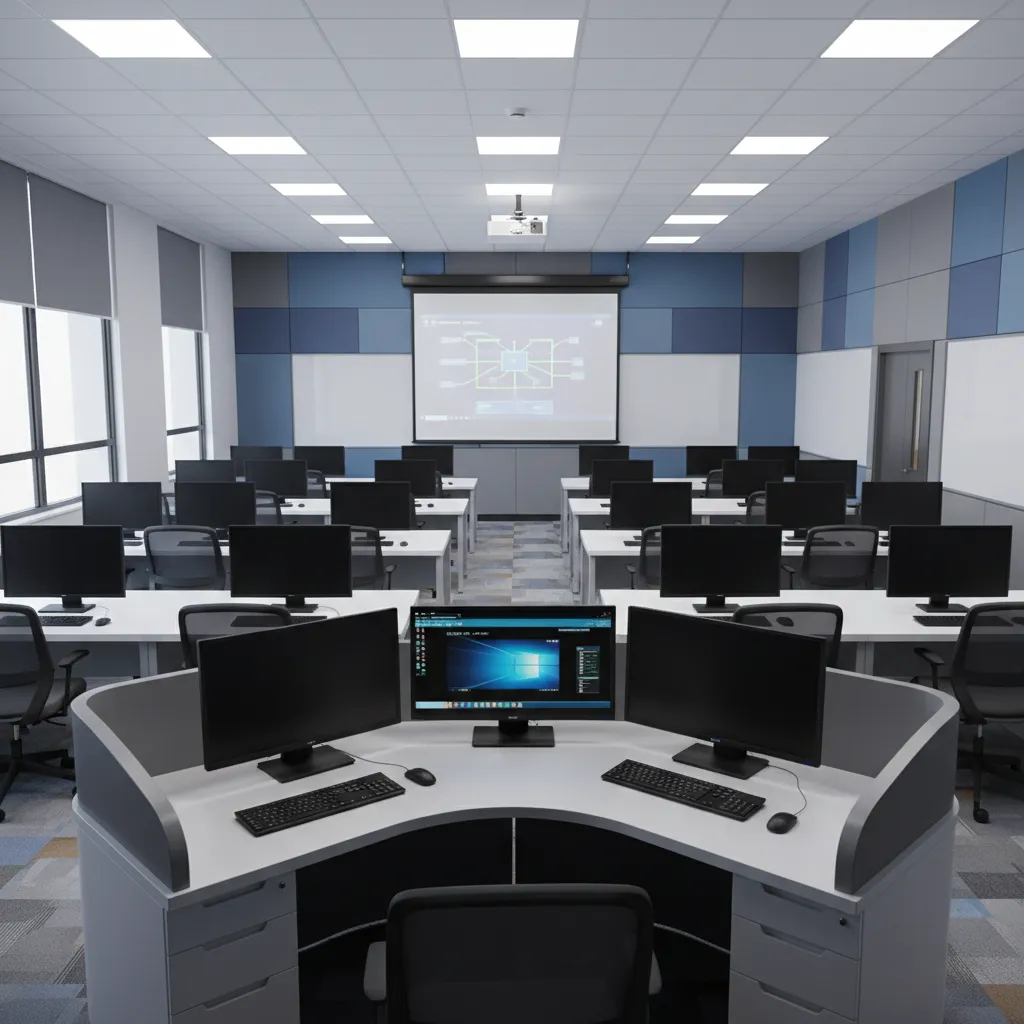

Where Should the Instructor Station Be Located

Key Insight: The instructor station should control sightlines to every screen while maintaining easy access to the entrance.

In well‑designed labs, instructors rarely stand still. They walk, monitor screens, assist students, and control presentations.

The most effective instructor station placement includes:

1. Front center facing the room
2. Slightly elevated visibility if possible
3. Direct line of sight to all monitors
4. Nearby projector or display control

In many modern training labs, instructors also use wireless screen sharing tools, which makes visibility even more important.

save pin

Hidden Design Problems Most Computer Lab Plans Ignore

Key Insight: Cable routing and power distribution often become the most expensive corrections after construction.

This is a detail many online guides skip, but in real projects it’s a major issue. If power outlets are poorly positioned, extension cables quickly create safety hazards.

Common overlooked problems include:

1. Insufficient floor outlets
2. Network switch placement
3. Poor ventilation around equipment
4. Inaccessible maintenance zones

Professional labs usually solve this with floor boxes, cable trays, or raised flooring systems.

Answer Box

The most effective computer lab design layout floor plan balances supervision, workstation spacing, and infrastructure planning. Perimeter workstation layouts with central circulation and clear instructor sightlines consistently produce the most functional computer labs.

How to Plan a Computer Lab Layout Step by Step

Key Insight: Starting with circulation paths instead of furniture leads to more functional lab layouts.

When planning a computer lab floor plan, I usually follow a sequence that avoids common layout mistakes.

1. Measure the room and mark doors, windows, and exits.
2. Define main circulation aisles first.
3. Place instructor station for full visibility.
4. Add workstation rows or perimeter desks.
5. Plan power, data, and cable routing.
6. Check supervision lines and adjust spacing.

This process ensures the room functions properly before maximizing computer capacity.

Final Summary

1. Computer lab success depends more on layout than equipment.
2. Perimeter workstation layouts improve supervision.
3. Each workstation needs adequate movement space.
4. Instructor visibility must guide the floor plan.
5. Power and cable planning prevents expensive fixes.

FAQ

What is the best computer lab design layout floor plan?

Perimeter workstation layouts are widely considered the most effective because instructors can monitor all screens while maintaining open circulation space.

How many computers should a lab have?

It depends on room size. A typical classroom lab fits 20–30 computers while maintaining safe walkways and proper spacing.

What size should a computer lab be?

Many schools plan about 35–45 square feet per workstation to allow desks, chairs, and circulation.

How wide should aisles be in a computer lab?

Main circulation aisles should be at least 48 inches wide to allow safe movement and accessibility.

Should computers face the wall in a lab?

Often yes. Wall‑facing layouts reduce distraction and allow teachers to monitor screens from behind students.

What furniture works best for computer labs?

Durable modular desks with integrated cable management are commonly used in modern labs.

Can a computer lab support collaborative learning?

Yes. Pod‑style workstation clusters allow group learning while maintaining computer access.

Why is a computer lab floor plan important?

A well‑planned computer lab design layout floor plan improves supervision, safety, workflow, and long‑term maintenance.
