Floor Plan Science Lab Layout Design: Creating Effective and Functional Science Lab Spaces

Direct Answer

A well-designed floor plan for a science lab organizes workstations, safety zones, storage, and teacher visibility into a logical circulation pattern. The most effective layouts prioritize safety access, clear movement paths, and flexible work areas that support both demonstrations and group experiments.

In practice, modern science lab layout design usually combines perimeter workstations, a central collaboration zone, and clearly separated chemical storage and safety equipment.

Quick Takeaways

1. A science lab floor plan must prioritize safety access before aesthetics.
2. Clear traffic flow prevents accidents and improves classroom supervision.
3. Flexible workstations support group experiments and evolving curricula.
4. Proper zoning for chemicals, sinks, and equipment reduces operational risks.
5. Teacher visibility across the entire room is a key design requirement.

Introduction

After working on multiple educational facility projects, I have learned that designing a floor plan science lab layout designis very different from designing a normal classroom. A science lab must balance safety, functionality, and flexibility. Many schools underestimate how much the layout affects supervision, student collaboration, and even accident prevention.

In several renovation projects I consulted on, the biggest issue wasn't equipment or technology—it was circulation. Students clustered around sinks, emergency access was blocked by stools, and storage areas were poorly positioned.

This guide breaks down the layout principles I consistently use when planning modern school laboratories so the space works safely and efficiently for both teachers and students.

save pin

Why Is Floor Plan Science Lab Layout Design So Important?

Key Insight: The lab layout directly impacts safety, supervision, and experiment efficiency more than any equipment choice.

In a typical classroom, furniture can move around freely. In a science lab, fixed infrastructure—gas lines, sinks, fume hoods, and storage—locks the layout into place. That means mistakes in the planning phase become long‑term operational problems.

From my experience working with school planners, three factors drive layout decisions:

1. Safety compliance and emergency access
2. Teacher sightlines across student stations
3. Efficient access to utilities such as water and gas

According to the National Science Teaching Association guidelines, science labs should allow unobstructed pathways to safety stations like eyewash units and safety showers. A poorly planned layout can violate those requirements.

What Are the Most Effective Science Lab Layout Types?

Key Insight: The best science lab layouts usually follow one of four tested configurations depending on class size and teaching style.

Across most school projects, I repeatedly see four layout models used because they balance supervision and collaboration effectively.

1. Perimeter Layout – Workstations along walls with a central open space. Excellent for demonstrations and teacher control.

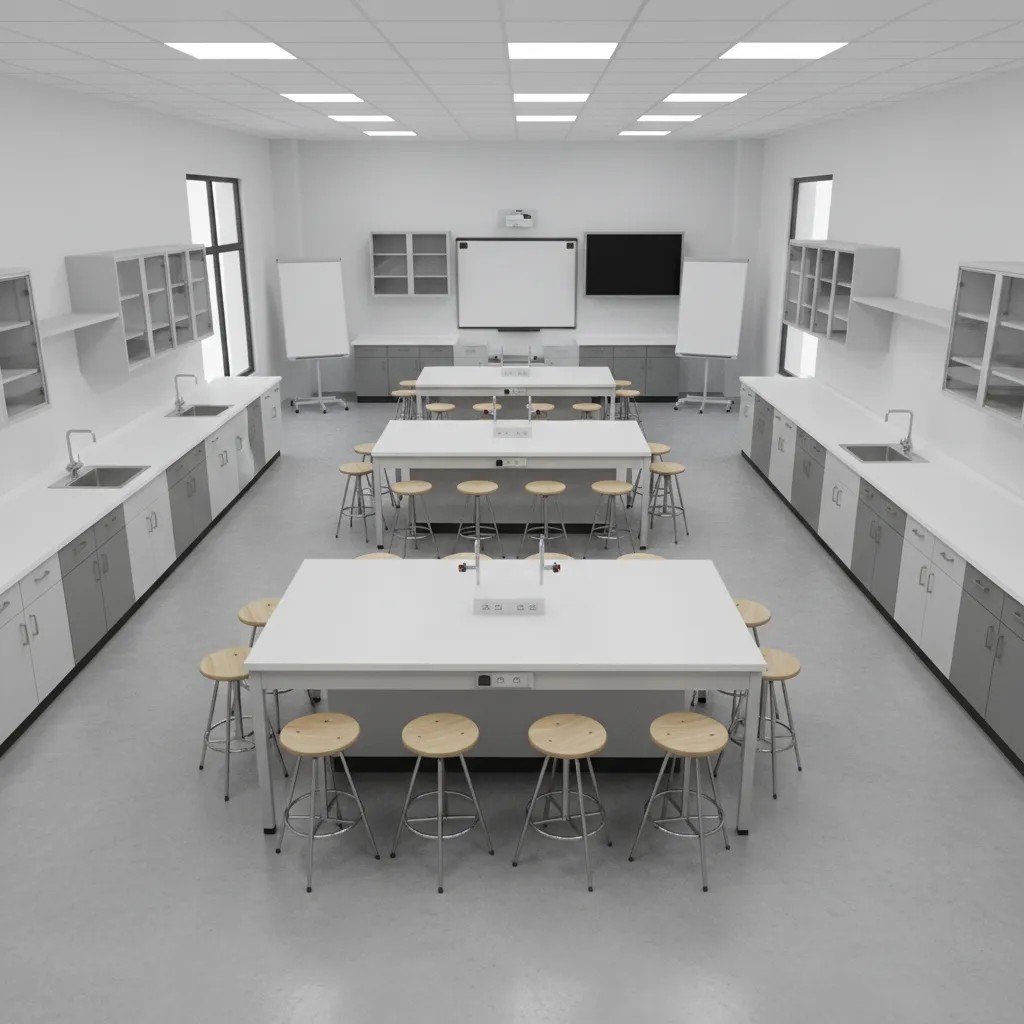

2. Island Layout – Large central tables for group experiments. Very common in STEM-focused schools.
3. Peninsula Layout – Work surfaces extend from walls creating semi‑group stations.
4. Hybrid Layout – Combines islands with perimeter counters for maximum flexibility.

In recent school renovations, the hybrid layout has become the most practical because it supports both collaborative projects and structured lab exercises.

save pin

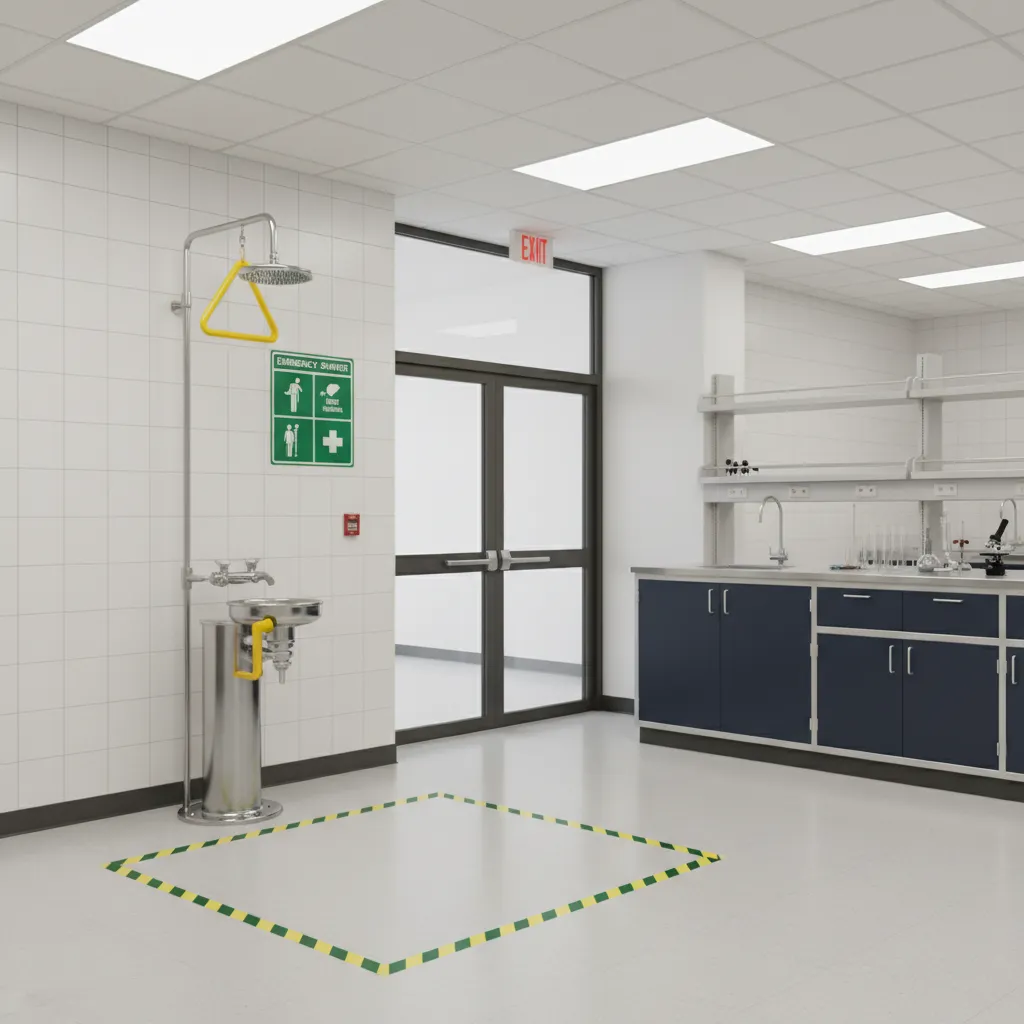

How Should Safety Zones Be Placed in a Lab Floor Plan?

Key Insight: Safety equipment must remain visible, unobstructed, and reachable within seconds from any workstation.

One of the most common mistakes I see in older labs is placing safety stations in corners or behind storage cabinets.

Instead, modern science lab layout design follows a clear safety zoning strategy:

1. Emergency shower and eyewash near main exit
2. Fire extinguisher close to teacher station
3. Chemical storage in ventilated cabinets away from student traffic
4. Clear 4–5 ft walkways for evacuation paths

These decisions aren't just about compliance—they dramatically reduce response time during accidents.

save pin

What Hidden Design Mistakes Ruin Many Science Lab Layouts?

Key Insight: The biggest science lab layout failures usually come from ignoring daily teaching behavior rather than safety codes.

After reviewing dozens of school labs, several recurring problems appear again and again.

1. Too many fixed benches limiting movement
2. Sinks placed only at the front of the room
3. Poor teacher visibility across islands
4. Insufficient storage near workstations
5. Blocked pathways during group activities

One subtle issue is "student clustering." When sinks or equipment are concentrated in one area, students crowd together during experiments, increasing accident risk.

A better solution is distributing smaller sink stations across the lab rather than centralizing them.

How Much Space Does a Modern School Science Lab Need?

Key Insight: Adequate circulation space is more important than adding more workstations.

Many schools try to maximize seating, but overcrowded labs become unsafe quickly.

Typical planning guidelines suggest:

1. 1,200–1,400 sq ft for a standard high school lab
2. 30–36 inches minimum between stools and counters
3. 48–60 inch main circulation aisles
4. Dedicated prep room connected to the lab

In projects where space was tight, reducing one workstation often improved safety and workflow more than squeezing in extra seating.

Answer Box

The most effective science lab floor plan combines perimeter counters, central workstations, and clearly accessible safety zones. A successful layout prioritizes visibility, circulation, and distributed utilities rather than simply maximizing the number of lab seats.

How Can a Science Lab Layout Stay Flexible for Future Changes?

Key Insight: Flexibility in lab design comes from movable elements and modular infrastructure.

Science education is changing rapidly. Robotics, electronics, and interdisciplinary STEM activities require different setups than traditional chemistry labs.

Design strategies that help labs stay adaptable include:

1. Mobile lab tables instead of fixed benches
2. Ceiling utility drops for power and gas
3. Modular storage systems
4. Shared demonstration and digital presentation zones

Several universities have moved toward "active learning laboratories" where furniture can be rearranged within minutes depending on the lesson.

Final Summary

1. Science lab layouts must prioritize safety circulation first.
2. Hybrid layouts offer the best balance of collaboration and supervision.
3. Distributed utilities reduce crowding during experiments.
4. Clear teacher sightlines improve classroom management.
5. Flexible furniture helps labs adapt to evolving STEM programs.

FAQ

What is the best floor plan for a science lab?

A hybrid layout combining perimeter counters with central islands is widely considered the most effective science lab floor plan for schools.

How big should a school science lab be?

Most modern labs range between 1,200 and 1,400 square feet for a class of 24 students.

Where should sinks be placed in a science lab?

Sinks should be distributed across multiple stations rather than concentrated in one area.

Why is circulation space important in lab layout design?

Proper circulation prevents congestion during experiments and ensures emergency equipment can be reached quickly.

What safety equipment must be included in a science lab floor plan?

Eyewash stations, safety showers, fire extinguishers, chemical storage, and clear evacuation routes.

Can science labs use movable tables?

Yes. Many modern science labs use mobile workstations to support flexible teaching styles.

What is the biggest mistake in science lab layout design?

Overcrowding the room with too many fixed benches and limiting circulation space.

How do teachers maintain visibility in large labs?

Layouts that keep islands low and pathways open allow teachers to see every workstation.

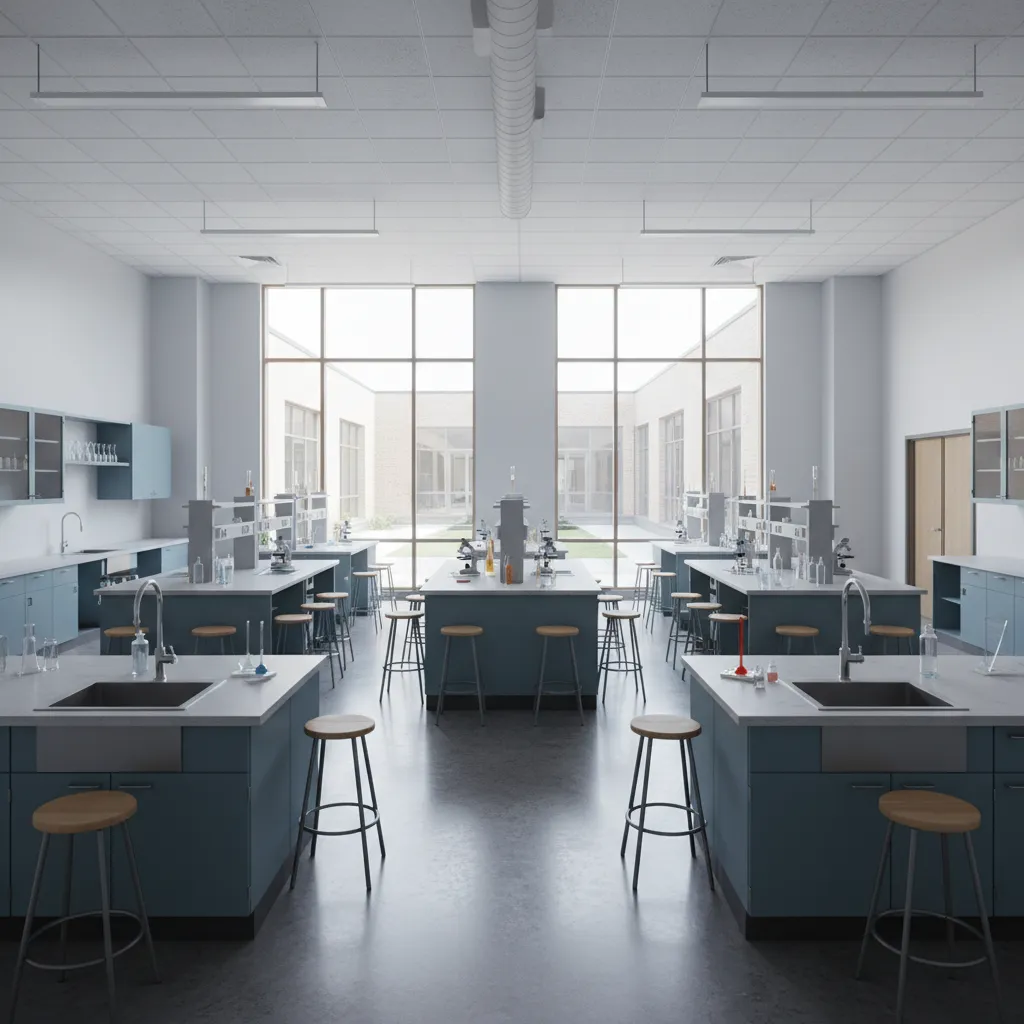

Featured Image
