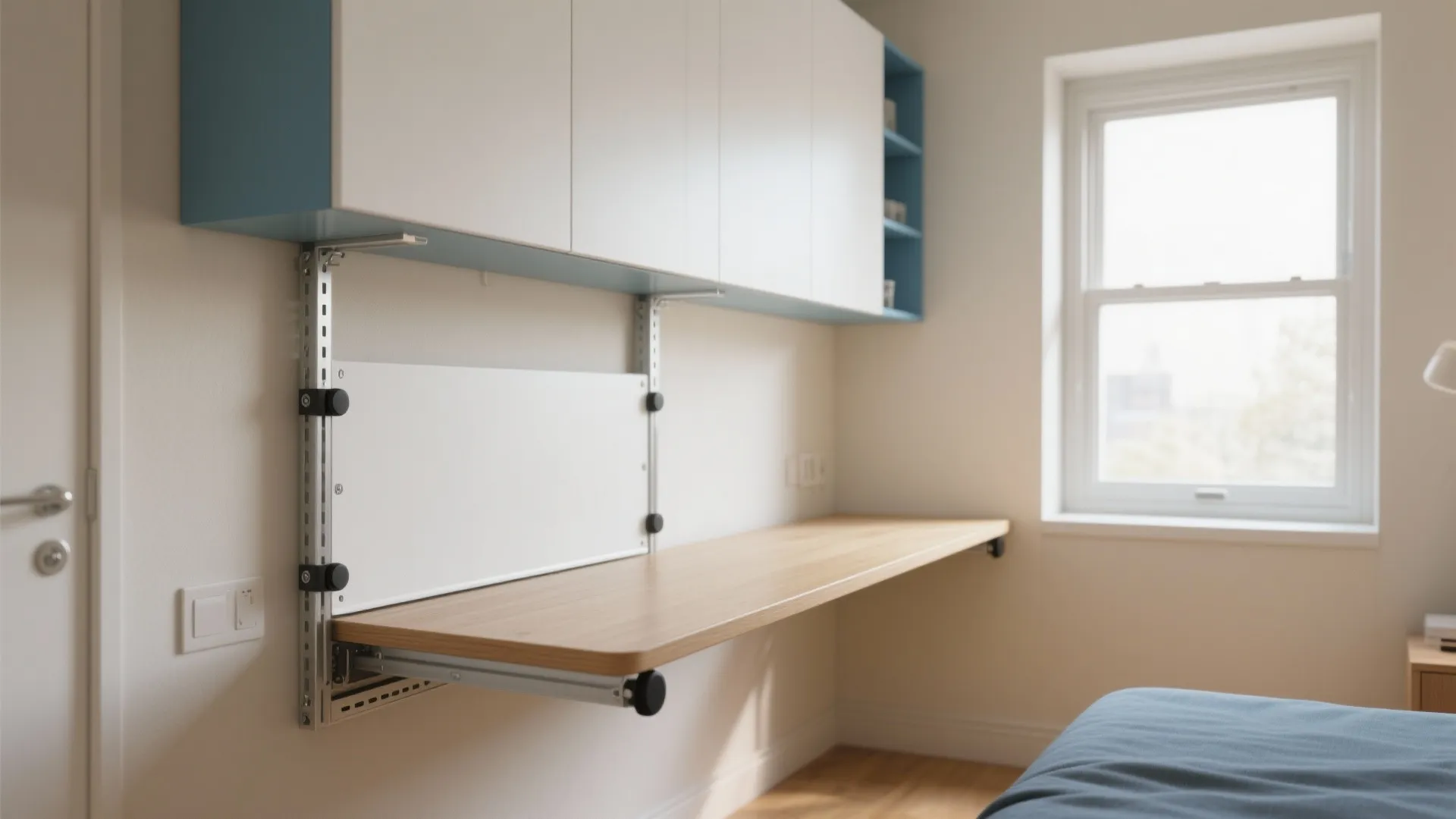

Foldable DIY Wall Mounted Folding Table Ideas for Small Spaces: Fast-Track Guide to Building a Foldable DIY Wall Mounted Folding Table in Under 1 Hour

Space is precious in studios, micro-apartments, home offices tucked into hallways, and compact kitchens. A wall-mounted folding table solves daily needs—work, dining, crafts—then stows away to free circulation. I’ve designed and installed dozens of these in tight floor plates, and the best results balance proper ergonomics, durable hardware, and clean integration with walls and storage.

Function must be grounded in human factors. A seated work or dining surface typically ranges from 28–30 inches high, and chair seat height averages 17–19 inches; this pairing supports neutral wrist posture and reduces shoulder elevation. WELL v2 places emphasis on ergonomic support and posture alignment and recommends adjustable work heights or task-specific ergonomics to mitigate musculoskeletal strain. Steelcase research shows postural variation and right-sized work heights increase comfort and reduce fatigue across longer sessions; a small table that sets you at 29 inches with knees clear under the surface hits that sweet spot. For tight kitchens, NKBA guidance places clearances at a minimum of 36 inches for walkway zones; a foldable table that collapses to under 4 inches deep helps preserve that required path.

Material and hardware choices directly affect longevity. I prefer 3/4-inch plywood or high-pressure laminate over MDF for better screw holding and warp resistance. For the folding mechanism, heavy-duty steel drop-leaf brackets rated above the table’s intended load—ideally 150 lbs or more—prevent sagging. Acoustic and tactile comfort matter too: a matte finish reduces glare and fingerprinting; rubber bumpers on contact points minimize noise on fold-down. Color can support behavior: Verywell Mind’s color psychology overview notes that blues tend to promote focus and calm, while warm neutrals keep spaces inviting without overstimulating. In compact areas, low-chroma palettes help the table visually recede when closed.

Design Goals: Compact, Stable, and Easy to Use

A successful wall-mounted folding table should meet three goals: small footprint when stowed, stable in use, and effortless operation. Aim for a folded depth under 4–5 inches, a locked open position with minimal wobble, and one-handed release tabs for daily convenience. If you plan to host two diners, target a 24–30 inch deep surface by 36–40 inches wide; for solo laptop work, 20–24 by 30 inches is sufficient. Keep knee clearance at 24 inches minimum from finished floor to underside of table hardware.

Layout Strategy in Tight Rooms

Placement dictates success. Mount the table on a load-bearing or well-blocked partition near natural light but away from door swing paths. Keep 42 inches clear in front of the table if two people will pass while it’s open; in single-user zones, 36 inches clearance works. In multi-function rooms, align the fold-down surface to face a focal wall to reduce distraction and glare. If you’re testing locations, a quick layout simulation tool can help visualize legibility and clearances before drilling.

room layout tool

Five DIY Concepts to Try

1) Minimal Drop-Leaf with Surface-Mounted Brackets

Use two heavy-duty folding shelf brackets, 3/4-inch plywood edged in hardwood, and a continuous piano hinge if you add a shallow top shelf. This is the fastest build and ideal for renters because it limits wall penetration to a few anchor points. Keep bracket spacing at roughly 16 inches on center and mount into studs; use 3-inch wood screws or appropriate toggle anchors if studs aren’t available.

2) Slim Shadow-Box Table with Hidden Storage

Build a 3-inch deep wall box that the table folds into, adding shallow compartments for notepads and cables. Use concealed torsion hinges or low-profile gas struts for assisted opening. This keeps the facade clean and allows soft-close behavior. Choose a durable laminate interior to resist scuffing.

3) Rail-and-Panel System for Modular Widths

Install a horizontal French cleat at 42–48 inches height and hang interchangeable panels with varied widths—24, 36, or 48 inches—to adapt for dining or solo work. A drop-down leg (folding, or telescoping) increases stability on wider spans. This is great for evolving needs in a small family home office.

4) Window-Aligned Laptop Perch

Mount a 20-inch deep narrow table under a window to use daylight without glare. Follow IES guidelines for task lighting—target about 300–500 lux on the work plane; add a 3000–3500K LED task light on the opposite wall to even out illumination at dusk and reduce contrast. A matte surface minimizes specular reflections.

5) Kitchen Café Fold-Down

Use water-resistant laminate or sealed hardwood top; round the front edge to reduce pressure on forearms. Position near power for a kettle or mini espresso, but keep 6–8 inches from outlets to avoid cord conflicts. Mount at 30 inches if used for dining, or 36 inches for a quick bar perch with stools—ensure footrests align to support neutral posture.

Ergonomics and Human Factors

Comfort is shaped by heights, reach distances, and sightlines. For a laptop table, keep the surface height roughly equal to elbow height when seated; pair with a separate laptop stand or an external keyboard to maintain neutral wrists. Maintain 18–20 inches clear knee depth and 24 inches width per user. If you use the table for crafts, consider a 34–36 inch standing height with an anti-fatigue mat and edge radius of at least 3mm to soften contact. For visual balance, align the table centerline with room axes and keep hardware symmetrical to reduce perceived clutter.

Lighting and Glare Control

In compact spaces, light quality affects perceived spaciousness. Target 300–500 lux on task surfaces for reading or computer work and keep color temperature around 3000–4000K to avoid harshness. Position fixtures to avoid direct views of LEDs when seated; add a small wall sconce above the folded panel to illuminate the area when open. If the table faces a window, angle the surface slightly or select a low-gloss finish to limit glare.

Acoustics and Quiet Operation

Small rooms amplify sound. Add soft bumpers where the table meets the wall, and install felt pads under fold-down legs. A slim cork panel behind the closed table can dampen mid-high frequency reflections, making conversations at the table less sharp. If the table doubles as a work zone, choose a top with high-density fiber core or plywood for a more solid, less drummy sound.

Material Selection: Durable and Sustainable

Plywood with FSC certification and water-based finishes keep VOCs low. High-pressure laminate resists spills and cleans easily. For a natural look, ash or oak veneer over birch core holds fasteners well. Edge-banding protects against delamination at corners. Consider recycled aluminum brackets to reduce embodied carbon.

Mounting, Anchors, and Safety

Locate studs with a reliable detector and pre-drill. In older buildings where studs are unpredictable, use steel toggle bolts rated above expected loads and limit tabletop width to reduce cantilever forces. Ensure the brackets lock positively in the open position and test with incremental loads. Keep sharp corners away from primary circulation paths; 2-inch corner radii prevent hip bumps.

Finishing Touches and Visual Rhythm

Color-match hardware to wall paint for a quieter look, or contrast in black for a graphic statement. Align the table’s closed panel with nearby picture frames or shelves for balanced rhythm. If the room is narrow, mount the table in line with existing datum heights—chair backs, window sills—to help the eye read the space as cohesive.

Maintenance and Daily Use

Check hinge screws quarterly, especially if the table sees daily action. Wipe with a damp microfiber cloth; avoid abrasive pads. Lubricate moving parts lightly with silicone spray to prevent squeaks. If a leg or bracket shows play, replace immediately—wobble is both annoying and unsafe.

Authority References for Better Outcomes

For ergonomic and wellness considerations, WELL v2 offers guidance on posture and task environments, and Steelcase research explores comfort and performance trends in small work settings. These resources reinforce the importance of correct heights, adjustable components, and light quality.

FAQ

1) What is the ideal height for a fold-down dining table?

Set it at 29–30 inches for standard dining chairs (seat height 17–19 inches), which supports neutral elbows and comfortable reach.

2) How deep should a wall-mounted table be for laptop work?

20–24 inches depth accommodates a laptop, external keyboard, and forearm support without crowding. Keep knee clearance at 18–20 inches.

3) Can I mount the table on drywall without studs?

Prefer studs whenever possible. If not, use steel toggle bolts rated above your expected load and limit tabletop width; test stability before daily use.

4) What lighting should I plan around the table?

Target 300–500 lux on the task surface with 3000–4000K LED lighting. Use matte finishes to reduce glare, and avoid direct views of the light source.

5) Which materials resist daily wear in kitchens?

High-pressure laminate or sealed hardwood tops clean easily and resist moisture. Edge-band corners to prevent chipping.

6) How do I reduce noise when folding the table?

Add rubber bumpers at contact points, felt pads under legs, and choose solid-core tops to minimize resonance.

7) What widths work for two people dining?

36–40 inches wide by 24–30 inches deep provides comfortable plate spacing and elbow room. Maintain at least 36 inches clearance in front.

8) Are gas struts worth it?

Yes for heavier panels or when you want assisted opening and soft-close. Select struts matched to panel weight and cycle-tested hardware.

9) How do I protect the wall when the table closes?

Install a slim backer board or cork panel behind the closed table and use bumpers to prevent scuffs.

10) What color should I choose for small spaces?

Low-chroma neutrals help the table visually recede; blues can support focus. Keep finishes matte or eggshell to control glare.

11) Can I convert the table to standing height?

Yes—set at 34–36 inches for crafts or short tasks. Pair with an anti-fatigue mat and keep edge radius soft for comfort.

12) How often should I check hardware?

Quarterly inspections catch loosening screws and bracket wear early. Lubricate hinges lightly to maintain smooth movement.
