Freezer Room Design: Optimizing Cold Storage for Your Space: Fast-Track Guide to Creating Efficient Freezer Rooms in Minutes

I design freezer rooms the way I plan operating theaters: precise zoning, robust envelopes, and systems that never guess. A good cold room minimizes thermal load, stabilizes product quality, and keeps staff safe and efficient—day after day. In high-performing facilities I’ve delivered, the biggest wins come from right-sizing volume, controlling infiltration, and aligning workflow with temperature zones rather than forcing operations to fight the room.

Cold storage is unforgiving, so early decisions need data. The WELL Building Standard highlights thermal comfort bands and air quality that intersect with cold environments and staff well-being; WELL v2 emphasizes air filtration and lighting quality that can reduce fatigue in task-heavy spaces. I also lean on lighting practice from IES, where recommended illuminance for detailed tasks typically sits around 300–500 lux in work zones; in freezer rooms, we achieve safe visibility with efficient, cold-rated fixtures while balancing glare and reflectance to avoid ice glare and shadows that slow picking. For workflow planning benchmarks, research from Steelcase notes that well-planned task lighting and sightlines can cut visual search time, which translates directly to shorter door-open times and reduced thermal loss.

Behavioral patterns matter. Gensler research on workplace efficiency shows that reducing friction in movement has a measurable impact on throughput. In freezer rooms, every second a door is open adds load; establishing a one-way flow, pre-stage areas, and clear sightlines reduces open-door dwell time. For color and cognition, Verywell Mind’s coverage of color psychology notes that blues can support calm and clarity; I translate this cautiously with high-visibility, cool-neutral signage and contrast stripes that remain legible under frost and bright task lighting.

Right-Size the Envelope

Volume is the single most expensive variable: you pay to hold cubic meters at subzero whether full or empty. I start by mapping peak inventory, turnover rate, and pallet dimensions, then design net internal height to match racking requirements without creating dead air above the top beam. Oversizing just 10% can inflate compressor run time and defrost cycles over the life of the room. Use insulated panel systems with continuous vapor barriers; specify panel thickness to climate and setpoint (e.g., 150–200 mm for -18°C to -25°C) and target airtightness at joints with cam-lock panels and heat-sealed door frames.

Thermal Zoning and Workflow

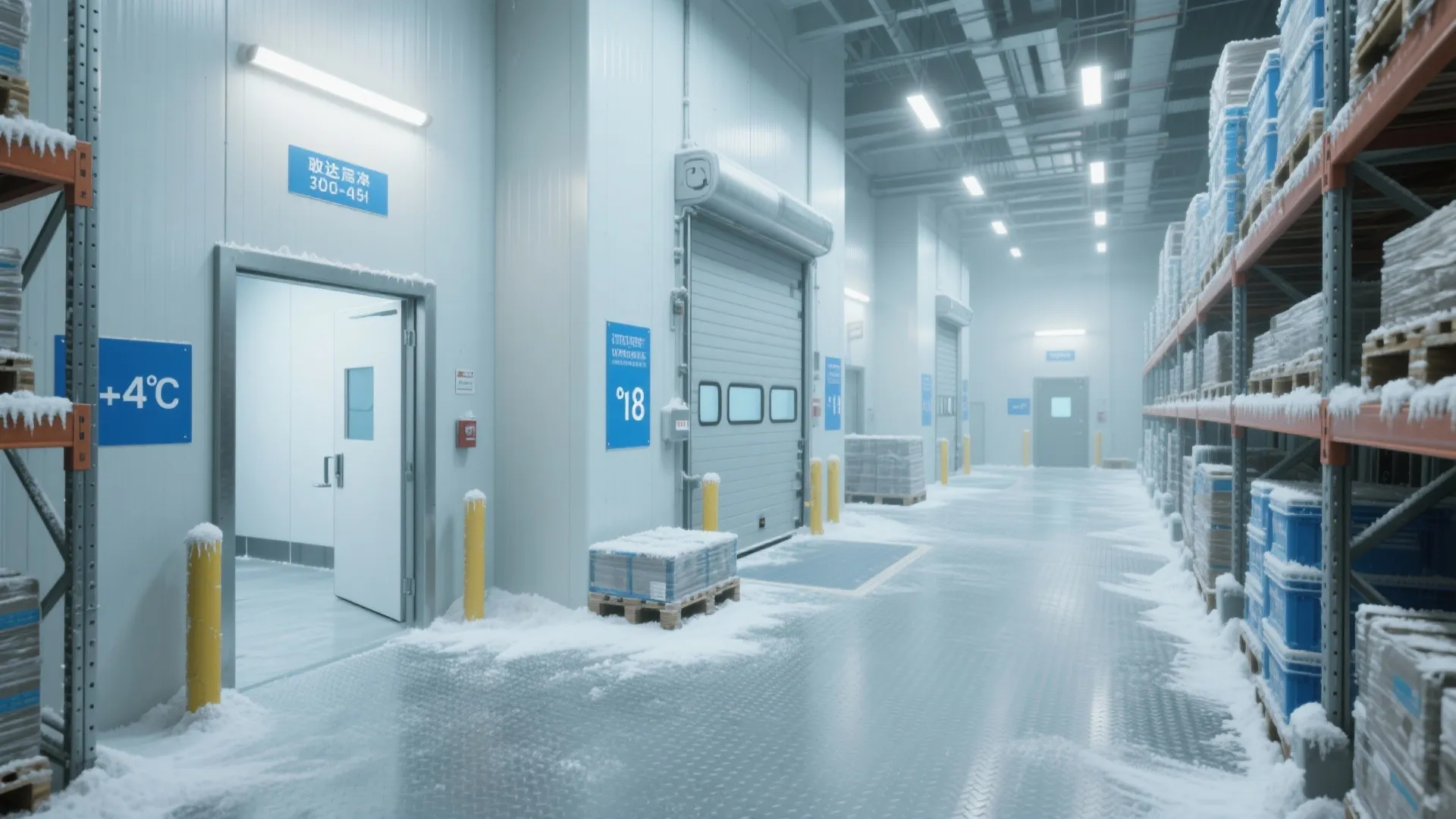

Product-intake vestibules at +2 to +5°C dramatically cut infiltration compared to loading straight into -18°C. I prefer a three-zone sequence: receiving chill, buffer (short-stay), and deep-freeze. If you are testing alternatives to aisle widths, rack orientation, and pick pathways, a layout simulation tool such as an interior layout planner helps you compare safety clearances with throughput before you build. Try a room layout tool to iterate pallet flow and staff routes: layout simulation tool.

Doors, Seals, and Infiltration Control

Every infiltration point is a latent load factory. Use high-speed roll-up doors with proven low-temperature gaskets and integrated air curtains. Where traffic is heavy, pair door speed (1.5–2.5 m/s) with presence sensors and timers to close within 2–3 seconds of egress. Heated thresholds prevent ice bonding; keep watt density minimal and thermostat-controlled to avoid runaway energy use. For personnel, install insulated swing doors with view panels and anti-fog films to maintain sightlines.

Refrigeration Strategy

Select compressor capacity for design load plus diversity—not the worst conceivable day. I typically deploy multi-compressor racks with VFDs for staging and redundancy. Evaporators sized for low face velocity reduce snow buildup and improve coil efficiency; position them to avoid blasting workers or forming drifts in front of doors. Suction pressure optimization and floating head controls trim energy at partial load. Add heat reclaim to serve door frame heaters or adjacent warm water needs where practical.

Defrost and Drainage

Defrost cycles are an energy and uptime tax if mishandled. Hot gas defrost is efficient but requires meticulous controls; off-cycle defrost can work in higher setpoints (above -10°C) with light moisture load. Grade floors to 1–2% toward heated, trapped drains; insulate and heat-trace lines through the warm envelope to prevent freeze-ups. Keep trench drains out of high-traffic pick aisles to prevent pallet jack vibration and ice spall.

Lighting for Cold Environments

LEDs are mandatory here—not only for efficiency but for instant start in low temperatures. Specify cold-rated drivers and lenses with wide-beam distributions to avoid scalloping across racking. Target 200–300 lux general illuminance in aisles with 300–500 lux at pick faces to ensure label legibility and reduce errors. Control glare with matte finishes and consider task lights on order-pick trucks. Reference illuminance guidance from IES to balance safety and energy, and coordinate with motion sensors to dim unoccupied aisles while ensuring minimum levels for security cameras.

Acoustics and Human Factors

Hard, cold surfaces amplify compressor and fan noise. Even in freezers, I specify durable, low-temperature acoustic panels in non-contact ceiling zones and rubber wheel upgrades on carts to reduce high-frequency noise. Hands go numb quickly at -18°C; limit continuous exposure time with nearby warming stations and clear egress routes not blocked by evaporator drip zones. Handles, buttons, and emergency releases must be glove-friendly with high-contrast markings to support quick recognition in low-visibility conditions.

Materials and Finishes

Choose stainless or food-grade coated racking, high-density polyethylene bumpers, and slip-resistant, trowel-applied resin floors rated for thermal shock. Light-color panels (N7–N9 value) improve reflectance and reduce lighting watt density. Sealant selection should remain flexible at low temperatures; avoid brittle joints that crack during defrost cycles. Favor materials with clear environmental disclosures, and confirm cleaners are compatible at low temps to avoid haze and microcracking.

Monitoring, Controls, and Safety

I never hand over a freezer room without data. Calibrated sensors for temperature, humidity, door status, and energy use feed alerts that catch creeping failures: longer defrosts, rising suction temps, or doors that stick. Backup power for controls and emergency lighting is non-negotiable. Install anti-entrapment systems with inside releases and beacon alarms; rehearse response protocols with staff. Smart trend logs will show whether night picking spikes defrosts or whether a vestibule schedule needs tightening.

Sustainability and Energy Strategy

Ammonia and CO₂ systems are efficient and future-forward but demand trained operations; HFO blends can be a bridge in smaller facilities. Reduce embodied energy by right-sizing panels and reusing racking where safe. Heat reclaim from compressors can preheat domestic water or serve snow-melt at loading docks. Tight controls, night set-back in buffer zones, and scheduled pick waves that minimize door cycles can cut energy intensity significantly over a year.

Commissioning and Fine-Tuning

Commission like a mission-critical system: verify airtightness, thermal imaging on joints, air balance, defrost routines, lighting levels, and controls logic. Train staff on door discipline, staging practices, and PPE suitable for exposure limits. Then return after 30 days with data in hand to fine-tune setpoints, sensor positions, and door timings. The best freezer rooms evolve with the operation; design for adjustment rather than rigidity.

References and Further Reading

Explore research on occupant performance, lighting, and facility operations from sources such as Steelcase and IES. Useful starting points include Steelcase research on work efficiency and IES standards for illuminance and glare control.

FAQ

What temperature should a freezer room be set to?

Most food-grade freezers run between -18°C and -25°C. Pharmaceutical storage can range lower depending on product stability data. Match the setpoint to product requirements and turnover; colder is not always better if it increases frost and energy without quality gains.

How do I decide the right size for my freezer room?

Calculate peak inventory by pallet count, add documented safety stock, and align clear height to racking. Avoid oversizing by more than 5–10%, as extra volume increases thermal load and capital cost without operational benefit.

What door type works best for heavy traffic?

High-speed roll-up doors with low-temperature gaskets and air curtains minimize infiltration. Pair with presence sensors and short auto-close times. For low traffic, insulated sliding doors are robust with fewer moving parts.

How much lighting do I need inside a freezer?

Plan roughly 200–300 lux for general aisles and 300–500 lux at pick faces with low glare. Use cold-rated LEDs and occupancy sensors. Reference IES illuminance guidance for task types to fine-tune levels.

How can I reduce frost buildup on coils and floors?

Control moisture at the source: add vestibules, fast doors, and air curtains. Optimize evaporator placement and defrost schedules. Keep floor drains heated and ensure staff follow door discipline to limit humid air ingress.

Which refrigerant system is most efficient?

CO₂ transcritical and ammonia (NH₃) are highly efficient for larger systems with skilled operations. For smaller rooms, well-controlled HFO/HFC systems with variable capacity can perform efficiently when properly commissioned.

Do I need acoustic treatment in a freezer?

Yes, hard cold surfaces amplify noise, which can increase fatigue and error rates. Use low-temperature-safe acoustic panels in non-contact zones and select quieter fans or rubberized wheels where possible.

What safety features are essential?

Inside door releases with anti-entrapment alarms, emergency lighting on backup power, non-slip floors, and clear signage. Train staff on exposure limits and provide nearby warming areas.

How do controls improve energy performance?

Floating head and optimized suction control reduce compressor energy at part load. Door sensors, vestibule schedules, and occupancy-based lighting cut unnecessary runtime. Continuous monitoring flags issues before they become failures.

Can I retrofit a freezer room in an existing building?

Yes, but prioritize structural load capacity, vapor barrier continuity, drainage paths, and clearance for mechanicals. A phased plan can maintain operations while adding vestibules and upgrading doors and controls.
