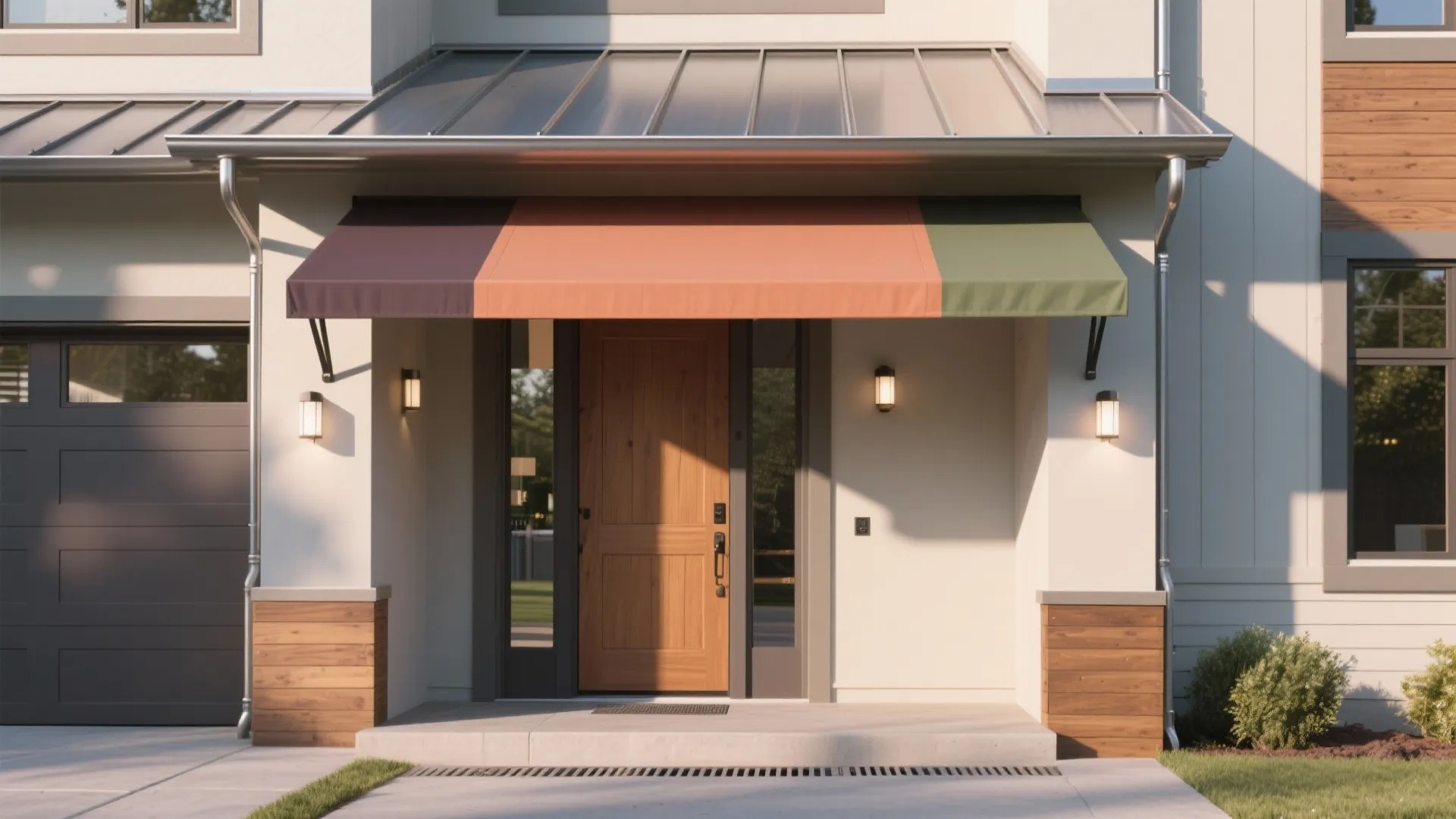

Front Door Awning DIY: Step-By-Step Guide for Stylish Home Entry: Fast-Track Guide to Building a Chic Front Door Awning in Just One Weekend

A well-built front door awning elevates curb appeal and shields your entry from rain, snow, and sun. Done right, it protects finishes, reduces glare, and creates a welcoming threshold with proportion and rhythm that complement your façade. Research backs the performance value: glare and high contrast at entries can hinder visibility; the Illuminating Engineering Society recommends vertical target illuminance for facial recognition in entry zones around 2–10 lux with good uniformity to improve safety and comfort (IES standards). On the human factors side, Gensler’s workplace findings repeatedly highlight the role of comfort and arrival experience in overall satisfaction, underscoring why a thoughtfully lit, protected entry improves first impressions and usability (Gensler Research Institute).

Thermal and moisture control also matter. According to WELL v2, reducing direct weather exposure at entry points supports safety and slip reduction, while balanced exterior lighting reduces eye strain and improves wayfinding (WELL v2, Light & Movement concepts). Color psychology adds another layer: warm hues at the threshold can boost perceived warmth and welcome, while desaturated earth tones calm visual noise (Verywell Mind on color psychology). Before picking materials or cutting lumber, align the structure, lighting, and finish choices with these evidence-based comfort principles.

Scope, Sizing, and Code Considerations

Start with function. Define what you need the awning to do: protect the door leaf, hardware, and threshold; keep at least 12–18 inches of dry landing beyond the swing arc; and manage drainage away from the sill. A solid rule of thumb is to project the awning at least 50–75% of the door height of exposure to prevailing rain, with a typical residential projection of 24–42 inches. Width should exceed the rough opening by 6–12 inches per side, or span sidelight panels for visual cohesion.

Check local code for snow loads, wind uplift, and mounting requirements. Masonry vs. wood framing dictates anchoring strategies. Ensure no conflict with egress path or handrails. Keep 80 inches minimum headroom clearance under the lowest edge. If you plan integrated lighting, verify exterior-rated fixtures and GFCI-protected circuits.

Layout Planning and Visualization

Map the façade’s proportions. Align the awning’s centerline with the door, and relate its height to adjacent trim bands, transoms, or porch headers. Establish a module: for example, a 1:2 rise-to-run for a shed form, or a 30–35° pitch for metal to shed rain quickly. For clean workflow, test your dimensions and clearances with an interior layout planner or a room design visualization tool before drilling into the wall.

room layout tool

Choosing an Awning Style

- Shed (single-slope): Minimal, efficient drainage, pairs well with modern façades.

- Gable: Classic profile, stronger silhouette, better for snow regions due to central ridge.

- Curved (barrel or bent metal): Softer lines, excellent water shedding with continuous drip edge.

- Tensioned fabric: Lightweight, seasonal flexibility, but verify UV resistance and wind rating.

Match form to architecture: echo roof pitch, repeat trim depths, and keep fascia lines consistent for visual balance. Consider sightlines from inside—avoid blocking clerestory or transom daylight.

Materials and Durability

- Structure: Pressure-treated lumber for ledger/backer; rot-resistant species (cedar) or structural steel/aluminum brackets. Use hot-dip galvanized or stainless fasteners to avoid corrosion.

- Roof skin: Standing-seam aluminum or steel for longevity; high-grade exterior plywood with membrane and shingles for traditional homes; polycarbonate panels for diffused daylight while stopping UV.

- Flashing: Continuous head flashing tucked under existing siding/trim, plus side kick-out flashing to steer water away from the wall assembly.

- Finishes: UV-stable paints or factory powder coat. Choose low-VOC finishes for healthier air quality.

Tools and Hardware

- Measuring tape, level, laser line, angle finder

- Circular saw or miter saw, drill/driver, masonry or wood bits

- Construction adhesive (exterior), sealant (polyurethane or MS polymer)

- Structural screws/ledger bolts, sleeve anchors (masonry), hurricane ties where applicable

- Flashing, drip edge, roofing membrane, shingles or metal panels

- Exterior-rated light fixture and junction box (optional)

Step-by-Step: Build a Simple Shed Awning

1) Confirm Structure and Backing

Locate studs or solid masonry. If siding is present, identify the sheathing and studs behind it. In brick, plan sleeve anchors into solid brick, not mortar. Add an interior backer or blocking if the wall is hollow.

2) Set Ledger Height and Slope

Mark the top ledger location above the door trim, targeting a 30–35° roof pitch for metal or a minimum 1:3 rise:run for shingle assemblies. Snap a level reference line, then mark the slope line. Maintain at least 2 inches clearance above the door trim for flashing.

3) Flash First

Carefully cut back siding (if needed) and install a continuous metal head flashing that tucks behind the weather barrier. Seal edges with compatible flashing tape. Proper flashing is the single biggest factor in longevity.

4) Mount Ledger and Brackets

Pre-drill and attach the ledger with structural screws into studs or anchors into masonry. Use washers and check for plumb. Add side corbels or steel brackets sized to carry load and resist uplift. Aim for bracket spacing of 16–24 inches on center depending on span and material.

5) Frame the Roof

Cut rafters to pitch, add a front beam or fascia, and block between rafters for racking resistance. Verify square by measuring diagonals. Add hurricane ties in wind zones.

6) Sheath and Waterproof

Install exterior-grade plywood sheathing, then an ice-and-water membrane at the wall-to-roof junction and full underlayment across the surface. Integrate side kick-out flashing under the roofing layer to direct water clear of the façade.

7) Roof Finish

Lay shingles per manufacturer guidelines, or attach standing-seam metal with concealed fasteners. Finish with a continuous drip edge on all exposed sides.

8) Seal and Paint

Caulk all seams with UV-stable sealant. Prime and paint or apply stain/powder-coat. Choose a color that either matches trim for cohesion or contrasts subtly to frame the entry. Color psychology suggests warmer undertones (muted terracotta, olive, deep taupe) to enhance perceived welcome.

9) Lighting Integration (Optional)

Target soft, glare-free illumination. IES guidance favors vertical illuminance for facial recognition; avoid bare bulbs that create harsh veiling reflections. Use 2700–3000K warm-white, 80+ CRI, with shields or downlighting to cut glare. Aim for even spill across the landing and keyhole/handle. Connect on a photocell or smart schedule for consistency.

Ergonomics, Weather, and Maintenance

- Clearances: Keep 12–18 inches of covered area beyond the door swing to prevent drips on users. If space allows, 36 inches creates a comfortable pause point for bags or umbrellas.

- Drainage: Slope away from the house. Consider a chain or discreet downspout if projecting gutters collect water. Direct runoff to permeable ground.

- Snow and wind: In heavy-snow regions, select a gable or steeper pitch; verify load tables and use anti-lift hardware. In coastal zones, use stainless fasteners and sealed seams.

- Cleaning: Plan a wipe path. Smooth metal skins and minimal creases reduce dirt build-up. Re-seal joints every 2–3 years based on exposure.

Proportion and Visual Balance

Think in ratios. A projection that equals roughly one-third to one-half of the door height usually reads balanced. Keep fascia thickness visually consistent with existing trim. Align bracket bottoms with a horizontal datum, like the top of the door casing, to avoid visual clutter. Repetition—matching finish and geometry to other exterior elements—builds cohesion.

Sustainability Choices

Opt for FSC-certified lumber or recycled aluminum. Cool-coated metal reduces heat gain and protects finishes. Long-life materials reduce replacement cycles, which is the biggest sustainability win for small exterior projects. Low-VOC sealants and paints support healthier air during and after installation.

Common Mistakes to Avoid

- Skipping integrated flashing behind siding

- Under-sizing brackets or using non-structural screws

- Flat roofs with no positive slope

- Over-bright, unshielded entry lights that cause glare

- Ignoring wind/snow loads and local code

FAQ

Q1. What’s the ideal size for a front door awning?

A practical starting point is 24–42 inches projection and door width plus 6–12 inches per side. Adjust for rain exposure and wind orientation.

Q2. Which materials last the longest outdoors?

Standing-seam aluminum or galvanized steel with powder coat perform exceptionally. For wood, use pressure-treated structural elements and rot-resistant species with diligent sealing.

Q3. How steep should the awning be?

For shingles, use a minimum 3:12 pitch; for metal, 30–35° works well to shed water quickly and resist ponding.

Q4. How do I prevent water intrusion at the wall?

Install continuous head flashing that integrates behind the weather barrier, add membrane at the wall-to-roof joint, and use side kick-out flashing. Seal penetrations with compatible tapes and sealant.

Q5. What lighting specs are best for the entry?

Choose 2700–3000K warm-white, 80+ CRI or higher, shielded to reduce glare. Target even vertical illumination around the face and door hardware, consistent with IES recommendations.

Q6. Can I mount an awning on brick?

Yes—use sleeve anchors into solid brick units (not mortar), or through-bolts with interior backing. Ensure flashing bridges the brick-to-frame interface.

Q7. How do I handle snow loads?

Select a gable or steeper pitch, size rafters per span and load tables, and add anti-lift hardware. Clear heavy, wet snow promptly to reduce stress.

Q8. Is polycarbonate a good choice?

UV-stabilized multiwall polycarbonate is lightweight and allows diffused daylight, but confirm impact rating and expansion allowances, and keep a sufficient slope for runoff.

Q9. Should the awning color match my trim?

Matching trim simplifies cohesion; a subtle contrast can frame the entry. Warm neutrals enhance perceived welcome according to color psychology research.

Q10. Do I need a permit?

Many jurisdictions require permits for attached exterior structures. Check local codes, especially for wind/snow loads and electrical if you’re adding lighting.

Q11. How high should I mount the awning?

Maintain at least 80 inches of clear headroom. Allow extra space above the door for flashing and to avoid interference with the swing.

Q12. What’s the easiest style for DIY?

A simple shed roof with two or three structural brackets is approachable, provided you’re comfortable with flashing and fastening into structure.
