Garage Door Fishing Rod Holder DIY: Simple Space-Saving Solution: Fast-Track Guide to Organizing Your Rods in Just Minutes

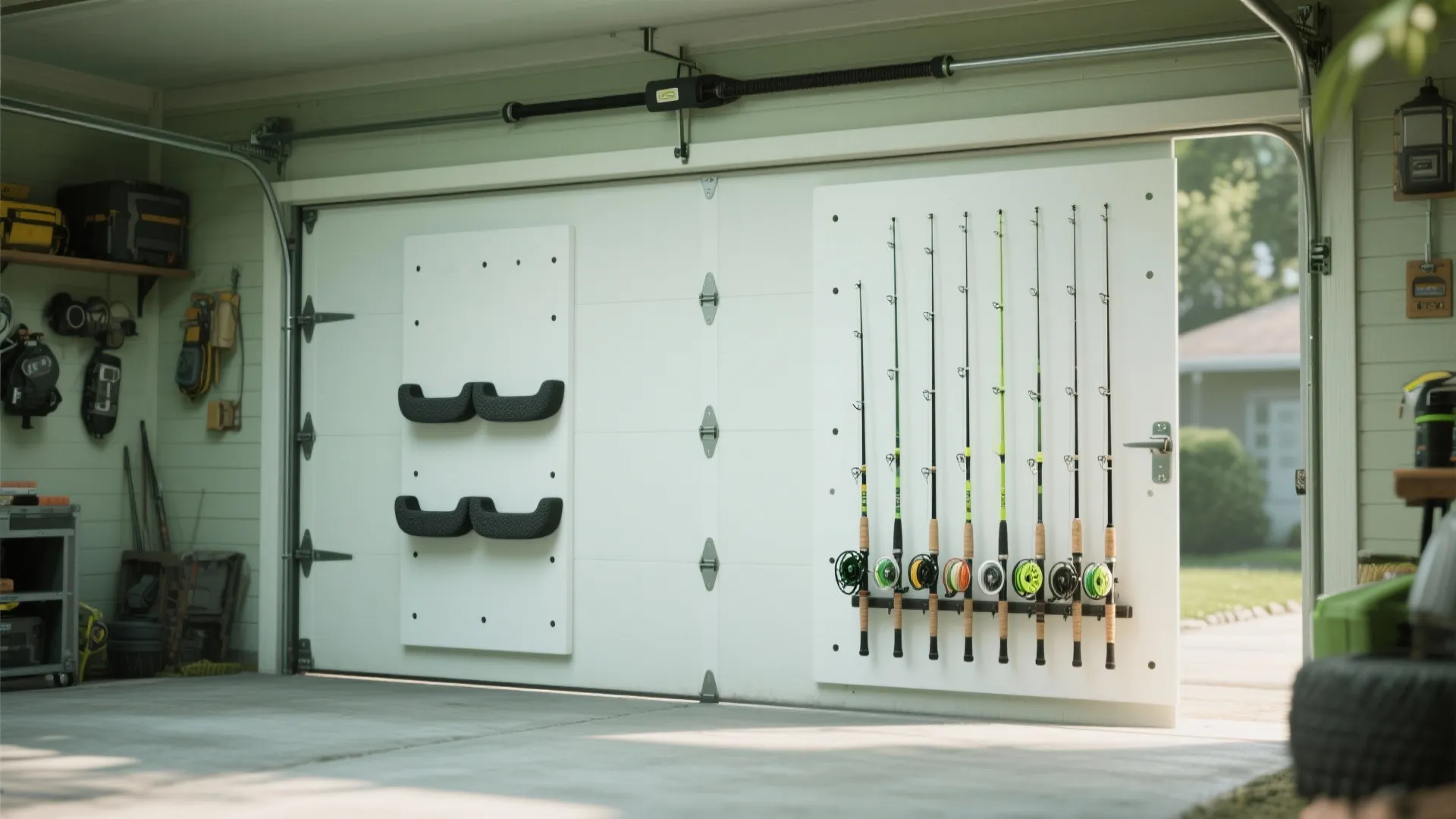

I’ve mounted fishing rods in garages every way imaginable—on walls, rafters, and rolling carts. The most space-efficient method for most single- or double-bay garages is a door-mounted holder that rides with the overhead door. Done right, it keeps rods out of harm’s way, avoids ceiling obstructions, and frees up wall space for bulky gear.

Space-saving is only half the story: safety and protection matter. According to Herman Miller research, well-organized storage reduces trip-related incidents and improves workflow speed by up to 18% in task-heavy spaces. In garages that double as workshops, overhead doors represent a large but underused plane; capturing that real estate can reduce clutter-driven mishaps. For comfort, I also consider noise and light: the Illuminating Engineering Society recommends task zones be lit to appropriate illuminance levels so you can see guides and line clearly when racking rods (see IES standards). For broader design performance guidance, WELL v2 emphasizes reduced obstructions and safer circulation for daily-use environments.

Planning the Mounting Strategy

Before a screw goes in, study the garage door construction. Most steel sectional doors have horizontal stiles (reinforcing rails) every 18–24 inches. These give you the rigidity you need to mount lightweight fixtures. Wood doors are even more forgiving, but you still want to land screws in the rails rather than the thin panel skins.

Measure the door’s travel path and clearance. With the door open, confirm that rods won’t hit the header, opener rail, or any lights. For small garages with bikes or kayaks overhead, try a low-profile holder depth (1.5–2 inches off panel face). If you’re assessing several layout options, a quick digital mockup with a layout simulation tool helps visualize rod length, reel offsets, and door arc before you drill.

Tip on spacing: typical freshwater rods vary from 6’6” to 7’6”. Saltwater inshore sets often run 7’–8’. Plan center-to-center spacing at 3.5–4 inches for spinning setups and 4–4.5 inches for baitcasters with bulkier reels. This density balances capacity with tangle-free access.

Materials and Tools

I prefer a plywood or PVC base with EVA foam or cork inserts. PVC trim board (3/4 inch) resists moisture swings common in garages. For hardware, use self-tapping sheet metal screws for steel doors (No. 10 x 1/2–3/4 inch) or wood screws for wood doors (No. 8 x 1–1/4 inch). Add fender washers to spread load. For rod cradles, you can buy pre-cut foam racks or cut 1-3/4 inch semicircles in a 2.5-inch strip of EVA with a hole saw. A parallel strip with 1-inch through-holes (for rod tips) keeps shafts aligned.

Tools: drill/driver, step bit (if needed on steel), countersink, hole saws (1 inch and 1-3/4 inch), measuring tape, square, painter’s tape, deburring tool, and a vacuum to capture metal shavings.

Building the Holder

1) Cut two 36–48 inch boards (length depends on door width and rod count). One will be the reel-side cradle with U-cuts; the other, the tip-side guide with through-holes. Sand edges and seal with marine polyurethane or exterior paint.

2) Lay out centers at 3.75–4 inches. On the cradle board, drill 1-3/4 inch holes and cut them into U’s by removing the front lip. Line the U’s with 3–5 mm EVA to grip without scuffing. On the tip board, drill 1-inch holes; chamfer lightly to prevent nicking line.

3) Backing and fasteners: predrill pilot holes aligned to the door’s horizontal rails. Use painter’s tape to mark rail centers. If your door skin is thin, add a continuous aluminum flat bar or 3/4 inch plywood strip behind the board to spread loads without oil-canning the panel.

4) Mount the tip board higher and the cradle board lower so rods naturally angle upward 5–10 degrees. This prevents reels from contacting the door when it cycles and minimizes vibration.

5) Load test with your heaviest setup. Cycle the door manually first, watching for interference at hinges and the opener trolley. Then run the opener. If any rod tip flexes toward the header, shift the whole assembly down by 1–1.5 inches.

Ergonomics and Daily Use

Good ergonomics reduce micro-damage to rods and speed up your prep. Steelcase research has long tied clutter reduction to lower cognitive load; the same applies in the garage—clear retrieval paths keep you fishing more and fixing less. Position the cradle roughly at shoulder height when the door is closed. That lets you clip rods in without lifting above head height, reducing torque on your wrists and elbows.

For mixed quivers, alternate reel orientations (left/right handles) to avoid reel-knob collisions. Add a soft lip (weatherstripping works) along the lower edge of the cradle board to damp vibration as the door operates.

Acoustics, Vibration, and Light

Overhead doors transmit vibration. EVA liners and neoprene washers under the mounting screws quiet chatter. Keep rod guides away from bare metal surfaces; a 3–5 mm foam interface prevents ringing and abrasion.

Lighting matters when threading guides and checking line. I aim for 300–500 lux at the storage zone, aligned with general task ranges referenced by the Illuminating Engineering Society. A slim LED strip along the adjacent wall or rail provides shadow-free light without glare into the driveway.

Layout Considerations and Capacity

On a single-bay door, two 42-inch boards typically hold 8–10 rods. Double-bay doors can scale to 16–20 with a mirrored set. If reels are oversized (surf or big inshore), bump spacing to 4.5 inches and reduce total count by one per board for tangle-free clearance. If you’re weighing alternatives—wall, ceiling joists, or door—mock them in an interior layout planner to test reach zones and opener conflicts before committing. For quick visualization and spacing checks, try a room layout tool to simulate rod lengths against door travel.

Moisture, Materials, and Longevity

Garages swing in humidity and temperature. PVC trim boards won’t warp; exterior plywood sealed on all faces also holds up well. Avoid felt; it traps moisture and salt. EVA or closed-cell neoprene dries fast and won’t imprint line. After saltwater trips, rinse reels and let rods air-dry vertically on a temporary stand before racking on the door to prevent salt creep into foam interfaces.

Safety and Clearances

Keep the opener photo-eyes unobstructed and maintain at least 2 inches of clear space from any moving hinge or roller path. Route any accessory lights or cables along the door rails using adhesive clips—never through hinge axes. If you have young kids, add a simple elastic retainer across the U-cradles to prevent accidental pulls when the door is partially open.

Step-by-Step Summary

- Confirm door type and rail locations; measure clearance with the door open/closed.

- Cut two boards (tip guide and cradle), drill holes/U-cuts, add EVA liners.

- Predrill and mount into horizontal rails with appropriate screws and washers.

- Set a slight upward angle; cycle-test manually, then with power.

- Fine-tune spacing and add vibration dampers; label positions if you like (bass, inshore, fly).

Common Variations

- Quick-release version: swap fixed screws for rivnuts and machine screws; boards come off in seconds for deep cleans.

- Fly-rod friendly: add 2-inch U-cuts and 7/8-inch tip holes for delicate guides.

- Lockable strap: a low-profile cam strap across the cradle secures rods for travel days when the door cycles more than usual.

FAQ

Q1: Will mounting on a steel door damage the panels?

A1: Not if you fasten into the horizontal rails and use fender washers or a backing strip. Avoid screwing into thin skins alone; that can oil-can and dent the panel.

Q2: How many rods can I store on a single-bay door?

A2: Eight to ten rods fit comfortably on two 36–42 inch boards with 3.75–4 inch spacing. Larger saltwater reels may reduce capacity by one or two.

Q3: What spacing prevents tangles between reels?

A3: Use 4 inches center-to-center for most setups; increase to 4.5 inches for bulky round reels or large knobs to maintain clean clearance.

Q4: Will the opener strain with the added weight?

A4: A typical two-board system with EVA and hardware adds roughly 3–6 pounds—well within opener tolerances. Always load-test and observe for any hesitation or balance issues.

Q5: What liner material protects rods best?

A5: Closed-cell EVA or neoprene. They cushion, resist moisture, and don’t shed fibers. Avoid felt, which can hold salt and water.

Q6: How do I manage vibration and noise?

A6: Add neoprene washers under mounting points, line cradle U’s with EVA, and ensure rods don’t contact bare metal. A slight upward angle reduces rattle.

Q7: Can I integrate lighting?

A7: Yes—add a low-glare LED strip on the adjacent wall or door rail. Aim for task-level light around 300–500 lux so you can check guides and line without glare.

Q8: Is this safe for fly rods?

A8: Absolutely. Use larger U-cuts (around 2 inches) and smooth chamfers on tip holes to protect delicate guides and thinner blanks.

Q9: What if the door tracks interfere?

A9: Shift the assembly down 1–1.5 inches, narrow board depth, or relocate to the next rail. Always test with the door fully open and closed.

Q10: How do I prevent kids from pulling rods?

A10: Add a shallow elastic retainer across the cradle and mount the system slightly higher. Keep the door closed when unattended.

Q11: Can I remove the holder seasonally?

A11: Use rivnuts or threaded inserts in the rails and machine screws. The boards come off quickly without wearing out the sheet metal.

Q12: Will humidity warp the boards?

A12: PVC trim boards won’t warp; sealed exterior plywood also holds up. Seal all edges and screw holes to keep moisture out.
