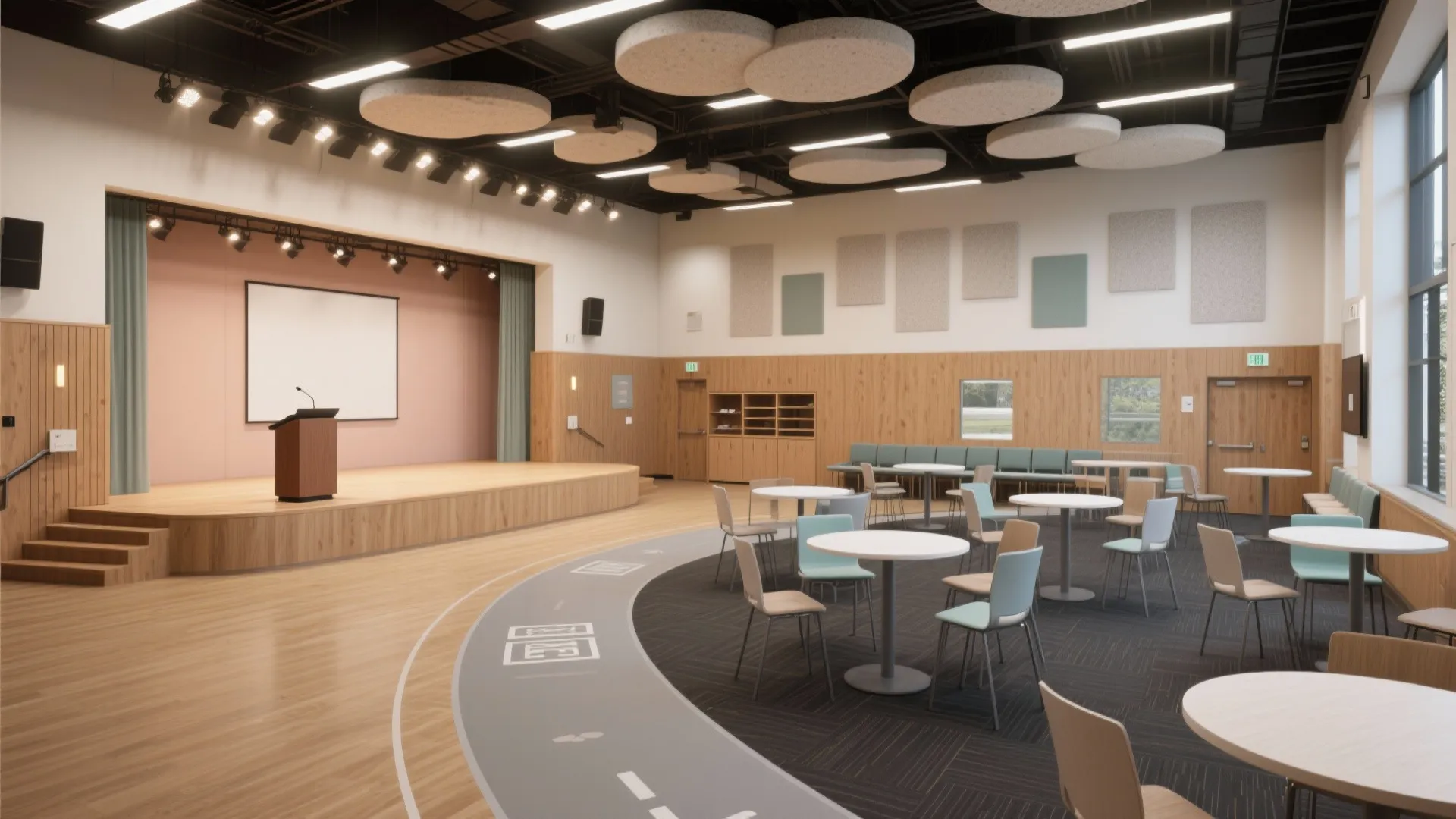

GD Block Community Hall: Smart Design & Usage Guide: 1 Minute to Understand Smart Solutions for Community Spaces

I’ve planned and tuned multi-purpose halls for more than a decade, and a good community hall lives or dies by how well it flexes between events, classes, and everyday gatherings. The GD Block Community Hall can serve as the social backbone of the neighborhood if we get the fundamentals right: clear zoning, adaptive lighting and acoustics, ergonomic seating, and circulation that makes people feel welcome and in control.

Function drives every decision. In mixed-use halls, seating density and layout affect comfort and participation. Steelcase research notes that people report up to 17% higher engagement in environments where seating supports posture changes and clear sightlines (Steelcase, research). Lighting also sets the tone: the IES recommends 300–500 lux for multi-purpose assembly spaces, with dimmable control for presentations and performances (IES standards). I calibrate the front zone to 500 lux for reading and instruction, and let the perimeter hover around 300–350 lux for social spillover. For occupant well-being, WELL v2 highlights glare control and tunable illumination, which I apply via layered ambient, task, and accent lighting (wellcertified.com).

Color and psychology matter as much as fixtures. Verywell Mind’s color psychology overview underscores how warm neutrals can enhance social warmth while cool tones support focused tasks (verywellmind.com/color-psychology). I pair warm wood finishes with muted cool accents near learning or activity areas. Circulation is kept intuitive: 1.5–1.8 m clear paths for two-way movement, perimeter staging for storage and catering, and a front-of-house anchor for signage and AV control.

Space Planning Strategy

Start with a flexible rectangular plan that can break into three working zones: performance/teaching front, social/mingling middle, and support/storage back. I use a simple 60/30/10 ratio for floor area allocation during typical events—60% audience/seating, 30% activity and movement, 10% service/support. For layout iterations, a layout simulation tool such as a room layout tool can help visualize seat counts, aisle widths, and stage positions without guesswork: room layout tool.

Seating and Ergonomics

Chairs should provide firmness, 430–460 mm seat height, and lumbar-friendly backs. For a lecture setup, aim for 900–1000 mm row spacing and 500–550 mm seat pitch to balance capacity with legroom. I favor mixed seating: stackable chairs for rapid transformation, a few high stools along the back for late arrivals, and lightweight tables that flip or nest. This variety respects different body types and allows quick reconfiguration. Clear sightlines are non-negotiable—offset seating by half a chair width in successive rows to reduce head shadowing.

Lighting Layers and Controls

Give the hall three layers: ambient (uniform, 300–400 lux), task (high-output spots at 500–700 lux for lecterns or workshop tables), and accent (wall washers or linear grazers for texture and signage). Color temperature should be tunable: 2700–3000K for social evenings, 3500–4000K for classes, up to 5000K for detailed tasks. Keep Unified Glare Rating (UGR) low with diffusers and indirect bounce. Provide at least two preset scenes—“Talk & Teach,” “Social & Soft”—plus a manual dimmer. Daylight is fantastic when controlled; use sheer blinds and side lighting to mitigate contrast and keep presenters visible to the back rows.

Acoustic Comfort

Community halls swing from quiet meetings to lively performances, so plan for a reverberation time (RT60) around 0.6–0.9 seconds for speech clarity. Combine ceiling acoustic clouds, wall absorbers at ear height, and soft finishes (curtains, upholstered seating). Place diffusers at the rear wall to prevent slap-back echoes. Keep HVAC noise under NC-30 to preserve audibility during talks. A simple rule: at least 20–25% of available surface area should have sound-absorbing materials in a hard-surface hall.

Color, Materials, and Durability

Neutral base palettes make the hall multi-functional. I like warm oak or maple laminates for a welcoming feel and mid-tone paint (LRV 40–60) to avoid glare while keeping the room bright. Flooring should handle rolling loads and frequent rearrangements: high-quality LVT or rubber with 20+ mil wear layers is resilient and easy to clean. Use semi-matte finishes to reduce specular glare under stage lights. Keep material transitions smooth to avoid trip points and accommodate wheelchairs.

AV, Storage, and Infrastructure

Put the AV rack at the side-front for easy access and minimal visual intrusion. Provide HDMI and wireless casting, and a simple touch panel for scene control. Include ceiling outlets for projectors or pendants, and floor boxes where tables cluster. Storage is golden: 10–12% of hall area dedicated to lockable storage prevents visual clutter. Keep folding tables, spare chairs, signage panels, and cleaning tools out of sight and close to action.

Wayfinding and Behavioral Flow

Arrival should be effortless: visible entry, coat drop, and a check-in desk aligned with sightlines to the main zone. People intuitively migrate toward light and visible activity; anchor the stage or lectern with brighter task lighting and a contrasting backdrop to communicate focus. Provide perches—leaning rails or high tables—near the back to accommodate short stays and reduce blockage. Circulation paths must stay clear during transitions; set mobile planters or screens as soft boundaries rather than hard barricades.

Layouts for Common Uses

Lecture: 60–80 seats, offset rows, two aisles at 1.2 m each, 1.8–2.4 m deep stage area. Workshop: clusters of 6–8 seats around tables, 1.2 m between clusters for tool carts and facilitation. Social event: remove central rows, keep perimeter seating, add high-top tables in the middle for flow. Children’s activity: soft flooring zone, storage close by, acoustic curtains to damp excitement. For quick scenario testing, an interior layout planner helps you compare seating counts, aisle widths, and stage sizes without moving a single chair: interior layout planner.

Safety, Accessibility, and Codes

Maintain clear 1.5 m egress routes and keep exit signage evenly illuminated. Provide at least one wheelchair space per 20 seats with integrated companion seating. Ramps should not exceed 1:12 slope; handrails are continuous and easy to grasp. Keep thresholds flush and provide tactile indicators at key decision points. Fire safety requires resilient cable management—no trip cords, use floor boxes—and flame-rated curtains when near stage lights.

Sustainability and Maintenance

Choose low-VOC paints and adhesives, durable surfaces, and LED luminaires with >90 CRI for true color rendering during crafts or exhibitions. Motion sensors in back-of-house areas save energy. Prioritize repairable components—replaceable LED drivers, modular floor tiles—so the hall stays sharp without full overhauls. Routine: quarterly checks on chairs and casters, biannual re-lamping reviews, and annual acoustic tune-ups if usage patterns change.

Operating Guide: Booking and Setup

Standardize booking categories: Talk, Workshop, Performance, Social. Each gets a preset layout, lighting scene, and furniture count. A laminated setup sheet stored in the AV rack keeps volunteers aligned. Mark storage shelves by category for speed, and color-code cables. During turnovers, designate a two-person team for seating reset and a one-person tech lead for AV and lights. End-of-event checklist: floors cleared, chairs counted, scenes reset to neutral, doors secured.

Small Enhancements with Big Impact

• Add a rear coat rail to prevent entry pile-ups.

• Install dimmable wall washers for posters and local art, drawing the community into the space.

• Provide a rolling hospitality cart with power—tea, water, and a visible trash/recycling setup.

• Mount acoustic pinboards for announcements that double as sound absorption.

• Keep two mobile partitions for teaching zones or prayer breaks without isolating the room.

FAQ

How bright should the hall be for mixed events?

Target 300–500 lux. Use 500 lux near presenters or reading areas and 300–350 lux elsewhere. Provide dimming for talks and performances in line with IES recommendations.

What seating layout maximizes engagement?

Offset rows with two aisles and avoid long uninterrupted runs. Mixed seating types (chairs plus a few high stools) support different postures and, per Steelcase research, can improve perceived engagement.

How do we control glare during daytime events?

Use sheer blinds, indirect ambient lighting, and diffusers. Keep task lights angled away from eye level and ensure backdrops are mid-tone, reducing contrast with windows.

What is a good acoustic target for speech?

A reverberation time around 0.6–0.9 seconds balances clarity and warmth. Combine ceiling clouds, wall absorbers, and soft finishes; keep HVAC noise low (around NC-30).

Which colors work best for a multi-purpose hall?

Warm neutrals for social warmth, cool muted accents near focused tasks. This aligns with color psychology guidance emphasizing comfort and legibility.

How much storage should we plan?

Allocate roughly 10–12% of hall area to lockable storage for chairs, tables, AV cases, and housekeeping. Close proximity to the main floor speeds turnovers.

What scene presets should the lighting system include?

At minimum: “Talk & Teach” (higher front task lighting, reduced ambient) and “Social & Soft” (lower overall, warmer CCT). Add a neutral “Reset” scene for cleanup and safety.

How wide should circulation paths be?

Keep primary paths at 1.5–1.8 m for two-way movement and secondary paths at 1.2 m. Maintain clear egress routes and avoid cable runs across walkways.

What flooring stands up to frequent reconfiguration?

High-quality LVT or rubber with 20+ mil wear layers handles rolling loads, resists dents, and cleans easily. Use semi-matte finishes to tame glare.

How can we quickly test different layouts before an event?

Use a room design visualization tool to simulate seating counts, aisle widths, and stage positions, then lock in the most efficient option before moving furniture.
