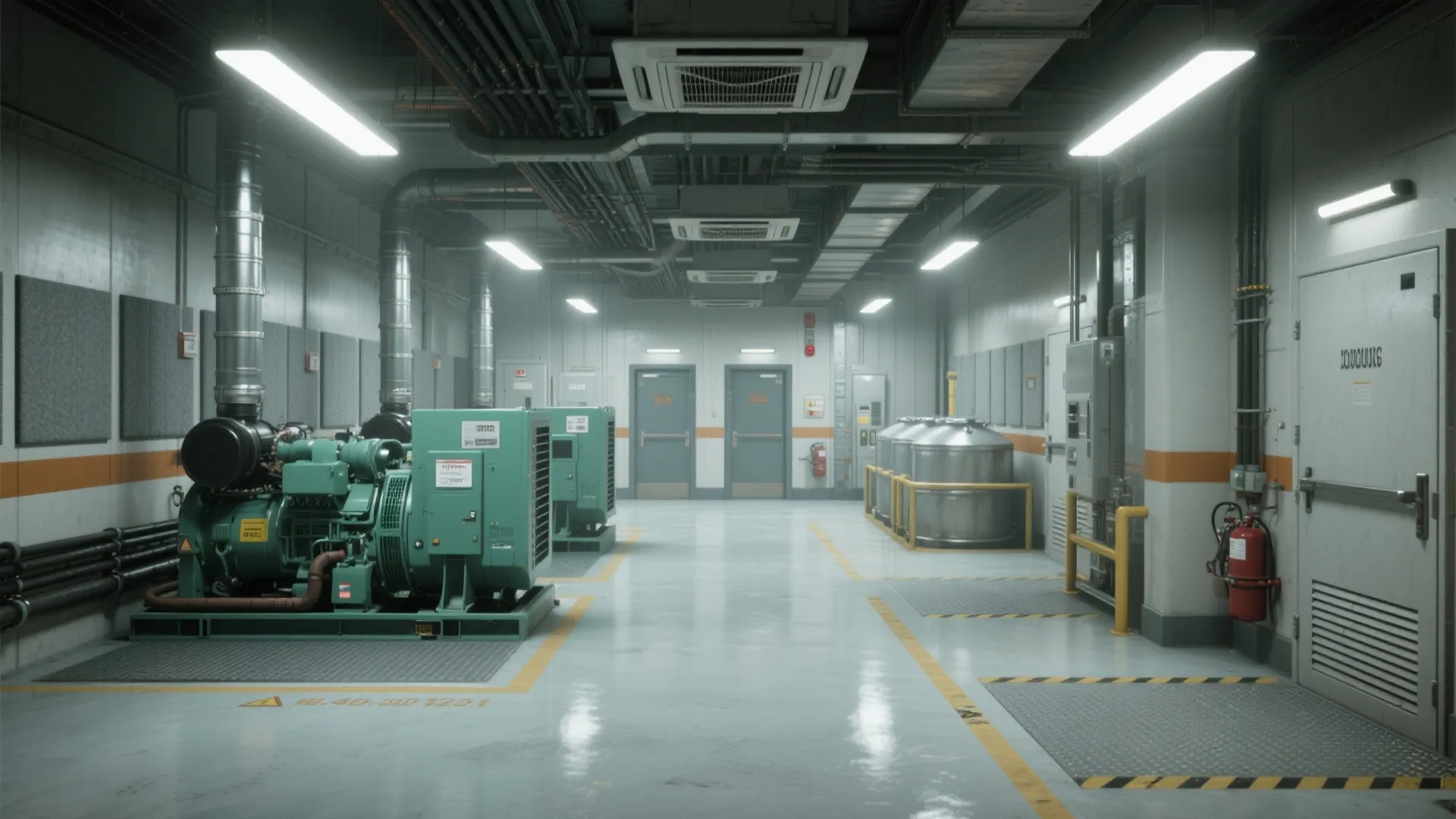

Generator Room Design: Maximize Safety & Efficiency: Fast-Track Guide to Safe and Efficient Generator Room Setup

I design generator rooms with the same rigor I apply to mission-critical data centers: safety first, efficiency close behind, and maintenance access never compromised. A well-planned generator space reduces downtime, mitigates risk, and extends equipment life. The layout decisions—clearances, airflow routes, cable paths, and acoustic strategy—have measurable impacts on performance and compliance.

Performance and human factors data shape several key choices. The WELL v2 Thermal Comfort concept recommends maintaining operative temperatures within 20–25°C for most tasks; while generators operate much hotter, adjacent service circulation should respect those ranges to support safe maintenance windows (v2.wellcertified.com). On lighting, I follow IES recommendations: 300–500 lux for technical rooms with task work ensures readable labels, accurate inspections, and reduced errors (ies.org/standards). Both benchmarks help maintain safe working conditions without over-lighting, which can add heat and energy load.

Productivity losses from poor environments are well documented. Steelcase research links better environmental control to 10–15% improvements in task performance; in generator rooms, that translates to faster, more accurate inspections and quicker fault isolation (steelcase.com/research). Color choices support perception and stress: Verywell Mind’s summary of color psychology notes that cooler hues (greens/blues) can reduce stress and aid focus—useful for service zones, while high-contrast safety bands stay in warm accent tones to signal caution (verywellmind.com/color-psychology).

Core Safety Strategy

I start by mapping critical clearances: minimum 900–1200 mm around enclosures for access, more if OEM manuals demand. Exhaust routing is planned to prevent recirculation; I avoid elbows near outlets to reduce back pressure. Fire separation follows local codes, but I treat walls and doors as 60–120 minute rated where adjacent occupancies warrant it. Cables and fuel lines travel distinct routes with non-combustible supports and protected transitions through walls. Emergency egress is predictable: two opposing exits when room size and local code thresholds are met, and illuminated signage at 300 lux minimum.

Airflow, Heat Rejection, and Pressure Management

Heat kills reliability. I design intake and discharge paths that keep temperature rise under control: ducted fresh air with louver sizing for velocity under 2.5 m/s to reduce noise, and discharge stacks that carry heat out of occupied zones. Where space is tight, I use baffles to prevent short-circuiting between intake and exhaust. Make-up air is balanced with extraction to hold a slight negative pressure, limiting fume migration to adjacent corridors. If multiple generators share a room, we stagger operation and interlock dampers to maintain stable pressure profiles.

Fuel Storage and Spill Containment

Diesel day tanks sit within bunded containment capable of at least 110% of the largest vessel’s volume. Fill points are external with lockable caps and spill trays. I separate fuel lines from electrical conduits by dedicated routes and clearly color-code both. Leak detection feeds the BMS, and floor finishes are chemical-resistant, slightly sloped to containment zones. Venting avoids vapor pockets, and I use flame arrestors where required.

Electrical Layout, Cable Paths, and Maintenance Access

Cable trays run straight, high, and clean; no tight bends near generator terminals to minimize thermal buildup. I keep switchboards within clear sightlines, with 1200 mm aisle clearances and swing paths marked on the floor. Critical spares—filters, belts, contactors—live on labeled shelves near the main entry. For new builds or retrofits, I simulate equipment footprints and aisle circulation, then refine the plan using an interior layout planner to validate reach and flow with technicians—this is where a room layout tool helps reduce rework.

room layout tool

Lighting Design and Visual Safety

Target 400–500 lux average with low-glare fixtures (UGR ≤ 19 for inspection zones). I add vertical illuminance on equipment faces for label legibility and use neutral-white 4000K lighting to balance visual acuity with comfort. Emergency lighting meets local code levels and is tested quarterly. High-contrast floor and wall markings delineate hot surfaces and pinch points; reflective bands near exits aid visibility in smoky conditions.

Acoustic Control and Vibration

Noise is not just a comfort issue; it impairs communication during emergencies. I specify composite acoustic panels, isolate equipment on inertia bases, and break hard parallel surfaces with diffusive geometry. Intake and exhaust silencers are sized for target NC 40–45 in adjacent occupied areas, accepting higher dB in the room but keeping speech intelligibility along service paths. Vibration isolation extends to cable trays and fuel lines to prevent fatigue.

Materials and Durability

Finishes take abuse. I prefer non-slip epoxy floors with high chemical resistance, impact-rated wall panels, and stainless steel hardware. Doors are heavy-duty, self-closing, with intumescent seals. Any glazing (if used at observation points) is fire-rated where code requires. Sustainability considerations include low-VOC coatings and recycled steel for anchors, without compromising fire performance.

Controls, Monitoring, and Fail-Safe Behavior

Clear HMI screens, lockout/tagout stations at eye level, and audible alarms at entrances reduce response time. Sensors monitor temperature, vibration, fuel levels, and exhaust back pressure. I ensure the BMS records trend data; patterns of rising temperatures or vibration hint at maintenance needs before a fault. Redundant start circuits are periodically tested, and auto-shutdown logic protects equipment under abnormal conditions.

Circulation, Zoning, and Human Factors

Service circulation must feel intuitive. I zone the room: hot side (exhaust, radiators) versus cool side (controls, spares). Paths are wide, obstruction-free, and marked. Color supports cognition—muted cool tones in service aisles and bold warning bands at hazard interfaces. Ergonomic reach envelopes keep valves, breakers, and gauges between 800–1600 mm height. Task shelves and work benches are at 900 mm to reduce bending during repairs.

Compliance, Testing, and Commissioning

I align with manufacturer manuals and local regulations, then stress-test reality: airflow smoke tests, thermal imaging during load banks, sound measurements at entries, and egress drills. All signage, labels, and lighting levels are verified against IES targets; environmental comfort near service points respects WELL guidance where applicable.

Common Pitfalls and How I Avoid Them

Three traps recur: underestimating heat rejection, cluttered cable paths, and poor egress logic. I oversize louvers and verify fan curves, enforce cable tray discipline with radius rules, and map exits early. Another frequent miss is inadequate spill management—containment sizing and floor slopes must be drawn, not assumed.

FAQ

What lighting levels should a generator room have?

I target 400–500 lux for inspection tasks, referencing IES guidance for technical rooms to ensure legibility and reduce errors.

How do you manage heat in small generator rooms?

Use direct ducted intake and discharge, avoid short-circuit airflow, and add interlocked fans to maintain slight negative pressure. Thermal imaging during commissioning validates the strategy.

What’s the best approach to fuel spill containment?

Provide bunding sized at least 110% of the largest tank, chemical-resistant finishes, sloped floors to containment, and leak detection linked to BMS.

How much clearance is needed around the generator?

Plan 900–1200 mm as a baseline, then check OEM manuals. Extra space is crucial near control panels and exhaust manifolds.

How do you control noise without over-complicating the build?

Combine equipment isolation with silencers on intake/exhaust and add composite acoustic panels. Aim to protect adjacent spaces to NC 40–45.

Which color strategy improves safety?

Use cool, muted hues in service zones to reduce stress and maintain focus; apply high-contrast warm accents for hazard bands and critical signage.

Do you recommend specific temperature ranges for maintenance areas?

Keep service circulation within 20–25°C when feasible, aligning with WELL v2 comfort guidance, even if equipment zones run hotter.

How should cable trays be routed?

Run trays straight with generous radii, avoid tight bends near terminals, separate power and control runs, and keep them accessible for inspection.

Is a single exit ever acceptable?

Small rooms with limited occupancy sometimes allow one exit per local code, but I prefer two opposing exits when thresholds are met to improve redundancy.

What commissioning tests matter most?

Load bank testing, airflow smoke tests, thermal imaging, sound mapping at entries, and egress drills form a robust commissioning suite.
