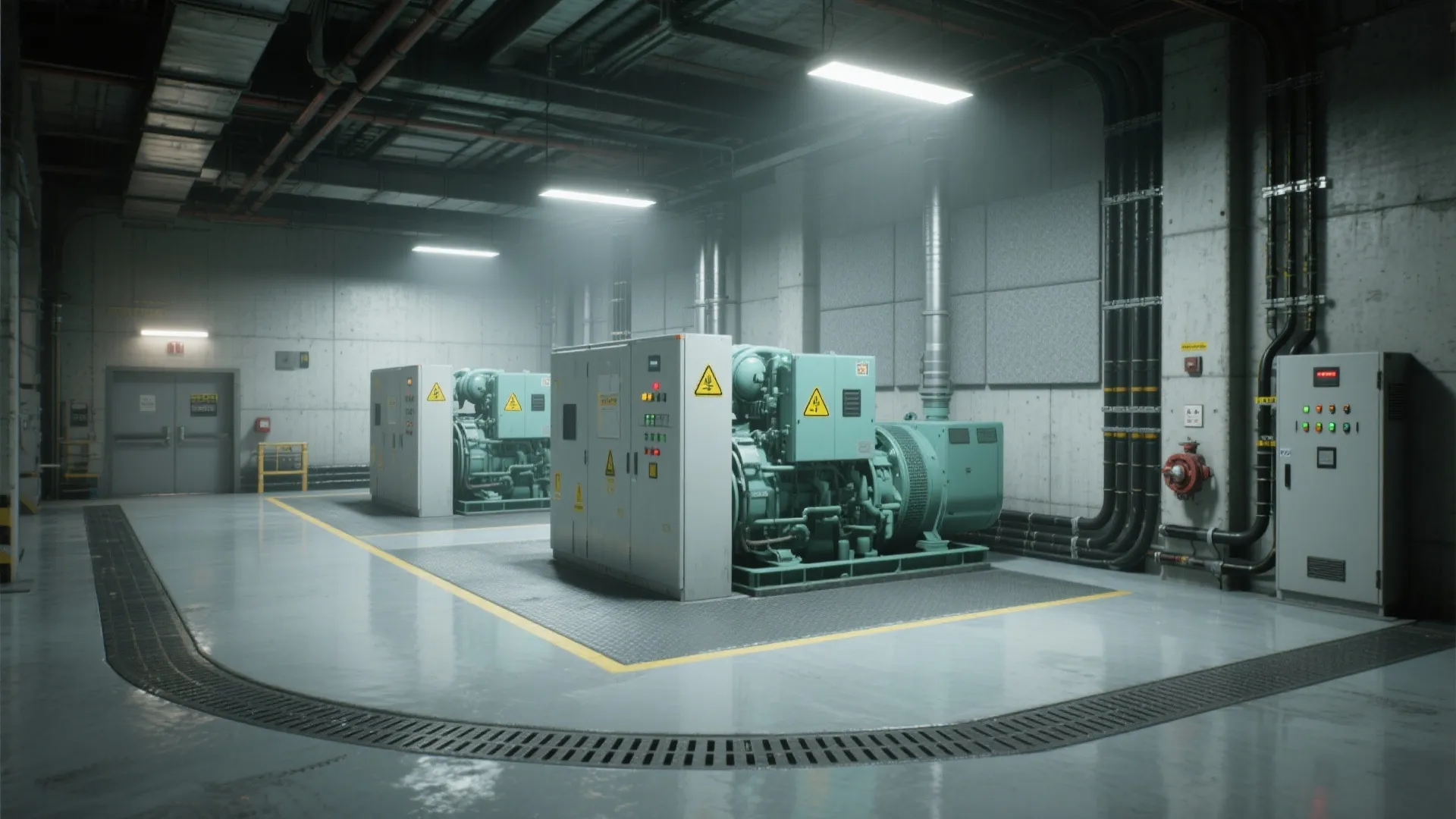

Generator Room Design: Safety, Efficiency, and Functionality Essentials: Fast-Track Guide to Setting Up a Practical Generator Room

Designing a generator room is a balance of risk control, operational clarity, and future-ready flexibility. My approach prioritizes fail-safe safety, intuitive circulation, and clean mechanical coordination so the space remains reliable under stress. In well-performing facilities, clear sightlines, low-glare lighting, and ergonomic service zones cut downtime and reduce errors during maintenance or emergencies.

Real-world data supports investing in environmental quality around critical equipment. WELL v2 notes that proper ventilation and pollutant management can cut occupant exposure to harmful contaminants, aligning with generator spaces where diesel particulate and NOx are risks; their Air features set minimum filtration and fresh air targets that help stabilize health outcomes. Lighting matters as well: the Illuminating Engineering Society (IES) recommends task illuminance in the range of 300–500 lux for detailed work areas, which suits inspection and service activities in generator rooms. Pairing these guidelines with clear labeling and disciplined cable routing elevates both safety and maintenance efficiency. For further reading on health-centric criteria, see WELL v2 and IES standards.

Safety Foundations: Separation, Fire, and Ventilation

I design generator rooms with layered protection. Physical separation from egress routes and occupied areas reduces risk; fire-rated partitions and doors (typically 2-hour, subject to local code) form a resilient envelope. Dedicated ventilation with intake and discharge paths prevents heat build-up and dilutes exhaust fumes. Where diesel systems are used, sealed exhaust flues with backdraft prevention and acoustical lagging limit leakage and mitigate noise spill to adjacent spaces. Clear shutoff access, emergency lighting, and non-slip flooring complete the baseline. This is where simple, consistent labeling and color coding prevent confusion under pressure.

Electrical Clearances and Service Ergonomics

Human factors drive serviceability: I maintain generous clear working spaces around switchgear, ATS panels, fuel lines, and cable trays so a technician can move, kneel, and lift without contortions. Vertical cable management keeps pathways readable and reduces trip hazards. Ergonomic reach envelopes (roughly 500–700 mm for frequent reach) inform panel heights, while elevated plinths protect equipment from minor flooding and enable clean routing below. Task lighting at 300–500 lux, balanced with low-glare fixtures (UGR control), supports inspections and fine adjustments without eye strain, aligning with IES guidance.

Thermal Load, Airflow, and Acoustic Comfort

Generators shed substantial heat; I size ventilation or mechanical cooling to the worst-case thermal load and ensure unobstructed airflow. Hot air removal should not short-circuit near intakes—baffles and directional louvres keep the cycle efficient. Acoustic comfort matters for nearby spaces: I combine mass (concrete or CMU), decoupling, and absorptive liners to reduce low-frequency rumble. Service schedules become more consistent when noise is controlled and technicians can communicate easily without shouting. Where local utility coordination requires extended test runs, consider secondary barriers or acoustic doors to hold overall noise targets steady.

Fuel Systems, Spill Control, and Materials

Fuel storage and piping need containment and clarity. I specify double-walled tanks, fill and vent lines with visible labeling, and bunded floors with graded slopes to an interceptor. Materials should resist hydrocarbons and be easy to clean; epoxy systems with chemical resistance are common, while raised gratings allow inspection of drains. On sustainability, high-recycled content concretes and durable finishes reduce lifecycle impacts; well-placed LED fixtures with long L70 lifetimes cut replacement frequency and waste.

Layout Logic: Circulation, Zoning, and Visibility

A disciplined room plan streamlines operations. I zone the room into equipment core, service ring, and support corner (spares, tools, PPE). Circulation paths remain free of projections and are wide enough for parts handling. Sightlines to indicators, gauges, and shutoffs should be unobstructed from main approach paths. When planning or iterating layouts, a layout simulation tool helps test clearances and visual access before construction.

room layout tool

Controls, Monitoring, and Failover Strategy

Clarity reduces mistakes. I locate automatic transfer switches and control panels in accessible, low-glare zones with space for laptop work and lockout/tagout procedures. Cable terminations are documented and mapped to floor labels to speed troubleshooting. Remote monitoring with alarm hierarchies shortens response times; redundant sensing (temperature, vibration, emissions) detects issues early. Testing protocols—weekly visual, monthly load tests, and annual full simulations—keep systems honest and staff confident.

Lighting for Precision and Safety

Lighting supports safe hands-on work. I combine uniform ambient light with targeted task illumination at panels and inspection points. Neutral white color temperature (around 4000K) keeps color rendering accurate for labels and wiring, and low-UGR optics reduce glare off metallic surfaces. Emergency lighting with battery backup should cover paths to exits and critical controls. According to IES, matching illuminance to task complexity prevents both under- and over-lighting that can cause fatigue.

Fire Protection and Code Coordination

Generator rooms intersect with multiple disciplines: fire detection, suppression, structural fire resistance, and electrical codes. I prefer pre-action or clean-agent systems in adjacent electrical zones where water damage is unacceptable, with clear separation from fuel systems. Penetrations through walls are sealed and rated; cable trays receive firestopping at boundaries. Coordination meetings with the fire engineer and electrical contractor prevent late clashes—especially around exhaust routing and roof penetrations.

Operational Workflow and Human Factors

Small usability decisions compound over years. Pegboard or modular storage for service tools, a fold-down work surface, and dedicated PPE hooks reduce hunting time. Whiteboards for run logs and test schedules keep information visible. Noise meters, spill kits, and first-aid stations close to the entrance encourage quick action. Behavioral patterns show that people rely on predictable paths; clear graphics and consistent labeling reduce cognitive load during high-stress events.

Resilience, Redundancy, and Upgrades

Plan for change. Leave spare conduit and rack capacity, reserve floor area for a second generator or upsized unit, and design switchgear for modular expansion. Fuel infrastructure should allow quick isolation and swap. In multi-generator scenarios, staggered start sequencing reduces peak loads and mechanical stress. Coordination with facilities guidelines helps keep the asset adaptable.

Commissioning, Testing, and Documentation

Commissioning is not a single day. I track as-built drawings, cable schedules, airflow measurements, and baseline noise readings. During integrated testing, confirm automatic start, transfer timings, load sharing, exhaust backpressure, and temperature rise. When documentation lives near the room—laminated key diagrams and digital access—service teams cut diagnosis time substantially.

Authority Resources

For health-focused criteria tied to air and lighting, see WELL v2 Air and Light features at wellcertified.com. For task illuminance and glare control references used in maintenance spaces, consult IES standards at ies.org/standards.

FAQ

What minimum illuminance should I target for maintenance tasks?

Plan for 300–500 lux at task surfaces, consistent with IES guidance for detailed visual work. Use low-glare optics and neutral white light to keep labels and wiring legible.

How should generator exhaust be routed to protect adjacent areas?

Use sealed, insulated flues with backdraft prevention, respect separation from air intakes, and aim discharge away from occupied zones. Baffles and directional louvres help prevent short-circuiting of airflow.

What fire rating is typical for generator room enclosures?

Two-hour fire-rated walls and doors are common, but always verify with local codes and the fire engineer. Seal penetrations and coordinate firestopping at cable trays.

How do I organize the room for efficient maintenance?

Zone the space into equipment core, service ring, and support corner for tools and spares. Keep circulation paths clear and maintain ergonomic reach to panels. A room design visualization tool can test clearances before construction.

What strategies reduce noise from generators?

Combine mass (concrete or CMU), decoupling, and absorptive liners, and specify acoustic doors where needed. Maintain flexible connections on exhaust lines to limit vibration transmission.

How should fuel spill risk be managed?

Use double-walled tanks, bunded floors with graded slopes to an interceptor, chemical-resistant finishes, and clear labeling of fill and vent lines. Keep spill kits accessible near entrances.

What controls and monitoring features are worth prioritizing?

Accessible ATS panels, clear lockout/tagout zones, documented cable maps, and remote monitoring with alarm hierarchies. Redundant sensors for temperature, vibration, and emissions catch issues early.

How often should load testing occur?

Weekly visual checks, monthly load tests, and annual full system simulations are common practice; coordinate with the electrical engineer and facilities team for site-specific schedules.

Which color temperature best supports accurate reading of labels?

Neutral white around 4000K balances clarity and comfort, keeping colors and print legible without harshness.

How do I plan for future upgrades or additional generators?

Reserve floor area, leave spare conduit and rack capacity, specify modular switchgear, and design fuel systems with isolation points for quick swap or expansion.
