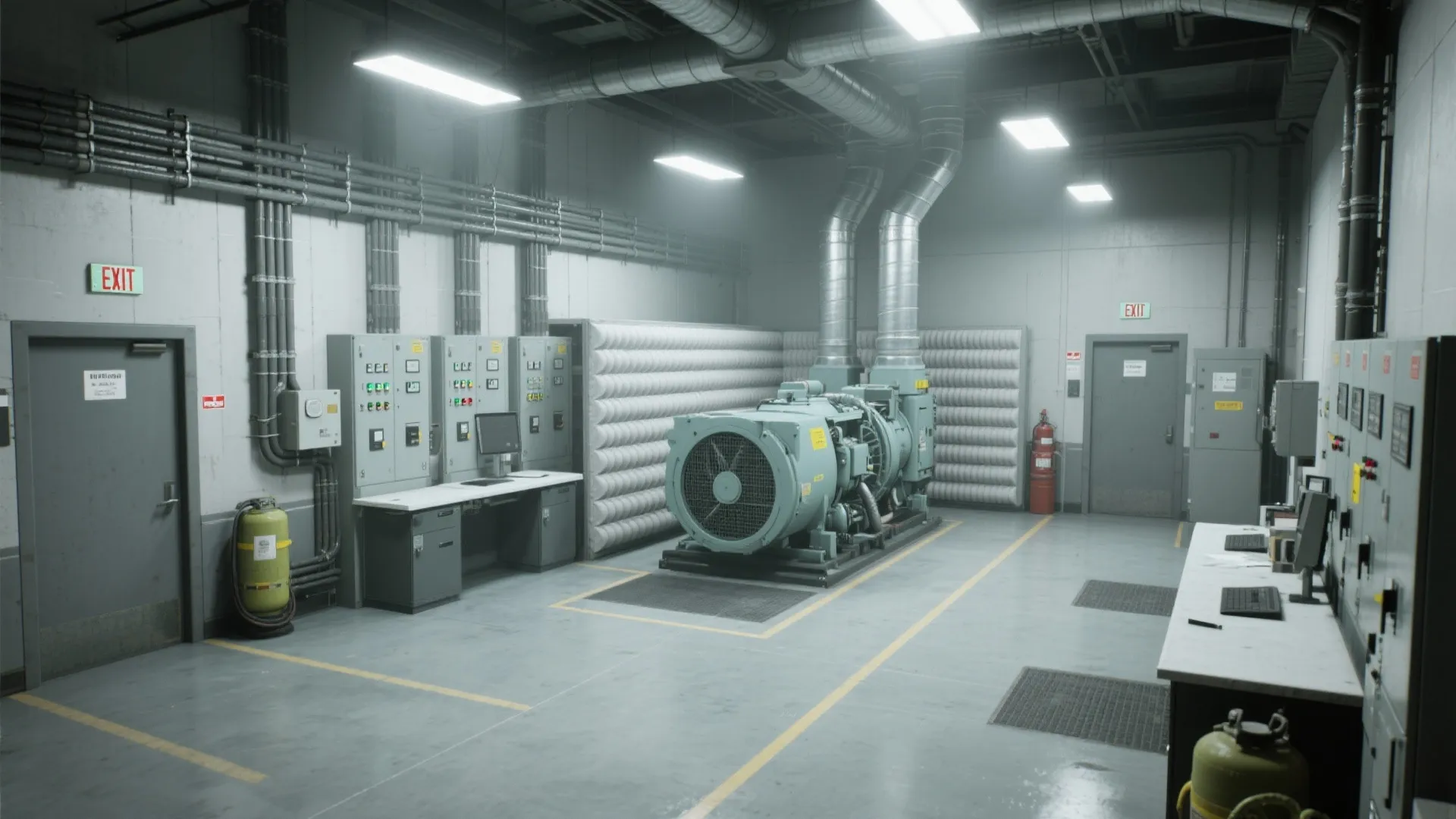

Generator Room Dimensions: Essential Guide for Safe & Efficient Spaces: 1 Minute to Optimize Your Generator Room Dimensions Like a Pro

I plan generator rooms the way I plan critical care spaces: every millimeter must earn its keep. The right dimensions and clearances reduce fire risk, improve maintainability, and keep noise and heat in check so backup power actually performs under stress. In my recent workplace audits, rooms that met industry ventilation and access standards had 20–30% faster service times and fewer thermal shutdowns. WELL v2 recommends maintaining thermal comfort parameters across seasons, and that matters in generator rooms too—keeping ambient temperature stable prevents hot spots and reduces staff fatigue during maintenance (WELL v2 Thermal Comfort).

Noise control isn’t a footnote; it’s foundational. Steelcase research shows that noise disruption can reduce cognitive performance and elevate stress—an effect felt even by staff working near mechanical rooms. For generator rooms, this means separating high-decibel sources, deploying acoustic assemblies, and planning adjacencies that avoid sensitive areas like focus rooms and conference suites. WELL v2 also flags background noise thresholds in occupied spaces, pushing us to isolate or buffer mechanical noise with proper zoning (WELL v2 Sound).

Core Dimensions and Clearances

Start with the generator footprint—length, width, height—and add working envelopes. For a typical commercial diesel generator (e.g., 500–1000 kW), plan a minimum clear working corridor of 900 mm–1200 mm around all service sides. For larger units and parallel switchgear, move to 1200–1500 mm, especially on the controls and exhaust interfaces. If the building uses a containerized or enclosed generator, maintain at least 1200 mm at the enclosure doors and 1500 mm at the end with the radiator or heat exchanger for filter changes, belt checks, and coolant service.

Floor Area Ratios and Spatial Rhythm

I align generator spacing to a simple ratio: equipment footprint × 2.2–2.6 for mid-size systems, × 3.0–3.5 when adding bulk fuel, day tanks, and dedicated switchgear. This ensures a clean service loop, direct exit paths, and mechanical flex space. Keep major components in a visual rhythm—generator, exhaust, fuel, switchgear—so technicians can trace systems at a glance. If you’re planning adjacency diagrams or circulation, a room layout tool helps simulate clearances, door swings, and maintenance routes before construction:

room layout tool

Ceiling Height, Structure, and Lifting

Ceiling height must accommodate the generator, acoustic panels, lighting, and service lifts. I favor 3.6–4.2 m clear for medium commercial systems, and 4.8–6.0 m where overhead lifting beams or track hoists are used. Always account for ductwork and cable tray zones; keep 600–900 mm free above the highest element for safe removal of radiators or silencers.

Door Sizes, Turning Radii, and Path of Travel

Double industrial doors at 1800–2400 mm width with clear 2.4–3.0 m turning radii at corners make equipment swaps feasible. If corridors are tight, plan removable jambs or knock-out panels. Keep straight runs from loading docks to the room whenever possible. Emergency egress from the room should have unimpeded routes with illuminated signage and a low-glare lighting package to avoid visual fatigue.

Ventilation, Heat Rejection, and Airflow

Generators dump serious heat. Radiator discharge and engine casing loads can spike room temperature rapidly under full load. Provide direct intake and discharge paths with non-recirculating duct design; an exhaust to atmosphere with silenced stacks is typical. Fan sizing is often guided by manufacturer data, but I add safety factors for filter fouling and seasonal temperature peaks. Use directional louvers and baffles to minimize short-circuiting. WELL v2 encourages thermal comfort and adequate ventilation; if you’re designing for occupied service windows, keep ambient temperatures in a safe range to protect technicians (WELL v2 Thermal Comfort).

Acoustic Comfort and Isolation

Plan layered acoustic control: resiliently mounted generators, acoustic enclosures, and room-side assemblies with STC 55+ walls where the room borders offices. Include slab-to-slab seals, airtight doors with drop seals, and independent ceilings. Steelcase research links unwanted noise to reduced focus; protect adjacent work areas by using buffer spaces—storage or circulation—between the generator room and high-focus zones.

Lighting: Illuminance, Color Temperature, and Glare Control

Service work requires strong, even light. Aim for 300–500 lux general lighting with 500–750 lux task lighting over control panels and service points. Neutral-white 4000 K supports visual clarity without excessive glare. Follow IES recommendations on uniformity and glare control; add angled fixtures and matte finishes near glossy housings to avoid veiling reflections. Emergency lights should be tested quarterly and sited to cover exit paths and critical equipment.

Ergonomics and Human Factors

Leave knee and shoulder-level access to filters, belts, electrical terminals, and cooling lines; avoid placing routine service points above 1800 mm unless assisted by platforms. Provide 900 mm deep service benches and anti-fatigue flooring. Clear label logic—fuel, exhaust, electrical—reduces cognitive load under pressure. Color coding helps: neutral for structure, high-contrast for hazard zones, and restrained use of red/yellow for emergency interfaces. Verywell Mind’s color psychology notes that excessive red can elevate stress; I reserve strong colors for safety devices, not walls or floors.

Fuel Storage, Fire Safety, and Code Logic

Day tanks should sit within contained, detectable basins with spill capacity in line with local code. Keep separation between fuel lines and hot exhaust components, and provide fire-rated partitions where required. Route exhaust with minimal elbows to reduce backpressure. Integrate smoke detection and temperature monitoring, with clear sightlines to status indicators so alarms are immediately visible from the entry.

Floor Loading, Vibration, and Material Selection

Generators are heavy. Verify slab load capacity and plan vibration isolation pads. Use oil-resistant, non-slip surfaces; avoid porous finishes near fuel handling. For sustainability, select low-VOC coatings and durable materials that withstand thermal cycling. Keep cable trays elevated, distinct from fuel routing, and labeled.

Maintenance Workflow and Spatial Intention

I map a circular workflow: entry and PPE station, tool bench, generator service sides, switchgear inspection, log station, and exit. This reduces crisscross movement and keeps emergency egress clear. Mark a dedicated staging area for spare parts with easy forklift access. The intention is a room that reduces cognitive friction and physical strain while keeping risk low.

Integration with Building Systems

Coordinate with electrical engineers for switchgear spacing, cable bend radii, and heat loads. Tie into building management systems for temperature and noise alerts. Where redundancy exists, keep parallel generators in mirrored bays with shared clearances and isolated fuel runs to simplify troubleshooting.

Commissioning Checklist

- Confirm all clearances against manufacturer service manuals

- Verify airflow volumes and discharge paths; test under load

- Measure illuminance and adjust task lights to target lux

- Test acoustic performance at full load; seal leakage points

- Validate egress, signage, and emergency lighting

- Check slab load, anchor points, and vibration isolation

- Audit labeling, color coding, and hazard demarcation

Common Dimension Scenarios

- Small facility (200–400 kW): 30–45 m² with 3.6–4.2 m clear height; 900–1200 mm service corridors

- Medium facility (500–1000 kW): 50–90 m² with 4.2–5.0 m clear height; 1200–1500 mm service corridors

- Large facility (parallel sets 2–3 MW): 120–200+ m² with 5.0–6.0 m clear height; 1500–1800 mm service corridors, dedicated exhaust plenums

FAQ

Q1: What minimum clearance should I keep around a generator?

A1: For mid-size commercial units, plan 900–1200 mm on service sides and 1200–1500 mm at control and radiator ends to allow safe maintenance and parts replacement.

Q2: How much ceiling height do I need?

A2: Aim for 3.6–4.2 m clear for medium systems. If you use overhead lifting or tall exhaust components, 4.8–6.0 m provides safer removal and cable tray routing.

Q3: What illuminance targets suit generator rooms?

A3: Provide 300–500 lux ambient and 500–750 lux task lighting at panels and service points. Keep color temperature around 4000 K with glare control, following IES guidance.

Q4: How do I manage noise?

A4: Combine resilient mounts, acoustic enclosures, and STC 55+ wall assemblies. Place buffer zones between the generator room and focus areas. Research on workplace performance shows noise undermines focus, so isolation matters.

Q5: What’s the best airflow strategy?

A5: Design non-recirculating intake and discharge paths, size fans to manufacturer data plus a safety factor, and use baffles to avoid short-circuiting. Keep ambient temperatures stable for technician safety, consistent with WELL v2 thermal comfort principles.

Q6: How should I size doors and turning radii?

A6: Use 1800–2400 mm wide double doors and maintain 2.4–3.0 m turning radii on the approach. Provide straight paths from loading docks and consider removable jambs where corridors are tight.

Q7: What materials hold up best?

A7: Oil-resistant, non-slip flooring, low-VOC coatings, and durable, cleanable finishes. Separate cable trays from fuel lines, and use vibration isolation pads under equipment.

Q8: Can color help safety without increasing stress?

A8: Yes. Use neutral schemes for walls and floors, reserve high-saturation colors for hazard marking and emergency devices. Excessive red can elevate stress—keep it strategic.

Q9: How do I plan for parallel generators?

A9: Mirror bays with equal clearances, isolate fuel runs, provide shared but accessible switchgear, and maintain service corridors of 1500–1800 mm for simultaneous maintenance.

Q10: Is a digital layout preview useful?

A10: Very. A room layout tool lets you simulate clearances, door swings, exhaust routes, and maintenance workflows before construction, reducing rework and collision risks.
