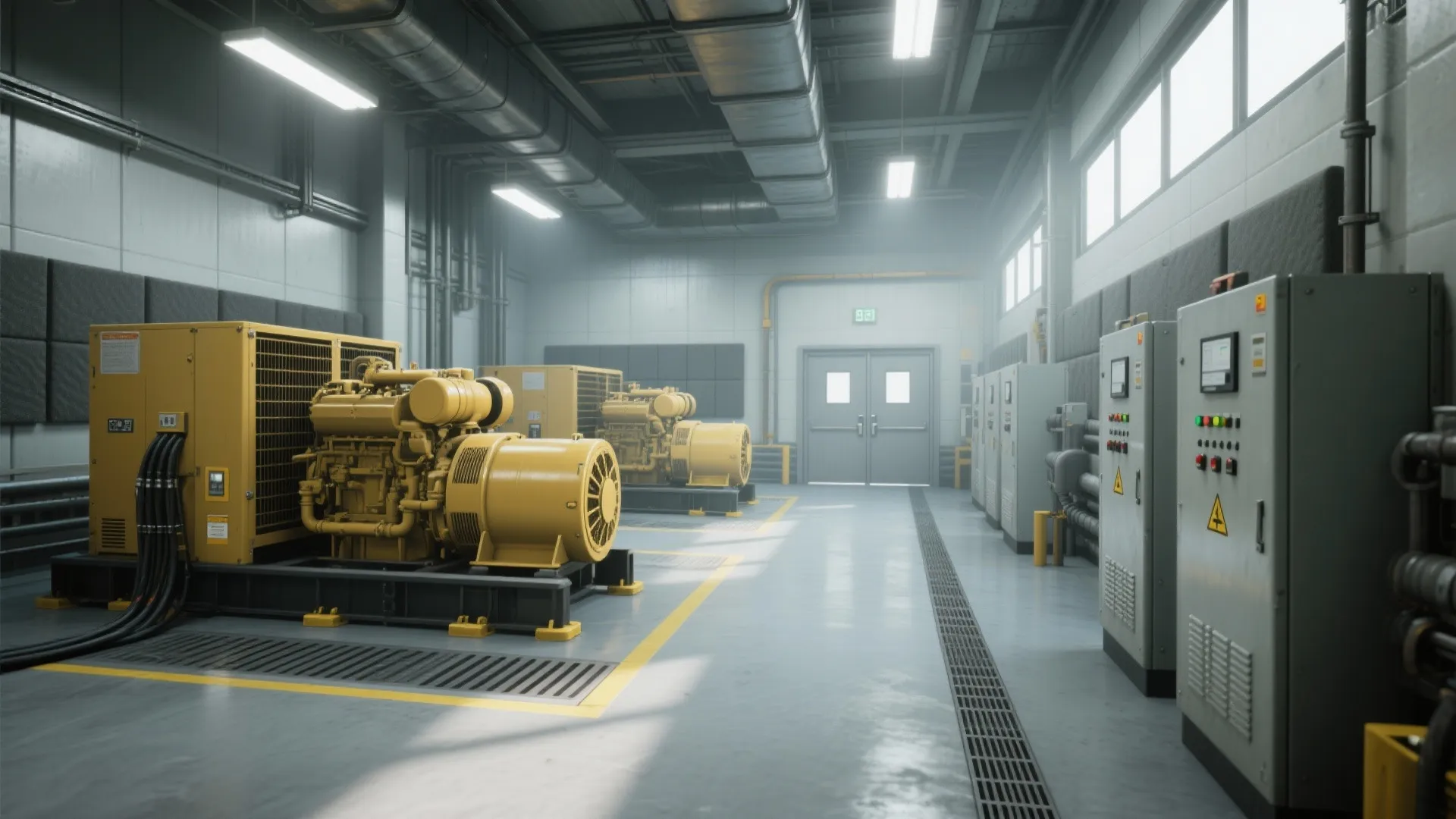

Generator Room Dimensions: How to Design the Perfect Space: 1 Minute to Optimize Your Generator Room Layout & Efficiency

Getting generator room dimensions right is less about squeezing machinery into a box and more about orchestrating safety, airflow, acoustics, and maintenance workflows. Over the years, I’ve seen brilliant equipment compromised by cramped corridors, poor ventilation paths, and insufficient clearances. A well-proportioned generator room supports reliability, serviceability, and compliance—while controlling heat, noise, and vibration.

Proper clearances and access directly affect uptime and technician safety. Steelcase research shows that well-planned work environments can improve task efficiency by 10–20% through reduced friction and better access pathways—an insight that translates cleanly to equipment rooms where service routes and reach envelopes matter. Meanwhile, the WELL Building Standard (WELL v2) highlights the impact of thermal comfort and acoustic control on occupant wellbeing; though the generator room isn’t a typical occupied space, its sound and heat spillover can influence adjacent areas requiring target sound levels and thermal isolation strategies. For further reading on building performance factors and human comfort, review steelcase.com/research and v2.wellcertified.com.

Lighting also plays a role in safe maintenance. IES guidance for industrial task lighting typically suggests maintained illuminance in the 300–500 lux range for detailed work, with glare control to prevent veiling reflections on metallic surfaces. I keep task lights adjustable and aim for neutral-white LEDs around 4000–4500K to balance visibility and fatigue. From an ergonomics perspective, clear floor paths of 900–1200 mm for routine access and up to 1500–1800 mm for two-person service moves make emergency egress and equipment removal feasible without contortions.

Core Dimensions and Clearances

While each generator and code set differs, a solid baseline starts with three concentric rings of space planning: equipment footprint, service envelope, and movement paths. The equipment footprint comes directly from manufacturer data—length, width, height, and any skid or spring isolation details. Service envelopes must include access on sides and ends where filters, batteries, belts, exhaust connections, and control panels reside. As a rule of thumb for small-to-mid diesel gensets (100–800 kW), I plan 900–1200 mm of clear space on the service side, 600–900 mm on non-service sides, and at least 1200–1500 mm at the control panel face. For large units, these can increase to 1500–2400 mm depending on component replacement needs.

Layout Strategy and Equipment Flow

I map the heaviest-maintenance components to primary access aisles and keep straight-line paths to doors for eventual removal. If you’re running multiple generators, align units with shared service aisles and keep 1500–1800 mm between parallel rows to accommodate carts and lifts. Avoid dead-end corners near radiators or exhaust bends; heat and clutter accumulate there, making work miserable and risky. For planning and quick visualization, a room layout tool can help evaluate aisle widths, door swing conflicts, and component clearance: room layout tool.

Ventilation, Combustion Air, and Heat Rejection

Heat load drives room size and airflow. Diesel generators can reject a substantial portion of input energy as heat through engines, radiators, and exhaust. I size intake and discharge openings to meet manufacturer CFM requirements and keep pressure drop low, with straight, short duct runs. If using remote radiators, allocate wall or roof space for louvers and plenum chambers that prevent recirculation. Maintain a clear thermal path—cool air in low, hot air out high—while isolating the generator’s air stream from adjacent spaces. Thermal comfort metrics from WELL v2 remind me to separate high-heat sources from regularly occupied areas and to design doors and partitions that block heat migration.

Acoustics and Vibration Isolation

Generators can be brutally loud. Even with factory enclosures, consider layered control: mass-loaded walls, decoupled ceilings, and vibration isolation mounts. Keep structural spans short where possible and avoid rigid connections that bridge vibration into office floors. Targeting a reduction of 10–20 dB at adjacent workspaces is realistic with proper assemblies. Line-of-sight sound paths should be disrupted with baffles; ensure they don’t choke airflow. If fuel tanks or transfer pumps share the room, isolate their mounts and consider resilient flooring transitions to keep low-frequency rumble in check.

Lighting and Visual Ergonomics

Service tasks benefit from consistent, low-glare lighting. I balance 4000–4500K LED fixtures with CRI ≥80 and aim for 300–500 lux at working surfaces per IES task recommendations. Provide localized task lights at panels and filter change points. Paint walls in a mid-value neutral (LRV 50–70) to improve visibility without reflective glare. Emergency lighting should illuminate exits and critical shutoff points; keep signage legible, with contrast and font sizes suited for low-light visibility.

Doors, Egress, and Heavy Moves

Door strategy often dictates room feasibility. Double-leaf or roll-up doors aligned with the generator’s long axis simplify installation and future removal. Keep 2400–3000 mm clear width for large units, factoring swing arcs and nearby columns. Floor loading should match equipment weight plus rigging; coordinate structural reinforcements below the slab where necessary. I specify clean, straight routes to the exterior with minimal turns, and protect finishes in the path against rigging abrasion.

Fuel, Exhaust, and Fire Safety

Fuel systems require dedicated clearances and protected routes. Keep fill and vent points accessible, with spill containment and non-slip floor finishes. Exhaust routing must avoid recirculation and heat damage—use high-temperature insulation and maintain separation from intakes. Fire safety starts with rated enclosures, sealed penetrations, and appropriately sized extinguishers. Electrical disconnects and emergency stop controls should be reachable within 1200–1500 mm height bands and free from blockage. Maintain code-compliant distances from combustible materials and ensure that access paths remain unobstructed by hose reels or spare parts.

Controls, Monitoring, and Workflows

Place control panels at eye level and maintain a clear approach area of at least 1200 mm. Cable trays should not impede vertical access. I keep a bench or fold-down shelf for laptops and diagnostic tools near the panel, with task lighting and a dedicated 120V convenience outlet. Labeling systems and color-coding reduce errors during urgent maintenance; consistent iconography aligns with best practices from interaction-design.org regarding cognitive load and clarity, though the primary focus here is physical clarity.

Materials, Durability, and Cleanability

Surfaces must handle oil, fuel, and heat. Specify epoxy or high-performance polyurethane floors with anti-slip aggregates around service zones. Walls benefit from abuse-resistant gypsum with washable coatings. Stainless or coated steel guards at corners protect against cart impacts. Acoustic absorbers should be cleanable and rated for industrial use; avoid fibrous materials that shed into intakes. If sustainability is a priority, choose low-VOC coatings and recycled-content panels, while maintaining fire and durability requirements.

Spatial Ratios and Visual Balance

Good rooms feel navigable. I balance mass—the generator, tanks, mufflers—with negative space in aisles and around control panels. The rhythm of doors, louvers, and cable trays should read clearly on the wall, avoiding visual clutter at critical touchpoints. Color psychology supports calmer work: a restrained palette with cool neutrals reduces perceived heat and stress, while accent colors highlight safety equipment and pathways without overwhelming the eye.

Commissioning Checklist for Dimensions

- Verify manufacturer service envelopes on all sides and ends.

- Confirm aisle widths: 900–1200 mm minimum; 1500–1800 mm for two-person or cart moves.

- Check door width and path for equipment removal: 2400–3000 mm for large generators.

- Validate exhaust routes and avoid intake short-circuiting.

- Set lighting to 300–500 lux with glare control; provide task lights at panels.

- Ensure vibration isolation and acoustic targets at adjacent spaces.

- Provide emergency stop, disconnect, and extinguisher access in clear zones.

- Map heavy maintenance workflows to straight-line paths.

Planning Multi-Unit Rooms

For redundancy or peak-load scenarios, stagger units and share service aisles. Keep enough lateral space for synchronized maintenance without blocking egress. Separate intake streams to prevent cross-contamination of hot discharge air. If paralleling switchgear is separate, dedicate its own clear approach and avoid crisscrossing cable trays over maintenance paths.

Adapting for Existing Buildings

Retrofits often succeed by carving out straight removal routes and reorganizing obstacles. If ceiling height is constrained, prioritize compact attenuators and consider remote radiator solutions. Structural vibration can be managed with inertia bases and isolation pads. For quick iteration on possible arrangements before committing to construction, an interior layout planner is useful to simulate equipment clearances and aisle logic: interior layout planner.

FAQ

Q1: What minimum clearances should I keep around a generator?

A1: For small-to-mid diesel gensets, plan 900–1200 mm on service sides, 600–900 mm on non-service sides, and 1200–1500 mm in front of control panels. Larger units need 1500–2400 mm depending on component replacement and rigging.

Q2: How bright should the room lighting be?

A2: Aim for 300–500 lux general lighting with low glare. Use 4000–4500K LEDs and add task lighting at control panels and service points, aligning with typical IES task recommendations.

Q3: How do I plan doors for installation and removal?

A3: Provide straight-line paths and door widths of 2400–3000 mm for large units. Double-leaf or roll-up doors aligned with the generator’s long axis reduce turns and rigging complexity.

Q4: What are the acoustic priorities?

A4: Target 10–20 dB reduction in adjacent spaces using mass-loaded walls, decoupled ceilings, and vibration isolation. Break line-of-sight paths and avoid rigid structural connections that transmit low-frequency energy.

Q5: How should ventilation be organized?

A5: Separate intake and discharge streams to avoid recirculation. Keep duct runs short and size openings per manufacturer CFM. If using remote radiators, design plenum and louver areas with clear thermal paths—cool in low, hot out high.

Q6: Where should control panels be located?

A6: Keep panels at eye level with a 1200 mm clear approach zone. Provide task lighting, labeling, and a nearby diagnostic surface or shelf with a dedicated outlet to support maintenance workflows.

Q7: What flooring and wall materials work best?

A7: Use epoxy or polyurethane floors with anti-slip aggregates in service areas. Choose abuse-resistant gypsum with washable coatings for walls and protect corners with metal guards. Acoustic treatments should be cleanable and industrial-rated.

Q8: How do I plan for fuel and exhaust safety?

A8: Maintain clear access to fill and vent points, use spill containment, and route exhaust with high-temp insulation away from intakes. Keep emergency stop and disconnects within 1200–1500 mm height bands and unobstructed.

Q9: What aisle widths are best for multi-unit rooms?

A9: Provide 1500–1800 mm in shared service aisles to accommodate carts and two-person maintenance, with clear cross-aisles to exits.

Q10: How can I reduce heat impact on adjacent spaces?

A10: Use thermal barriers, seal penetrations, and align airflow to prevent hot discharge from washing over occupied areas. WELL v2 thermal comfort guidance supports separation and controlled heat paths.
