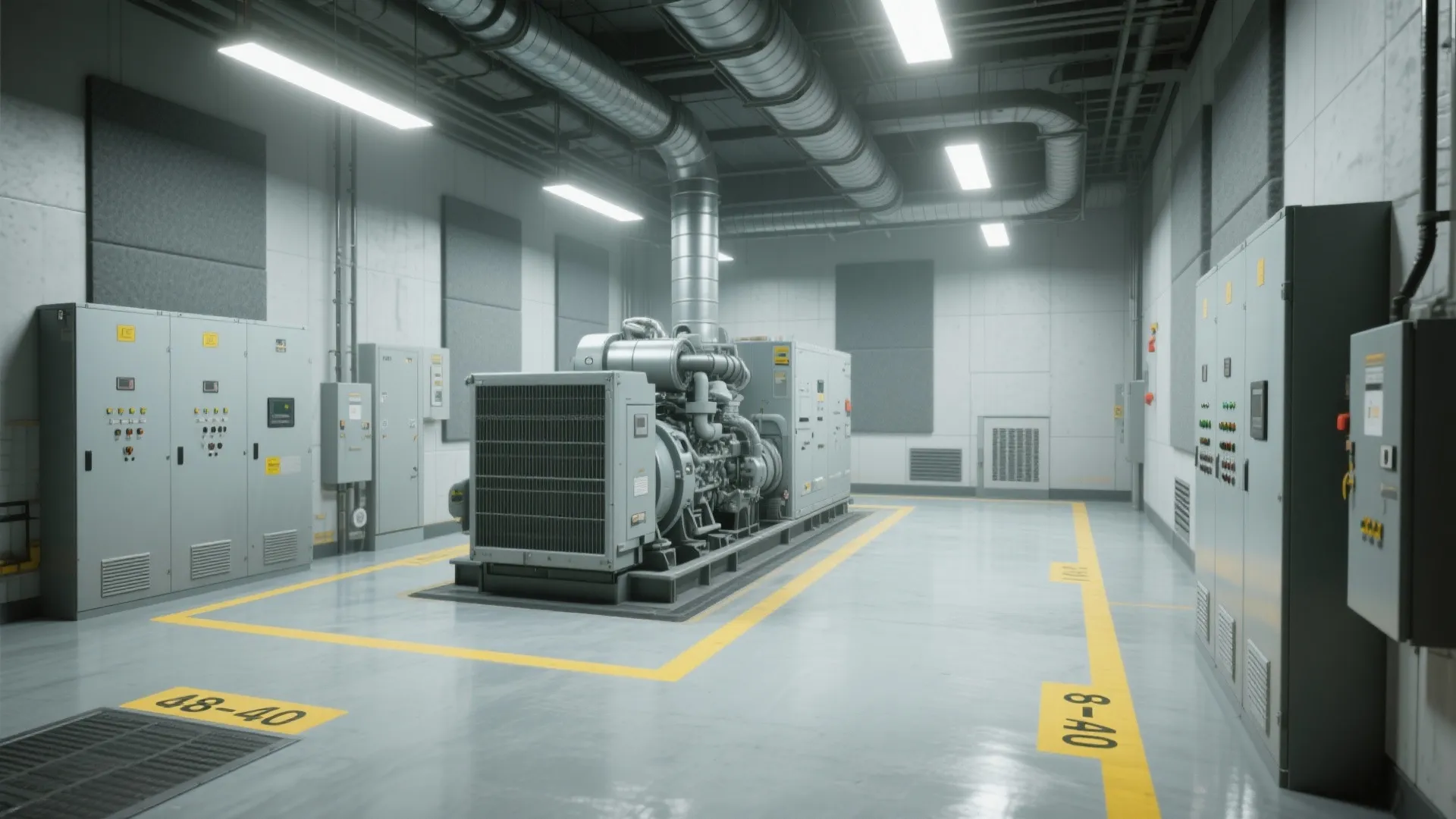

Generator Room Size: How to Optimize Your Space: 1 Minute to the Right Dimensions for Your Generator Room

Designing a generator room is a balance of clearances, airflow, acoustics, and maintainability. I look at size not just as square footage, but as the sum of access paths, servicing envelopes, and support systems. A good benchmark many facility managers use is allowing at least 36 in (915 mm) of clear maintenance aisle around equipment and 48–60 in (1220–1525 mm) at the front of control panels for safe operation; these figures align with common facility guidance and NFPA-adjacent practices. On the human side, WELL v2 emphasizes thermal, acoustic, and lighting conditions that reduce fatigue; its Acoustic feature guidance is a reminder that rooms housing power equipment must manage noise exposure and reverberation so staff can work safely during testing and inspections (see WELL v2).

Noise and vibration shape the envelope. Steelcase’s workplace research has shown that noise is a top complaint in building operations spaces, with employees reporting productivity drops when sound pressure levels rise; typical recommendations keep continuous background noise in work areas below 40–50 dBA, while generator test runs can easily exceed 85 dBA without isolation. The Illuminating Engineering Society (IES) recommends 200–300 lux for routine equipment inspection lighting in technical rooms, which guides fixture counts and ceiling height. These baseline numbers help me size the room for both equipment and people who need to operate and service it.

Core Sizing Principles

Start by mapping the generator footprint, then add maintenance envelopes per manufacturer manuals (often 24–36 in on sides and 48–60 in at service ends). Allow straight-line routes for removal of major components—alternators, radiators, and silencers—without demolition. I typically allocate 15–25% additional area beyond equipment footprints to accommodate circulation, panel boards, fire suppression, and access doors.

Ventilation, Exhaust, and Heat Rejection

Diesel and gas generators shed large amounts of heat. Size the room to host intake and discharge plenums with straight airflow paths. Radiator-cooled units need dedicated louver area and duct runs; avoid tight turns that raise static pressure. Separate exhaust piping runs to minimize heat zones near walkways. Keeping clear ceiling space (often 24–36 in above top of equipment) allows for acoustic baffles and duct transitions without conflicts.

Acoustic Control and Neighboring Spaces

I design generator rooms with layered acoustics: resilient mounts, mass-loaded walls, and absorptive panels. Target transmission loss to adjacent offices or patient areas (in healthcare) by adding double-stud partitions or masonry with sealed penetrations. Coordinate with structural to avoid rigid bridges. When test-run sound hits 85 dBA+, plan for entry vestibules, solid-core doors, and gasketed frames.

Access, Egress, and Ergonomics

Human factors matter. Maintain egress widths and keep control panels at 48–52 in mounting height for ergonomic reach. Provide 60 in turning diameter at door thresholds where equipment dollies are used. Ensure that the heaviest maintenance tasks have direct paths to exterior loading bays to prevent tight radius turns.

Electrical Clearances and Panel Layout

Respect minimum working clearances for switchgear and ATS units (commonly 36–48 in in front, depending on local codes and equipment voltage). Arrange conduits on walls rather than overhead where possible to keep ceiling free for exhaust and ventilation. Group monitoring devices near the entry to reduce travel during testing.

Fuel Storage, Spill Control, and Safety

If using diesel day tanks, allocate floor area for double-wall units, spill containment berms, and safe refilling access. Keep fuel lines away from high-heat exhaust paths. Provide eye-wash stations where chemicals are stored and include clear sightlines to emergency shutoffs.

Lighting and Visual Comfort

Plan for a baseline of 200–300 lux general lighting with higher localized task lighting at control panels, following IES guidance. Select 4000–4500K neutral-white LEDs to improve gauge legibility without harsh glare, add shielding on luminaires near reflective enclosures, and maintain uniformity ratios to reduce visual fatigue.

Sizing for Future Upgrades

I often add modular space for future paralleling gear or a second generator. Leave stub-outs and reserved floor zones, and keep the layout flexible. A simple interior layout planner can help test multiple orientations and circulation widths before construction.

Plan the Layout

When fine-tuning aisle widths and service clearances, a room layout tool lets you simulate equipment swaps and confirm maintenance envelopes.

room layout tool

Common Room Size Scenarios

- Single 300–500 kW generator with day tank and ATS: 300–500 sq ft, assuming 36 in side clearances and a 60 in service end.

- Paralleled 2×500 kW with dedicated switchgear: 700–1,000 sq ft, plus corridor access for component removal.

- Rooftop enclosure (containerized): footprint set by manufacturer; still apply interior clearances for service and airflow.

Material Selection and Durability

Opt for non-absorptive, cleanable surfaces: sealed concrete floors, epoxy coatings, and high-abrasion wall finishes. Use resilient ceiling systems where acoustic panels are required. Prioritize low-VOC materials to avoid indoor air quality issues during maintenance windows.

Workflow and Testing Behavior

Consider how teams move during monthly test runs: clear sightlines from entry to controls, landing zones for portable meters, and safe observer positions away from hot exhaust or moving belts. Label zones on the floor to encourage consistent behavior.

Standards and References

Use WELL v2 for acoustic and lighting targets and reference IES for illumination levels to align with best practice. Facility management bodies provide practical guidance on clearances and maintenance envelopes that I incorporate early to avoid later conflicts.

FAQ

Q1: How much clearance do I need around a generator?

A1: Plan for at least 36 in (915 mm) around sides and 48–60 in (1220–1525 mm) at service ends and electrical panels. Always confirm manufacturer-specific requirements and local codes.

Q2: What lighting levels work best in generator rooms?

A2: Aim for 200–300 lux general lighting with task lights at gauges and panels. Neutral 4000–4500K LEDs improve readability and reduce eye strain, consistent with IES guidance.

Q3: How do I control noise from test runs?

A3: Combine resilient mounts, mass-intensive walls, acoustic doors, and absorptive panels. Provide a vestibule and seal penetrations. Keep sensitive spaces away from shared structural paths.

Q4: What about ventilation and exhaust?

A4: Size intake and discharge paths for the radiator and engine airflow; avoid tight duct turns and provide clear ceiling space for baffles. Isolate hot exhaust runs from circulation zones.

Q5: Can I future-proof the room for more capacity?

A5: Reserve floor area and conduits for additional switchgear or parallel units. Keep straight removal paths for large components and document stub-outs for future tie-ins.

Q6: How should fuel storage be handled?

A6: Use double-wall day tanks with integral containment, safe refill access, and separation from heat sources. Provide spill control and clear access to emergency shutoffs.

Q7: What ergonomic considerations improve safety?

A7: Maintain 60 in turning circles at doors, mount controls at 48–52 in, and provide anti-glare lighting. Keep primary controls close to entries to reduce travel during testing.

Q8: Do I need special flooring?

A8: Sealed concrete or epoxy systems resist oil and fuel. Mark service zones and keep floor drains away from electrical equipment.

Q9: How big should a room be for a 500 kW generator?

A9: Expect roughly 300–500 sq ft depending on the enclosure, fuel system, and required clearances. Verify with the manufacturer’s maintenance envelope and local code.

Q10: What standards should I consult?

A10: Use IES for lighting levels and WELL v2 for human-centric acoustic and comfort guidance. Manufacturer manuals and local code dictate exact clearances and egress requirements.
