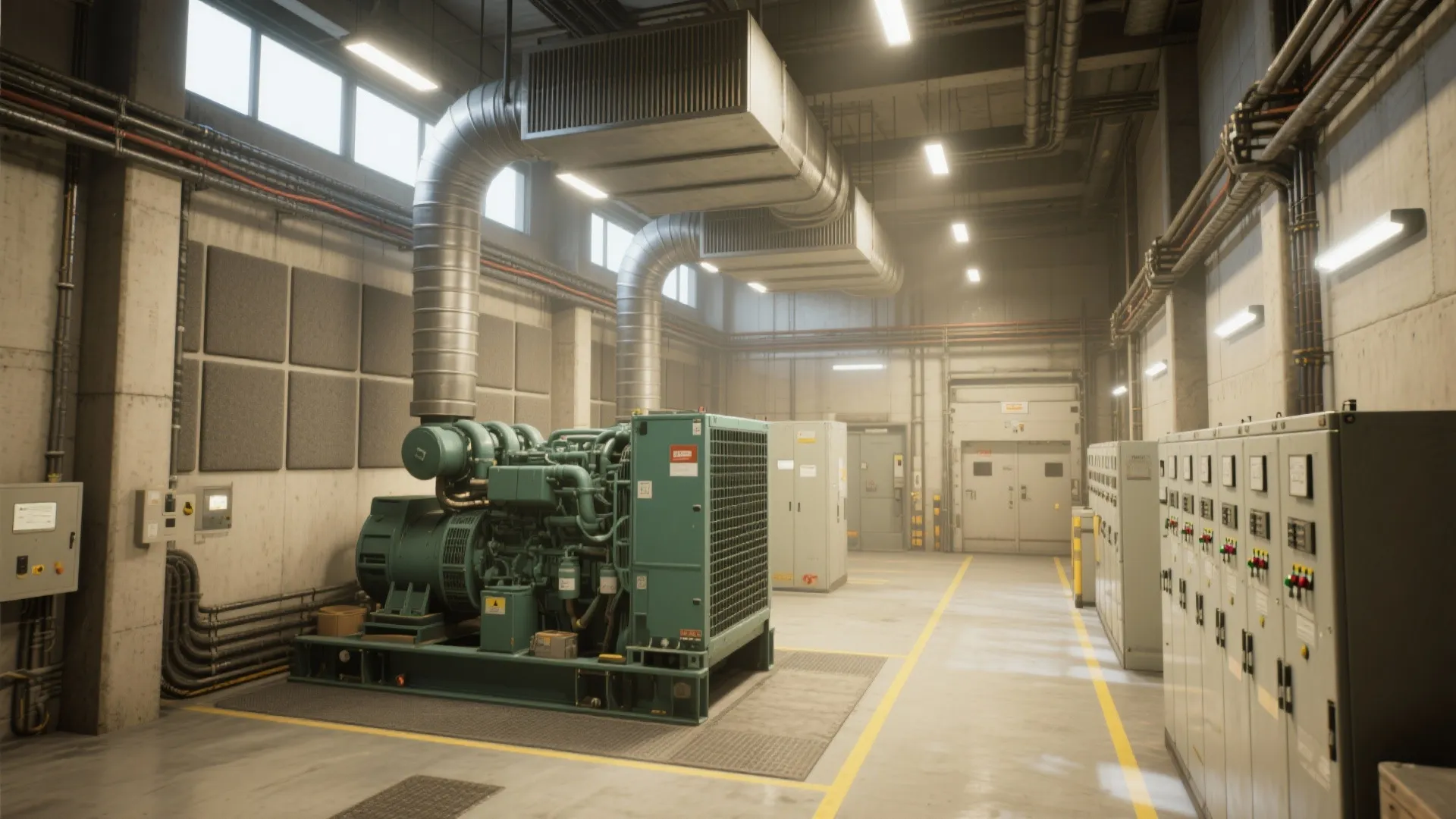

Generator Room Size: How to Plan the Perfect Fit: Fast-Track Guide to Accurate Generator Room Sizing

I’ve sized and detailed dozens of generator rooms across office towers, hospitals, and mixed-use sites, and the sweet spot isn’t only about square footage—it’s about safe clearances, airflow, heat rejection, fuel routing, acoustics, and maintenance access that work as a cohesive system. Space that looks adequate on plan can fail once you account for exhaust lengths, switchgear working clearances, and service corridors.

Safety and productivity metrics underscore the value of proper spatial allowances. The WELL Building Standard v2 recommends background noise control and ventilation strategies that maintain acceptable thermal and acoustic comfort in support spaces; over-heated rooms elevate risk and shorten equipment life. On the electrical side, common industry practice drawn from IES lighting guidance and facility management research shows that clear, well-lit maintenance aisles reduce incidents and service time. Steelcase workplace studies have linked environmental comfort to performance; while focused on offices, the principle holds in technical rooms: predictable, well-detailed environments reduce errors and downtime. For specific ergonomic working clearances around equipment and controls, professional bodies like IFMA offer best-practice frameworks for safe facilities management.

As a rule of thumb from my practice, small commercial generator rooms often require 1.5–2.5 times the generator footprint to safely accommodate service clearances, louvers/ducts, mufflers, and switchgear. For multi-megawatt sets, the multiplier can rise to 3.0–4.0 when you add parallel switchboards, day tanks, bulk fuel piping, and acoustic treatment. But rules of thumb only start the conversation—the right size comes from loads, heat, air, fuel, egress, and structural limits detailed below.

Core Sizing Logic: From Load to Layout

Start with the mechanical/electrical brief: standby versus prime power; single set versus paralleled sets; and target run time. These choices cascade into spatial needs for switchgear lineups, fuel storage, and exhaust routing. I always map the room with the generator skid footprint, then add manufacturer-recommended service clearances on all sides (often 1,000–1,500 mm for major access panels) and uninterrupted pathways to doors.

When multiple sets run in parallel, space for bus ducts, synchronizing switchgear, and cable bend radii grows fast. Keep switchgear working clearances (e.g., 1,000–1,200 mm front and rear in many jurisdictions—verify local code) free of obstructions, with full-height headroom for cable pulls. Don’t forget the vertical dimension: overhead silencers, flues, and ducted intakes can consume 600–1,200 mm of plenum depth above the skid top.

Ventilation, Heat, and Airflow

Generator rooms are heat factories. Combustion air plus cooling air must flow in a straight, predictable path: intake low, discharge high, with clear partitioning to prevent recirculation. I target intake and discharge openings sized to limit face velocity to roughly 2–3 m/s to control pressure drop and noise, adjusting per the manufacturer’s static pressure allowance. For radiator-cooled sets, provide a ducted discharge to exterior; for remote radiators, plan pipe runs and service access to pumps and valves.

Thermal comfort isn’t a luxury; excessive ambient temperatures reduce generator output and can trigger shutdowns. WELL v2 emphasizes controllable ventilation and thermal conditions for building well-being; apply the same discipline here by maintaining design room temperatures within the generator’s allowable ambient, often around 40°C max. High exhaust temperatures also drive material choices for ducts and wall linings.

Acoustics and Vibration Control

Uncontrolled noise migrates through structure and air. Define a target sound pressure level at the nearest occupied area—often 65 dBA or lower for adjacent offices—and back into the required attenuation. That typically means a combination of acoustic louvers, lined intake/exhaust ducts, in-line silencers, floating inertia bases for the generator skid, and resilient mounts for piping. Keep bends in duct silencers gradual to avoid pressure penalties. Wall and ceiling assemblies should be detailed to avoid flanking paths at penetrations; oversize the room slightly to accommodate the thickness of acoustic treatments.

Fuel, Exhaust, and Life-Safety Clearances

Fuel storage strategy determines both plan and section. Day tanks near the set require spill containment and safe separation from ignition sources; bulk tanks elsewhere shift space to piping runs and valve stations. Maintain clear egress paths—two remote exits for larger rooms—and keep hot surfaces guarded. Exhaust pipes expand with heat; allow for thermal growth loops or flexible connectors and accessible supports. Keep clear working distance around the exhaust after-treatment (if fitted) for service.

Electrical Gear, Cable Management, and Lighting

Switchgear lineups and automatic transfer switches (ATS) demand straight, unobstructed maintenance aisles. Keep cable trays high and organized; reserve turning space for large-diameter conductors and bus duct drops. Good task lighting matters as much here as in a workshop. I follow IES guidance for technical spaces by providing uniform, glare-controlled illumination with dedicated fixtures over service zones and panels, supplemented by emergency lighting on separate circuits for blackout scenarios.

Doors, Egress, and Service Logistics

Doors must clear the largest component to be moved—often the alternator or engine block—and should align with a hoist path if equipment replacement is anticipated. I favor double-leaf doors with removable mullions and overhead lift points rated for the heaviest component. Keep egress aisles free and obvious; in larger rooms, paint floor lines to mark no-storage zones.

Structural and Floor Loading

Engines are heavy, and dynamic loads matter. Coordinate slab thickness, rebar, and inertia base design early. Floating slabs or isolation pads decouple vibration from the structure; allocate plan area for these assemblies and maintenance jacks. If the generator sits above grade, verify vibration transmission to sensitive areas such as labs or offices below and adjust the acoustic budget.

Right-Sizing Examples by Scale

- Small commercial (50–150 kW): A single set often fits in 20–35 m² when using a compact enclosure, expanding to 30–50 m² with internal switchgear, day tank, and ducted radiator.

- Mid-scale (150–750 kW): Expect 50–120 m² depending on switchgear lineup, acoustic treatments, and fuel strategy.

- Large/parallel (>750 kW or multiple sets): 120–300+ m² as sets, synchronizing gear, and air paths multiply. Add extra depth for acoustic plenums and service corridors.

Workflow and Layout Planning

Before committing walls, I model three to five layout options and run clash checks on ducts, cable trays, and exhaust lines. A digital interior layout planner helps visualize clearances and service paths, and to communicate with stakeholders; use a room layout tool to simulate door swings, equipment swaps, and aisle widths at scale. I keep a live equipment schedule tied to the plan so every change ripples through air, power, and clearance calculations.

Lighting, Color, and Visual Ergonomics

Neutral, low-reflectance finishes reduce glare and make labeling legible. I specify 4000–5000K lighting for high-contrast visibility, with vertical illuminance on panels. Marking zones with durable color bands on floors and walls supports quick orientation and safer workflows. Good visual ergonomics cut maintenance time and mistakes.

Commissioning and Maintainability

Reserve space for load bank connections and temporary ducting if required for testing. Commissioning teams need safe, ventilated areas to run at load without overheating the room. I also carve out wall space for O&M documentation, spare parts storage, and lockout/tagout stations. All of this takes square meters—plan them early.

Common Pitfalls That Inflate Room Size Late

- Ignoring bend radii for large power cables and exhausts

- Underestimating acoustic treatment thickness and louver depth

- Forgetting door clear widths for component replacement

- Inadequate allowance for spill containment curbs around day tanks

- No vertical space for silencers and duct transitions

Reference Points and Standards

Facility and interior standards from organizations like IFMA provide planning context for safe access and maintainability, while IES guidance helps define lighting quality in technical spaces. For occupant well-being in adjacent areas, WELL v2 principles guide noise control, thermal limits, and ventilation strategies that reduce risk and downtime. Explore current research on workplace performance at Steelcase Research and health-focused environmental strategies at WELL v2.

FAQ

How much space should I leave around a generator for maintenance?

Follow the manufacturer’s service clearance recommendations—often 1,000–1,500 mm on service sides—with a continuous aisle to exits. Add extra depth where panels open into the aisle and where filters or silencers are removed.

Does an enclosed generator reduce the room size I need?

Enclosures can shrink mechanical scope but still require airflow paths, switchgear space, and replacement access. If the enclosure stays outdoors, your indoor room may only need ATS/switchgear and fuel controls; if indoors, plan for louvered intake/exhaust and acoustic plenum space.

What about ventilation rates for generator rooms?

Size intake and discharge to match engine combustion and cooling air requirements with low face velocities (around 2–3 m/s) to control noise and pressure drop. Maintain ambient temperatures within the generator’s rated limit, often near 40°C.

How do acoustics influence room size?

Acoustic louvers, lined plenums, and silencers take real volume. Expect 300–800 mm added to wall and duct assemblies in high-attenuation designs, plus floor area for isolation bases and resilient mounts.

Can I stack equipment to save floor area?

Limited stacking works (e.g., cable trays over service aisles), but avoid obstructing maintenance zones. Overhead silencers and ducts are common; ensure adequate headroom for filters, access panels, and hoists.

Do I need two exits from a generator room?

Larger rooms and higher-risk occupancies often require two remote exits; local codes govern this. Even when not mandated, dual exits improve safety during hot operations and maintenance.

What lighting levels work best in a generator room?

Provide bright, uniform, glare-controlled lighting with 4000–5000K color temperature and enhanced vertical illuminance on panels. Reference IES guidance for technical spaces and add emergency lighting on independent circuits.

How do I plan for future capacity?

Reserve a clear equipment bay and pre-route cable trays and sleeves. Keep spare space in switchgear lineups and ensure doors and hoist routes can handle a larger or second set. Model alternates using a layout simulation tool before you pour concrete.

What floor finishes and materials are appropriate?

Use oil-resistant, non-slip floors with integral curbs for spill containment. Walls and ceilings should be durable, cleanable, and compatible with acoustic linings; protect corners and door frames from equipment moves.

How close can a generator room be to occupied spaces?

Separate with robust acoustic assemblies and avoid shared structural paths when possible. Target 65 dBA or lower at adjacent offices; detail penetrations to prevent flanking and consider floating slabs to cut vibration transmission.
