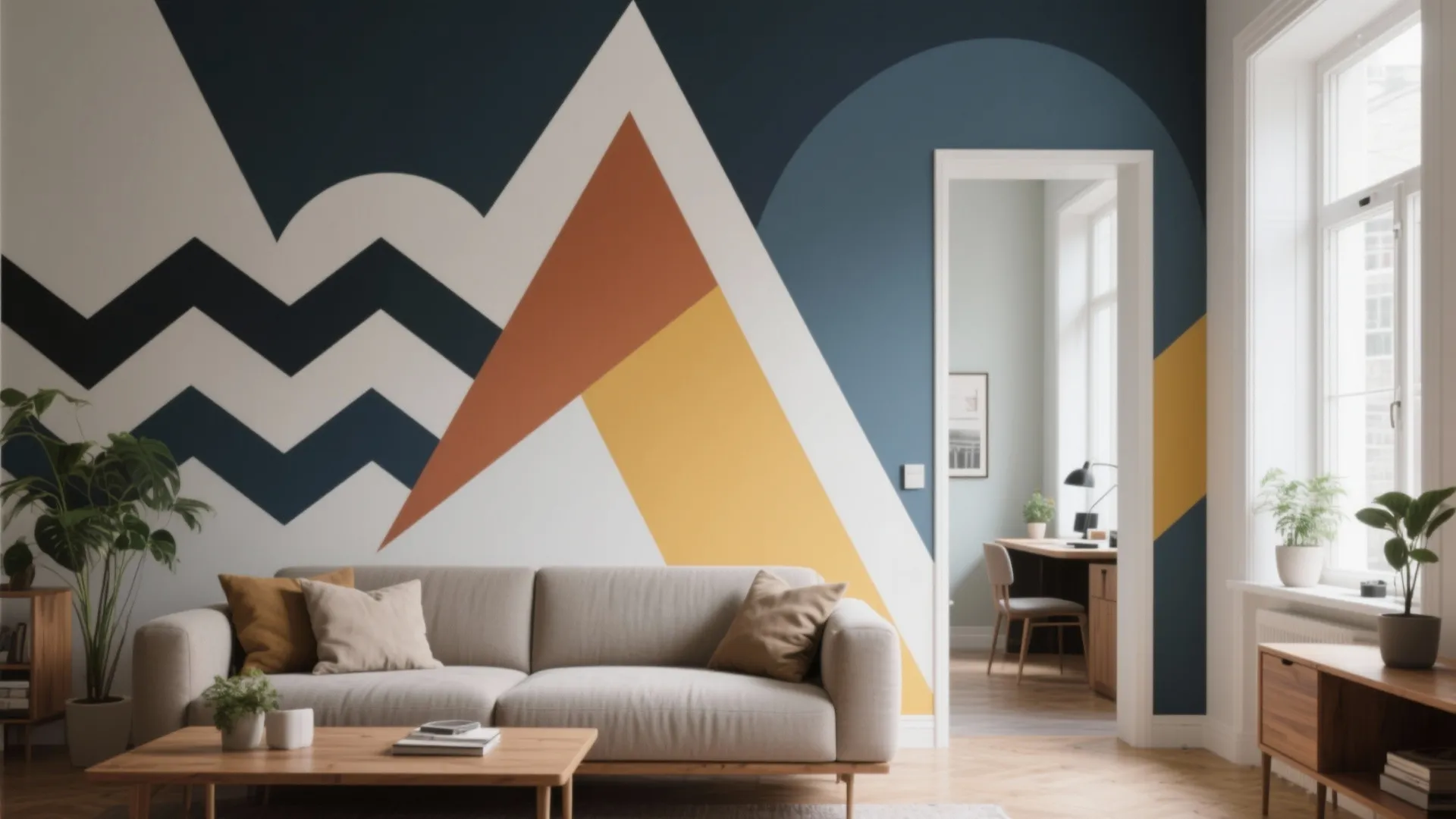

Geometric Wall Art DIY: Transform Your Space Easily: 1 Minute to Stunning Geometric Wall Art DIY (No Experience Needed!)

I’ve designed geometric wall features for homes, offices, and hospitality spaces for over a decade, and the beauty of this approach is how accessible it is. With a clear plan, a few tools, and the right palette, geometric wall art can shift a room’s energy—grounding a workspace, lifting a dull corridor, or adding rhythm to a living room. Done well, it’s not just decorative; it guides behavior, improves mood, and even supports visual comfort.

Color and layout decisions deserve rigor. Steelcase research reported that 23% of workers cite the workplace atmosphere and aesthetics as a key influence on engagement, underlining how visual environments matter to daily performance. From the color side, Verywell Mind’s color psychology guidance notes that blues tend to promote calm and focus, while yellows can spark creativity—useful anchors when selecting geometric tones for different zones. Reference standards like the WELL Building Standard (WELL v2) also emphasize visual comfort and glare reduction, which helps you position bold shapes away from direct reflections and high-luminance sources.

Material choices and illumination sit at the heart of a successful result. According to IES recommended practices, task zones often benefit from 300–500 lux; art walls should be lit evenly with controlled glare. That means keeping high-contrast geometries away from overly glossy finishes unless you can diffuse light. When I fabricate 3D geometric panels, I lean on low-VOC paints and matte topcoats to soften specular highlights, and I angle wall washers to avoid scalloping. You’ll feel the difference instantly—crisp edges, balanced brightness, and no eye strain.

Plan Your Composition

Start with intent. Define how you want the room to feel: calm, energetic, focused, or playful. Map circulation lines, focal points (sofa, headboard, desk), and daylight sources. I sketch a grid or diagonal framework, then lock primary shapes (triangles, arcs, chevrons) around anchors like a light switch or wall outlet to maintain usability. If you’re reworking a multipurpose space, create a dominant geometry in the main activity zone and secondary accents elsewhere to keep rhythm without clutter. For quick digital trials, a room layout tool can help you test placements against furniture lines and sightlines: room layout tool.

Select Colors with Purpose

Choose a tight palette—three to five hues max. For focus: navy, slate, and soft white. For social energy: terracotta, mustard, and cream. For serenity: sage, eucalyptus, and warm gray. Balance warm and cool tones to control perceived depth; cool shapes recede, warm shapes advance. Use a 60/30/10 ratio: 60% background, 30% secondary geometry, 10% accent. Test swatches at different times of day; daylight will shift chroma and make saturated tones feel louder in the afternoon. Keep sheen consistent; matte or eggshell is friendlier for crisp masking and reduces glare.

Tools and Materials

Essential kit: painter’s tape (low-tack), laser level or long spirit level, measuring tape, pencil and chalk line, angled brush, mini rollers, drop cloths, and high-quality masking tape for razor-clean edges. For 3D builds: lightweight MDF or birch ply strips, construction adhesive, pin nails, and a flush-cut saw. If adding metallic accents, choose water-based metallic paints for low odor and faster curing. Always prime raw surfaces and patch holes so geometry won’t telegraph wall imperfections.

Layout Methods That Guarantee Clean Lines

Precision is everything. Establish a reference baseline on the wall using a laser level, then measure equal intervals for repeating patterns. For triangles, mark a consistent pitch (e.g., 60°) and use a template cut from card or thin plywood. For chevrons, define your apex point first, then tape outward symmetrically to avoid drift. Press tape edges firmly and back-brush a thin layer of the wall color along the tape before the feature color—this seals micro-gaps for flawless edges. If your plan involves multiple layers, allow full dry time and re-level each subsequent mask to prevent cumulative error.

Create Depth with Overlays and Texture

A single plane works, but overlays bring dynamism. Stack bands of color with subtle shifts in hue, or float thin timber battens following your painted lines to add shadow play. Keep projection under 10–12 mm so furniture and circulation remain safe. For accent zones behind a TV or desk, angle stripes 10–15° off vertical to guide the eye without inducing visual fatigue. Consider a small tactile element—linen wallpaper in alternating panels or a brushed limewash inside geometric fields—to soften the look.

Light It Right

Layer lighting to flatter geometry and protect visual comfort. Use asymmetric wall washers for broad, even illumination. Limit peak luminance contrasts; your brightest accent should not exceed roughly 3:1 against its surround in relaxed spaces. Dimmable LEDs at 2700–3000K keep warmth in living zones, while 3500–4000K supports clarity in work areas. Position spotlights off-axis to avoid hard specular highlights on metallic paint. If the wall sits opposite a window, consider top-edge baffles to reduce reflections that flatten your shapes.

Scale and Proportion

Relate forms to furniture. Large triangles work behind a king bed, but feel heavy behind a narrow console. Use a modular approach: divide the wall into equal bays (thirds or fifths), place dominant shapes in the central bay, and echo smaller forms at edges. Maintain breathing room: minimum 150–200 mm clear from corners and trims keeps geometry from feeling cramped. In corridors, choose elongated forms aligned with the path to avoid visual clutter.

DIY Step-by-Step: Painted Geometry

1) Prep and prime the wall; sand lightly for a smooth base. 2) Draw your layout with pencil and a light chalk line. 3) Mask with painter’s tape; burnish edges. 4) Seal the tape with the wall color. 5) Apply feature colors with a mini roller; two thin coats beat one heavy coat. 6) Pull tape back on itself at a 45° angle while paint is slightly tacky. 7) Clean edges with a fine brush if needed; touch up overlaps. 8) Let cure, then install lighting or accessories.

DIY Step-by-Step: 3D Geometric Panels

1) Cut battens to uniform widths. 2) Pre-paint or stain for cleaner installation. 3) Snap chalk lines for alignment. 4) Use a small bead of adhesive and pin nails to fix. 5) Check level after every third piece. 6) Fill nail holes; spot paint. 7) Finish with a matte clear coat to unify sheen.

Safety, Sustainability, and Maintenance

Ventilate during painting, use low-VOC products, and wear a mask when sanding. Choose FSC-certified timber if adding battens. Keep a labeled touch-up kit of all colors for quick repairs. To prevent fading, avoid placing intense hues under continuous direct sunlight, or specify UV-stable paints for south-facing walls.

When to Keep It Simple

If your room already has strong patterns (busy rugs, textured curtains), let the wall art act as a calm counterpoint. One or two large forms beat a swarm of small shapes. Reserve high-contrast geometry for focal walls; secondary walls can echo the palette with softer edges or tonal shifts.

Reference for Standards and Research

For deeper context on workplace visual comfort and behavior, see research overviews by Steelcase, and illumination guidance in IES standards. Both help align DIY decisions with proven performance principles.

FAQ

Q1: How do I choose the right color palette for my room’s function?

A: Anchor to intent. Calm and focus benefit from cool, desaturated blues and greens; creative zones respond to warm accents like mustard or coral. Keep to three to five hues and test swatches under morning and evening light to avoid surprises.

Q2: What’s the ideal lighting to showcase geometric walls without glare?

A: Use dimmable LEDs at 2700–3000K in living areas and 3500–4000K near desks, with even wall washing. Aim for balanced contrast; avoid high-gloss paints if your space has strong directional light.

Q3: How big should shapes be relative to furniture?

A: Relate width to the furniture piece below: 1.2–1.5 times the width of a sofa or bed headboard usually feels balanced. Maintain 150–200 mm clearance from edges and trims to keep forms breathing.

Q4: What tape gives the cleanest paint lines?

A: High-quality low-tack painter’s tape, firmly burnished. Seal the edge with the wall color before the feature color; remove tape while slightly tacky to prevent tearing.

Q5: How can I make a small room feel larger with geometry?

A: Use cool hues and horizontal bands to widen, vertical bands to heighten. Keep contrast moderate and align shapes with sightlines to reduce visual noise.

Q6: Are 3D elements practical in high-traffic areas?

A: Yes, if kept shallow (under 12 mm), with rounded edges and durable finishes. Avoid protrusions near door swings or circulation paths.

Q7: What finishes help with visual comfort?

A: Matte or eggshell paints minimize glare and emphasize crisp edges. Pair with diffuse lighting to keep the luminance ratio gentle, supporting relaxed viewing.

Q8: How do I maintain consistency if I add more geometry later?

A: Preserve your original grid and ratios. Document hue codes and sheen types. Extend patterns into adjacent walls with reduced scale or tone-on-tone variations to avoid overwhelming the space.

Q9: Can geometric art improve workspace performance?

A: Thoughtful visuals can influence engagement and mood. Research highlights that atmosphere plays a role in how people feel and work; align colors and pattern intensity to the task type for best results.

Q10: What’s the fastest weekend-friendly approach?

A: One accent wall with a two-color chevron or diagonal banded pattern. Prep Friday evening, paint Saturday, cure and light Sunday.
