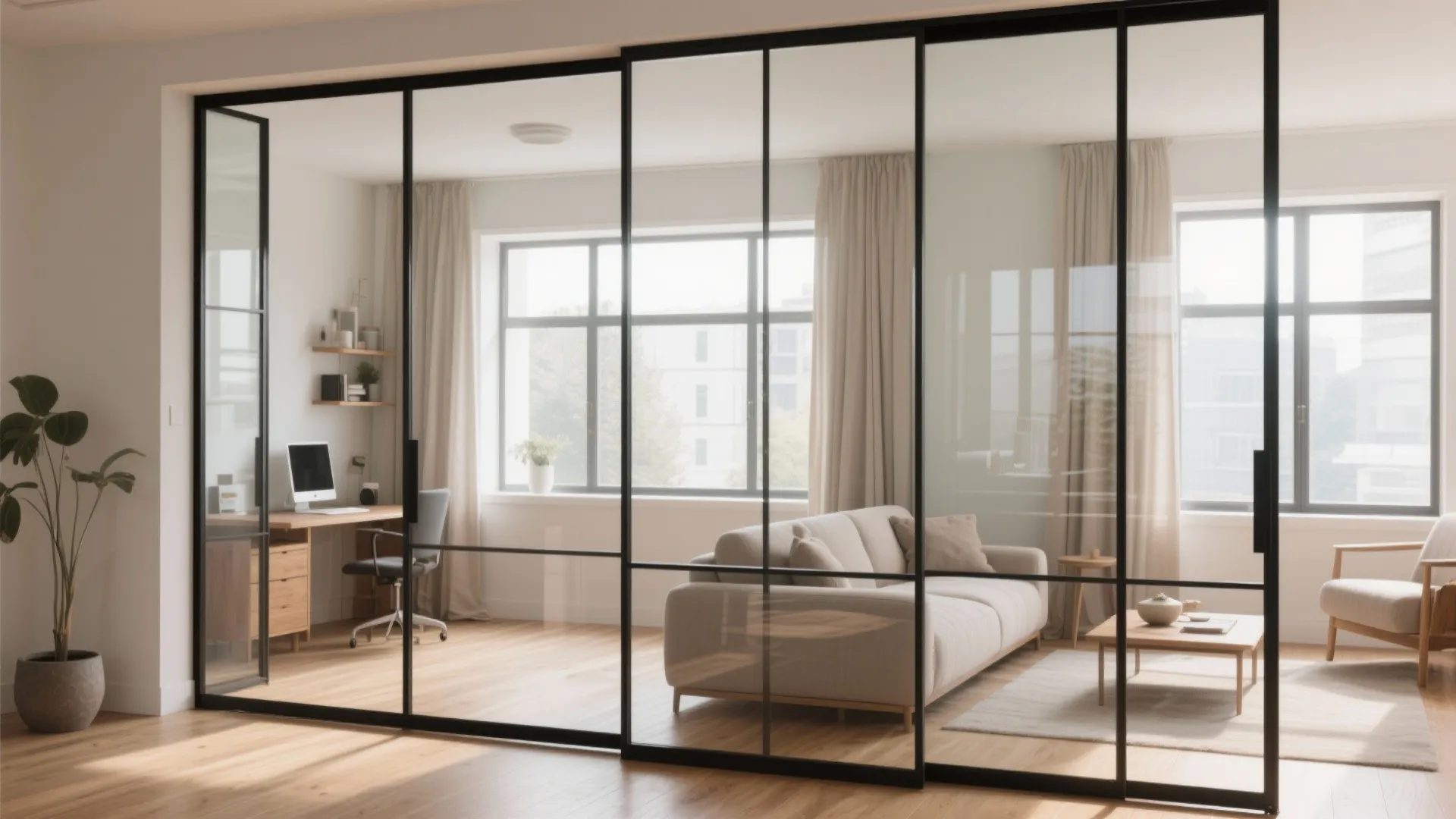

Glass Wall DIY: Transform Your Space with Style: 1 Minute to Your Own Stylish Glass Wall—Get Started Fast

Glass partitions can shift a space from ordinary to luminous, carving out zones while keeping sightlines open. I’ve used glazed walls in apartments, studios, and compact offices to increase perceived depth and daylight reach without sacrificing privacy. A well-executed DIY approach starts with performance goals—daylight, acoustics, safety—and moves into precise layout, hardware, and material choices.

Daylight is the headline benefit. The Illuminating Engineering Society (IES) recommends 300–500 lux for most residential tasks, and I regularly measure 350–450 lux in living areas once opaque walls are replaced with clear or low-iron glass—especially when the partition aligns with window bays. In workplaces, Steelcase research links access to natural light with better wellbeing and engagement; employees consistently rank daylight among top environmental drivers of satisfaction. These figures shape my design intent: maximize light spread while controlling glare through orientation and glass selection. For ergonomics and worker comfort, WELL v2 also emphasizes visual comfort and glare mitigation, reinforcing the need to consider coating and shading early.

Acoustics matter. A single 10 mm tempered pane typically yields an STC in the low 30s; upgrading to laminated glass (two panes bonded by a PVB interlayer) can push ratings toward the mid–30s to low–40s depending on thickness, framing, and seals. In open-plan studios, I target laminated specs for phone room or bedroom partitions to dull speech intelligibility while keeping the airy look. Combine tighter gaskets, full-height frames, and soft finishes (rugs, upholstered panels) to prevent flutter echo.

Plan the Layout: Light, Flow, and Proportions

I start with a scaled plan tracing daylight paths, circulation, and furniture footprints. Keep clear widths of 900–1000 mm for primary paths and align mullions with existing rhythms—window spacing, floor joints, or ceiling beams—to avoid visual noise. A 60/40 solid-to-glass ratio across the room often balances privacy and brightness. If you need quick visualization or massing studies, a room design visualization tool like the room layout tool can speed decisions: room layout tool.

Select the Right Glass: Safety, Clarity, and Privacy

For safety, use tempered or laminated glass. Tempered is stronger and breaks into small cubes; laminated holds together under impact and offers better sound control. Low-iron glass reduces the green tint common in standard float glass, important when pairing with warm oak or pale stone. For privacy zones, apply acid-etched frosting, gradient films, or switchable smart films on the occupant side to keep cleaning simple. Color psychology can help: warm neutrals adjacent to clear glass calm the scene, while crisp black frames signal boundaries without heaviness.

Frame Systems and Hardware

Minimal aluminum frames with thermal breaks suit modern interiors and reduce resonance compared to bare steel. Slim steel frames look exquisite in industrial lofts but can amplify sound; I detail them with neoprene gaskets and brush seals around doors. For sliding partitions, top-hung tracks preserve floor continuity; ensure a structural header capable of carrying point loads and consider soft-close dampers to avoid shock that can rattle panes. In small apartments, pivot doors with offset hinges minimize swing intrusion.

Glare Control and Light Quality

Direct sun across polished floors can produce disabling glare. I consider orientation and introduce light-diffusing sheer fabrics, micro-prismatic films near work zones, or change floor sheen to matte. Target 300–500 lux in living zones (IES guidance) and around 500 lux at desks. If you add task lighting, select 3000–3500 K for living areas and 3500–4000 K for focused work; keep unified color temperature to avoid visual dissonance. Place fixtures to bounce off ceilings rather than glazing to prevent reflections.

Acoustic Detailing for Real Rooms

Even with laminated glass, gaps sabotage performance. I run continuous seals at the floor, jambs, and head, and backer-rod with acoustic sealant where frames meet walls. A simple trick: stagger seams relative to noisy spaces. Combine the partition with absorptive elements—wool rugs, upholstered sofas, and ceiling baffles—to lift the overall NRC. Bedrooms benefit from heavier doors (solid core) within the glazed system to keep low-frequency noise in check.

Measuring and Ordering: Avoid Costly Mistakes

Measure finished openings, not rough framing. I leave 6–10 mm total tolerance for shim and seal, depending on frame system. Confirm plumb and level across the full height; a 5 mm lean on a 2400 mm opening is visible next to crisp mullions. Order safety glass to local code requirements and specify polishing for exposed edges. If you plan a butt-joint corner (no vertical mullion), request precise mitering or silicone joints rated for UV exposure.

DIY Installation Sequence

- Protect floors and set a working perimeter.

- Install track or frame plumb and square; verify diagonals match within 2–3 mm.

- Dry-fit panes, check reveals, then set with shims and gaskets per manufacturer.

- Seal perimeter joints, wipe excess immediately.

- Hang doors, adjust closers and latches, and test swing or slide.

- Add privacy films or blinds, then tune lighting to the new reflectance.

Safety and Code Considerations

Glazing adjacent to doors, near floors, or in wet areas typically requires safety-rated glass. Use tempered in showers and consider laminated near stairs for post-break containment. Confirm fire separation rules if the partition touches a rated corridor or kitchen; a non-rated glass wall can’t replace a required fire partition. Handle panes with proper suction cups, cut-resistant gloves, and two-person lifts; even medium panels exceed safe solo handling loads.

Styling the Finished Partition

Balance reflectivity with texture—linen drapes, matte ceramics, and open-grain woods break up specular highlights. Black or bronze frames anchor contemporary palettes; oak trims soften the edge for Scandinavian warmth. Keep sill lines clear and consider a narrow planter ledge to create depth without clutter. If the partition defines a home office, layer acoustic art panels opposite glass to absorb first reflections.

Maintenance for Long-Term Clarity

Use non-ammonia cleaners on coated or filmed glass, and microfiber to avoid scratching. Inspect seals annually, reseat any loose gaskets, and lubricate sliding hardware with manufacturer-approved compounds. For laminated panes, check edges for delamination in high-humidity rooms and maintain ventilation to prevent condensation streaks.

Authority References

For daylight, glare, and visual comfort benchmarks, consult IES standards and WELL v2 guidance available through: IES standards and WELL v2. For workplace daylight and wellbeing research that informs residential studios as well, Steelcase maintains robust resources.

FAQ

Q1: How do I choose between tempered and laminated glass?

A: Tempered is stronger and safer on break, ideal for general partitions and showers. Laminated improves acoustics and holds together after impact, better for bedrooms, offices, and areas needing higher sound isolation.

Q2: What thickness should I use for a standard residential glass wall?

A: 10–12 mm tempered works for most framed systems. For improved sound performance, use 6.4–10.8 mm laminated (two panes + interlayer), confirming compatibility with your frame and hardware.

Q3: How much light will a glass wall add to a living room?

A: In my projects, typical living areas land around 350–450 lux after replacing an opaque divider with clear glass, aligning with IES targets of 300–500 lux for residential tasks.

Q4: Can a glass partition provide privacy?

A: Yes. Use acid-etched or matte films, gradient privacy bands at eye level, or switchable smart film. Combine with soft curtains for nighttime privacy without blocking daytime light.

Q5: Will a glass wall reduce noise?

A: A single tempered pane offers modest reduction (STC low 30s). Laminated glass, tight seals, and solid-core doors can reach mid–30s to low–40s STC depending on detailing.

Q6: Are black steel frames too echo-prone for small apartments?

A: Steel can resonate; mitigate with neoprene gaskets, brush seals, and soft finishes. Aluminum systems with thermal breaks are quieter but may change the aesthetic.

Q7: What about glare near a workstation?

A: Position the desk perpendicular to windows, use sheer diffusers, and select 3500–4000 K task lighting. Follow visual comfort guidance from WELL v2 to avoid direct reflections in the field of view.

Q8: How do I clean and maintain filmed glass?

A: Use non-ammonia cleaners and soft cloths; avoid abrasives at the film edge. Inspect annually for bubbles or lift, especially in humid rooms.

Q9: Can I install a butt-joint corner without a vertical mullion?

A: Yes, with precise mitered edges or UV-rated silicone joints. Ensure the header and adjacent frames can resist racking loads; tolerance is tight.

Q10: What layout mistakes cause the most regret?

A: Narrow circulation, misaligned mullions with window rhythms, and ignoring acoustic seals. Use a planner or visualization tool to test furniture and sightlines before ordering.
