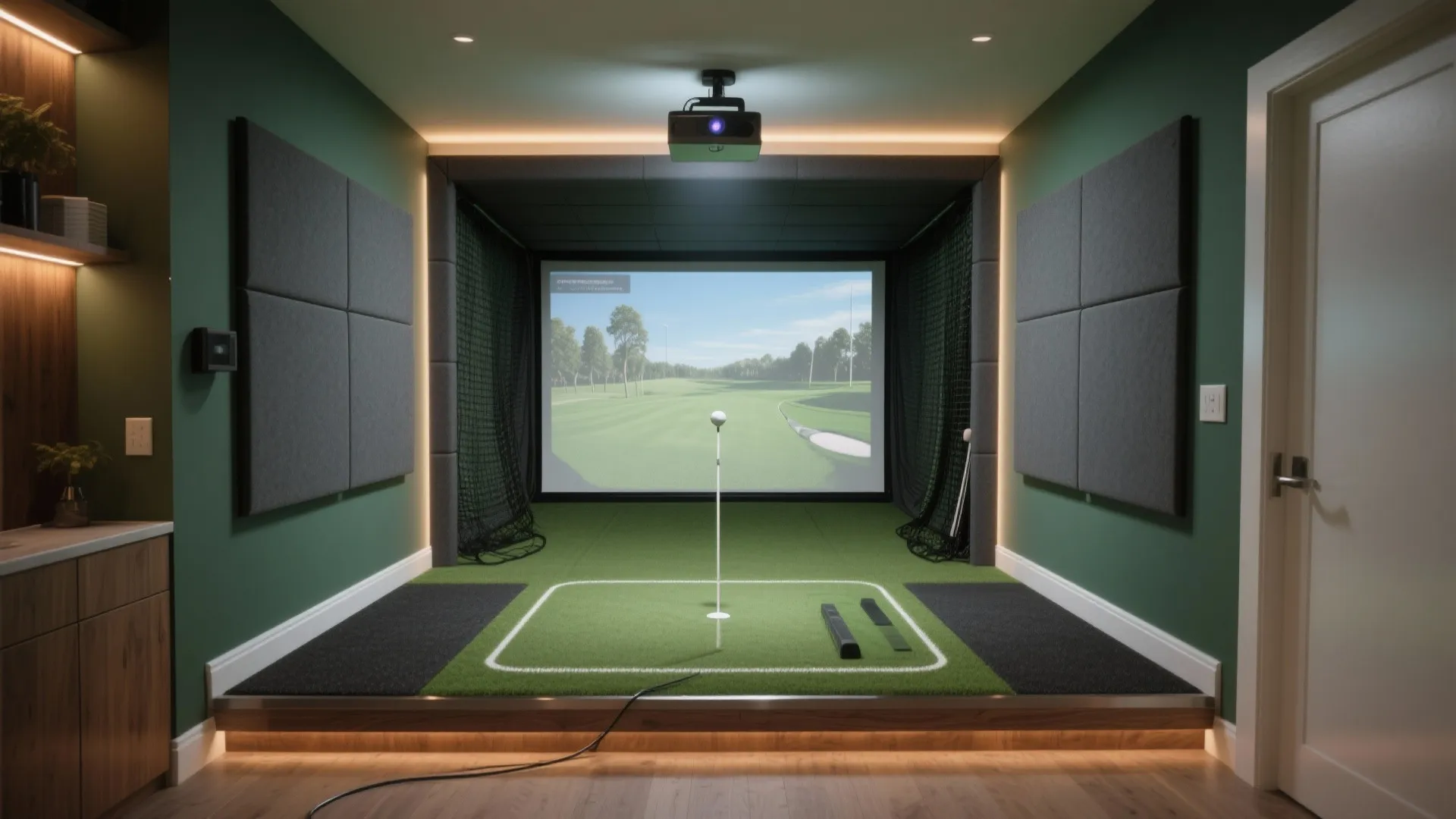

Golf Simulators for Small Spaces: Transform Your Home Practice: 1 Minute to Smart Golf Simulator Setups for Tiny Rooms

I’ve converted several tight apartments, basements, and spare bedrooms into compact golf studios, and the best outcomes come from treating them like true performance spaces—purposeful sightlines, controlled light, and disciplined clearances. In Steelcase’s research on small work environments, users report up to a 17% productivity lift when spaces are optimized for task focus; golf practice is no different—clear geometry and consistent feedback accelerate skill improvement. WELL v2 also underscores controlled lighting and acoustic comfort as core determinants of performance and perceived wellbeing, which directly affects consistency and session length.

To set expectations, aim for safe ball-flight and swing clearance first, then layer in visuals, acoustics, and ergonomics. Gensler’s workplace studies show that environments supporting focused work improve performance and satisfaction across user groups; that same principle applies to micro training zones where repeatable mechanics beat raw square footage. For lighting baselines, I follow IES recommendations for task areas at roughly 300–500 lux on the hitting zone, while keeping the screen face even but slightly dimmer to preserve contrast.

Minimum Room Dimensions and Clearances

For most single-bay setups, I target approximately 10 ft W x 16–18 ft L x 9 ft H. The absolute minimums depend on your height and club length, but I rarely go below 8.5–9 ft clear height for drivers. Depth matters for ball-flight capture and net/screen setback; 16 ft gives room for a tee-to-screen distance of 8–10 ft plus safe backwall clearance. If you’re in a tighter condo room, prioritize ceiling height; otherwise your club path and follow-through will constantly fight the envelope.

For left/right-handed users, add 1–1.5 ft on the swing side beyond your outstretched club arc. If the room must serve mixed use, consider a centered tee position and a retractable screen, giving symmetrical side clearance and walkways on both flanks. When testing layouts, a simple interior layout planner helps you visualize strike paths, ceiling fixtures, and door swing conflicts—a room layout tool can save expensive mistakes before you order hardware: room layout tool.

Choosing the Right Simulator Hardware

Short-throw projectors (0.5:1 or tighter) minimize shadows in small rooms and allow a larger image at shorter distances. Look for 1080p at minimum and 3000+ lumens for clarity under dimmed task lighting. Launch monitors vary: radar systems prefer more depth for ball tracking, while photometric units often thrive in tighter spaces with controlled lighting. If you’re under 16 ft depth, a camera-based unit is usually the safer choice. Place sensors outside major traffic lines and protect them with low-profile bollards or cushioned stanchions if the room doubles as a living space.

Impact Screens, Nets, and Surface Strategy

Use commercial-grade impact screens with layered fabric to reduce bounce-back; a 12–18 in gap from wall to screen helps energy absorption and protects finishes. In very small rooms, a curved screen or side net wings catch heel/toe strikes without eating excessive floor area. For flooring, install a continuous hitting strip integrated into a 4x8 ft or larger mat field; a flush transition to adjacent flooring prevents trip hazards and allows furniture to roll over if needed. Ball return angles should be shallow—think 10–15° tilt at the base—to avoid erratic rebounds.

Lighting: Bright Where You Swing, Controlled Where You Aim

I separate lighting into two layers: a task layer over the hitting zone (300–500 lux) and a controlled ambient layer near the screen at lower intensity to maintain contrast. Avoid downlights directly in the club arc; a compact linear grazing fixture behind the player, dimmable to 2700–3500K, minimizes glare and club reflections. According to IES illuminance guidelines for visual tasks, maintaining adequate vertical and horizontal illuminance reduces eye strain and improves target recognition. Dimming plus glare control means fewer shadows on the ball and a more faithful projected image.

Acoustic Control: Make Small Rooms Feel Bigger

Golf impact noise is a sharp transient; mitigate it with a combination of absorption and isolation. On walls, I use broadband acoustic panels or mineral wool behind fabric at first reflection points; a soft front wall (behind the screen) plus a thick rug or carpet tile underlayment cuts mid/high-frequency slap. The ceiling is often the secret weapon—adding 1–2 in acoustic clouds above the hitting zone dramatically reduces harshness. Seal door perimeters and add a drop seal if neighbors are close. These measures not only keep peace with family but also make your swing tempo feel calmer, which improves dispersion during practice.

Ergonomics and Player Flow

Map your pre-shot routine: where you tee the ball, where you place the next ball, and where you retrieve clubs. Keep the tee box centered with 24–30 in of clear staging on the trail side for ball trays and a towel hook. A low console along the non-swing wall holds the launch monitor display, remote, and a small fan. Mount the main display at eye level when standing at address; that reduces neck rotation and keeps attention in the same plane as the target line. For multi-user households, mark an adjustable tee position on the mat to accommodate different stances.

Color and Visual Strategy

Color psychology suggests cooler hues support focus and minimize arousal; I lean into deep neutral greens, charcoal, and desaturated blues on side walls to reduce visual noise and enhance screen contrast. Verywell Mind’s color psychology guidance notes that blues often promote calm and concentration—handy for repetitive practice. Matte finishes are essential to prevent specular reflections that throw off projector contrast. If the space doubles as a lounge, warm wood accents and dim-to-warm fixtures keep it inviting post-practice without washing out the screen.

Safety and Risk Mitigation

Line the shank zones with side nets tucked tight to the wall with low-profile standoffs. Any glazing should be protected by polycarbonate panels or removable shields. If ceiling height is borderline, test your longest club with slow-motion rehearsal before full swings; add a shallow ceiling net at the forward arc if you must. Confirm projector and sensor cable paths are outside the swing plane; use flush floor cord covers along the non-dominant side.

Ventilation, Heat, and Air Quality

Small rooms heat up fast under projectors and lighting. Cross-ventilation or a quiet inline fan helps; aim for low-Sones equipment to keep ambient noise down. If you’re training frequently, consider an air purifier with a low-profile footprint placed behind the player to avoid airflow on the ball. Keep humidity moderate (40–50%) to protect screens and electronics.

Storage and Dual-Use Planning

For micro apartments, a retractable screen on ceiling tracks and fold-flat side nets convert the bay back to living mode. Store clubs vertically in a slim rack on the non-swing wall and use shallow drawers under a bench for balls, tees, and tools. If you need to shift furniture in and out, draw two modes in your interior layout planner—practice and daily living—and test clearances with a layout simulation tool before you purchase.

Budget Tiers That Work in Tight Rooms

- Entry (tight studio): quality net, photometric launch monitor, 1080p short-throw projector, 4x8 ft mat field, side wings, basic acoustic panels.

- Mid: impact screen with curved side wings, brighter projector (3500–4000 lumens), ceiling acoustic clouds, custom hitting strip, task + ambient lighting zones.

- Premium: tensioned screen, laser projector, integrated dim-to-warm lighting, full-room acoustic treatment, concealed cable management, motorized retractables for dual use.

Step-by-Step Layout Workflow

1) Confirm structural clearances (width, height, depth) and door swings. 2) Place tee and screen first, then sensors and projector based on throw and capture specs. 3) Add side protection and cable paths. 4) Layer lighting with dimming and aim fixtures outside the swing arc. 5) Add acoustic treatment at front wall, side reflections, and overhead. 6) Test sightlines and practice a slow-motion driver swing before fixing hardware. For quick iterations, use an interior layout planner to verify offsets and safe arcs: interior layout planner.

References for Performance and Comfort

For workplace performance data and spatial strategies, Gensler’s research library offers useful parallels for focus zones. WELL v2 details lighting, acoustic, and comfort strategies that translate directly to small training spaces. For illuminance levels and glare control, consult IES standards. For color and focus, see Verywell Mind’s color psychology overview.

FAQ

What is the smallest room I can realistically use?

I advise a minimum of about 10 ft W x 16 ft L x 9 ft H for drivers. If you never hit driver, you might squeeze to ~8.5 ft H, but test swing arcs before committing.

Radar or camera-based launch monitor for small rooms?

Camera-based (photometric) systems are generally better in short depths and controlled light. Radar prefers more downrange space to track ball flight.

How bright should the projector be?

Target 3000–4000 lumens for a clear image with dimmed task lighting. Short-throw optics reduce shadows and allow larger images at closer distances.

How do I stop bounce-back from the screen?

Use a multi-layer impact screen with 12–18 in setback from the wall, maintain slight base tilt, and add soft landing turf to absorb energy.

What lighting color temperature works best?

Keep task lighting around 3000–3500K for comfortable focus and color rendering; reduce intensity near the screen to preserve contrast in the image.

Do I need acoustic treatment?

Yes. A combination of front-wall absorption, side panels at first reflections, and a small ceiling cloud reduces harsh impacts and makes practice less fatiguing.

How can I make a dual-use living room work?

Use a retractable screen, fold-flat side nets, and a flush mat field. Plan two modes in a layout tool and keep storage on the non-swing wall.

What flooring is best under the hitting area?

A continuous mat field with an integrated hitting strip flush to adjacent flooring. Carpet tiles with cushion underlayment around the mat help acoustics.

How do I protect windows and fixtures?

Add side nets, polycarbonate shields over glazing, and route cables outside the swing plane with low-profile floor covers.

What about ventilation and heat from equipment?

Choose quiet, efficient fans and allow airflow around the projector. Keep humidity around 40–50% to protect screens and electronics.

Can I share the setup with left- and right-handed players?

Center the tee position, provide symmetrical side clearance, and mark adjustable stance positions on the mat.

How much acoustic isolation do I need for apartments?

Seal door perimeters, add dense rugs, and consider a secondary layer behind the screen. If neighbors are close, prioritize ceiling absorption and door sweeps.
